Introduction:
This article explains how to implement infinite scrolling in the ASP.NET Web API. We use the paging with the scrolling.
The following is the procedure for creating the application.
Step 1
Create a Web Application as in the following:
- Start Visual Studio 2012.
- From the Start window select "Installed" -> "Visual C#" -> "Web".

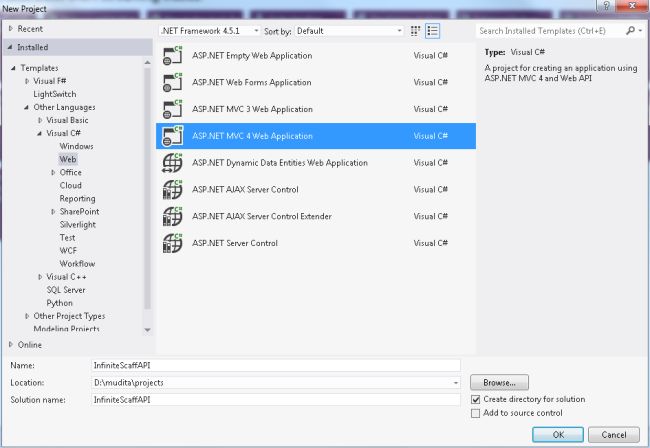

- Select "ASP.NET MVC4 Web Application" and click on the "Ok" button.
![Select MVC4 application]()
- From the "MVC4 Project" window select "Web API".

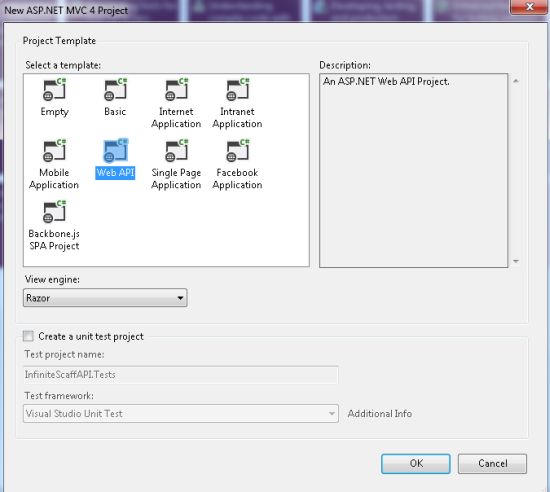

![Select Web API]()
- Click on the "OK" button.
Step 2
Create a Model Class as in the following:
- In the "Solution Explorer".
- Right-click on the Model Folder.
- Select "Add" -> "Class".
- Select "Install" -> "Visual C#" and then select class.

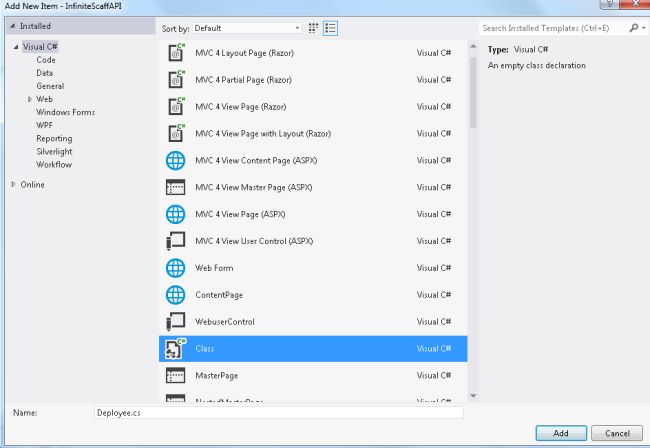

![Add Model Class]()
- Click on the "Add" button.
Add the following code:
using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
namespace InfiniteScaffAPI.Models
{
public class Deployee
{
public int Id { get; set; }
public string Topic { get; set; }
public string TextMetter { get; set; }
public string Writer{ get; set; }
}
}
Step 3
Now install the MVCScaffholdingpackage as in the following:
- Go to the Tools menu and select "Library Package Manager" -> "Package Manager Console".
- And enter the command "install-package MvcScaffolding".
Step 4
Now add the Scaffolding Data Controller as in the following:
- In the "Solution Explorer".
- Right-click on the Controller.
- Select "Add" -> "Controller".
- Set the controller name and from the Scaffolding options select "MVC controller with read/Write actions and views, using Entity Framework".
- And select the model class.

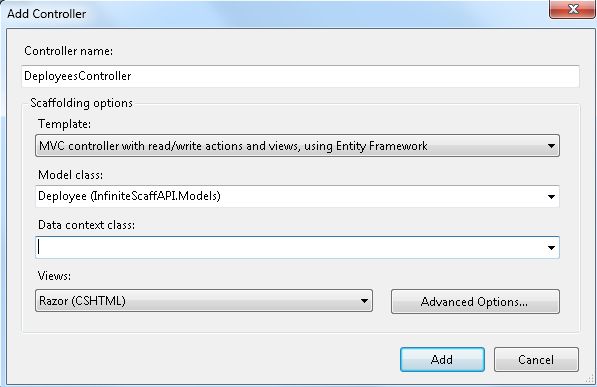

![Add Controller]()
- Now click on the "Data Context Class".
- And select "New Data Context".

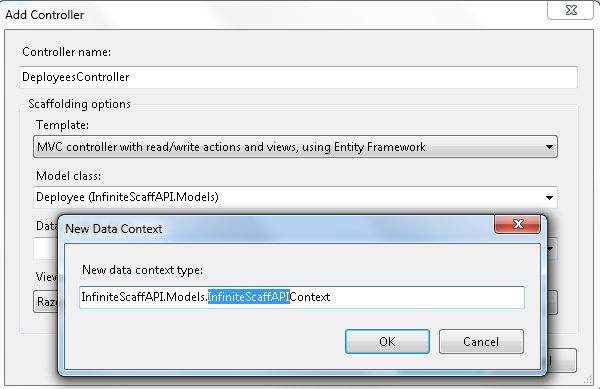

![Add Data Context]()
- And click on the "Ok" button.
After creating this controller it adds the following two files to your project :
- First is "InfiniteScaffAPIContext.cs" in the Model Folder.
- The second is a "Deployees" folder in the "Views" folder in which some view files are created, such as Create, Edit, Delete and Index.

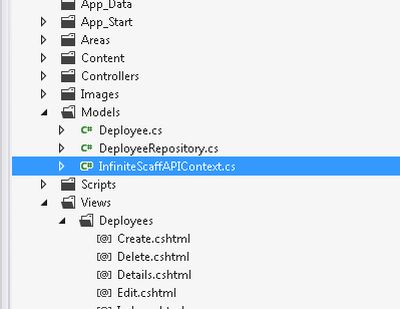

![Display Some file]()
Step 5
Add another Repository Class in the Model folder using the same procedure as Step 2.
Add the following code:
using System;
using System.Collections.Generic;
using System.Data;
using System.Data.Entity;
using System.Linq;
using System.Linq.Expressions;
using System.Web;
namespace InfiniteScaffAPI.Models
{
public class DeployeeRepository:IDeployeeRepository
{
InfiniteScaffAPIContext scafcontext = new InfiniteScaffAPIContext();
public IQueryable<Deployee> All
{
get { return scafcontext.Deployees; }
}
public IQueryable<Deployee> AllIncluding(params Expression<Func<Deployee, object>>[] includeProperties)
{
IQueryable<Deployee> query = scafcontext.Deployees;
foreach (var includeProperty in includeProperties)
{
query = query.Include(includeProperty);
}
return query;
}
public Deployee Find(int id)
{
return scafcontext.Deployees.Find(id);
}
public void InsertOrUpdate(Deployee deployee)
{
if (deployee.Id == default(int)) {
// New entity
scafcontext.Deployees.Add(deployee);
} else {
// Existing entity
scafcontext.Entry(deployee).State = EntityState.Modified;
}
}
public void Delete(int id)
{
var post = scafcontext.Deployees.Find(id);
scafcontext.Deployees.Remove(post);
}
public void Save()
{
scafcontext.SaveChanges();
}
public void Dispose()
{
scafcontext.Dispose();
}
public IQueryable<Deployee> PostPage(int pageNumber, int pageSize)
{
return scafcontext.Deployees.OrderBy(f => f.Id).Skip(pageSize * pageNumber).Take(pageSize);
}
}
public interface IDeployeeRepository : IDisposable
{
IQueryable<Deployee> All { get; }
IQueryable<Deployee> AllIncluding(params Expression<Func<Deployee, object>>[] includeProperties);
Deployee Find(int id);
void InsertOrUpdate(Deployee deployee);
void Delete(int id);
void Save();
IQueryable<Deployee> PostPage(int pageNumber, int pageSize);
}
}
Step 6
Now add an API controller as in the following:
-
Right-click on the Controller Folder.
-
Select "Add" -> "Controller" then select "API controller" from the Template.
-
Click on the "Add" button.

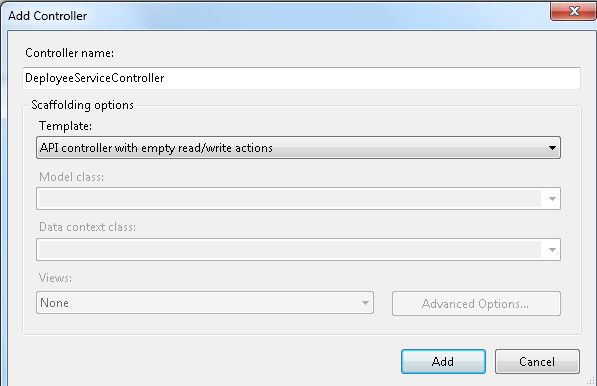

![Add API Controller]()
Add the following Code:
using System;
using System.Collections.Generic;
using System.Linq;
using System.Net;
using System.Net.Http;
using System.Web.Http;
using InfiniteScaffAPI.Models;
namespace InfiniteScaffAPI.Controllers
{
public class DeployeeServiceController : ApiController
{
IDeployeeRepository res;
public DeployeeServiceController(IDeployeeRepository repo)
{
res = repo;
}
public DeployeeServiceController()
{
DeployeeRepository res = new DeployeeRepository();
}
[HttpGet]
public IEnumerable<Deployee> GetPosts(int id)
{
IEnumerable<Deployee> deployees = res.PostPage(id, 5);
return deployees;
}
}
}
Step 7
Now change the controller and action name in the Rout.config file as in the following:
{
routes.IgnoreRoute("{resource}.axd/{*pathInfo}");
routes.MapRoute(
name: "Default",
url: "{controller}/{action}/{id}",
defaults: new { controller = "Deployees", action = "Create", id = UrlParameter.Optional }
);
}
Step 8
Execute the application and some text.

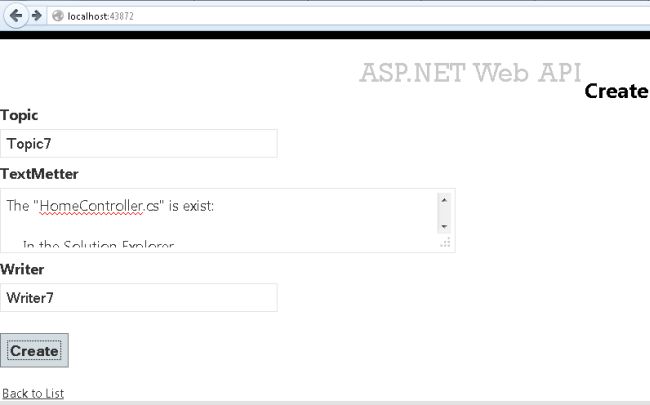

![Add the Detail]()

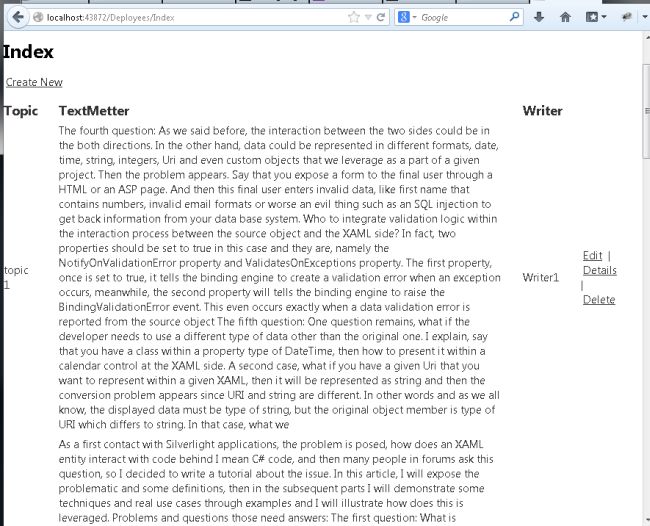

![Display the Scroll on the Post Page]()
Click on edit and edit anything in the Post, click on "Save".

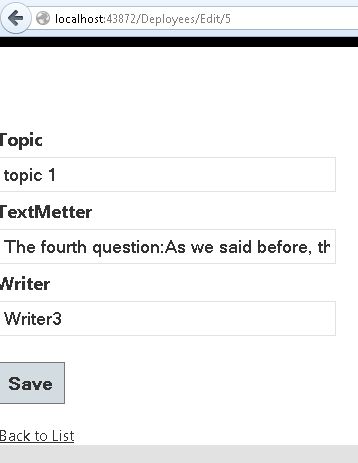

![Edit the writer name]()

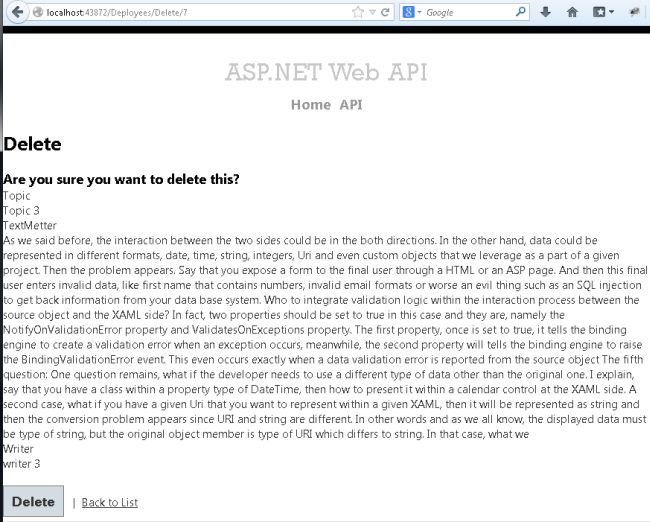

Click on "Delete" and click on the "Delete" button. It deletes the specific post.
![Delete the Post]()
Now see that in the Post there is no one posting as Writer 3.
