Local Database SQLite For Windows 10

Here's the step by step implementation.

Introduction

SQLite is a lightweight database used for mobile local storages.

Create New UWP project.

Setup SQLite environment.

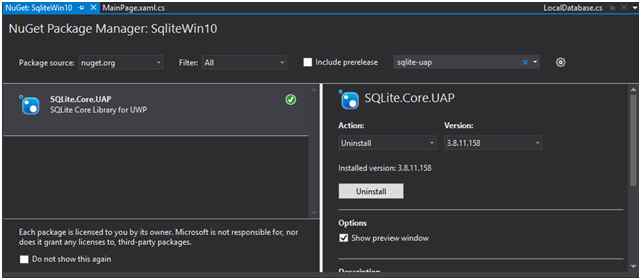

Install SQLite-UAP extensions form NuGet Package Manager as in the following screen.

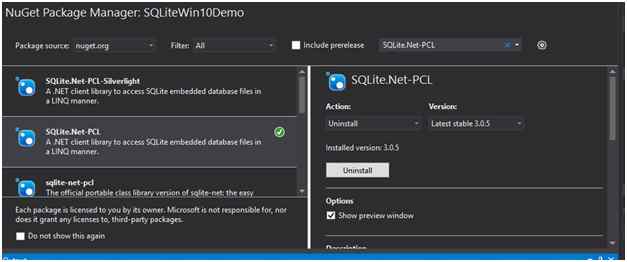

Next Install SQLite.Net-PCL extension from NuGet Package



Now, we are going to the following areas:

• How to perform SQLite CRUD operations.
• How to bind SQLite data to a ListBox.

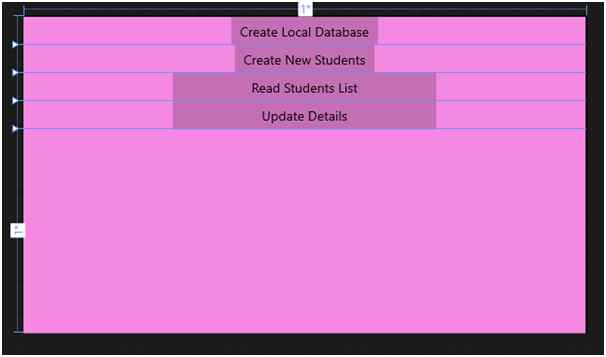

Design the UI as in the following screenshot:



XAML Code

<Grid Background="#FFF589E2">
    <Grid.ColumnDefinitions>
        <ColumnDefinition></ColumnDefinition>
    </Grid.ColumnDefinitions>
    <Grid.RowDefinitions>
        <RowDefinition Height="Auto"></RowDefinition>
        <RowDefinition Height="Auto"></RowDefinition>
        <RowDefinition Height="Auto"></RowDefinition>
        <RowDefinition Height="Auto"></RowDefinition>
        <RowDefinition Height="*"></RowDefinition>
    </Grid.RowDefinitions>
    <Button x:Name="CreateDBbutton" Grid.Row="0" Content="Create Local Database" HorizontalAlignment="Center" VerticalAlignment="Top" Click="button_Click" />
    <Button x:Name="create" Grid.Row="1" Content="Create New Students" HorizontalAlignment="Center" Click="create_Click"></Button>
    <Button x:Name="read" Grid.Row="2" Content="Read Students List" Width="300" Click="read_Click" HorizontalAlignment="Center"></Button>
    <Button x:Name="update" Grid.Row="3" Content="Update Details" Width="300" Click="update_Click" HorizontalAlignment="Stretch"></Button>
    <ListView x:Name="allstudents" HorizontalAlignment="Stretch" Grid.Row="4">
        <ListView.ItemTemplate>
            <DataTemplate>
                <TextBlock x:Name="ee" Text="{Binding Name}" FontSize="14"></TextBlock>
            </DataTemplate>
        </ListView.ItemTemplate>
    </ListView>
</Grid>

Now write the following code in the bcorresponding button click events.

I am going to create one Student DB with Students Table with id, Name, Address and Mobile. First design the table like the following:

public class Students
{
    [SQLite.Net.Attributes.PrimaryKey, SQLite.Net.Attributes.AutoIncrement]
    public int Id
    {
        get;
        set;
    }
    public string Name
    {
        get;
        set;
    }
    public string Address
    {
        get;
        set;
    }
    public string Mobile
    {
        get;
        set;
    }
    public Students()
    {}
    public Students(string name, string address, string mobile)
    {
        Name = name;
        Address = address;
        Mobile = mobile;
    }
}

Create DB

public static void CreateDatabase()
{
    var sqlpath = System.IO.Path.Combine(Windows.Storage.ApplicationData.Current.LocalFolder.Path, "Studentdb.sqlite");
    using(SQLite.Net.SQLiteConnection conn = new SQLite.Net.SQLiteConnection(new SQLite.Net.Platform.WinRT.SQLitePlatformWinRT(), sqlpath))
    {
        conn.CreateTable < Students > ();
    }
}

Insert New Student details

public void Insert(Students objContact)
{
    var sqlpath = System.IO.Path.Combine(Windows.Storage.ApplicationData.Current.LocalFolder.Path, "Studentdb.sqlite");
    using(SQLite.Net.SQLiteConnection conn = new SQLite.Net.SQLiteConnection(new SQLite.Net.Platform.WinRT.SQLitePlatformWinRT(), sqlpath))
    {
        conn.RunInTransaction(() =>
        {
            conn.Insert(objContact);
        });
    }
}

Retrieve the specific contact from the database

// Retrieve the specific contact from the database.
public Students ReadContact(int contactid)
{
    var sqlpath = System.IO.Path.Combine(Windows.Storage.ApplicationData.Current.LocalFolder.Path, "Studentdb.sqlite");
    using(SQLite.Net.SQLiteConnection conn = new SQLite.Net.SQLiteConnection(new SQLite.Net.Platform.WinRT.SQLitePlatformWinRT(), sqlpath))
    {
        var existingconact = conn.Query < Students > ("select * from Students where Id =" + contactid).FirstOrDefault();
        return existingconact;
    }
}

Read All Student details

//Read All Student details
public ObservableCollection < Students > ReadAllStudents()
{
    var sqlpath = System.IO.Path.Combine(Windows.Storage.ApplicationData.Current.LocalFolder.Path, "Studentdb.sqlite");
    using(SQLite.Net.SQLiteConnection conn = new SQLite.Net.SQLiteConnection(new SQLite.Net.Platform.WinRT.SQLitePlatformWinRT(), sqlpath))
    {
        List < Students > myCollection = conn.Table < Students > ().ToList < Students > ();
        ObservableCollection < Students > StudentsList = new ObservableCollection < Students > (myCollection);
        return StudentsList;
    }
}

Update student details

//Update student detaisl
public void UpdateDetails(string name)
{
    var sqlpath = System.IO.Path.Combine(Windows.Storage.ApplicationData.Current.LocalFolder.Path, "Studentdb.sqlite");
    using(SQLite.Net.SQLiteConnection conn = new SQLite.Net.SQLiteConnection(new SQLite.Net.Platform.WinRT.SQLitePlatformWinRT(), sqlpath))
    {
        var existingconact = conn.Query < Students > ("select * from Students where Name =" + name).FirstOrDefault();
        if (existingconact != null)
        {
            existingconact.Name = name;
            existingconact.Address = "NewAddress";
            existingconact.Mobile = "962623233";
            conn.RunInTransaction(() =>
            {
                conn.Update(existingconact);
            });
        }
    }
}

Delete all student or delete student table

//Delete all student or delete student table
public void DeleteAllContact()
{
    var sqlpath = System.IO.Path.Combine(Windows.Storage.ApplicationData.Current.LocalFolder.Path, "Studentdb.sqlite");
    using(SQLite.Net.SQLiteConnection conn = new SQLite.Net.SQLiteConnection(new SQLite.Net.Platform.WinRT.SQLitePlatformWinRT(), sqlpath))
    {
        conn.DropTable < Students > ();
        conn.CreateTable < Students > ();
        conn.Dispose();
        conn.Close();
    }
}
Delete specific student
//Delete specific student
public void DeleteContact(int Id)
{
    var sqlpath = System.IO.Path.Combine(Windows.Storage.ApplicationData.Current.LocalFolder.Path, "Studentdb.sqlite");
    using(SQLite.Net.SQLiteConnection conn = new SQLite.Net.SQLiteConnection(new SQLite.Net.Platform.WinRT.SQLitePlatformWinRT(), sqlpath))
    {
        var existingconact = conn.Query < Students > ("select * from Studentdb where Id =" + Id).FirstOrDefault();
        if (existingconact != null)
        {
            conn.RunInTransaction(() =>
            {
                conn.Delete(existingconact);
            });
        }
    }
}

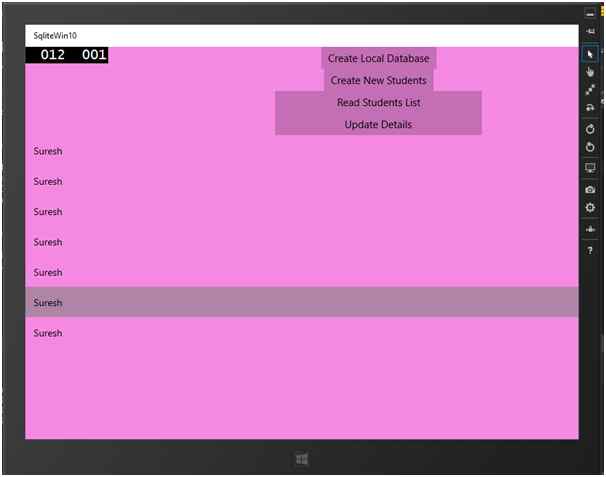

Now run the app with different devices and you will get the following output.

Here I have tested with Windows 10 Stimulator.



Source code.
