SVG Overview in HTML5



This article will provide some light on a tag of HTML5 named SVG. SVG stands for “Scalable Vector Graphics”. It is basically used to define vector based graphics for the web. A very good advantage of the SVG is that if we zoom or resize an image then there is no loss of quality of the image.

SVG always defined the graphics in XML format. Using SVG we can animate every attribute in the file.



We can use this SVG tag inside the HTML tag or outside. If we use SVG from outside then for linking this SVG page to a HTML page we use:
  1. <iframe src=”filename.SVG” width=” ” height=” ”>

Now we move to doing some work on SVG.

1. How to make a rectangle using SVG

  1. <?xml version="1.0" encoding="utf-8"?>
  2. <!DOCTYPE svg PUBLIC "-//W3C//DTD SVG 1.1//EN" "http://www.w3.org/Graphics/SVG/1.1/DTD/svg11.dtd">
  3. <!--Scalable Vector Graphic-->
  4. <svg version="1.1"
  5.      xmlns="http://www.w3.org/2000/svg"
  6.      xmlns:xlink="http://www.w3.org/1999/xlink"
  7.      xmlns:ev="http://www.w3.org/2001/xml-events"
  8.      baseProfile="full">
  9.      <rect x="10" y="10" height="100" width="100"
  10.           style="stroke:#333; stroke-width:4; fill:#0F0"/>
  11. </svg>

Output

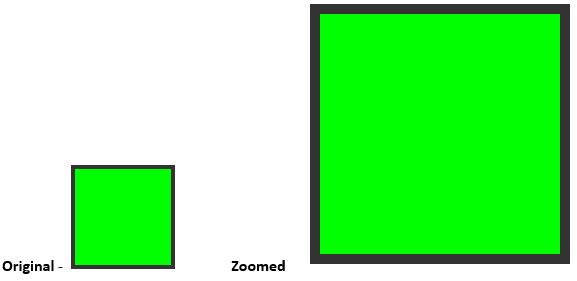

So here we can see examples of a SVG in which there is no loss of image quality after zooming the image.

2. Make text using SVG

  1. <?xml version="1.0" encoding="utf-8"?>
  2. <!DOCTYPE svg PUBLIC "-//W3C//DTD SVG 1.1//EN" "http://www.w3.org/Graphics/SVG/1.1/DTD/svg11.dtd">
  3. <!--Scalable Vector Graphic-->
  4. <svg version="1.1"
  5.      xmlns="http://www.w3.org/2000/svg"
  6.      xmlns:xlink="http://www.w3.org/1999/xlink"
  7.      xmlns:ev="http://www.w3.org/2001/xml-events"
  8.      baseProfile="full">
  9.      <text x="20" y="40"
  10.     style="stroke:none; fill:#000000;">
  11.     sanjay kumar singh
  12.     </text>
  13. </svg>

Output



Here we can also see that there is no loss of image quality after zooming the image.

INKSCAPE software

Inkscape is a professional vector graphics editor for Windows, Mac OS X and Linux. It's free and open source.



Download inkscape:

http://sourceforge.net/projects/inkscape/files/latest/download?source=files

Here I make a man using the inkscape tool.

Code that is automatically generated by the inkscape tool to only make the man:

  1. <SVG
  2. xmlns:dc="http://purl.org/dc/elements/1.1/"
  3. xmlns:cc="http://creativecommons.org/ns#"
  4. xmlns:rdf="http://www.w3.org/1999/02/22-rdf-syntax-ns#"
  5. xmlns:SVG="http://www.w3.org/2000/SVG"
  6. xmlns="http://www.w3.org/2000/SVG"
  7. xmlns:sodipodi="http://sodipodi.sourceforge.net/DTD/sodipodi-0.dtd"
  8. xmlns:inkscape="http://www.inkscape.org/namespaces/inkscape"
  9. width="744.09448819"
  10. height="1052.3622047"
  11. id="SVG3787"
  12. version="1.1"
  13. inkscape:version="0.48.5 r10040"
  14. sodipodi:docname="drawing.SVG">
  15. <defs
  16. id="defs3789" />
  17. <sodipodi:namedview
  18. id="base"
  19. pagecolor="#ffffff"
  20. bordercolor="#666666"
  21. borderopacity="1.0"
  22. inkscape:pageopacity="0.0"
  23. inkscape:pageshadow="2"
  24. inkscape:zoom="0.35"
  25. inkscape:cx="-70.714286"
  26. inkscape:cy="520"
  27. inkscape:document-units="px"
  28. inkscape:current-layer="layer1"
  29. showgrid="false"
  30. inkscape:window-width="1366"
  31. inkscape:window-height="705"
  32. inkscape:window-x="-8"
  33. inkscape:window-y="-8"
  34. inkscape:window-maximized="1" />
  35. <metadata
  36. id="metadata3792">
  37. <rdf:RDF>
  38. <cc:Work
  39. rdf:about="">
  40. <dc:format>image/SVG+xml</dc:format>
  41. <dc:type
  42. rdf:resource="http://purl.org/dc/dcmitype/StillImage" />
  43. <dc:title></dc:title>
  44. </cc:Work>
  45. </rdf:RDF>
  46. </metadata>
  47. <g
  48. inkscape:label="Layer 1"
  49. inkscape:groupmode="layer"
  50. id="layer1">
  51. <path
  52. sodipodi:type="arc"
  53. style="opacity:0.95999995;fill:#0000ca;fill-opacity:1;stroke:#010900;stroke-opacity:0.96296297"
  54. id="path4305"
  55. sodipodi:cx="534.28571"
  56. sodipodi:cy="360.93362"
  57. sodipodi:rx="148.57143"
  58. sodipodi:ry="142.85715"
  59. d="m 682.85713,360.93362 a 148.57143,142.85715 0 1 1 -297.14285,0 148.57143,142.85715 0 1 1 297.14285,0 z"
  60. transform="translate(-185.71429,-145.71428)" />
  61. <path
  62. sodipodi:type="arc"
  63. style="opacity:0.95999995;fill:#0000ca;fill-opacity:1;stroke:#0109e3;stroke-opacity:0.96296297"
  64. id="path4315"
  65. sodipodi:cx="188.57143"
  66. sodipodi:cy="200.93361"
  67. sodipodi:rx="22.857143"
  68. sodipodi:ry="40"
  69. d="m 211.42857,200.93361 a 22.857143,40 0 1 1 -45.71429,0 22.857143,40 0 1 1 45.71429,0 z"
  70. transform="matrix(0.57125058,0,0,1,90.649876,0)" />
  71. <path
  72. sodipodi:type="arc"
  73. style="opacity:0.95999995;fill:#0000ca;fill-opacity:1;stroke:#0109e3;stroke-opacity:0.96296297"
  74. id="path4317"
  75. sodipodi:cx="492.85715"
  76. sodipodi:cy="190.93361"
  77. sodipodi:rx="15.714286"
  78. sodipodi:ry="35.714287"
  79. d="m 508.57143,190.93361 a 15.714286,35.714287 0 1 1 -31.42857,0 15.714286,35.714287 0 1 1 31.42857,0 z" />
  80. <path
  81. sodipodi:type="arc"
  82. style="opacity:0.95999995;fill:#0000ca;fill-opacity:1;stroke:#0109e3;stroke-opacity:0.96296297"
  83. id="path4319"
  84. sodipodi:cx="284.28571"
  85. sodipodi:cy="180.93361"
  86. sodipodi:rx="18.571428"
  87. sodipodi:ry="17.142857"
  88. d="m 302.85713,180.93361 a 18.571428,17.142857 0 1 1 -37.14285,0 18.571428,17.142857 0 1 1 37.14285,0 z" />
  89. <path
  90. sodipodi:type="arc"
  91. style="opacity:0.95999995000000005;fill:#71ecca;fill-opacity:1;stroke:#01f3e3;stroke-opacity:0.96296296999999997"
  92. id="path4321"
  93. sodipodi:cx="280"
  94. sodipodi:cy="179.50504"
  95. sodipodi:rx="22.857143"
  96. sodipodi:ry="21.428572"
  97. d="m 302.85714,179.50504 a 22.857143,21.428572 0 1 1 -45.71428,0 22.857143,21.428572 0 1 1 45.71428,0 z"
  98. transform="matrix(1.3288976,0,0,0.54378156,-84.573681,72.117398)" />
  99. <path
  100. sodipodi:type="arc"
  101. style="opacity:0.95999995;fill:#71ecca;fill-opacity:1;stroke:#01f3e3;stroke-opacity:0.96296297"
  102. id="path4323"
  103. sodipodi:cx="395.71429"
  104. sodipodi:cy="175.21933"
  105. sodipodi:rx="27.142857"
  106. sodipodi:ry="11.428572"
  107. d="m 422.85715,175.21933 a 27.142857,11.428572 0 1 1 -54.28571,0 27.142857,11.428572 0 1 1 54.28571,0 z"
  108. transform="matrix(1,0,0,1.0610854,2.8571429,-16.624552)" />
  109. <path
  110. sodipodi:type="arc"
  111. style="opacity:0.95999995;fill:#71ecca;fill-opacity:1;stroke:#01f3e3;stroke-opacity:0.96296297"
  112. id="path4325"
  113. sodipodi:cx="347.14285"
  114. sodipodi:cy="222.36218"
  115. sodipodi:rx="7.1428571"
  116. sodipodi:ry="30"
  117. d="m 354.28571,222.36218 a 7.1428571,30 0 1 1 -14.28571,0 7.1428571,30 0 1 1 14.28571,0 z" />
  118. <path
  119. sodipodi:type="arc"
  120. style="opacity:0.95999995;fill:#71ecca;fill-opacity:1;stroke:#01f3e3;stroke-opacity:0.96296297"
  121. id="path4327"
  122. sodipodi:cx="347.14285"
  123. sodipodi:cy="290.93362"
  124. sodipodi:rx="75.714287"
  125. sodipodi:ry="15.714286"
  126. d="m 422.85714,290.93362 a 75.714287,15.714286 0 1 1 -151.42857,0 75.714287,15.714286 0 1 1 151.42857,0 z"
  127. transform="matrix(0.79802031,0,0,0.64883286,68.765695,96.647987)" />
  128. <path
  129. sodipodi:type="arc"
  130. style="opacity:0.95999995000000005;fill:#0709ca;fill-opacity:1;stroke:#01f3e3;stroke-opacity:0.96296296999999997"
  131. id="path4339"
  132. sodipodi:cx="348.57144"
  133. sodipodi:cy="625.2193"
  134. sodipodi:rx="202.85715"
  135. sodipodi:ry="235.71428"
  136. d="m 551.42859,625.2193 a 202.85715,235.71428 0 1 1 -405.7143,0 202.85715,235.71428 0 1 1 405.7143,0 z"
  137. transform="matrix(0.94592035,0,0,1,21.711865,-34.285714)" />
  138. <rect
  139. style="opacity:0.95999995;fill:#0709ca;fill-opacity:1;stroke:#01f3e3;stroke-opacity:0.96296297"
  140. id="rect4341"
  141. width="17.142857"
  142. height="182.85715"
  143. x="262.85715"
  144. y="803.79077" />
  145. <rect
  146. style="opacity:0.95999995;fill:#0709ca;fill-opacity:1;stroke:#01f3e3;stroke-opacity:0.96296297"
  147. id="rect4345"
  148. width="80"
  149. height="14.285714"
  150. x="194.28572"
  151. y="980.93359" />
  152. <rect
  153. style="opacity:0.95999995;fill:#0709ca;fill-opacity:1;stroke:#01f3e3;stroke-width:1.03391075;stroke-opacity:0.96296297"
  154. id="rect4347"
  155. width="18.325224"
  156. height="182.85715"
  157. x="405.21429"
  158. y="809.50507" />
  159. <rect
  160. style="opacity:0.95999995;fill:#0709ca;fill-opacity:1;stroke:#01f3e3;stroke-opacity:0.96296297"
  161. id="rect4349"
  162. width="97.14286"
  163. height="14.285714"
  164. x="414.28571"
  165. y="975.2193" />
  166. <rect
  167. style="opacity:0.95999995000000005;fill:#0709ca;fill-opacity:1;stroke:#010be3;stroke-opacity:0.96296299"
  168. id="rect4351"
  169. width="148.57143"
  170. height="20"
  171. x="48.57143"
  172. y="480.93362" />
  173. <rect
  174. style="opacity:0.95999995000000005;fill:#0709ca;fill-opacity:1;stroke:#0105e3;stroke-width:0.76282506999999999;stroke-opacity:0.96296299"
  175. id="rect4353"
  176. width="14.963196"
  177. height="131.42857"
  178. x="48.343803"
  179. y="500.93362" />
  180. <rect
  181. style="opacity:0.95999995000000005;fill:#0709ca;fill-opacity:1;stroke:#0116e3;stroke-opacity:0.96296299"
  182. id="rect4357"
  183. width="145.71428"
  184. height="22.857143"
  185. x="517.14288"
  186. y="478.07648"
  187. ry="0" />
  188. <rect
  189. style="opacity:0.95999995000000005;fill:#0709ca;fill-opacity:1;stroke:#0116e3;stroke-width:0.96534306000000003;stroke-opacity:0.96296299"
  190. id="rect4361"
  191. width="20.499195"
  192. height="129.88486"
  193. x="637.14288"
  194. y="348.98215" />
  195. </g>
  196. </SVG>

Output
