Android ViewPager

ViewPager is a simple layout manager to mover through views using simple left and right swipes.
It was not available till android sdk 11 so we will need to import the android support library v4 or v13
It is used in managing fragments but in this article we are going to implement a simple ImageView swipe.

This demo uses 4 images android1.jpg .... android4.jpg so first get these images or download the source code
It also uses a background resource from an earlier article android buttons background

Now lets start, create a new project, import the android v4 support library

Now open activity_main.xml file

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical"
    >
    <android.support.v4.view.ViewPager
        android:id="@+id/viewPager"
        android:layout_height="match_parent"
        android:layout_width="match_parent"
        android:layout_weight="1"
    />
    <LinearLayout
        android:layout_height="50dp"
        android:layout_width="match_parent"
        android:background="#C799AA"
        >
        <Button
            android:id="@+id/previousButton"
            android:layout_height="wrap_content"
            android:layout_width="80dp"
            android:padding="10dp"
            android:text="Previous"
            android:textSize="14sp"
            android:background="@drawable/button_background"
            android:layout_margin="5dp"
            android:textColor="#ffffff"
            android:enabled="false"
            />
        <TextView
            android:id="@+id/positionTextView"
            android:layout_height="wrap_content"
            android:layout_width="fill_parent"
            android:gravity="center"
            android:layout_weight="1"
            android:padding="5dp"
            android:layout_gravity="center_vertical"
            android:textColor="#000000"
            android:textSize="15sp"
            />
        <Button
            android:id="@+id/nextButton"
            android:layout_height="wrap_content"
            android:layout_width="80dp"
            android:padding="10dp"
            android:text="Next"
            android:textSize="14sp"
            android:background="@drawable/button_background"
            android:layout_margin="5dp"
            android:textColor="#ffffff"
            />
    </LinearLayout>
</LinearLayout>



Here android.support.v4.view.ViewPager is the tag for the ViewPager as it is imported from the android v4 support library
Rest is self explanatory i.e. two Buttons for next and previous, a TextView for indicating the position.

Now open MainActivity.java

import android.app.Activity;
import android.os.Bundle;
import android.support.v4.view.PagerAdapter;
import android.support.v4.view.ViewPager;
import android.support.v4.view.ViewPager.OnPageChangeListener;
import android.view.Menu;
import android.view.View;
import android.view.View.OnClickListener;
import android.view.ViewGroup;
import android.widget.Button;
import android.widget.ImageView;
import android.widget.LinearLayout.LayoutParams;
import android.widget.TextView;

public class MainActivity extends Activity {

    private int[] images = {R.drawable.android1, R.drawable.android2, R.drawable.android3, R.drawable.android4, R.drawable.android5};
    private ViewPager mViewPager;
    private MyPagerAdapter myPagerAdapter;
    private Button nextButton, previousButton;
    private TextView positinTextView;
    private int imageCount = images.length;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        /*
         * Initialize every Object
         */
        myPagerAdapter = new MyPagerAdapter();

        previousButton = (Button)findViewById(R.id.previousButton);
        nextButton = (Button)findViewById(R.id.nextButton);

        positinTextView = (TextView)findViewById(R.id.positionTextView);

        mViewPager = (ViewPager)findViewById(R.id.viewPager);
        mViewPager.setAdapter(myPagerAdapter);

        /*
         * ViewPager's setCurrentItem(int) method is used here to set the first image although not required
         */
        mViewPager.setCurrentItem(0);
        positinTextView.setText("1 of "+imageCount);

        /*
         * Set OnPageChangeListener
         * In onPageSelected enable/disable next/previous buttons and set the value in poistionTextView
         */
        mViewPager.setOnPageChangeListener(new OnPageChangeListener() {

            @Override
            public void onPageSelected(int position) {
                // TODO Auto-generated method stub
                positinTextView.setText((position+1)+" of "+imageCount);
                if (position==imageCount-1) {
                    nextButton.setEnabled(false);
                }
                else {
                    nextButton.setEnabled(true);
                }
                if (position==0) {
                    previousButton.setEnabled(false);
                }
                else {
                    previousButton.setEnabled(true);
                }
            }

            @Override
            public void onPageScrolled(int position, float positionOffset, int positionOffsetPixels) {
            }

            @Override
            public void onPageScrollStateChanged(int state) {
            }
        });

        /*
         * Set OnClickListener on buttons to change the Image in ViewPager
         */
        nextButton.setOnClickListener(new OnClickListener() {
            @Override
            public void onClick(View v) {
                // TODO Auto-generated method stub
                mViewPager.setCurrentItem(mViewPager.getCurrentItem()+1);
            }
        });

        previousButton.setOnClickListener(new OnClickListener() {
            @Override
            public void onClick(View v) {
                // TODO Auto-generated method stub
                mViewPager.setCurrentItem(mViewPager.getCurrentItem()-1);
            }
        });
    }

    @Override
    public boolean onCreateOptionsMenu(Menu menu) {
        // Inflate the menu; this adds items to the action bar if it is present.
        getMenuInflater().inflate(R.menu.main, menu);
        return true;
    }

    /*
     * Pager Adapter for ViewPager
     * We have to override 4 methods as done below
     */
    private class MyPagerAdapter extends PagerAdapter {

        public MyPagerAdapter(){}

        /*
         * Returns the
         */
        @Override
        public int getCount() {
            return imageCount;
        }

        @Override
        public View instantiateItem(ViewGroup container, int position) {
            /*
             * We dynamically create an ImageView but we could have inflated a layout if needed
             */
            ImageView mImageView = new ImageView(MainActivity.this);
            mImageView.setImageResource(images[position]);

            // Now just add ImageView to ViewPager and return it
            container.addView(mImageView, LayoutParams.MATCH_PARENT, LayoutParams.MATCH_PARENT);

            return mImageView;
        }

        @Override
        public void destroyItem(ViewGroup container, int position, Object object) {
            container.removeView((View) object);
        }

        @Override
        public boolean isViewFromObject(View view, Object object) {
            return view == object;
        }
    }
}



Please read the comments in between the code lines for more explanation

Google Documentation: http://developer.android.com/reference/android/support/v4/view/ViewPager.html

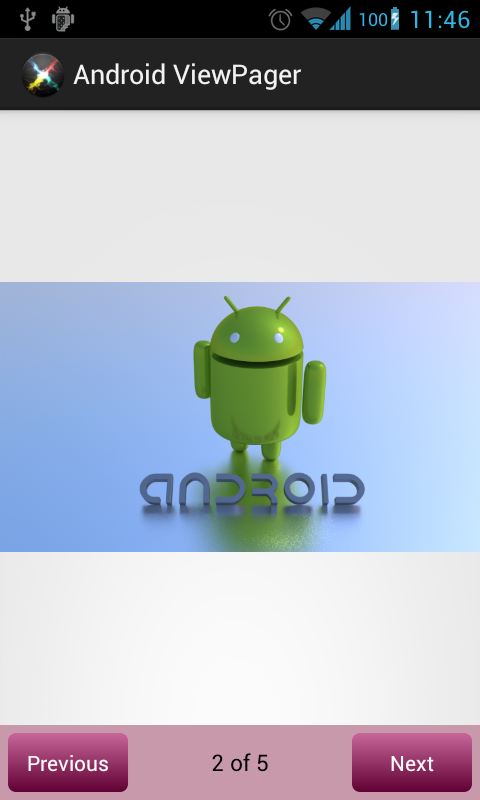

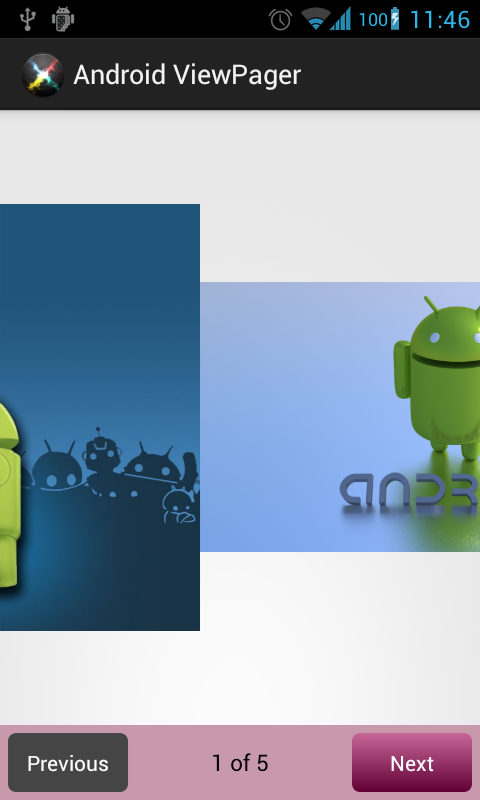

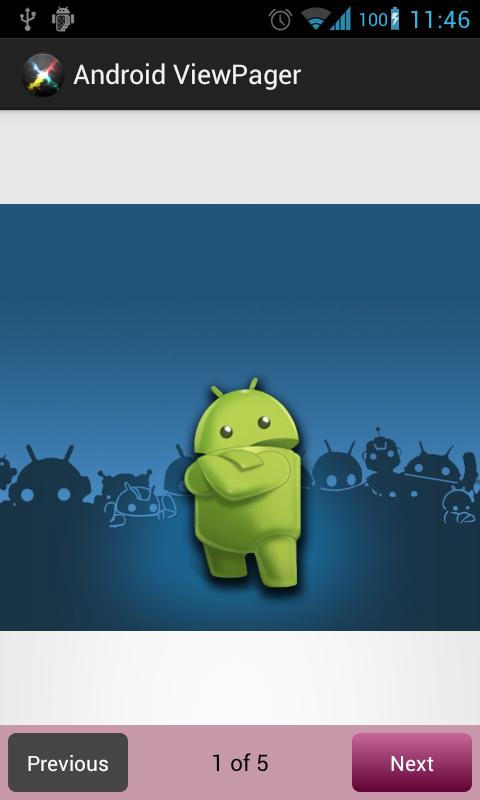

Article4Img1.png -> Article4Img2.png  ->Article4Img3.png
