Display Data in GridView Using MVC

For displaying data in a GridView using MVC, use the following procedure.

Display grid data

Add the following action in page:
  1. public ActionResult GetDetails()
  2.   {
  3.       var data = DB.tblStuds.ToList();
  4.       return PartialView(data);
  5.   }

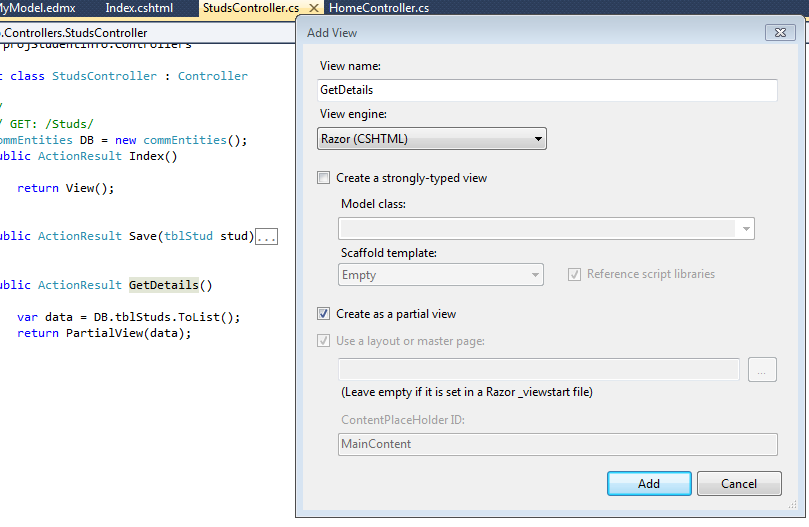

Add a partial view for this action. Right-Click on the preceding then select Action > Add View then enter the ViewName the same as the action name. Now, check the "Create as a Partial View" checkbox.



Here, we have index.cshtml, where we can see a Show Data Button, for which we have an ajax call. it's for getting stud details.

Index.cshtml
  1. @model projStudentInfo.Models.tblStud
  2. @{
  3.     ViewBag.Title = "Index";
  4.     Layout = "~/Views/Shared/_Layout.cshtml";
  5. }
  6. <h2>
  7.     Student Info</h2>
  8. @using (Html.BeginForm("Save", "Studs", FormMethod.Post))
  9. {
  10.     <table>
  11.         <tr>
  12.             <td>
  13.                 Name
  14.             </td>
  15.             <td>@Html.TextBoxFor(c => c.stud_name)
  16.             </td>
  17.         </tr>
  18.         <tr>
  19.             <td>
  20.                 Age
  21.             </td>
  22.             <td>@Html.TextBoxFor(c => c.stud_age)
  23.             </td>
  24.         </tr>
  25.         <tr>
  26.             <td>
  27.                 <input type="submit" name="submit" value="Save" />
  28.             </td>
  29.              <td>
  30.                 <input type="button" name="submit" value="Show Data" id="btnShow" />
  31.             </td>
  32.         </tr>
  33.     </table>
  34. }
  35. <div id="dvShow"></div>
  36. <script>
  37. /* we have ajax call for calling GetDetails which will return html data in vHtml variable */
  38.     $(document).ready(function () {
  39.         $("#btnShow").click(function () {
  40.             $.ajax({
  41.                 url: '@Url.Action("GetDetails","Studs")',
  42.                 type: 'post',
  43.                 success: function (vHtml) {
  44.                     $("#dvShow").html("");
  45.                     $("#dvShow").html(vHtml);
  46.                 }
  47.             });
  48.         });
  49.     });
  50. </script>
GetDetails.cshtml (partialview)
  1. @model IEnumerable<projStudentInfo.Models.tblStud>
  2. <table border="0" cellpadding="0" cellspacing="0" id="tblStud">
  3.     <thead>
  4.         <tr>
  5.             <th>
  6.                 Id
  7.             </th>
  8.             <th>
  9.                 Student Name
  10.             </th>
  11.             <th>
  12.                 Age
  13.             </th>
  14.         </tr>
  15.     </thead>
  16.     @foreach (var item in Model)
  17.     {
  18.         <tr>
  19.             <td>@item.studid
  20.             </td>
  21.             <td>@item.stud_name
  22.             </td>
  23.             <td>@item.stud_age
  24.             </td>
  25.         </tr>
  26.     }
  27. </table>
  28. <style>
  29.         #tblStud td {padding:5px;}
  30.           #tblStud th {background:#aea;}
  31. </style>

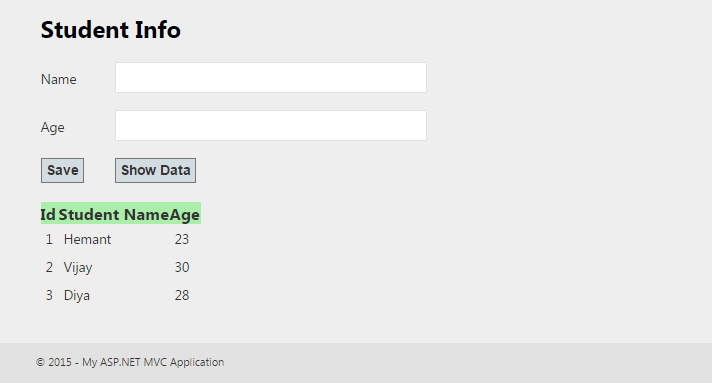

Final Screen
