Load Order Using Inline Load

Introduction

The Load order is used for default sorting. It can also be used for setting color and order. It can be used by two functions like FieldValue() and  FieldIndex().

The FieldValue() function returns the value of a field and FieldIndex() returns either the value or reference to a value from a table.

Load order using Inline load

By using an Inline load we set the load order. The following is the procedure for specifying a Load order using an inline load in a QlikView application.

Step 1: Open the QlikView application

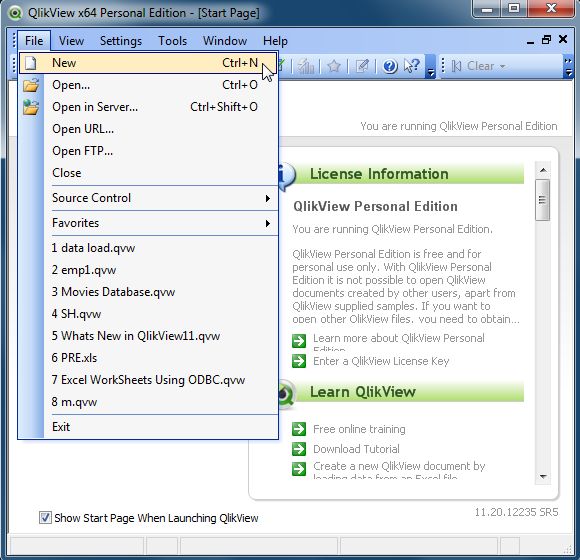

It is the first step, in this step you need to open the QlikView application then go to File -> New then this window will be opened.

After clicking New option

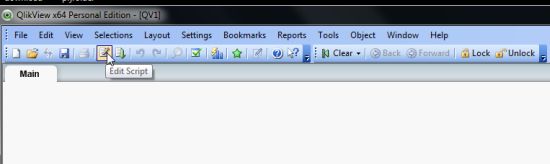

Step 2: Open Edit Script

The second step is to open the edit script window from:
File -> Edit Script.

window of edit script

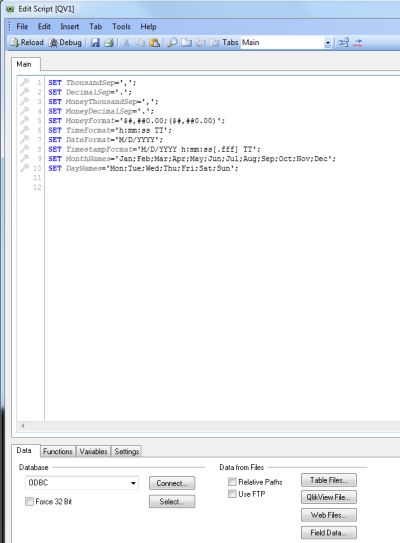

  • Then this window will be opened.

    window

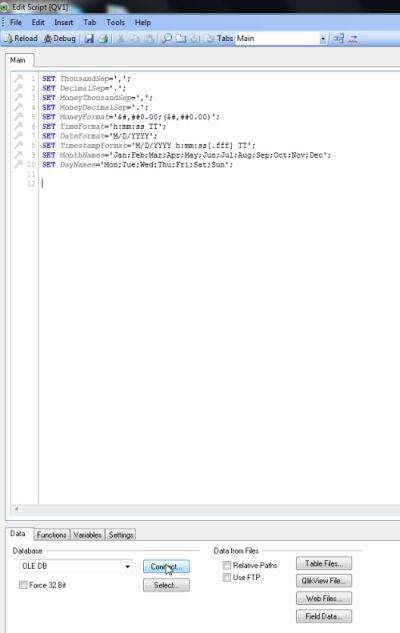

Step 3: Select Database

The third step is to select the database from the data tab and click on the Connect Button.

select database

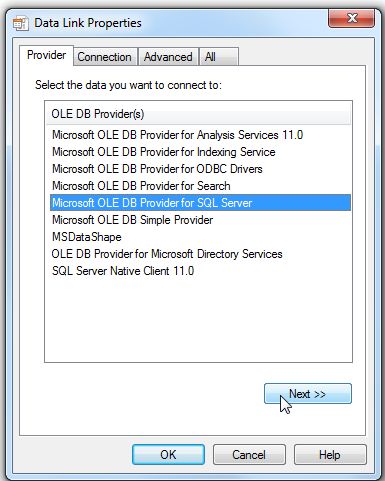

Step 4: Data link property window

In this window we select SQL Server and click on the Next Button.

data link

Step 5:
Connection tab

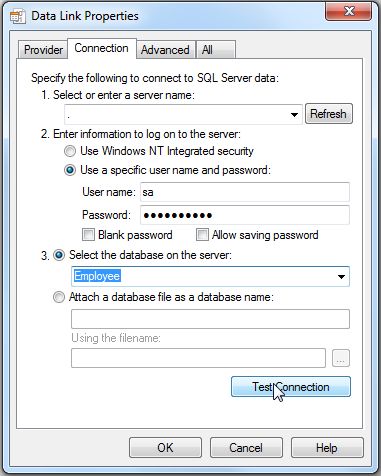

In the connection tab, enter the server name and user name and password and select the database from your server and click on Test Connection.

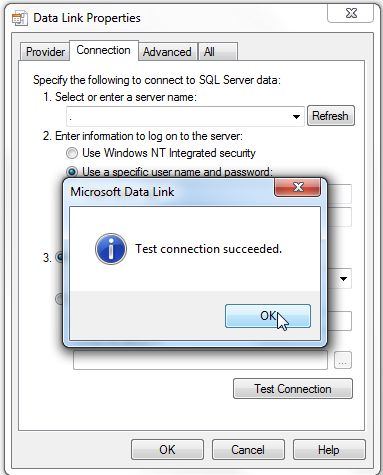

  • Then you find that the test connection succeeded and click on the OK button.

    Confirm box

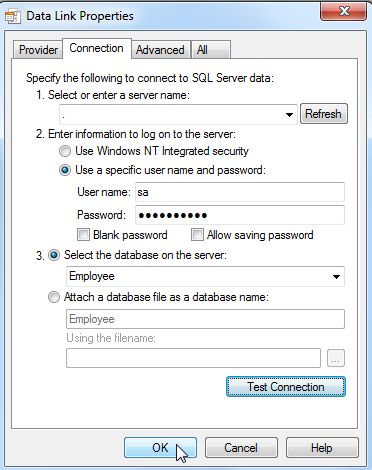

  • Then click on the OK button.

    ok box

Step 6: SQL Server login

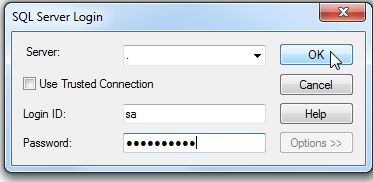

Then a SQL Server login is required so enter a valid login id and password and click on the OK button.

SQL server

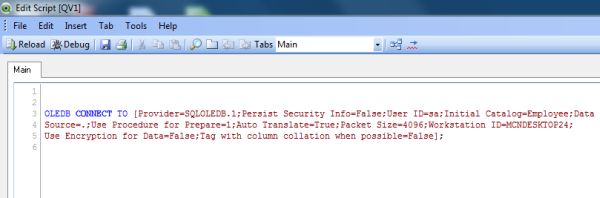

  • Then this window will be opened.

    edit

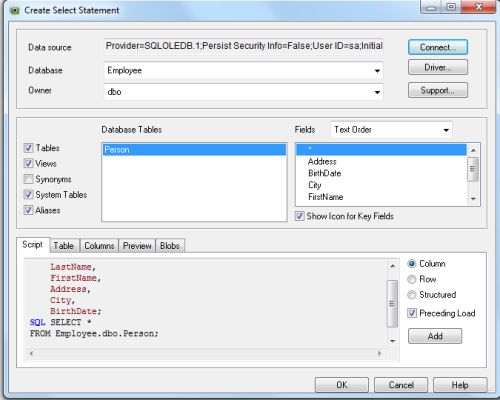

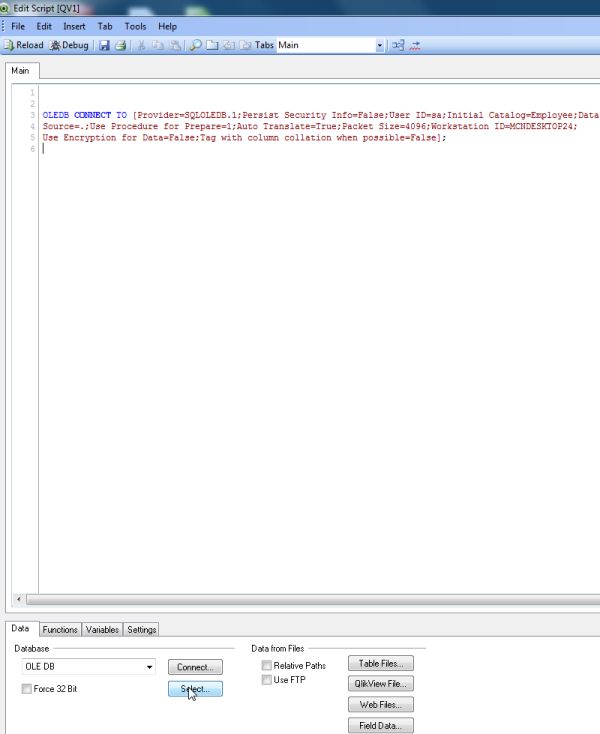

Step 7: Create select statement

When we click on the Select button on the data tab then this window will be opened.

select statement

  • Then this window will be opened then click on the OK button.

    create select

Step 8: Code of edit script

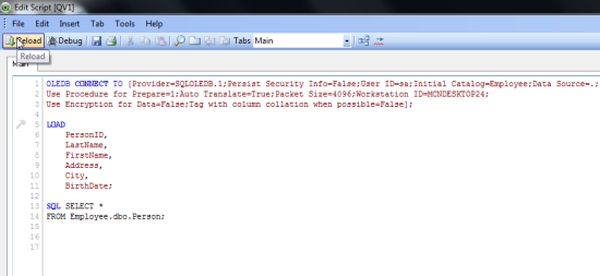

After login into the SQL Server, the edit script window will be opened and reload it.

reloading

Step 9: Save QlikView file

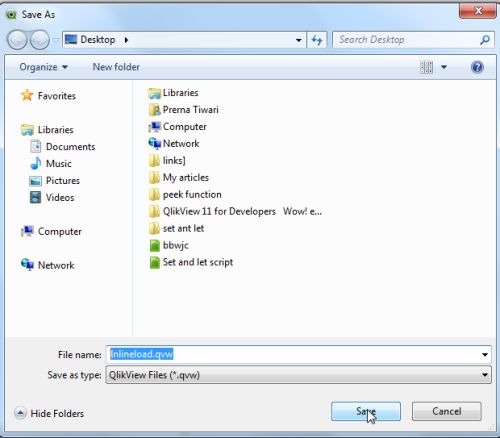

After reloading the edit script, the next step is to save the QlikView file and click on the Save button.

save file

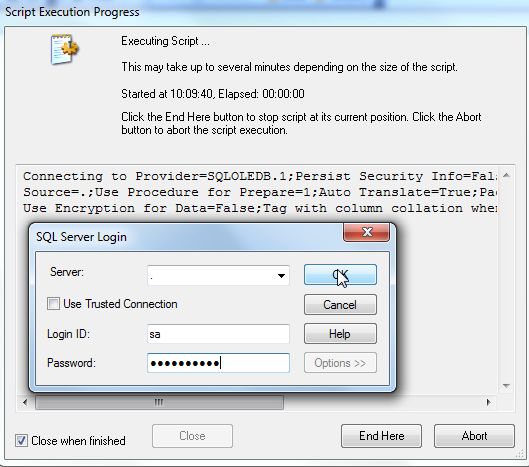

Step 10: Script execution progress

Then the script execution progress window will be opened and enter the required login Id and password and click on the OK button.

Script execution

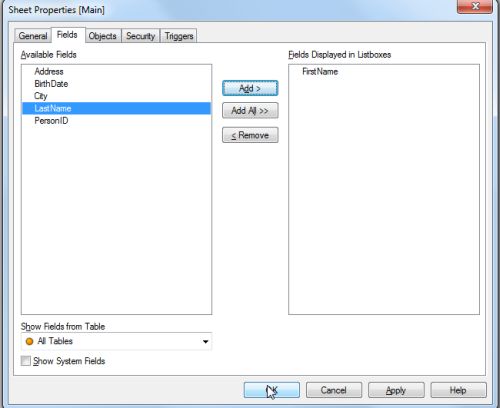

Step 11: Sheet property Window

After this process, the sheet property window will be opened. If you want, add a field and select a field from the available fields and click on the OK button.

  • Then this window will be opened:

    main sheet

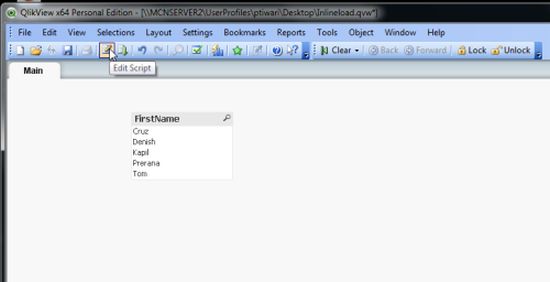

Step 12: Now you will see the main window and open again the edit script window.

main window

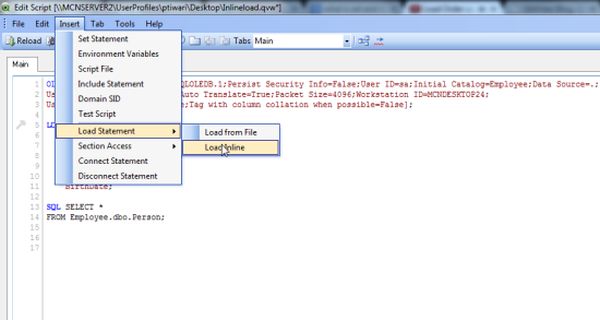

Step 13: Select Inline load

The next step is to select inline load from Insert -> Load statement -> Load inline in the edit script window.

select inline

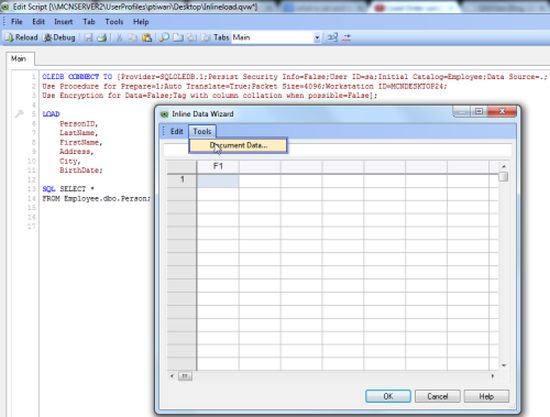

Step 14: Inline data wizard

This window will be opened and select Tools -> Document Data.

Inline data

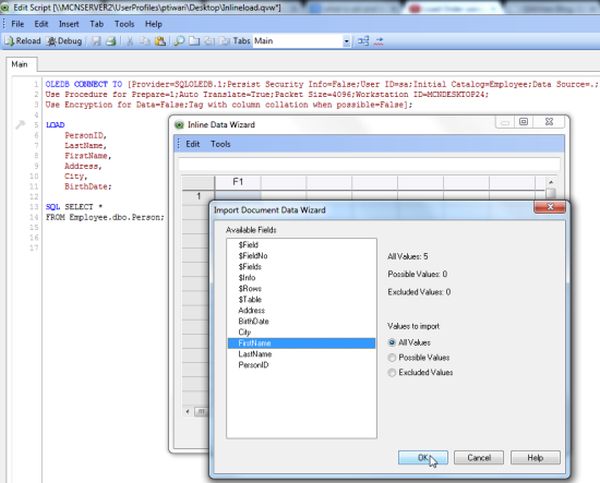

Step 15: Import document data wizard

Now this window will be opened, here we import our document that we added in the sheet property and click on the OK button.

import document

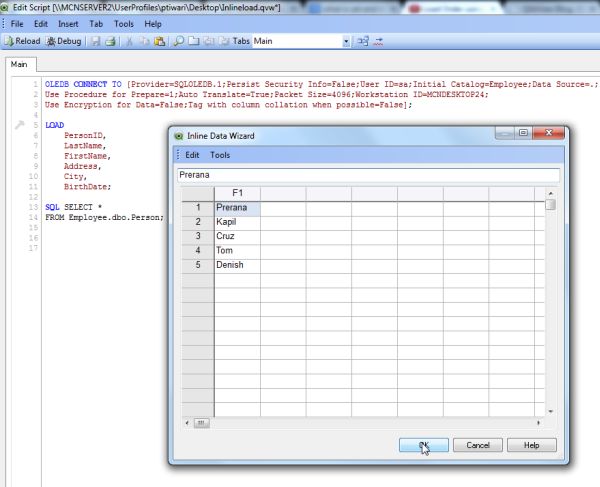

Step 16: Now here we set the load order by using an inline load and click on the OK button.

set load

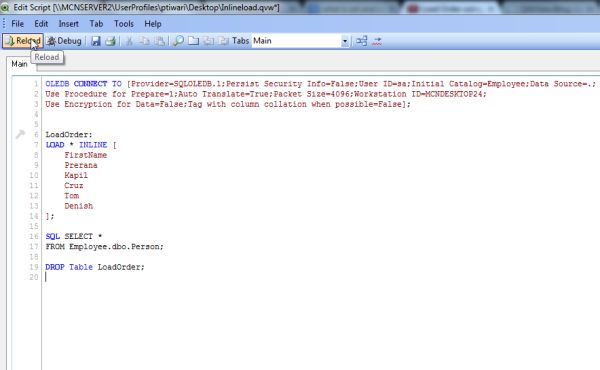

Step 17: Write this code in the edit script and reload it.

reload

Step 18: Script execution progress

Then the script execution progress window will be opened and enter the required login id and password and click on the OK button.

Script execution

Step 19: Sheet property Window

After this process, the sheet property window will be opened. Now we cannot add any field and click on the OK button.

  • Then this window will be opened.

    main sheet

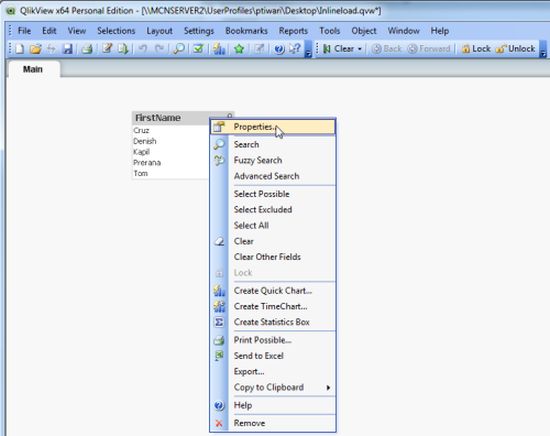

Step 20: Go to the properties of the table

Now we go to the properties of the table and set the property.

property window

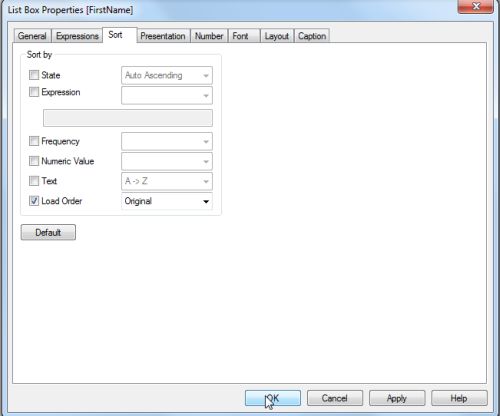

Step 21: Now the list box property window will be opened then go to the sort tab and set these properties as shown and click on the OK button.

sort tab

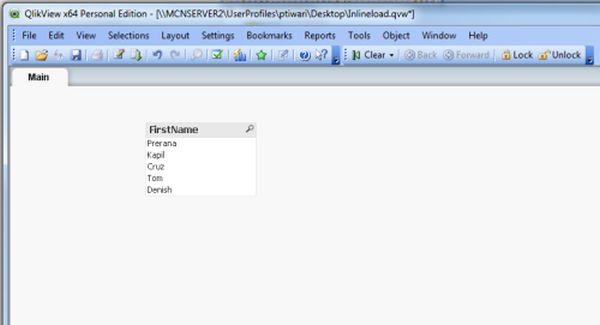

Step 22: Now you can see the final load order that you declared by using an inline load.

final window

Summary

This article describes how we set the load order by using an inline load in a QlikView application.
