Repeater Controls in ASP.Net

The Repeater control is used to display a repeated list of items that are bound to the control.

Repeater is a data bound control. Data bound controls are container controls. Data binding is the process of creating a link between the data source and the presentation UI to display the data.

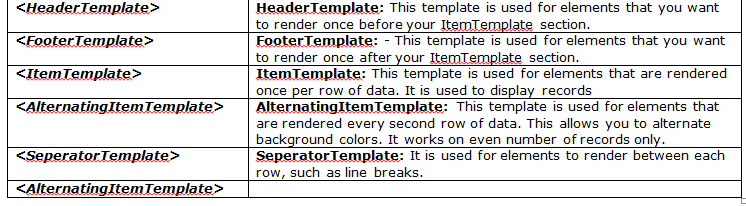

The Repeater has the following 5 inline template to format it:



Data bound controls can display either a connected or a disconnected model.

Data bound controls have a DataBind() method and DataBound event as in the following:

  • DataBind()
  • ItemCreated -> Event
  • DataBound -> Event

System.Commom.Data       namespace

DBDataRecord                      Class

ControlsChild                       Control

How to use a Repeater Control

Create a new website with the name RepeaterControl.

Double-click the web.config file and write the following code in it:

  1. <connectionStrings>
  2. <add name="constr" connectionString="initial catalog=Development-PC; data source=VilasDB; integrated security=true"/>
  3.  </connectionStrings>
Default.aspx file code
  1. <%@ Page Language="C#" AutoEventWireup="true" CodeFile="Default.aspx.cs" Inherits="_Default" %>
  2. <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
  3. <html xmlns="http://www.w3.org/1999/xhtml">
  4. <head runat="server">
  5.     <link rel="Stylesheet" type="text/css" href="StyleSheet.css" />
  6.     <title>Repeater Controls in ASP.NET</title>
  7. </head>
  8. <body>
  9.     <form id="form1" runat="server">
  10.     <div>
  11.         <asp:Repeater ID="RepeatInformation" runat="server">
  12.             <HeaderTemplate>
  13.                 <table class="tblcolor">
  14.                     <tr>
  15.                         <b>
  16.                             <td>
  17.                                 Roll No
  18.                             </td>
  19.                             <td>
  20.                                 Student Name
  21.                             </td>
  22.                             <td>
  23.                                 Total Fees
  24.                             </td>
  25.                         </b>
  26.                     </tr>
  27.             </HeaderTemplate>
  28.             <ItemTemplate>
  29.                 <tr class="tblrowcolor">
  30.                     <td>
  31.                         <%#DataBinder.Eval(Container,"DataItem.RollNo")%>
  32.                     </td>
  33.                     <td>
  34.                         <%#DataBinder.Eval(Container,"DataItem.Name")%>
  35.                     </td>
  36.                     <td>
  37.                         <%#DataBinder.Eval(Container,"DataItem.Fees")%>
  38.                     </td>
  39.                 </tr>
  40.             </ItemTemplate>
  41.             <SeparatorTemplate>
  42.                 <tr>
  43.                     <td>
  44.                         <hr />
  45.                     </td>
  46.                     <td>
  47.                         <hr />
  48.                     </td>
  49.                     <td>
  50.                         <hr />
  51.                     </td>
  52.                 </tr>
  53.             </SeparatorTemplate>
  54.             <AlternatingItemTemplate>
  55.                 <tr>
  56.                     <td>
  57.                         <%#DataBinder.Eval(Container,"DataItem.RollNo")%>
  58.                     </td>
  59.                     <td>
  60.                         <%#DataBinder.Eval(Container,"DataItem.Name")%>
  61.                     </td>
  62.                     <td>
  63.                         <%#DataBinder.Eval(Container,"DataItem.Fees")%>
  64.                     </td>
  65.                 </tr>
  66.             </AlternatingItemTemplate>
  67.             <SeparatorTemplate>
  68.                 <tr>
  69.                     <td>
  70.                         <hr />
  71.                     </td>
  72.                     <td>
  73.                         <hr />
  74.                     </td>
  75.                     <td>
  76.                         <hr />
  77.                     </td>
  78.                 </tr>
  79.             </SeparatorTemplate>
  80.             <FooterTemplate>
  81.                 <tr>
  82.                     <td>
  83.                         School Records displayed
  84.                     </td>
  85.                 </tr>
  86.                 </table>
  87.             </FooterTemplate>
  88.         </asp:Repeater>
  89.     </div>
  90.     </form>
  91. </body>
  92. </html>
Code behind file code
  1. using System;
  2. using System.Configuration;
  3. using System.Data;
  4. using System.Linq;
  5. using System.Web;
  6. using System.Web.Security;
  7. using System.Web.UI;
  8. using System.Web.UI.HtmlControls;
  9. using System.Web.UI.WebControls;
  10. using System.Web.UI.WebControls.WebParts;
  11. using System.Xml.Linq;
  12. using System.Data.SqlClient;
  13.
  14. public partial class _Default: System.Web.UI.Page
  15. {
  16.     SqlConnection con;
  17.     SqlCommand cmd = new SqlCommand();
  18.     protected void Page_Load(object sender, EventArgs e)
  19.     {
  20.         con = new SqlConnection(ConfigurationManager.ConnectionStrings["constr"].ConnectionString);
  21.         cmd.Connection = con;
  22.         cmd.CommandText = "select * from student";
  23.         con.Open();
  24.         RepeatInformation.DataSource = cmd.ExecuteReader();
  25.         RepeatInformation.DataBind();
  26.         con.Close();
  27.     }
  28. }
The ASP.NET Repeater Control will not render the result unless you bind it to a data source through its DataSource property.

Example of a Repeater Control:
  • ID
  • Login
  • FirstName
  • LastName
  • DateAdded

FIRST STEP - INSERT THE REPEATER CONTROL ONTO THE PAGE

The Repeater control allows you to create templates. For example you can use a template to customize the layout of the individual rows.

  • HeaderTemplate

    Template for elements that you want to render once before your ItemTemplate section.

  • ItemTemplate

    Template for elements rendered once per row of data.

  • AlternatingItemTemplate

    Template for elements that are rendered every other row of data. This allows you to alternate background colors, for example.

  • SeparatorTemplate

    Template for elements to render between each row, such as line breaks.

  • FooterTemplate

    Template for elements that you want to render once after your ItemTemplate section.

ClientNetroStar.aspx

  1. <asp:Repeater ID="rptList" runat="server" OnItemDataBound="rptList_ItemDataBound">
  2.     <HeaderTemplate>
  3.         <table>
  4.             <tr>
  5.                 <th>
  6.                     <asp:Label ID="Label14" Text="Login" runat="server"></asp:Label>
  7.                 </th>
  8.                 <th>
  9.                     <asp:Label ID="Label1" Text="F_Name" runat="server"></asp:Label>
  10.                 </th>
  11.                 <th>
  12.                     <asp:Label ID="Label2" Text="L_Name" runat="server"></asp:Label>
  13.                 </th>
  14.                 <th>
  15.                     <asp:Label ID="Label3" Text="Date Added" runat="server"></asp:Label>
  16.                 </th>
  17.                 <th>
  18.                     <asp:Label ID="Label6" Text="Delete" runat="server"></asp:Label>
  19.                 </th>
  20.             </tr>
  21.         </HeaderTemplate>
  22.         <ItemTemplate>
  23.             <tr>
  24.                 <td>
  25.                     <asp:LinkButton ID="lbnLogin" Text='<%# Eval("Login") %>' runat="server"
  26. OnClick="lnkClient_Click" CommandArgument='<%# Eval("ID").ToString() %>'>
  27.                     </asp:LinkButton>
  28.                 </td>
  29.                 <td>
  30.                     <asp:LinkButton ID="lbnFirstName" Text='<%# Eval("FirstName").ToString() %>'
  31. runat="server"
  32. OnClick="lnkClient_Click" CommandArgument='<%# Eval("ID").ToString() %>'>
  33.                     </asp:LinkButton>
  34.                 </td>
  35.                 <td>
  36.                     <asp:LinkButton ID="LinkButton2" Text='<%# Eval("LastName").ToString() %>'
  37. runat="server"
  38. OnClick="lnkClient_Click" CommandArgument='<%# Eval("ID").ToString() %>'>
  39.                     </asp:LinkButton>
  40.                 </td>
  41.                 <td>
  42.                     <asp:LinkButton ID="LinkButton1" Text='<%# Eval("DateAdded") %>' runat="server"
  43. OnClick="lnkClient_Click" CommandArgument='<%# Eval("ID").ToString() %>'>
  44.                     </asp:LinkButton>
  45.                 </td>
  46.                 <td>
  47.                     <asp:LinkButton ID="lbnDelete" Text="delete" runat="server"
  48. OnClick="lbnDelete_Click" CommandArgument='<%# Eval("ID").ToString() %>'>
  49.                     </asp:LinkButton>
  50.                 </td>
  51.             </tr>
  52.         </ItemTemplate>
  53.         <FooterTemplate>
  54.         </table>
  55.     </FooterTemplate>
  56. </asp:Repeater>
