This article introduces the Razor View Engine in MVC 3. This is a beginner-level article that describes the basics of Razor View Engine using an example.

Table of Content

Overview
Razor Syntax
Creating User Registration Application using Razor
Using Data Annotation Validator Attribute to perform Validation
Why use Razor View Engine over aspx view engine
Conclusion

Overview

ASP.NET MVC has always supported the concept of "view engines" that are the pluggable modules that implement various template syntax options. The "default" view engine for ASP.NET MVC uses the same .aspx/.ascx/.master file templates as ASP.NET Web Forms. In this article I go through the Razor View Engine to create a view of an application. "Razor" was in development beginning in June 2010 and was released for Microsoft Visual Studio in January 2011.

Razor is not a new programming language itself, but uses C# syntax for embedding code in a page without the ASP.NET delimiters: <%= %>. It is a simple-syntax view engine and was released as part of ASP.NET MVC 3. The Razor file extension is "cshtml" for the C# language. It supports TDD (Test Driven Development) because it does not depend on the System.Web.UI.Page class.

Razor Syntax

To understand the Razor View Engine we should learn its syntax so let's start with the syntax.

1. Single statement block and inline expression

Each code block will be start and end by opening and closing curly brackets {..} respectively. A statement is defined in a code block, in other words between opening and closing curly brackets and ending with a semicolon (";"). But when it's used as an inline expression then it does not need to use a semicolon.

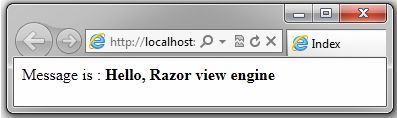

Here we declare "message" as a variable and assigned a string to it and this variable is accessible globally with the "@" character. So the "@" character is used in both cases when we define a code block as well as a variable call and we get output as below.

2. Multi statement block

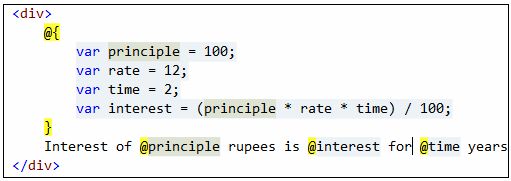

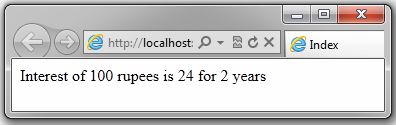

We can also define a multiline statement block as a single-line statement block. In a multiline statement block we can define multiple code statements and can process data. A multiline block will exist between opening and closing curly braces but the opening brace will have the "@" character in the same line if we define the "@" and opening curly braces in different lines then it will generate an error.

Each statement will be endded by a semicolon in a multi-statement code block so finally we get the result as:

3. Conditional statements

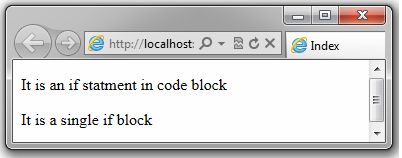

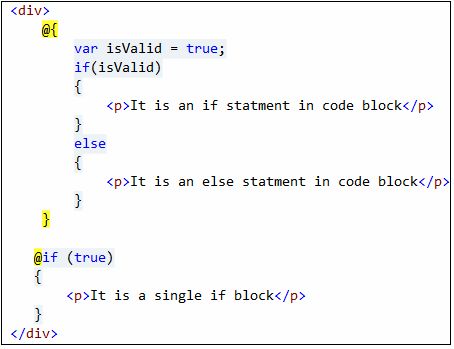

We can create a dynamic web page in Razor View Engine as condition based. We can define a condition inside a code block or outside the code block. The If statement works the same as it does in other programming languages.

It is a default rule that a block statement or statements must exist within curly braces even if the block has a single statement. In the code block above we have two types of if conditions, one is inside code block so the @ character is used with code blocks starting braces and another is outside the code block so the @character is used with an if. Finally we get the output of these two if statements.

4. Looping

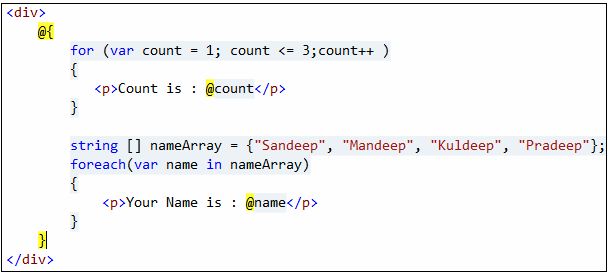

All loops work the same as in other programming languages, we can define looping inside a code or outside a code block. We can define a for, do while or while loop in a code block and use the same syntax for initialization, increment/decrement and to check a condition.

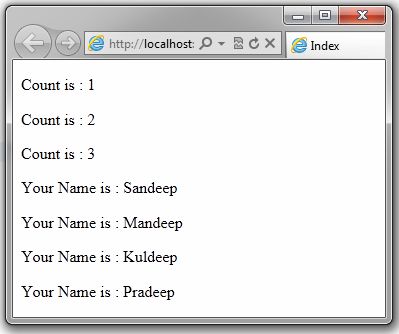

We can also define a foreach in a code block that accesses data forwardly from any collection. The code block above has both for and foreach statements and their output is:

5. Comments

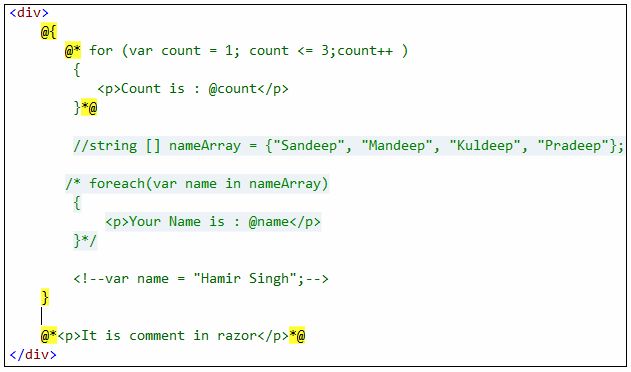

Razor View Engine has two types of comments, one is single-line and another is multiline. Razor uses the syntax "@* ..*@" for the comment block but in a C# code block we can also use "/* */" or "//". HTML comments are the same, "".

6. Use of Object

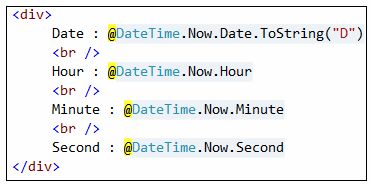

We can also use an object in both a code block and HTML using razor syntax.

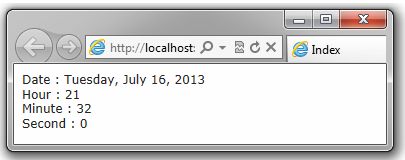

Here we used a Date object of the C# language and access the properties of its. The result of the Date object in code above is:

So we have a rule of thumb that C# code is used in a code block that starts with "@{" and ends with "}" and whenever a variable is used in a HTML block then the variable is used with the prefix "@".

It is not a complete list of razor syntax but I think that you now have the basic syntax of razor so we should proceed to an example.

Creating a User Registration Application using Razor

Step 1: Create a new project

First of all we create a new MVC project for our example.

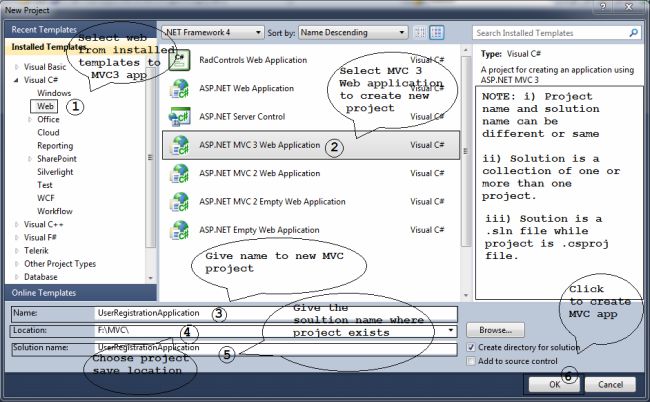

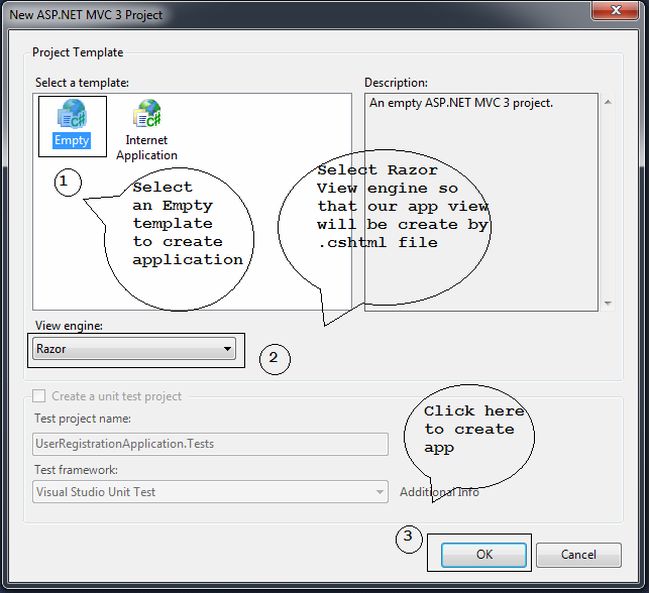

Thereafter we get installed templates where we choose MVC application. Now we have the following screen as per the above action.

As in the screen above we perform an action from 1 to 5 and action number 6 moves us from the select template for the MVC application and we get the result of this action as:

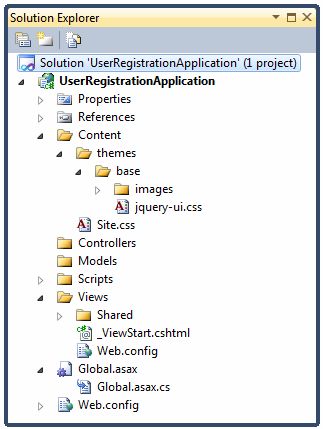

So finally we get a default empty application in Visual Studio. The empty application doesn't mean that we have no folder and layout. We also have a default shared layout (view), CSS and JavaScript files. The default folder structure is:

Here we have a default folder structure. If you want to understand the purpose of each folder then please go through this article:

Folder Structure of ASP.Net MVC Project

Step 2: Create a Model

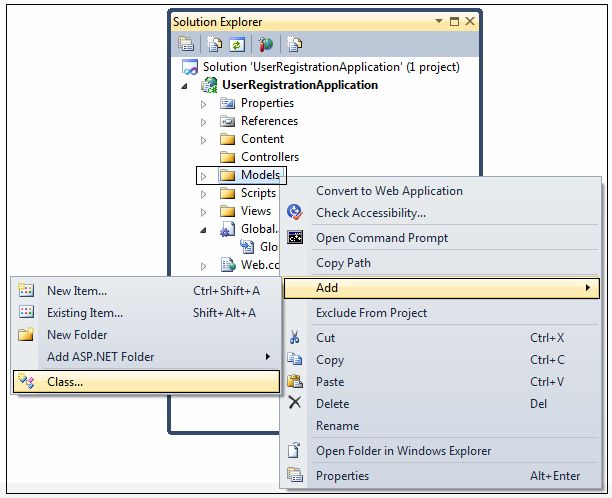

Right-click on the "Models" folder in Solution Explorer then move to "Add" and click on "class".

Model is a C# class with properties. We define properties in the model according to our UI. In other words, what we show in the UI should be defined in the model. The Model is created according to UI template, not according to the database table. Sometimes we think that our model should have properties according to the database table, in other words we create a mapping between the model and the database table. But we should create an entity according to the database table and make the mapping between them whereas a Model should be designed according to our UI screen. So our user registration model is "UserRegisterModel.cs".

namespace UserRegistrationApplication.Models
{
public class UserRegisterModel
{

public string Name { get; set; }

public string Password { get; set; }

public string Email { get; set; }

}
}

Step 3: Create Controller

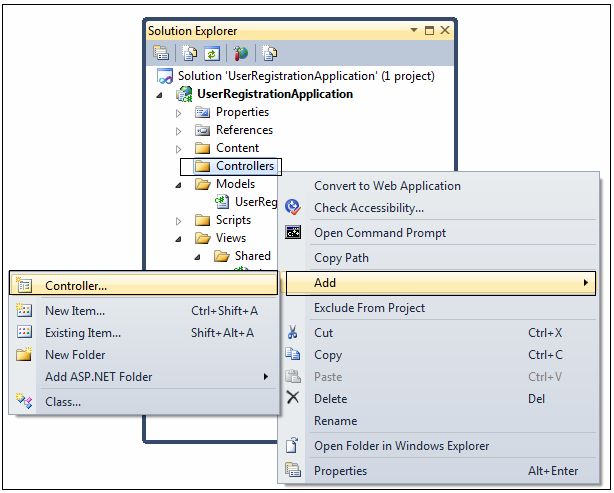

We create a controller that sends a response on the browser as per request. We are developing a user registration UI so create a "UserRegisterController". Right-click on the "Controllers" folder in Solution Explorer then move to "Add" and click on "Controller".

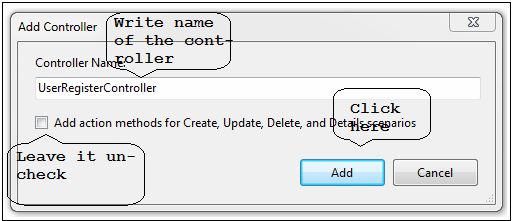

Thereafter we get the Add Controller screen where we giveprovide the controller name. We want to create an empty controller, in other words we don't want a default action method to create, update, delete and details in the controller so we leave unchecked the checkbox on the "Add Controller" screen. An empty controller doesn't mean that a controller that doesn't have any action methods while a controller that has a single action method which is the "Index" action.

Now we have a controller that has an action method "UserRegister" that returns a view with an empty userRegister model. This method calls using a HTTP Get request from the browser.

using System.Web.Mvc;

using UserRegistrationApplication.Models;

namespace UserRegistrationApplication.Controllers

{

public class UserRegisterController : Controller

{

public ActionResult UserRegister()

{

UserRegisterModel model = new UserRegisterModel();

return View(model);

}

}

The "UserRegister()" action method would return an empty UserRegisterModel model to bind to the UserRegister view with UserRegister view.

Step 4: Create View

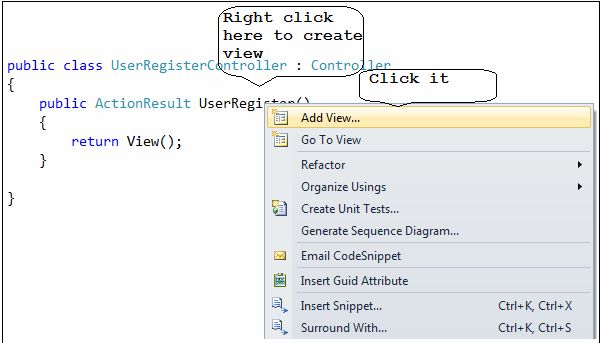

We create a view that renders on the browser and shows a user register form. The View will be created according to an action method in the controller so first of all right-click on the "UserRegister( )" action method in the "UserRegisterController" controller.

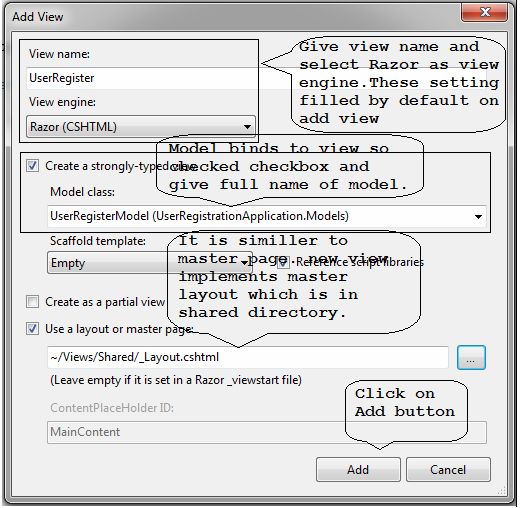

Whenever we click on the "Add View.." item then we get the "Add View" screen.

We create a strongly typed view that binds with the "UserRegisterModel" model. It does not have much of an affect on the view; when created it just imports the model on the view (cshtml file). We get the default "UserRegister" view.

@model UserRegistrationApplication.Models.UserRegisterModel

ViewBag.Title = "UserRegister";

Layout = "~/Views/Shared/_Layout.cshtml";

}

<h2>UserRegister</h2>

There are two points; one is that UserRegisterModel is bound because we create a strongly typed view and another is the master layout has been implemented on a new view by Layout property in the code block. Here "ViewBag.Title" is assigned a string value "UserRegister" that is the title of the page so whenever we want to modify the title of the page then we just modify the value of the "ViewBag.Title" property.

Before going into detail of view design, we need a little bit of the idea of HTML Helpers in MVC. HTML Helpers are much like traditional ASP.NET Web Form controls. An HTML Helper, in most cases, is just a method that returns a string. We will use three methods of HTML Helpers as in the following.

LabelFor: It is a method of the LabelExtensions class under the "System.Web.Mvc.Html" namespace that returns an HTML label element. The model property displays text and for the attribute value in the specified expression for the UI. It is an extension method of the HtmlHelper instance.

For example when the model Name property is used in the "LabelFor()" method then it's rendered in HTML like:

<label for="Name">Name</label>

TextBoxFor: It is a method of the InputExtensions class in the "System.Web.Mvc.Html" namespace that returns an HTML text input element. The model property uses for id and name attribute values. The Input element type property sets "text" by the "TextBoxFor()" method. It is also an extension method for the HtmlHelper instance. It also shows a model property value in TextBox. For example when the model Name property is used in the "TextBoxFor()" method then it's rendered in HTML like:

<input id="Name" name="Name" type="text" value="" />

PasswordFor: It is a method of the InputExtensions class in the "System.Web.Mvc.Html" namespace that returns an HTML password input element. The model property uses for id and name attribute value. The Input element type property sets "password" by the "PasswordFor()" method. It is also an extension method for the HtmlHelper instance. It also shows the model property value in TextBox. For example the model Password property is used in the PasswordFor() method and it's rendered in HTML like:

<input id="Password" name="Password" type="password" />

To design the user registration form we create a stylesheet "BaseStyleSheet.css" under the Content folder.

.formRowContainer

{

width: 100%;

padding-top: 10px;

}

.labelContainer

{

padding-top: 2px;

float: left;

min-width: 155px;

}

.valueContainer

{

float: left;

}

.buttonContainer

{

padding-top: 5px;

padding-left :155px;

}

.clearStyle

{

clear: both;

}

Then we give a to this CSS in this view and add code in the view "UserRegister.cshtml" to create the user registeration form. We are creating a registeration form so all the forms will exist in <form> </form> tags but in MVC we create the entire form in a "html.BeginForm()" code block that is rendered in a <form> tag that has a controller action method in the action attribute value and a method will be used in a HttpPost request to submit data.

@model UserRegistrationApplication.Models.UserRegisterModel

ViewBag.Title = "UserRegister";

Layout = "~/Views/Shared/_Layout.cshtml";

}

<h2>User Register Form</h2>

@using(Html.BeginForm())

{

<div>

@Html.LabelFor(model => model.Name)

</div>

@Html.TextBoxFor(model=>model.Name,Model.Name)

</div>

@Html.LabelFor(model => model.Password)

</div>

@Html.PasswordFor(model => model.Password, Model.Password)

</div>

@Html.LabelFor(model => model.Email)

</div>

@Html.TextBoxFor(model => model.Email, Model.Email)

</div>

<button>Register</button>

</div>

}

Our view is ready. Press F5 or run the application to show the form in a browser screen. Now the result on the screen is:

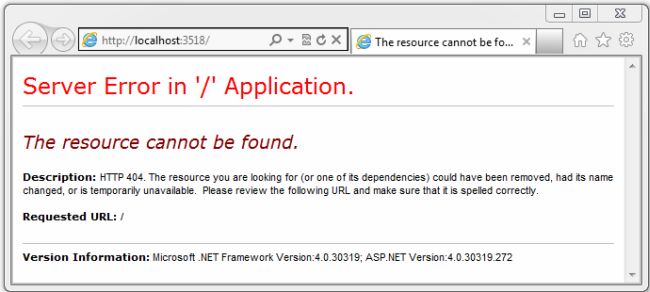

Oh, we get a HTTP 404 error (The resource cannot be found) for our url http://localhost:3581/. It's not good that we do a lot of stuff for this application and the application doesn't run successfully. But don't worry, we should happy that we get an error from our code because each error teaches us something more.

Now open the Global.asax.cs file from Solution Explorer in Visual Studio and look at the "RegisterRoutes()" method. This method defines the application route for the URL and it is called on application startup. According to the "RegisterRoutes()" method our application default controller is "Home" and the default controller action method is "Index" but we don't define this in our user Registration application so we get the error that the resource cannot be found. To remove this error we have two options, one is to set a static hard-coded string value in the "MapRoute()" method parameter of the RouteCollection instance in the "RegisterRoutes()" method for the UserRgisterController controller and the action method and another option is to pass a controller and action method in the URL in the browser. We choose the second option because each application has multiple pages where the Home controller is the default controller and Index is the default action method for controllers.

public static void RegisterRoutes(RouteCollection routes)

{

routes.IgnoreRoute("{resource}.axd/{*pathInfo}");

routes.MapRoute(

"Default", // Route name

"{controller}/{action}/{id}", // URL with parameters

new { controller = "Home", action = "Index", id = UrlParameter.Optional } // Parameter defaults

);

}

protected void Application_Start()

{

AreaRegistration.RegisterAllAreas();

RegisterGlobalFilters(GlobalFilters.Filters);

RegisterRoutes(RouteTable.Routes);

}

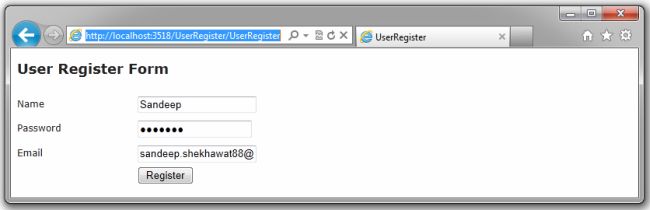

Now give the user register controller and action method URL http://localhost:3518/UserRegister/UserRegister in a browser request. Or we can change the "MapRoute()" method parameter in a "RegisterRoutes()" method of a RouteCollection instance as in the following:

public static void RegisterRoutes(RouteCollection routes)

{

routes.IgnoreRoute("{resource}.axd/{*pathInfo}");

routes.MapRoute(

"Default", // Route name

"{controller}/{action}/{id}", // URL with parameters

new { controller = "UserRegister", action = "UserRegister", id = UrlParameter.Optional } // Parameter defaults

);

}

After that I click on the Register button to show my data. Where is my input data? To show the input data I want to clarify a few things. When we access a view from a browser then the browser request looks at the HttpGet action method in the controller but when we send a request by button click then the request looks at the HttpPost action method in the controller. If we don't define explicitly the path of the action method then it looks at the default action method that has the same name as the view name. To show our form data we create an action method in the controller that has a parameter that is a model that passes from the view to the controller on postback and we get data from that model in the action method.

[HttpPost]

public ActionResult UserRegister(UserRegisterModel model)

{

System.Text.StringBuilder sbMessage = new System.Text.StringBuilder();

sbMessage.Append("Your Name is : "+ model.Name + "</br/>");

sbMessage.Append("Your Password is : " + model.Password + "</br/>");

sbMessage.Append("Your Email is : " + model.Email + "</br/>");

return Content(sbMessage.ToString());

}

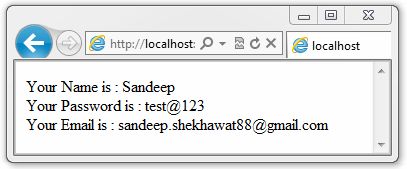

Thereafter we get the result on a button registeration click. Our URL does not change, in that case only the content will change.

It was our basic example of MVC Razor View Engine.

Using Data Annotation Validator Attribute to perform Validation

We use validator attributes to perform validation. The "System.ComponentModel.DataAnnotations" namespace includes the following validator attributes:

Range: Enables you to validate whether the value of a property falls between a specified range of values.
ReqularExpression: Enables you to validate whether the value of a property matches a specified regular expression pattern.
Required: Enables you to mark a property as required.
StringLength: Enables you to specify a maximum length for a string property.
Validation: The base class for all validator attributes.

Now we implement three attributes (Required, StringLength and RegularExpression) out of five attributes on our UserRegisterModel model so we need to modify our existing model as:

using System.ComponentModel.DataAnnotations;

using System.ComponentModel;

namespace UserRegistrationApplication.Models

{

public class UserRegisterModel

{

[DisplayName("User Name")]

[Required(ErrorMessage="Name can not be blank")]

public string Name { get; set; }

[Required(ErrorMessage = "Password can not be blank")]

[StringLength(6,ErrorMessage="Password should be equal or less than 6 character")]

public string Password { get; set; }

[Required(ErrorMessage = "Email can not be blank")]

[RegularExpression(@"\w+([-+.']\w+)*@\w+([-.]\w+)*\.\w+([-.]\w+)*",ErrorMessage="Email is not Valid")]

public string Email { get; set; }

}

Here we are using DisplayName also to display the custom name for the Name field, in other words on the UI screen the model Name property label will have "User Name" as a text value. Here we defined a custom message for string length and regular expression so that the UI screen shows our custom message when validation is applied, otherwise we get the default error message of the data annotation validator attribute.

We applied a data annotation validator attribute on the model properties that would show the message on the UI screen so we need to add a "ValidationMessage()" method of the HtmlHelper class for each field and wev also modified our view as in the following:

@model UserRegistrationApplication.Models.UserRegisterModel

ViewBag.Title = "UserRegister";

Layout = "~/Views/Shared/_Layout.cshtml";

}

<h2>User Register Form</h2>

@using(Html.BeginForm())

{

<div>

@Html.LabelFor(model => model.Name)

</div>

@Html.TextBoxFor(model=>model.Name,Model.Name)

@Html.ValidationMessage("Name")

</div>

@Html.LabelFor(model => model.Password)

</div>

@Html.PasswordFor(model => model.Password, Model.Password)

@Html.ValidationMessage("Password")

</div>

@Html.LabelFor(model => model.Email)

</div>

@Html.TextBoxFor(model => model.Email, Model.Email)

@Html.ValidationMessage("Email")

</div>

<button>Register</button>

</div>

}

We are using "ValidationMessage()" of the HtmlHelper class that takes an argument in string form that is the property name in the model and shows an error message defined in the model property when the model is not valid on submitting the form. We need to check that the tmodel is valid in the action method under the controller so we update our existing post action method in the UserRegisterController controller.

[HttpPost]

public ActionResult UserRegister(UserRegisterModel model)

{

if (ModelState.IsValid)

{

System.Text.StringBuilder sbMessage = new System.Text.StringBuilder();

sbMessage.Append("Your Name is : " + model.Name + "</br/>");

sbMessage.Append("Your Password is : " + model.Password + "</br/>");

sbMessage.Append("Your Email is : " + model.Email + "</br/>");

return Content(sbMessage.ToString());

}

else

{

return View(model);

}

Here we used an If condition to determine whether the UserRegisterModel model is valid. If the model is valid according to validation then the if block will be executed otherwise it will be executed. Now we run our MVC UserRegistrationApplication to test validation. We perform two tests, one for the required field message and another for the custom validation message. First of all we leave blank all TextBoxes on the form and submit the form by the registeration button click. We get the result as below.

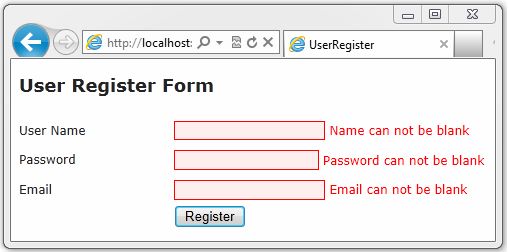

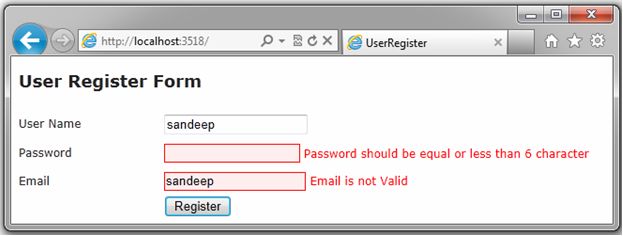

Now we perform another test by inserting the wrong values in input fields and submit the form by the registeration button click.

I hope that we have learned the basics of Razor View Engine in MVC 3 so we take a look at why it is better than the aspx view engine.

Why to use Razor View Engine over aspx view engine

The Razor View Engine makes writing dynamic content on our MVC views easier because we don't need to use the "<% %>" formatting like we do with the default view engine (aspx view engine).
It reduces code when doing a loop for generation of a list on a view because we don't need so many "<%: %>" to get items in a list compared to "@" in razor.
Here we can define asection the same as a Content PlaceHolder.
Here we use just Layout pages instead of Master Pages.
"@helper" functions for really easy creation of functions that emit markup.
"@model" keyword for specifying your view's model type without having to write a "<%@ Page" directives with the full class name.
Razor View Engine supports TDD (Test Driven Development) because it does not depend on the "System.Web.UI.Page" class.

Conclusion

This article is a runway for MVC beginners who can run his learning jet plan to fly in MVC technologies. I hope this article has helped you to understand the basics of the MVC Razor view engine.
