Excel Parameters With Excel Web View Web Part

Parameters

Parameters are Names associated with cells in an Excel workbook. Parameters allow users to change the cell values while in the Excel Web View web part.

Note: the Excel Web View web part does not allow editing of cells.

Excel 2013

For the experiment I am using an Excel 2013 client application.

excel

Create Parameters

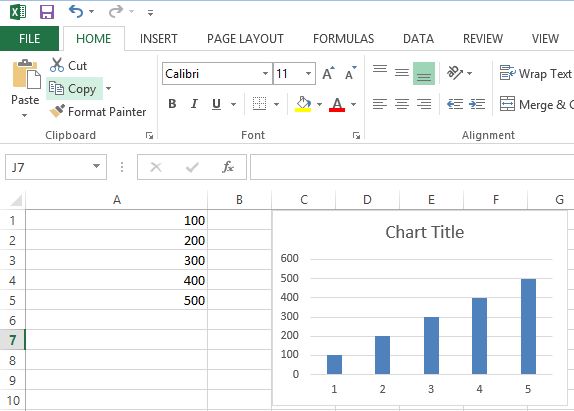

Create a new Excel workbook. Add the following cell values and a chart.

Create Parameters

Click on the FORMULAS tab.

FORMULAS tab

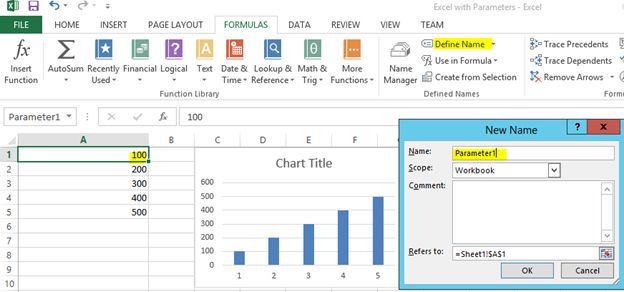

Now click on cell A1 and then on the toolbar Define Name button. In the appearing dialog enter the name as Parameter1 as shown below.

FORMULAS

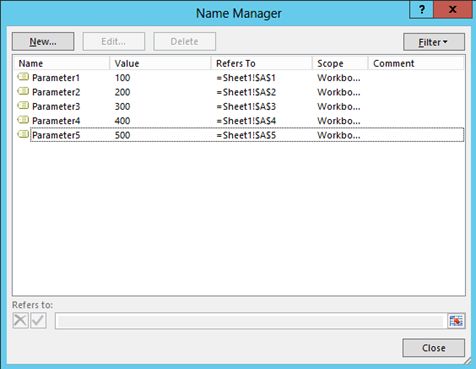

Repeat that for the other 4 cells and name them respectively. You can see the Name Manager to ensure that all the cells are named correctly.

Parameter1

Now we are ready with our Parameters.

Expose Parameters

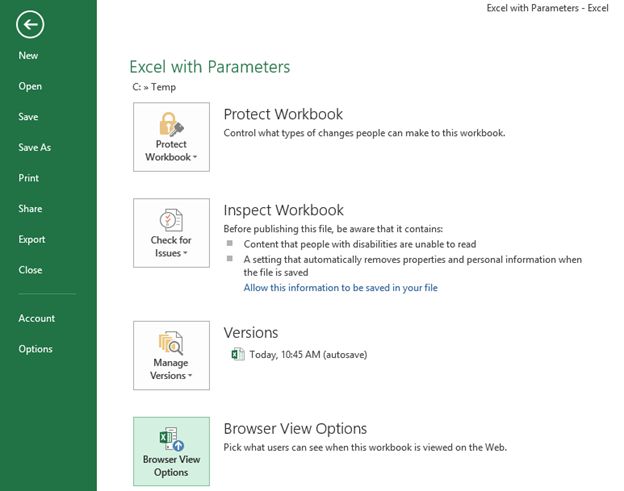

Now we need to expose the parameters in the Browser View options. The exposed parameters will be workable when the workbook is interacted using a browser.

Manager to ensure

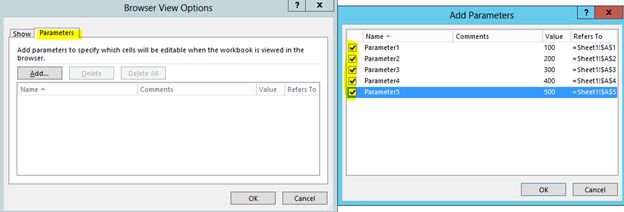

In the appearing dialog choose the Parameters tab and select the parameters as shown below.

Expose Parameters

Save the file and now you are ready to deploy the workbook to SharePoint.

Inside SharePoint

Upload the preceding workbook to a Document Library, create a new page and insert the Excel Web Access web part into it. Then select the preceding workbook and save changes to the page.

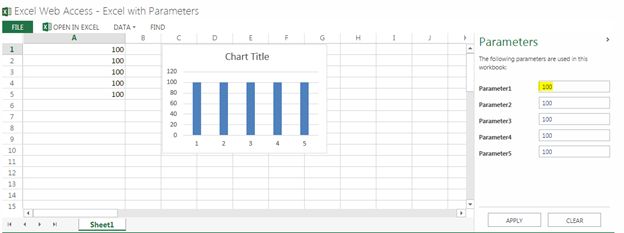

You should be able to see the parameters in the right pane as shown below.

Parameters

You can try changing the parameter values and click the APPLY button. The graph too should change.

References

http://bit.ly/19hRHso

Summary

In this article we explored Excel Parameters with an Excel Web View web part.
