Introduction
In this article, I will explain how to insert data into multiple tables using a MySQL Transaction in ASP.NET.
So, let's proceed with the following procedure:
- ASP.NET web page
- Grid View Data Control , MySQL Database and MySQL Transaction

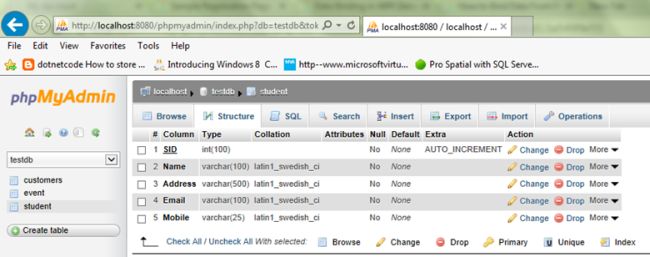

Now, open the MySQLAdmin Page then select "Create a New Table” > "View" >”Table Structure for Table ` student `”.
CREATE TABLE IF NOT EXISTS `student` (
`SID` int(100) NOT NULL AUTO_INCREMENT,
`Name` varchar(100) NOT NULL,
`Address` varchar(500) NOT NULL,
`Email` varchar(100) NOT NULL,
`Mobile` varchar(25) NOT NULL,
PRIMARY KEY (`SID`)
) ENGINE=InnoDB DEFAULT CHARSET=latin1 AUTO_INCREMENT=1;
![]()

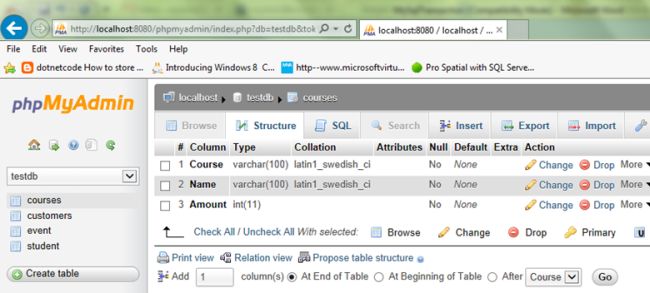

Table structure for table `courses`
CREATE TABLE IF NOT EXISTS `courses` (
`Course` varchar(100) NOT NULL,
`Name` varchar(100) NOT NULL,
`Amount` int(11) NOT NULL
) ENGINE=InnoDB DEFAULT CHARSET=latin1;
![]()

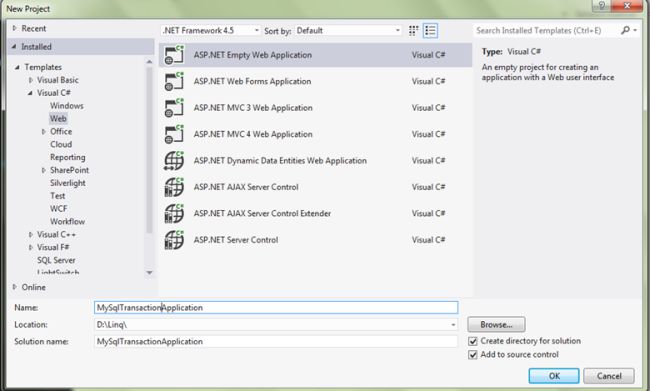

Open your instance of Visual Studio 2012 and create a new ASP.NET Web application. Name the project “MySqlTransactionApplication", as shown in the following figure:
![]()
Now design your Student.aspx View design part; use the following code:
Student.aspx
<%@ Page Title="" Language="C#" MasterPageFile="~/Site.Master" AutoEventWireup="true" CodeBehind="Student.aspx.cs" Inherits="MySqlTransactionApplication.Student" %>
<asp:Content ID="Content1" ContentPlaceHolderID="titleContent" runat="server">
</asp:Content>
<asp:Content ID="Content2" ContentPlaceHolderID="head" runat="server">
<script type="text/javascript">
function validationCheck() {
var summary = "";
summary += isvalidName();
summary += isvalidAmount();
summary += isvalidAddress();
summary += isvalidEmail();
summary += isvalidMobileno();
if (summary != "") {
alert(summary);
return false;
}
else {
return true;
}
}
function isvalidName() {
var id;
var temp = document.getElementById("<%=txtName.ClientID %>");
id = temp.value;
if (id == "") {
return ("Please Enter Name" + "\n");
}
else {
return "";
}
}
function isvalidAddress() {
var id;
var temp = document.getElementById("<%=txtAddress.ClientID %>");
id = temp.value;
if (id == "") {
return ("Please Enter Address" + "\n");
}
else {
return "";
}
}
function isvalidAmount() {
var id;
var temp = document.getElementById("<%=txtAmount.ClientID %>");
id = temp.value;
if (id == "") {
return ("Please Enter Amount" + "\n");
}
else {
return "";
}
}
function isvalidEmail() {
var id;
var temp = document.getElementById("<%=txtEmail.ClientID %>");
id = temp.value;
var re = /\w+([-+.']\w+)*@\w+([-.]\w+)*\.\w+([-.]\w+)*/;
if (id == "") {
return ("Please Enter Email" + "\n");
}
else if (re.test(id)) {
return "";
}
else {
return ("Email should be in the form [email protected]" + "\n");
}
}
function isvalidMobileno() {
var id;
var temp = document.getElementById("<%=txtMobile.ClientID %>");
id = temp.value;
var re;
re = /^[0-9]+$/;
var digits = /\d(10)/;
if (id == "") {
return ("Please Enter Mobile no" + "\n");
}
else if (re.test(id)) {
return "";
}
else {
return ("Phone no should be digits only" + "\n");
}
}
</script>
</asp:Content>
<asp:Content ID="Content3" ContentPlaceHolderID="MainContent" runat="server">
<table>
<tr>
<td class="td">Name:<span style="color:red;">*</span></td>
<td>
<asp:TextBox ID="txtName" runat="server" CssClass="txt"></asp:TextBox></td>
</tr>
<tr>
<td class="td">Course:<span style="color:red;">*</span></td>
<td>
<asp:DropDownList ID="ddlCourse" runat="server" CssClass="txt" Width="216px">
<asp:ListItem Value="0">--------Select--------</asp:ListItem>
<asp:ListItem>.NET</asp:ListItem>
<asp:ListItem>Java</asp:ListItem>
<asp:ListItem>SQL Server</asp:ListItem>
<asp:ListItem>MySQL</asp:ListItem>
<asp:ListItem>Oracle</asp:ListItem>
<asp:ListItem>PHP</asp:ListItem>
<asp:ListItem>A+/Network+</asp:ListItem>
<asp:ListItem>CISCO</asp:ListItem>
</asp:DropDownList>
</td>
</tr>
<tr>
<td class="td">Amount: <span style="color:red;">*</span></td>
<td>
<asp:TextBox ID="txtAmount" runat="server" CssClass="txt"></asp:TextBox></td>
</tr>
<tr>
<td class="td">Address: <span style="color:red;">*</span></td>
<td>
<asp:TextBox ID="txtAddress" runat="server" CssClass="txt"></asp:TextBox>
</td>
</tr>
<tr>
<td class="td">Mobile: <span style="color:red;">*</span></td>
<td>
<asp:TextBox ID="txtMobile" runat="server" CssClass="txt"></asp:TextBox></td>
</tr>
<tr>
<td class="td">Email ID: <span style="color:red;">*</span></td>
<td>
<asp:TextBox ID="txtEmail" runat="server" CssClass="txt"></asp:TextBox>
</td>
</tr>
<tr>
<td></td>
<td>
<asp:Button ID="btnSubmit" runat="server" Text="Submit" OnClick="btnSubmit_Click" CssClass="button" />
<asp:Button ID="btnCancel" runat="server" Text="Cancel" OnClick="btnCancel_Click" CssClass="button" /></td>
<td></td>
</tr>
</table>
<asp:Panel ID="Panel1" runat="server" >
<table style="width: 50%;">
<tr>
<td>
<asp:GridView ID="GridViewStudent" CssClass="handsontable" runat="server"></asp:GridView>
</td>
<td><asp:GridView ID="GridViewCourses" CssClass="handsontable" runat="server"></asp:GridView></td>
</tr>
</table>
</asp:Panel>
</asp:Content>
Now, in the code behind file "Student.aspx.cs" use the following code.
Student.aspx.cs
using System;
using System.Collections.Generic;
using System.Configuration;
using System.Data;
using System.Linq;
using System.Web;
using System.Web.UI;
using System.Web.UI.WebControls;
using MySql.Data.MySqlClient;
namespace MySqlTransactionApplication
{
public partial class Student : System.Web.UI.Page
{
#region MySqlConnection Connection and Page Lode
MySqlConnection conn = new MySqlConnection(ConfigurationManager.ConnectionStrings["ConnectionString"].ConnectionString);
protected void Page_Load(object sender, EventArgs e)
{
try
{
if (!Page.IsPostBack)
{
btnSubmit.Attributes.Add("onclick", "javascript:return validationCheck()");
BindStudentGridView(); BindCoursesGridView();
}
}
catch (Exception ex)
{
ShowMessage(ex.Message);
}
}
#endregion
#region show message
/// <summary>
/// This function is used for show message.
/// </summary>
/// <param name="msg"></param>
void ShowMessage(string msg)
{
ClientScript.RegisterStartupScript(Page.GetType(), "validation", "<script language='javascript'>alert('" + msg + "');</script>");
}
/// <summary>
/// This Function is used TextBox Empty.
/// </summary>
void clear()
{
txtName.Text = string.Empty; txtAddress.Text = string.Empty; txtMobile.Text = string.Empty; txtEmail.Text = string.Empty;
ddlCourse.SelectedIndex = 0; txtAmount.Text = string.Empty; txtName.Focus();
}
#endregion
#region bind data to GridViewStudent and GridViewCourses
private void BindStudentGridView()
{
try
{
if (conn.State == ConnectionState.Closed)
{
conn.Open();
}
MySqlCommand cmd = new MySqlCommand("Select * from Student ORDER BY SID DESC", conn);
MySqlDataAdapter adp = new MySqlDataAdapter(cmd);
DataSet ds = new DataSet();
adp.Fill(ds);
GridViewStudent.DataSource = ds;
GridViewStudent.DataBind();
}
catch (MySqlException ex)
{
ShowMessage(ex.Message);
}
finally
{
if (conn.State == ConnectionState.Open)
{
conn.Close();
}
}
}
private void BindCoursesGridView()
{
try
{
if (conn.State == ConnectionState.Closed)
{
conn.Open();
}
MySqlCommand cmd = new MySqlCommand("Select * from courses", conn);
MySqlDataAdapter adp = new MySqlDataAdapter(cmd);
DataSet ds = new DataSet();
adp.Fill(ds);
GridViewCourses.DataSource = ds;
GridViewCourses.DataBind();
}
catch (MySqlException ex)
{
ShowMessage(ex.Message);
}
finally
{
if (conn.State == ConnectionState.Open)
{
conn.Close();
}
}
}
#endregion
#region Transaction
//this code used to Transaction are implememted
protected void btnSubmit_Click(object sender, EventArgs e)
{
MySqlTransaction tr = null;
try
{
conn.Open();
tr = conn.BeginTransaction();
MySqlCommand cmd = new MySqlCommand();
cmd = new MySqlCommand("Insert into student (Name,Address,Mobile,Email ) values (@Name,@Address,@Mobile,@Email)", conn,tr);
cmd.Parameters.AddWithValue("@Name", txtName.Text);
cmd.Parameters.AddWithValue("@Address", txtAddress.Text);
cmd.Parameters.AddWithValue("@Mobile", txtMobile.Text);
cmd.Parameters.AddWithValue("@Email", txtEmail.Text);
cmd.ExecuteNonQuery();
cmd = new MySqlCommand("Insert into courses (Course,Name,Amount ) values (@Course,@Name1,@Amount )", conn,tr);
cmd.Parameters.AddWithValue("@Name1", txtName.Text);
cmd.Parameters.AddWithValue("@Course",ddlCourse.SelectedValue.ToString());
cmd.Parameters.AddWithValue("@Amount",txtAmount.Text);
cmd.ExecuteNonQuery();
tr.Commit();
cmd.Dispose();
ShowMessage("Student Course Enrollment Successfully......!");
clear();
BindStudentGridView(); BindCoursesGridView();
}
catch (MySqlException ex)
{
tr.Rollback();
ShowMessage(ex.Message);
}
finally
{
conn.Close();
}
}
#endregion
// used TextBox Empty.
protected void btnCancel_Click(object sender, EventArgs e)
{
clear();
}
}
}

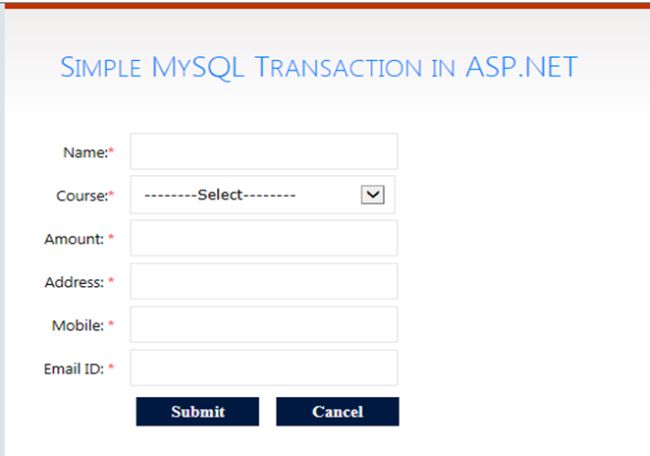

Now run the page, it will look like the following.
![]()

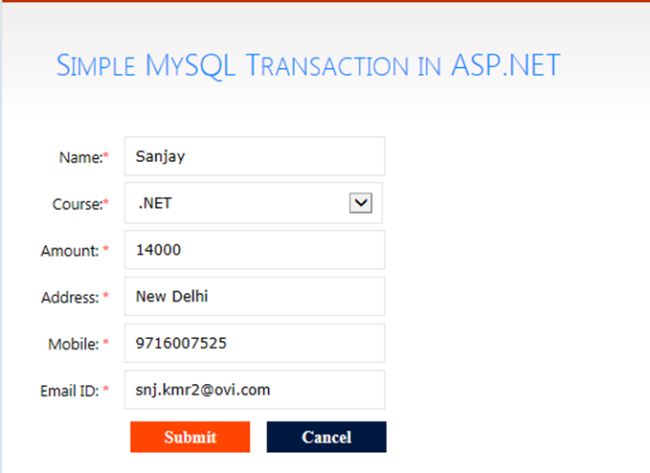

Now, Student information Enter and Submit, it will look like the following:
![]()

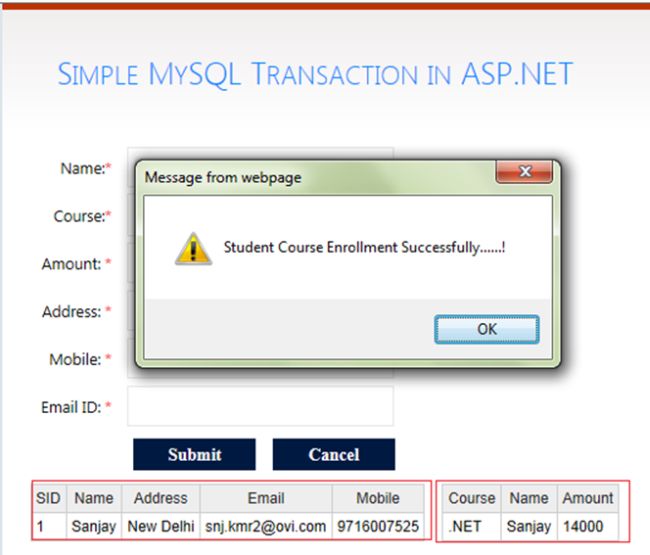

Now, show in the Message box “Student Course Enrollment Successfully”. And show the data to GridViewStudent and GridViewCourses.
![]()
Now, open the MySQLAdmin Page then show the Student and Courses table data
![]()
I hope this article is useful. If you have any other questions then please provide your comments below.
