How to Use Report Viewer in Visual Studio 2012

In my last article I explained how to create a SSRS project. In this article I explain how to use the Report Viewer in Visual Studio 2012. In this article we will see use of a dataset and the Report Viewer.

Step 1: Open Visual Studio 2012 or 2010 then create a new Forms Application (project name: "HowToOpenReportViewer").

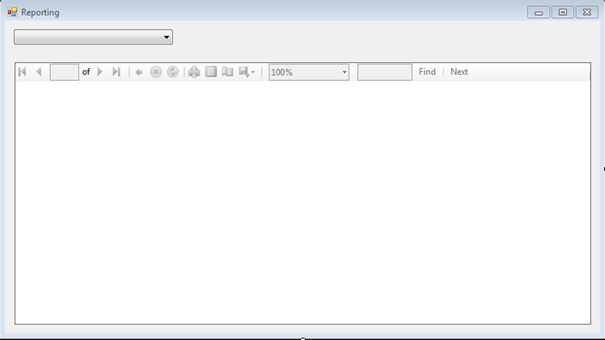

Step 2


  • Change the DropDownStyle to DropDownList
  • Design name: cbProducts

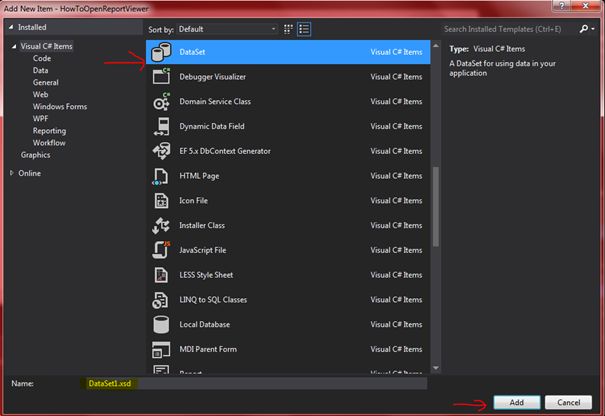

Step 3: We need to create a dataset. How? Right-click on the HowToOpenReportViewer project then select "Add" >> "New Item" then select "DataSet". The default name is "DataSet1.xsd"; I did not change it. Then click the "OK" button.

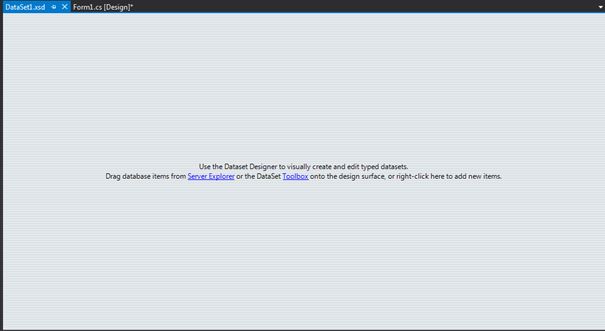

Here is the default DataSet page.


Step 4: Right-click then select "Add" -> "TableAdapter"

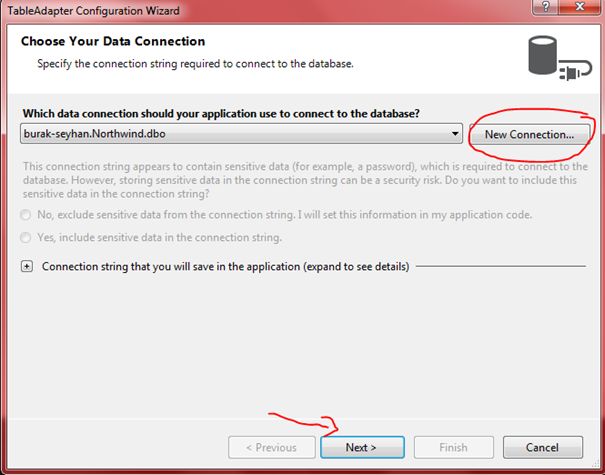

In this screen we can set a connection configuration. If you have no connection struct then you should create a new connection fron the "New Connection".

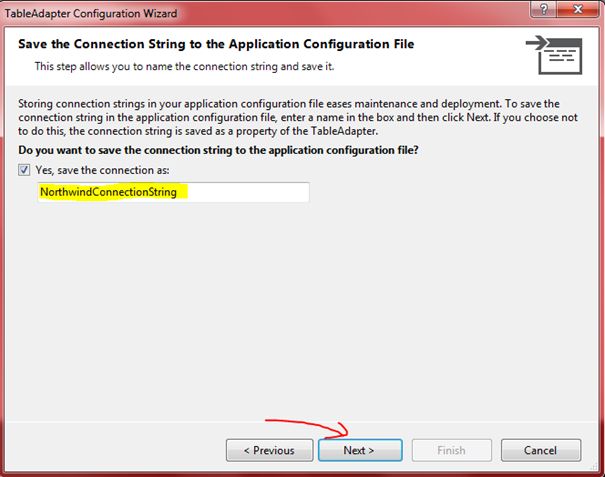

Step 5

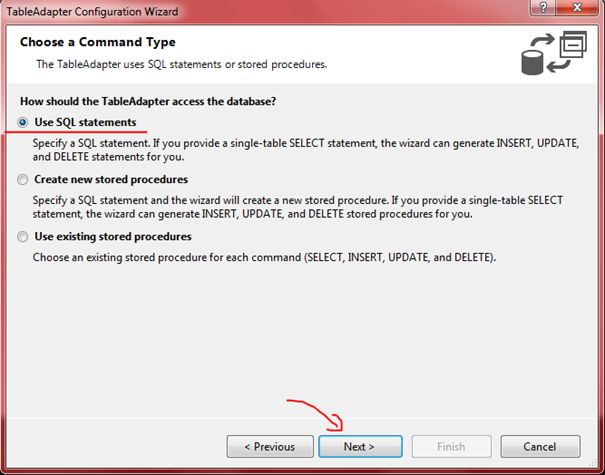

Step 6: If you have Stores Procedures then you should choose the second button; I chose "SQL Statement". Then click the "Next" button.

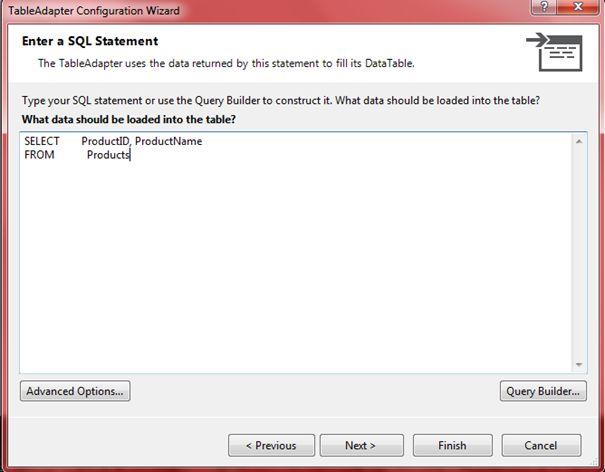

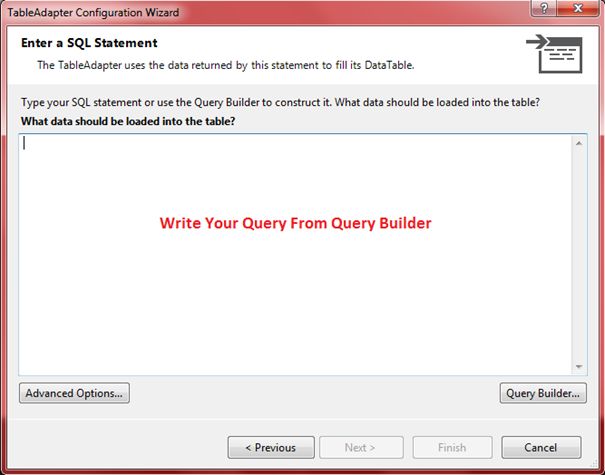

Step 7: We should use a SQL query for ComboBox.


Step 8: This query will use a ComboBox.

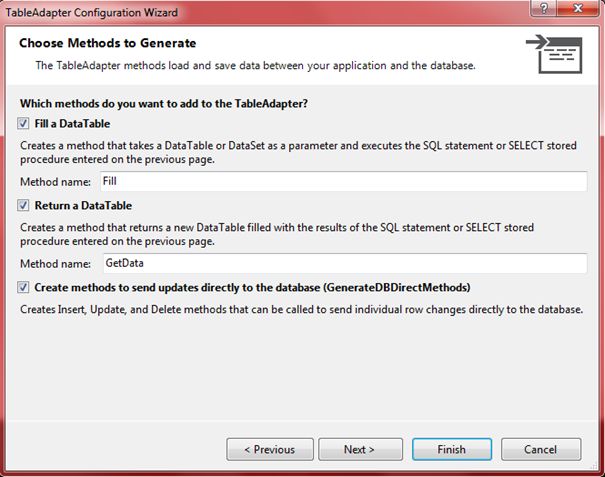

Step 9: Here is my method's name. If you want to change it, you can do that but I do not want to change it. I'll use the default name.

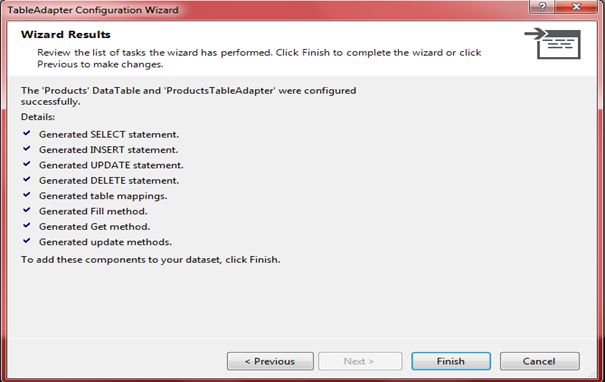

Step 10: All the configuration is there. If you are not sure of the settings then you should click the "Previous" button.

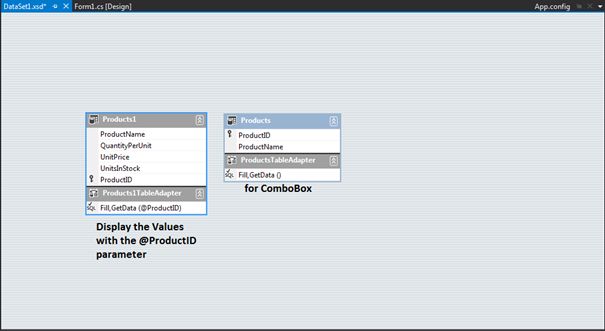

Step 11: I will create a DataAdapter two times for the display value.


Step 12: Click the ComboBox then select "Use Data Bound Items".

Data Source: Products
Display Member: ProductName
Value Member: ProductID and then we see the ProductName in the ComboBox.


Step 13: Click "Report Viewer" then select "Desing a new Report".

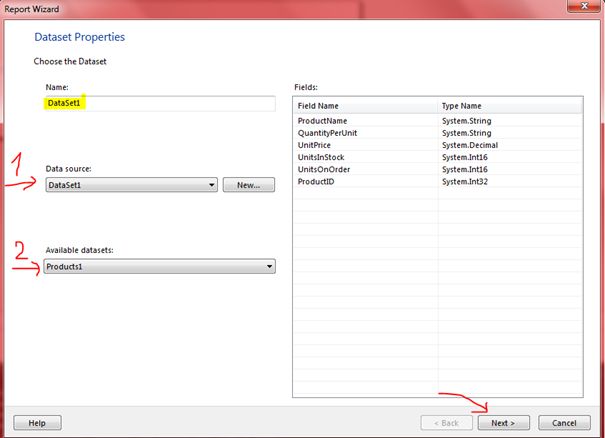

  • Write your DataSet name
  • Select your Data source and Available dataSet from the ComboBox

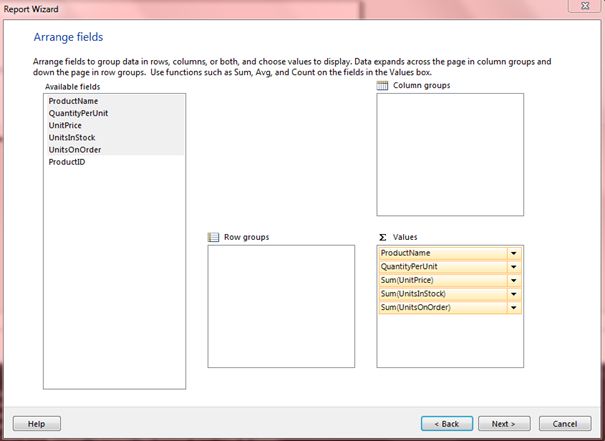

Step 14

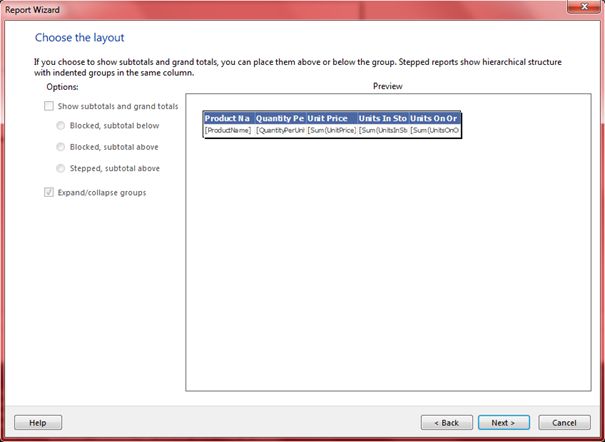

: Note the option here to group the data and show it. It depends on your report's structure.


Step 15

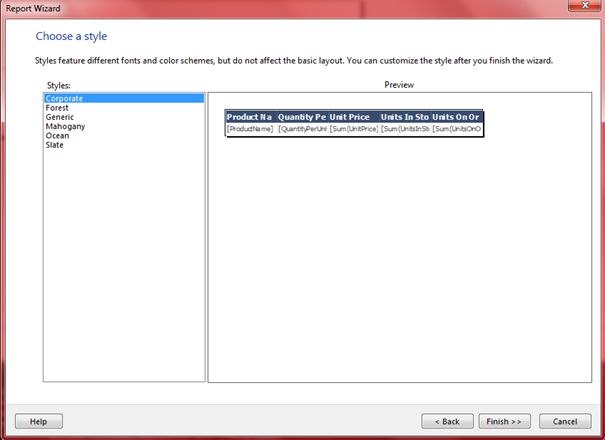

Step 16: Remember the SSRS Project :D In this page we see 6 default templates. I chose the Slate template and all of the users see that. Then click the "Next" button.

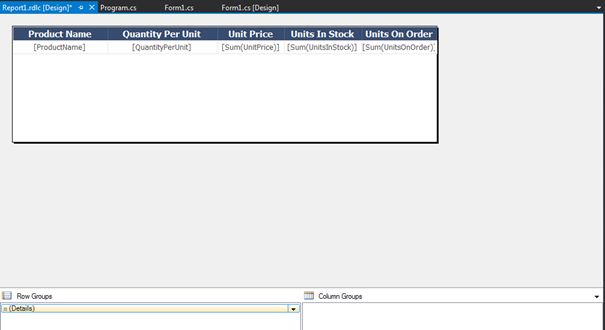

Step 17


Step 18

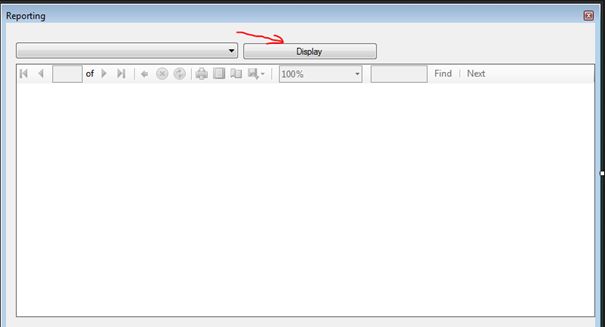

Add one button and name "Display".

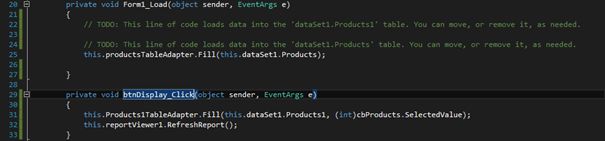

Step 19:
Click "Report Viewer" then select "Choose Report".

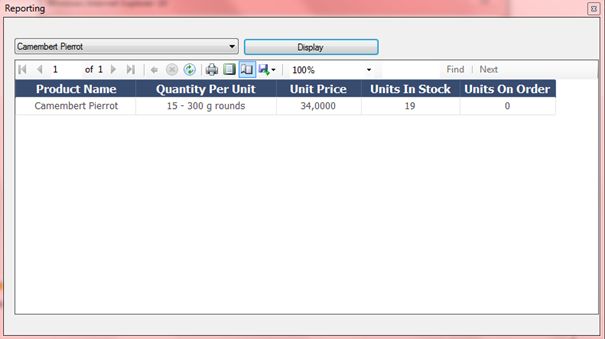

And the result is here:
