Step 1
Open SQL Server (enter the Server Name, Id and Password then click on Connect).
![]()
Step 2

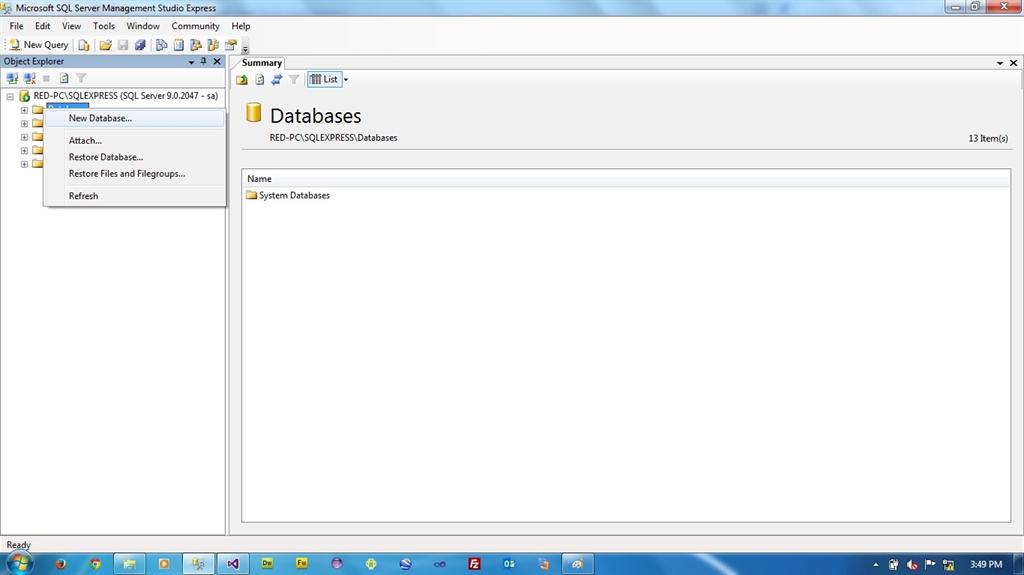

Create a new database (right-click on Database then select New Database).
![]()
Step 3

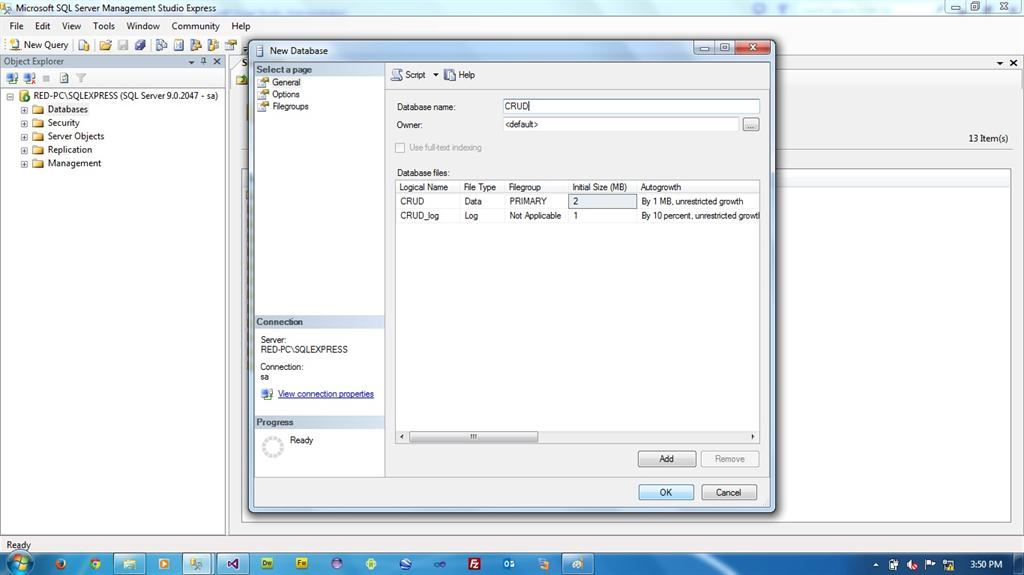

Enter "CRUD" for the database name then click OK.
![]()
Step 4

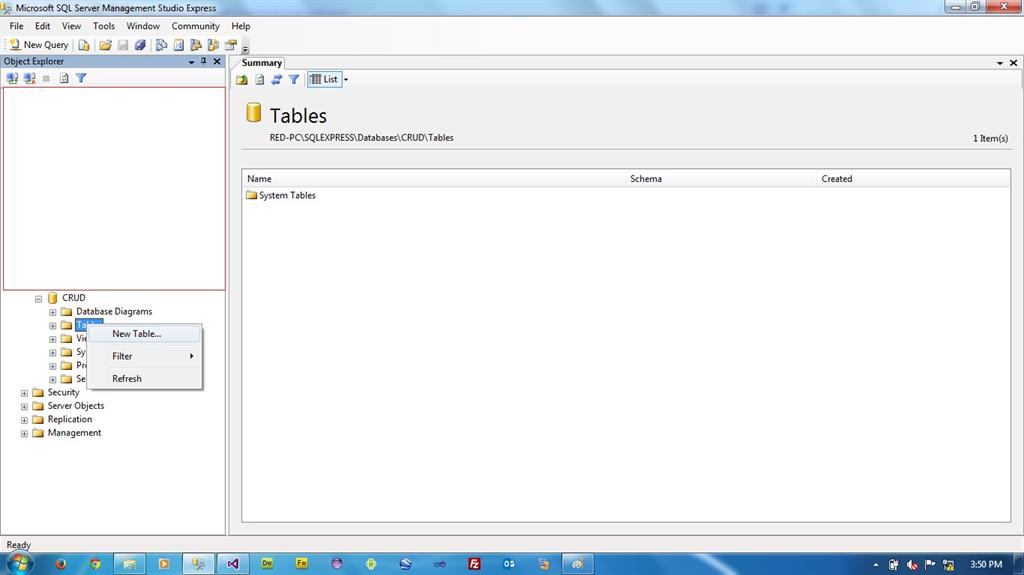

Create a new table (explore the CRUD database then right-click on Tables then select New Table).
![]()
Step 5
Design the table (name the columns and set the data types as shown in the following figure).
![]()
Step 6

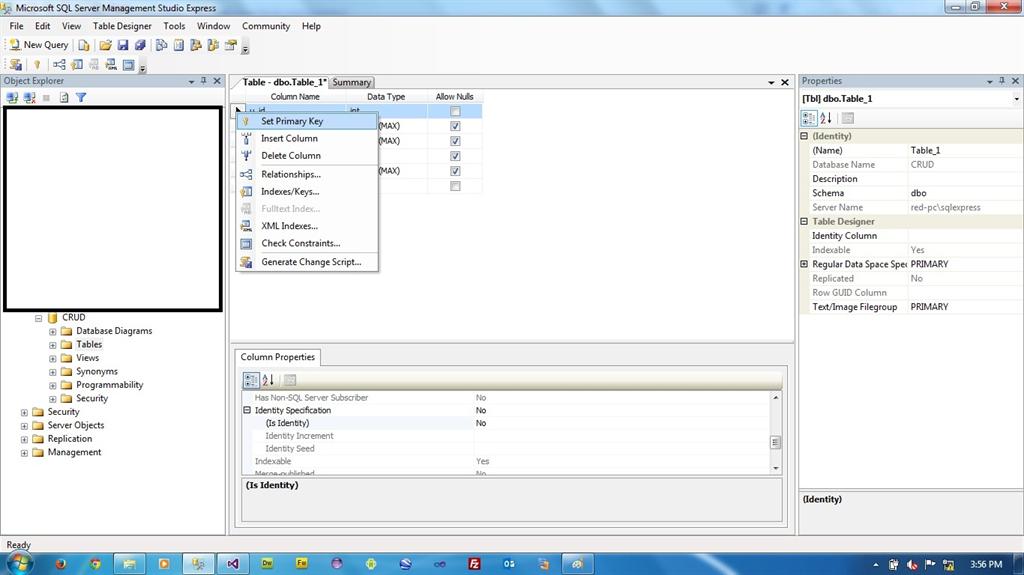

Set the Primary Key (right-click on Column(u_id) then set the Primary Key).
![]()
Step 7

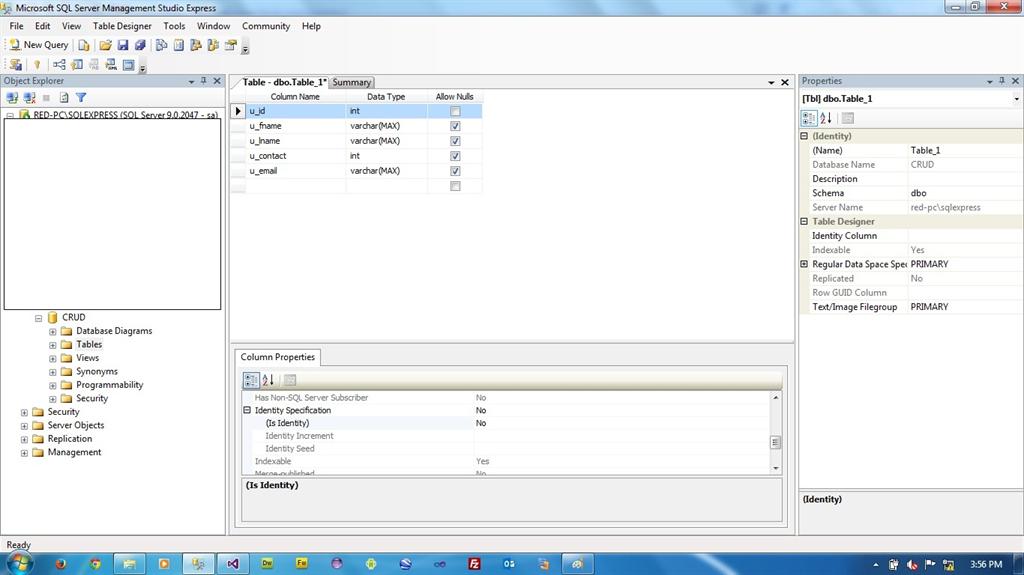

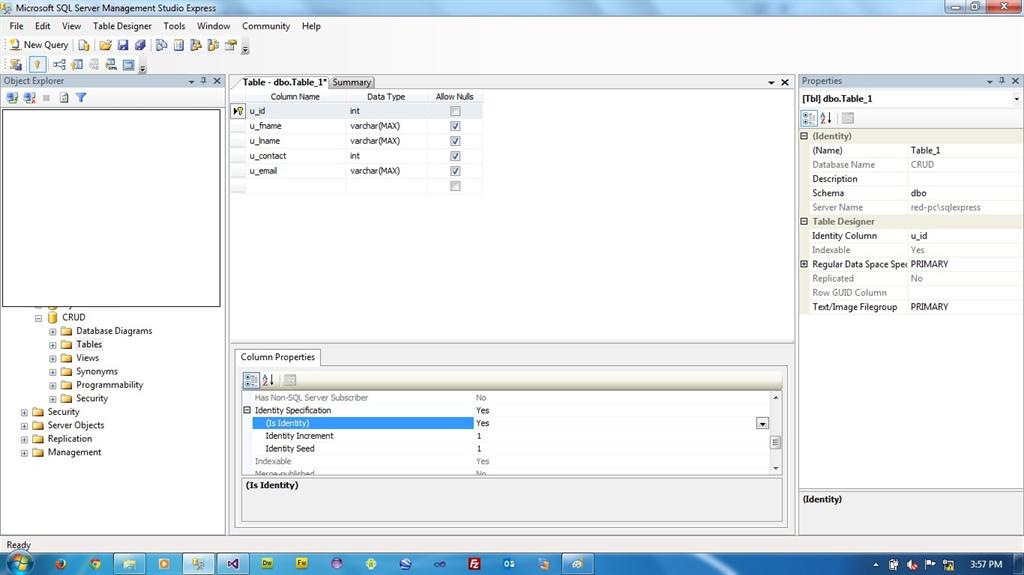

Make the u-id column Auto-Increment (select the u_id column then go to the Column Properties then select Identity Specification then (Is Identity) = Yes ). Press Ctrl + S to save the table. A window will open for entering the name of the database. Provide "tbl_user" for it and click OK.
![]()
Step 8

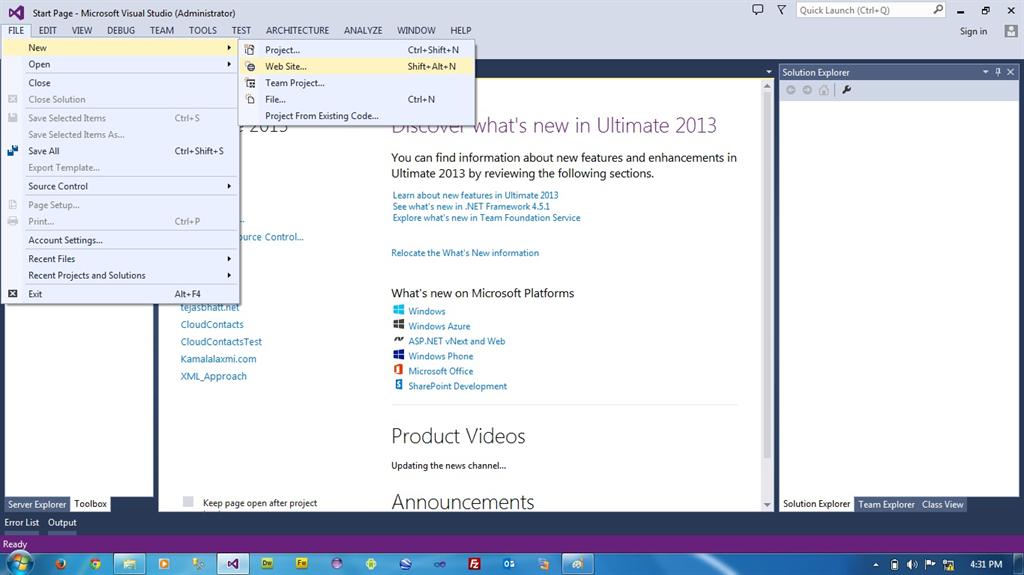

Create a New Web Application (open Visual Studio then select File -> New -> Web Site).
![]()
Step 9

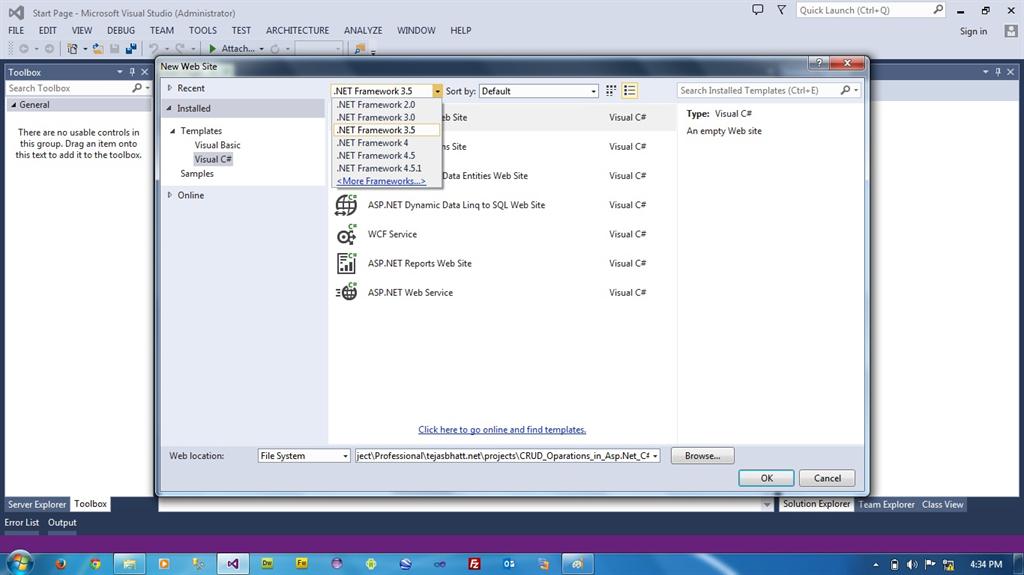

Select Visual C# from left then select .Net Framework 3.5.
![]()
Step 10
Select ASP.NET Empty Web Site then click on Browse.
![]()
Step 11

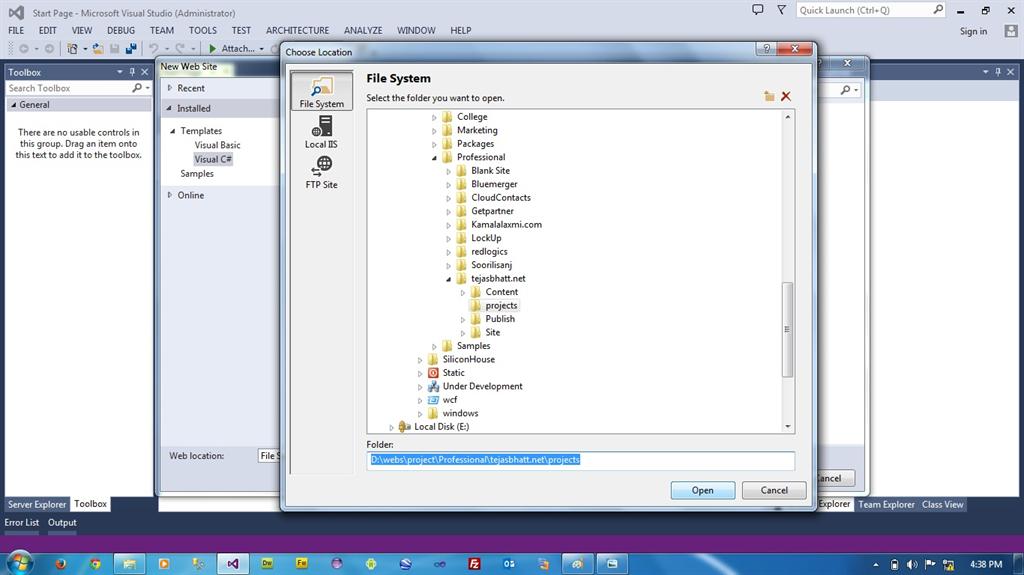

Select the folder in which you would like to store the application then click open then provide a website name after the folder name, for example in the following case (../project/CRUD) then click OK.
![]()
Step 12
An Empty Web Application has been created.
![]()
Step 13

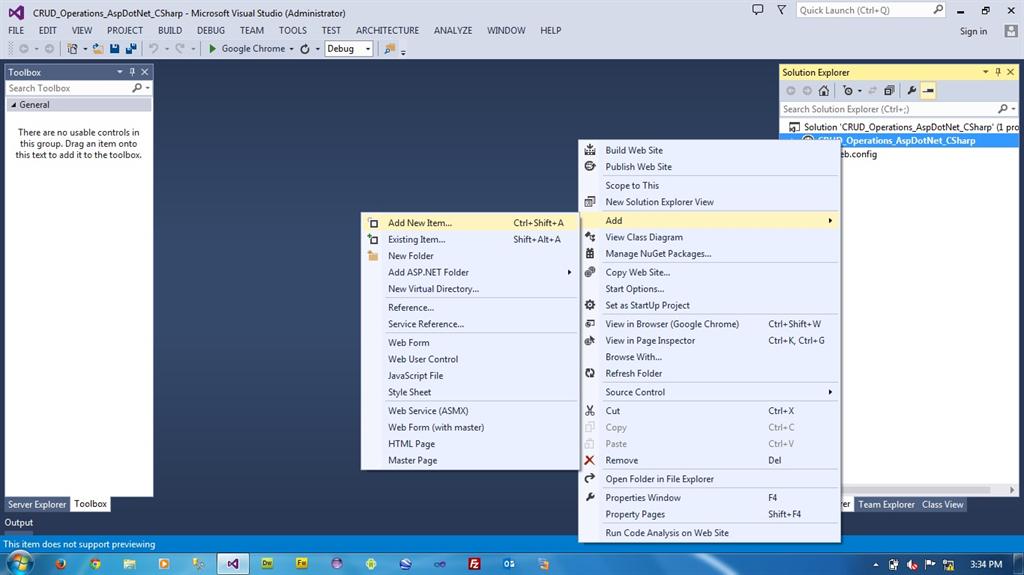

Create a new web page (right-click on the web App then select Add -> Add New Item).
![]()
Step 14

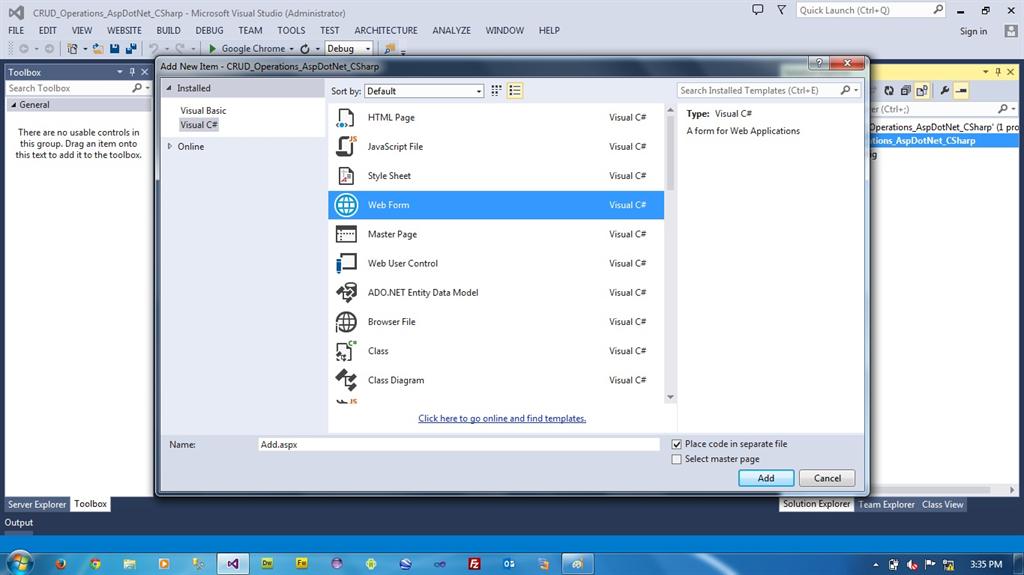

Select "Web Form" then provide the name "Add.aspx" then click Add.
![]()
Step 15

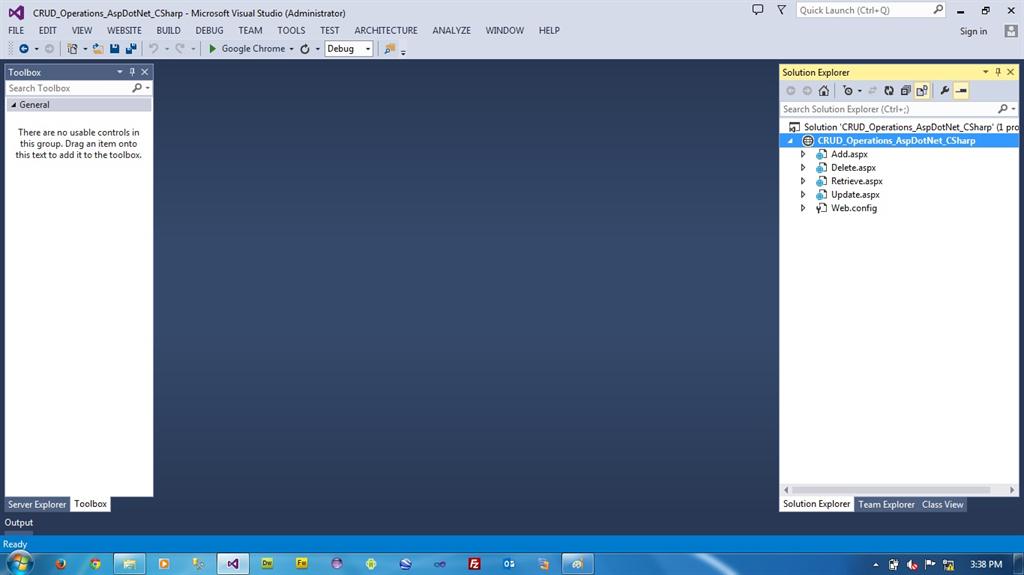

In the same way add another three web forms (Delete.aspx, Retrieve.aspx and Update.aspx).
![]()
Step 16

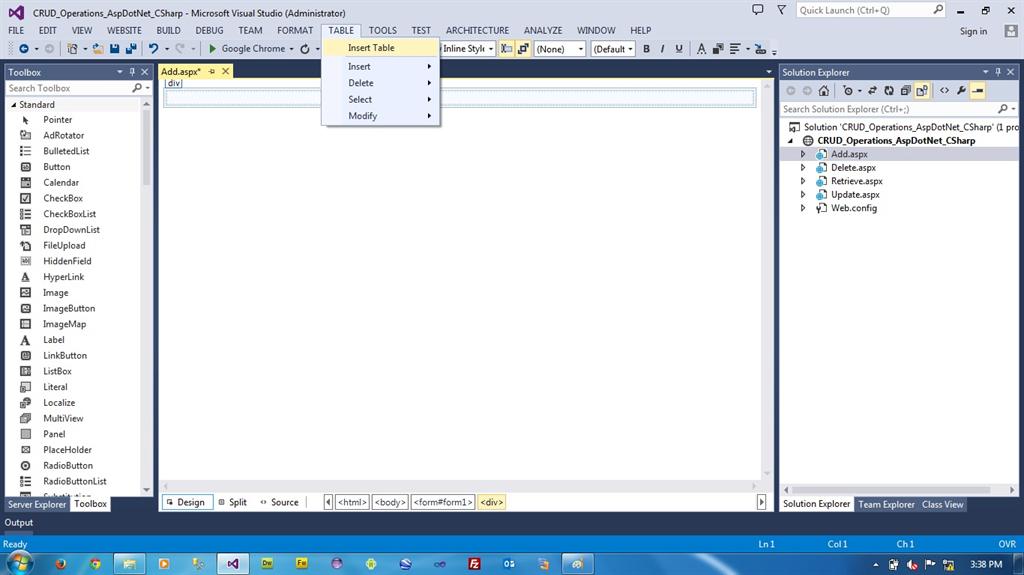

Add a HTML table dynamically (open Add.aspx then select Design View from the bottom left then select Table from the menubar then select Insert Table).
![]()
Step 17

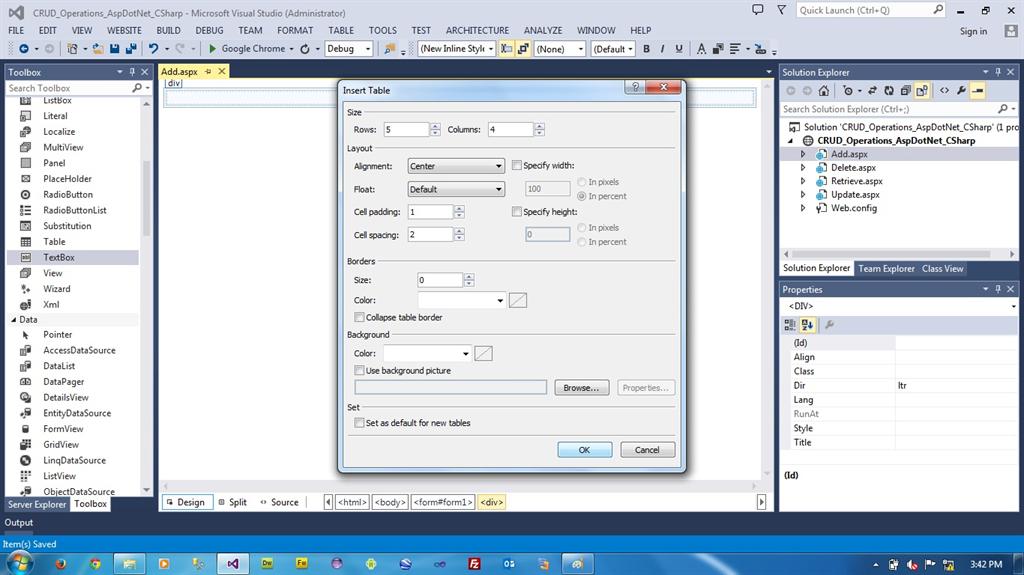

Set the table properties as in the following and remember to uncheck specify width (it's important for a good UI).
![]()
Step 18

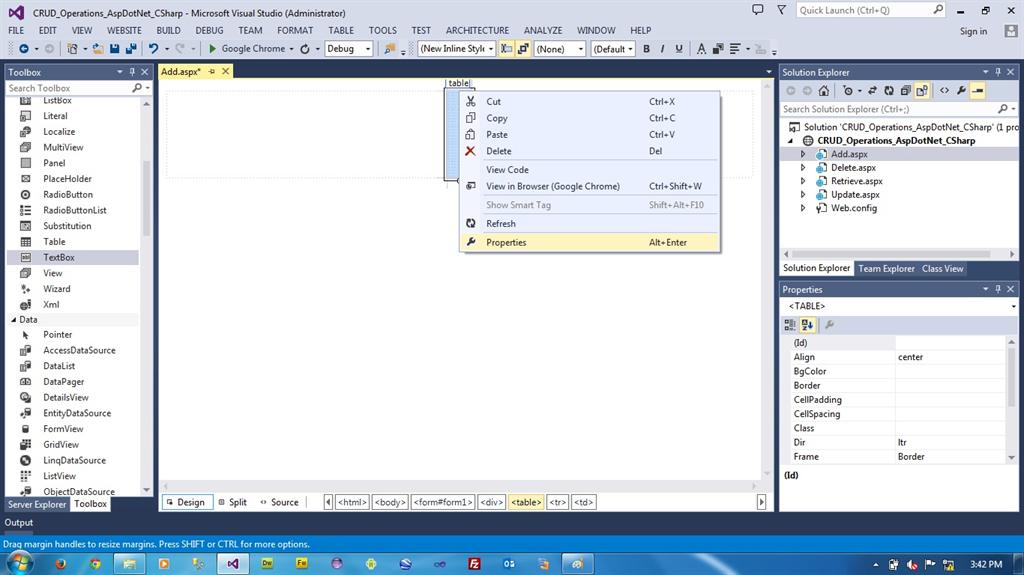

Select the table then right-click on it then go to properties (in the right side corner you will get properties as shown in the following figure).
![]()
Step 19
This step is important for a good UI.
- Select the first cell of the first row then set the width = 100 (in the properties window)
- Select the second cell of the first row then set the width = 20 (in the properties window)
- Select the fourth cell of the first row then set the width = 20 (in the properties window)
- Add a TextBox (from the Toolbox select TextBox then drag and drop it to the third cell of the first row)
- Select that TextBox then Ctrl + C (copy) then select the third cell of the second row then Ctrl + V (Paste) (do this for the third and fourth row as well)

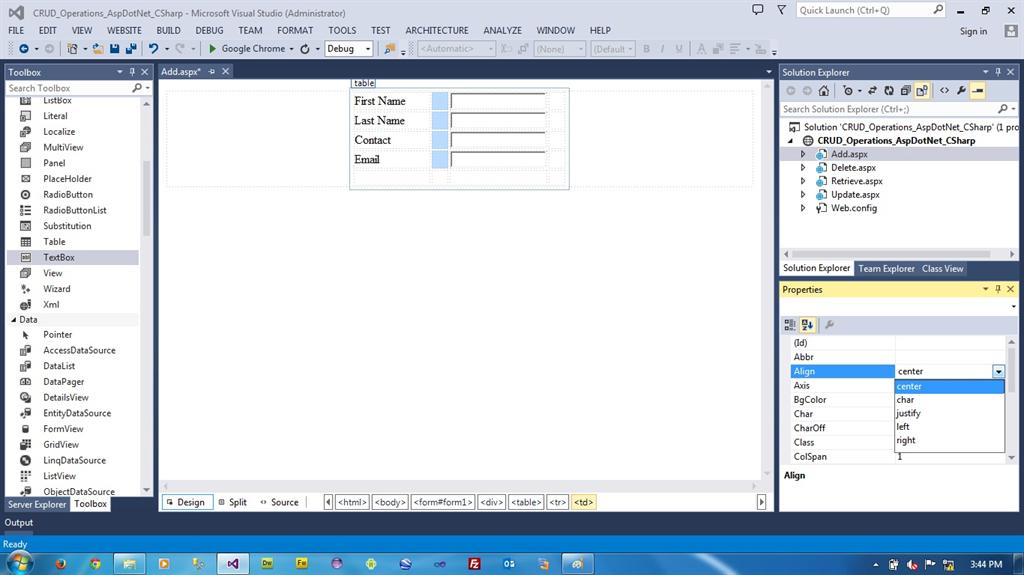

- Type the text as shown in the following figure in first cell of every row (First Name, Last Name, Contact and Email)
- Select all the second cells of each row then go to properties then select align then select center, then put ":" in each of these cells
- Select the third cell from the fifth row and set align then right from the properties window
![]()
Step 20

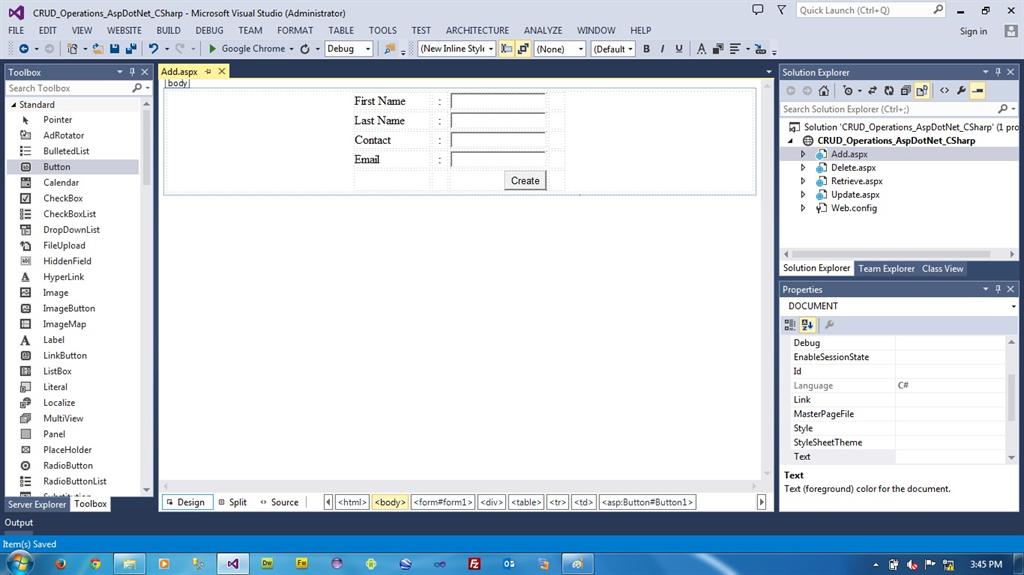

Add a button (select the button from the toolbox then drag and drop it to the third cell of the fifth row).
![]()
Step 21
Assign an Id value to each ASP component. (Select the first TextBox then go to properties then set the (ID) = txtFname.)
Do the same thing for the other TextBoxes and provide the names (txtLname, txtContact and txtEmail).
![]()
Step 22

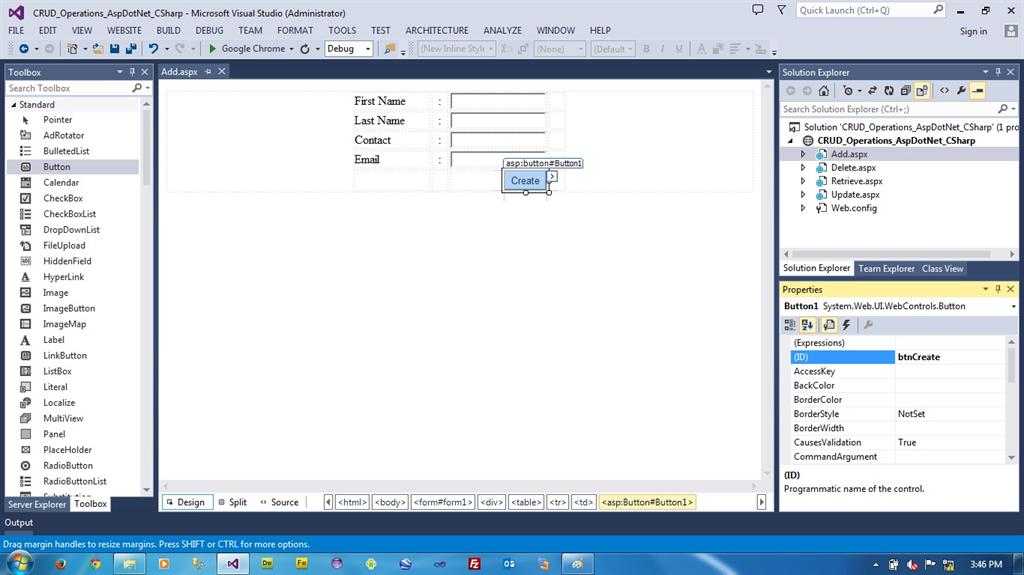

As in the Step 21, set the id and text for the button also (go to the properties then select (ID)= btnCreate, Text = Create).
![]()
Step 23
Open the C# code for the page (right-click on the page then select go to View Code).
![]()
Step 24

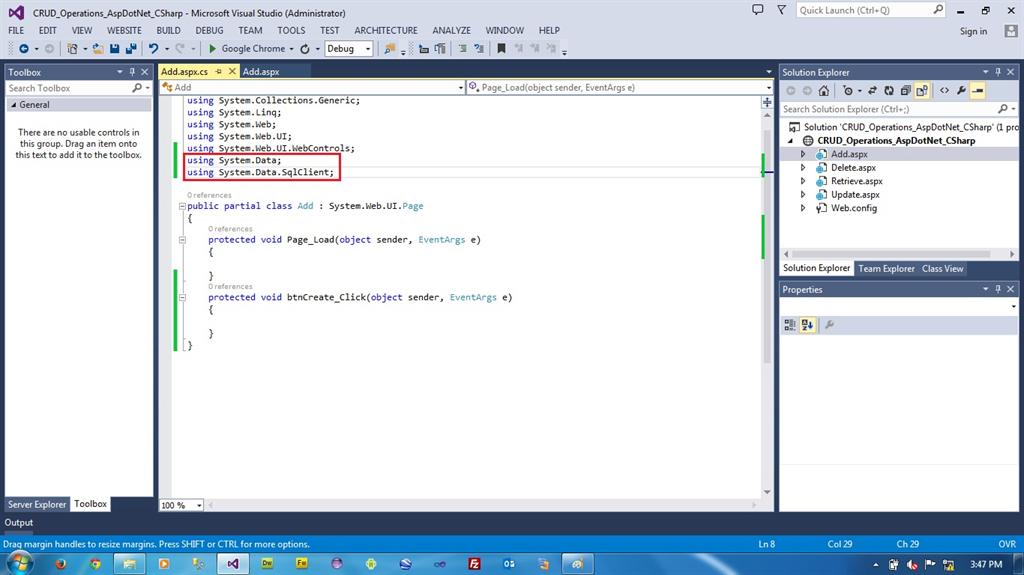

Add two assemblies on top as shown in the following figure (using System.Data and using System.Data.SqlClient).
![]()
Step 25

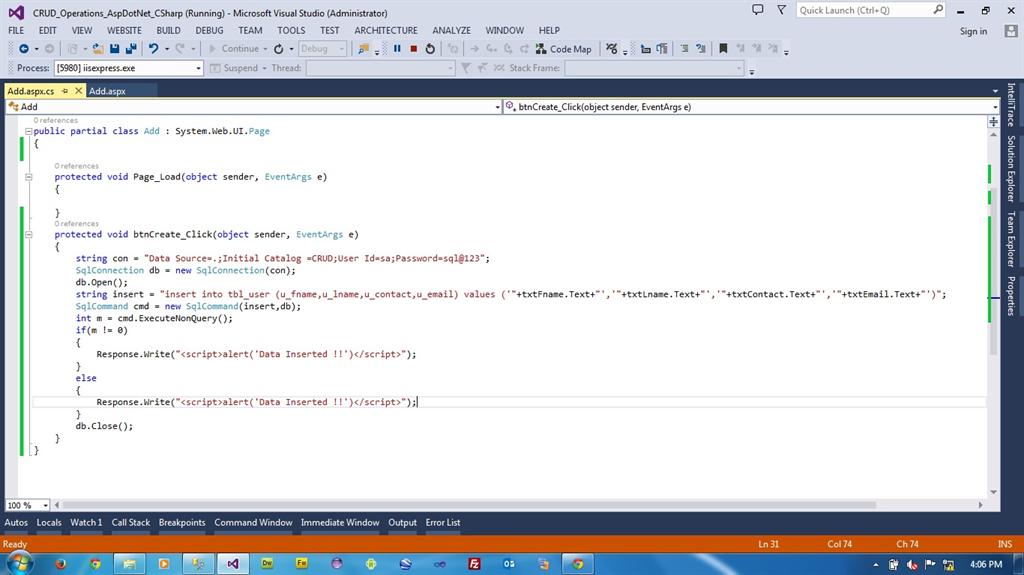

Double-click on the button Create and add the following code as shown in the following figure.
- string con = "Data Source=.;Initial Catalog =CRUD;User Id=sa;Password=sql@123";
- SqlConnection db = new SqlConnection(con);
- db.Open();
- string insert = "insert into tbl_user (u_fname,u_lname,u_contact,u_email) values ('"+txtFname.Text+"','"+txtLname.Text+"','"+txtContact.Text+"','"+txtEmail.Text+"')";
- SqlCommand cmd = new SqlCommand(insert,db);
- int m = cmd.ExecuteNonQuery();
- if(m != 0)
- {
- Response.Write("
- <script>alert('Data Inserted !!')</script>
- ");
- }
- else
- {
- Response.Write("
- <script>alert('Data Inserted !!')</script>
- ");
- }
- db.Close();
![]()
Step 26
Run the Project as in the following:
- Save the project (press Ctrl + S (Save) for both Add.aspx and Add.aspx.cs).

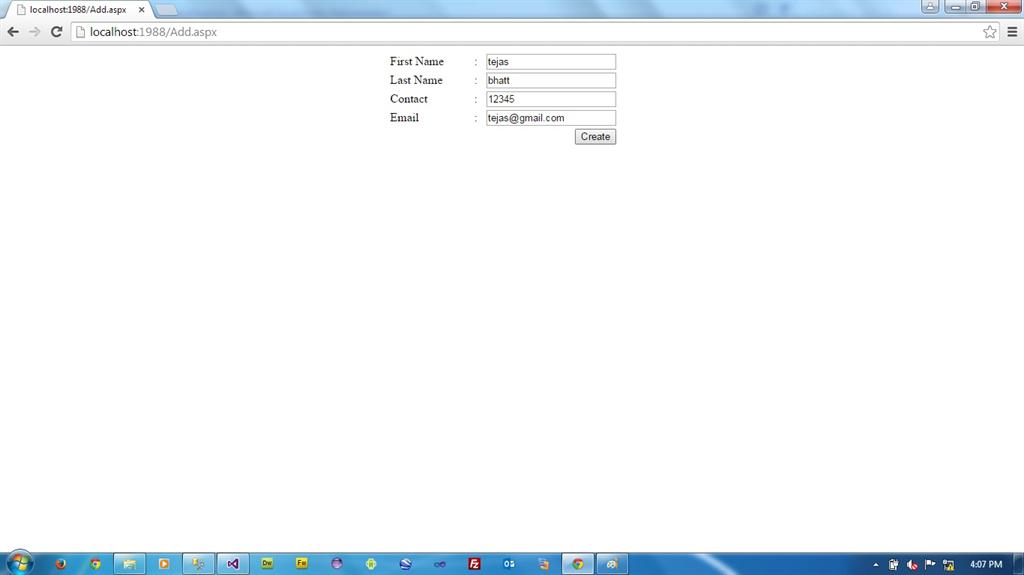

- Run the project (right-click on the Add.aspx then set the As Start Page then select Fn + F5 (Run)). You will get the following output.
- Enter the details of the user. Click the button Create.
![]()
Step 27

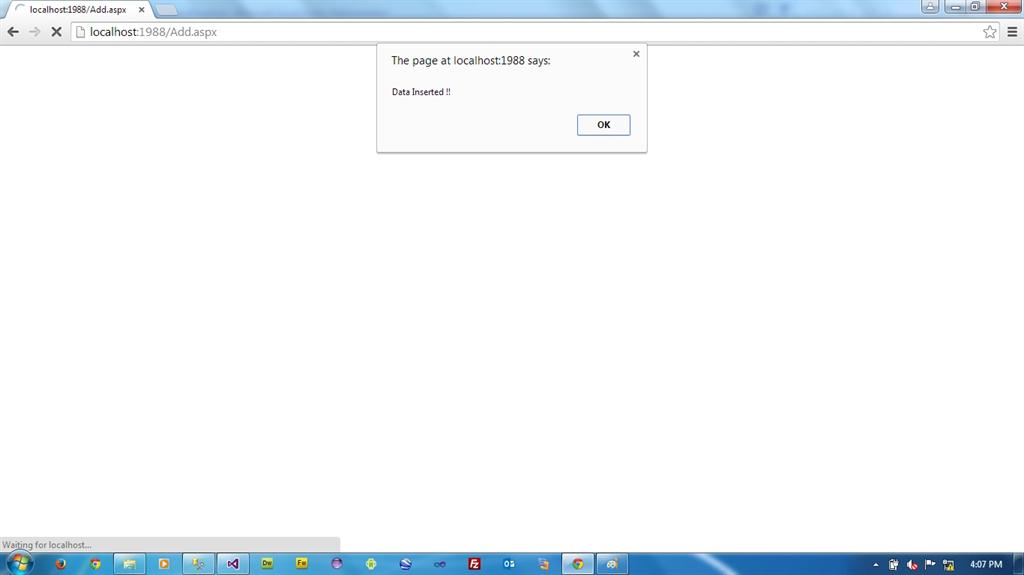

A message will shown saying "Data Inserted !!".
![]()
Step 28

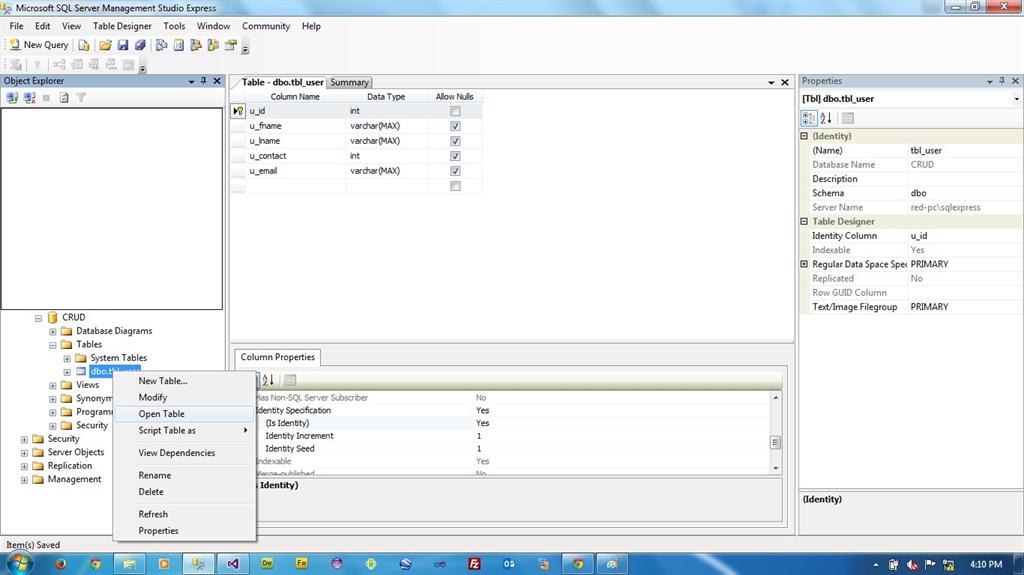

Confirmation (open SQL Server then select explore database "CRUD" then select explore tables then right-click on tbl_user then select Open Table).
![]()
Step 29

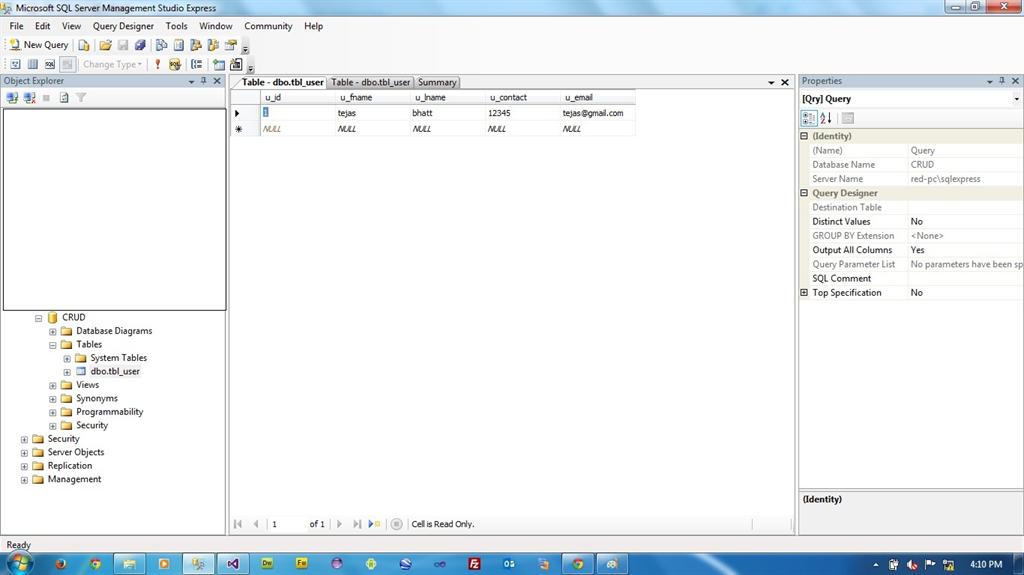

You will see that the data has been successfully inserted into the database.
![]()
