Working With External Providers in MVC 5

Introduction

This article explains customization of a social providers button in the ASP.NET MVC 5 using Visual Studio Studio 2013. As you all know, we can create the MVC 5 Project based ASP.NET Web Application in Visual Studio 2013, so here I am customizing the login providers buttons.

In that context, you need to be aware of the configuration of MVC 5 external login options.

Registration of OAuth Providers

We need to first enable the authentication providers for the project. Use the following procedure to create a sample of doing that.

Step 1: Open the Startup.Auth.cs file.

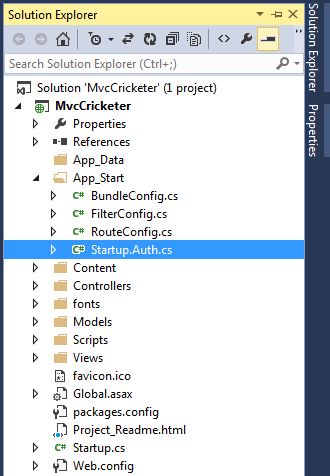

Startup Authentication File

Step 2: Enable the Google provider as shown below:

app.UseGoogleAuthentication();

Step 3: Run your application and open the Login page.

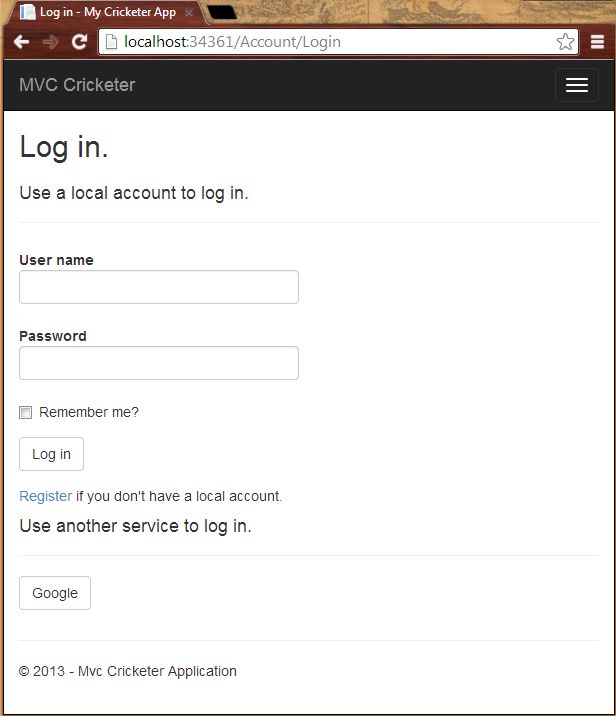

Login with Google in MVC 5

Step 4: Use the same and open other providers and enter the app_id and app_secret value as "x" as shown below:

app.UseTwitterAuthentication(

   consumerKey: "x",

   consumerSecret: "x");



app.UseFacebookAuthentication(

   appId: "x",

   appSecret: "x");

These are the simple social provider buttons to be displayed on your login page.

All Providers in MVC 5

Customization of OAuth Providers

I am using a CSS file that is expressed on GitHub. Use the following procedure to do that.

Step 1: Create a CSS file in Content.

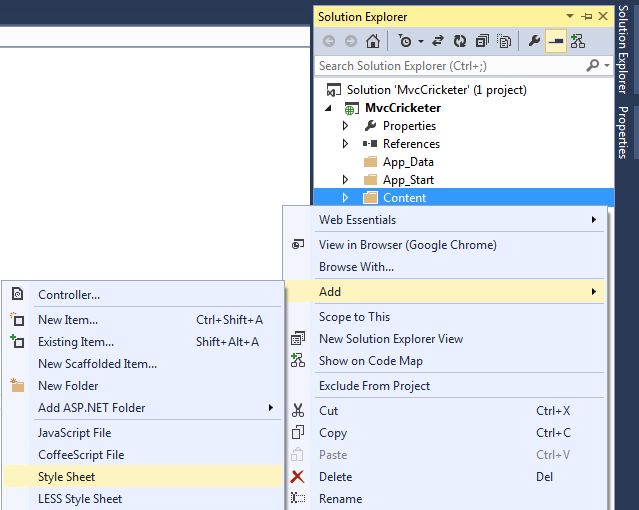

Creating Css File

Step 2: Name it "Zocial.css".

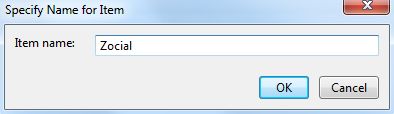

Enter Css

Step 3: Copy the content in it from the CSS file stored in GitHub.

Step 4: Open the Bundle Configuration file.

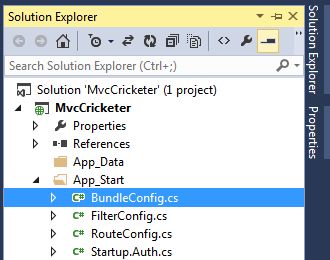

Bundle Configuration File

Step 5: Modify your code with the following code:

bundles.Add(new ScriptBundle("~/bundles/bootstrap").Include(

          "~/Scripts/bootstrap.js",

          "~/Scripts/respond.js"));



bundles.Add(new StyleBundle("~/Content/css").Include(

          "~/Content/bootstrap.css",

          "~/Content/site.css",

          "~/Content/zocial.css"));

In the code above I added the reference of my CSS file created in the Content folder.

Step 6: Now, open the external login file as in the following:

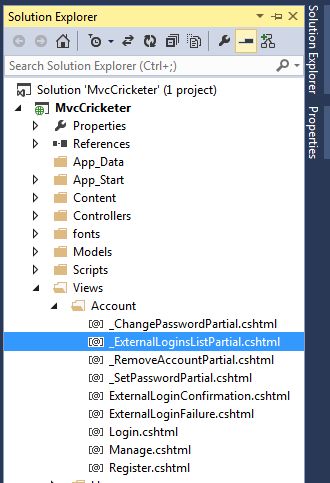

External Login File

Step 7: Modify the code with the following code:

using (Html.BeginForm(action, "Account", new { ReturnUrl = returnUrl }))

{

    @Html.AntiForgeryToken()

    <div id="socialLoginList">

        <p>

        @foreach (AuthenticationDescription p in loginProviders)

            {

<button type="submit"
class="zocial @p.AuthenticationType.ToLower()"
id="@p.AuthenticationType"
name="provider" value="@p.AuthenticationType"
title="Log in using your @p.Caption account">
@p.AuthenticationType</button>

            }

        </p>

    </div>

}

Step 8: Run your application and open the Login page.

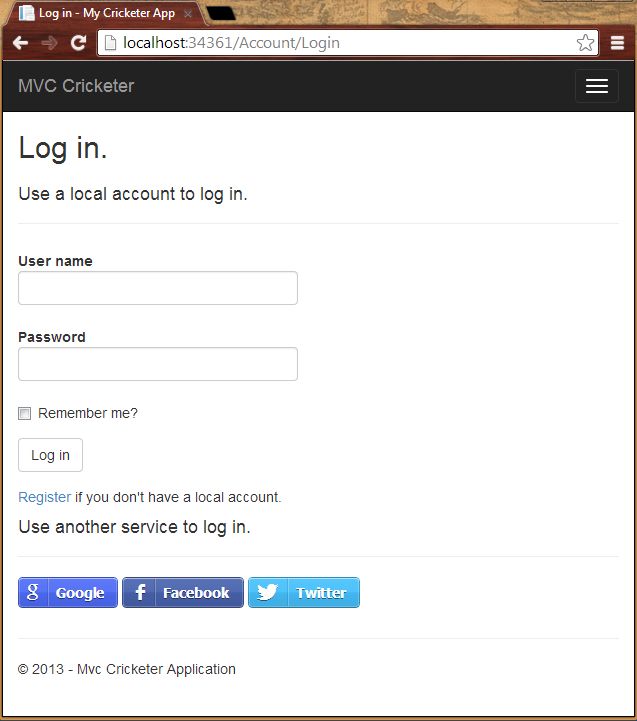

All Customized Providers in MVC 5

Summary

This article will help you to customize the external authentication providers in your MVC 5 project using Visual Studio 2013. You can also create the MVC 5 project in Visual Studio 2012 with Web Tools 2013.1. Thanks for reading.
