Working With Stored Procedures Using Entity Framework: Part 1

Introduction

Recently, I was working on a project and in that project there is a new scenario for me. The scenario is that when communicating with the database we need to work with the Stored Procedure using Entity Framework. So, I am creating an article series and in the first part I am dealing with the database using Entity Framework for it.

In this article, we'll learn to communicate with the database using the Entity Framework with a Stored Procedure. So, let's begin with the step-by-step procedure and follow the sections given below:

  • Working with Stored Procedure
  • Creating Library Project and Adding ADO.NET Entity Data Model
  • Stored Procedure Mapping with Entity
  • Import Function
  • Adding Class to do CRUD Operations

Working with Stored Procedure

At first, we need to have the Stored Procedure in the database, so let's create the Stored Procedure of Insert, Update and Delete.

Creating Stored Procedure to Insert

Suppose we have the table and now we are creating the Stored Procedure to insert the record. Have a look at the following code:

  1. CREATE Procedure [dbo].[Insert_CollegeDetails]
  2. (
  3. @CollegeName varchar(100),
  4. @CollegeAddress nvarchar(150),
  5. @CollegePhone bigint,
  6. @CollegeEmailID nvarchar(50),
  7. @ContactPerson varchar(50),
  8. @ContactPersonPhoneNo bigint,
  9. @ContactPersonEmailID nvarchar(50),
  10. @ContactPersonDesignation varchar(50),
  11. @FirstVisitDate date,
  12. @FirstVisitMode varchar(20),
  13. @State varchar(100),
  14. @City varchar(100),
  15. @FDP varchar(20),
  16. @Workshops int,
  17. @CreatedBy varchar(25),
  18. @ReturnValue int OUT
  19. )
  20.
  21. as
  22. Begin
  23. IF EXISTS(SELECT CollegeEmailID FROM CollegeDetails)
  24. begin
  25. Insert into CollegeDetails(
  26. CollegeName,CollegeAddress,CollegePhone,CollegeEmailID,ContactPerson,
  27. ContactPersonPhoneNo,ContactPersonEmailID,ContactPersonDesignation,
  28. FirstVisitDate,FirstVisitMode,State,City,FDP,Workshops,CreatedBy)
  29. values(
  30. @CollegeName,@CollegeAddress,@CollegePhone,
  31. @CollegeEmailID,@ContactPerson,@ContactPersonPhoneNo,
  32. @ContactPersonEmailID,@ContactPersonDesignation,@FirstVisitDate,
  33. @FirstVisitMode,@State,@City,@FDP,@Workshops,@CreatedBy)
  34. set @ReturnValue=1
  35. end
  36. begin
  37. set @ReturnValue=0
  38. end
  39. select @ReturnValue=SCOPE_IDENTITY()
  40. End
  41. GO



Creating Stored Procedure to Edit

Now we are creating the Stored Procedure to edit the record. Have a look at the following code:

  1. CREATE Procedure [dbo].[SP_EditCollegeDetails]
  2. (
  3. @CollegeID int,
  4. @CollegeName varchar(100),
  5. @ContactPerson varchar(50),
  6. @ContactPersonPhoneNo bigint,
  7. @ContactPersonEmailID nvarchar(50),
  8. @FDP varchar(20),
  9. @Workshops int,
  10. @CreatedBy varchar(25),
  11. @EditedBy varchar(50)
  12. )
  13. as
  14. Begin
  15. Declare @ReturnValue int
  16. IF EXISTS(SELECT CollegeEmailID FROM CollegeDetails)
  17. begin
  18. Update CollegeDetails set
  19. CollegeName= @CollegeName, ContactPerson= @ContactPerson,
  20. ContactPersonPhoneNo=@ContactPersonPhoneNo,
  21. ContactPersonEmailID=@ContactPersonEmailID,
  22.                      FDP=@FDP, Workshops= @Workshops,
  23.                      CreatedBy= @CreatedBy, EditedBy= @EditedBy
  24. where CollegeID= @CollegeID
  25. set @ReturnValue=1
  26. end
  27. begin
  28. set @ReturnValue=0
  29. end
  30. select @ReturnValue
  31. end
  32. GO



Creating Stored Procedure to Delete

Now we are creating the Stored Procedure to delete the record. Have a look at the following code:

  1. Create Procedure [dbo].[SP_DeleteCollegeDetails]
  2. (
  3. @CollegeID int
  4. )
  5. as
  6. Begin
  7. Declare @ReturnValue int
  8. IF EXISTS(SELECT CollegeEmailID FROM CollegeDetails)
  9. begin
  10. Delete CollegeDetails where CollegeID= @CollegeID
  11. set @ReturnValue=1
  12. end
  13. begin
  14. set @ReturnValue=0
  15. end
  16. select @ReturnValue
  17. end
  18. GO



Creating Library Project and Adding ADO.NET Entity Data Model

Now, we'll create the class library in which we'll do the CRUD operations. So, just follow the procedure given below.

Step 1

Open Visual Studio and create a Class Library project.

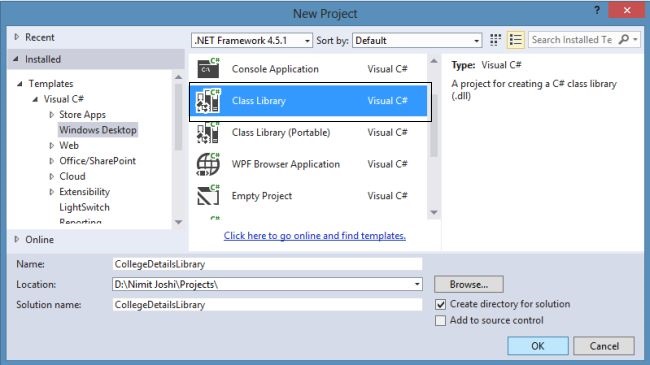

Creating Class Library

Step 2

In this project, now we'll add an ADO.NET Entity Data Model.

Creating Entity Model

Step 3

At first we select the model content by choosing model contents.

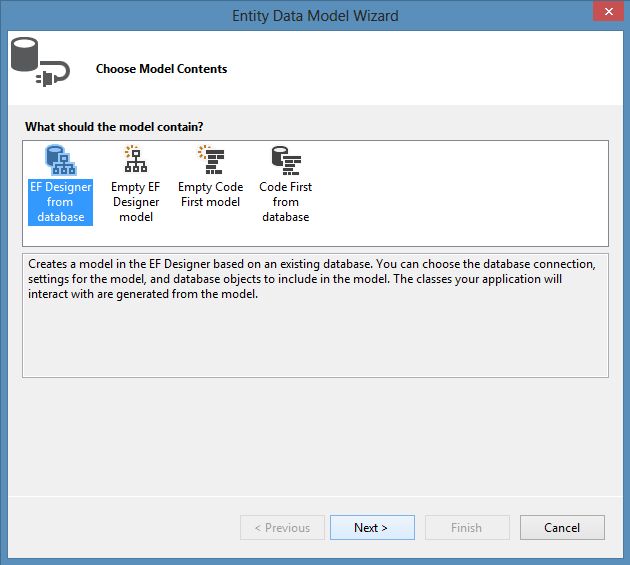

Selecting Model Contents in Entity Model

Step 4

Add the new connection to add the database.

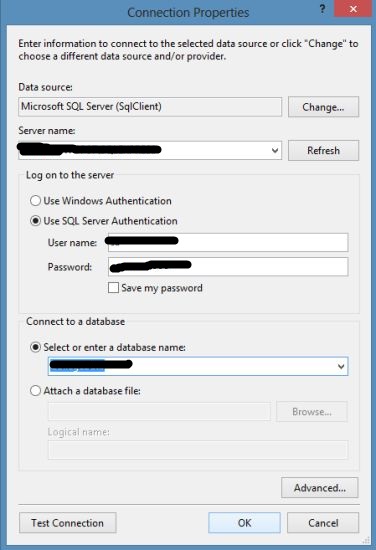

Creating Connection Properties in Entity Model

Step 5

Now we'll choose the Entity Framework version to work with it.

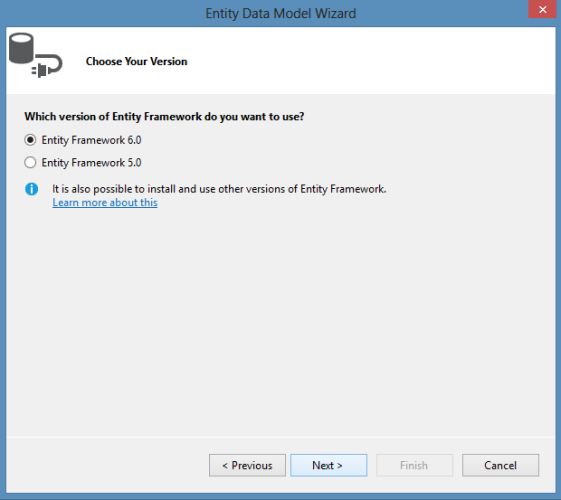

Selecting Entity Framework Version

Step 6

In the next wizard, we'll select the database objects.

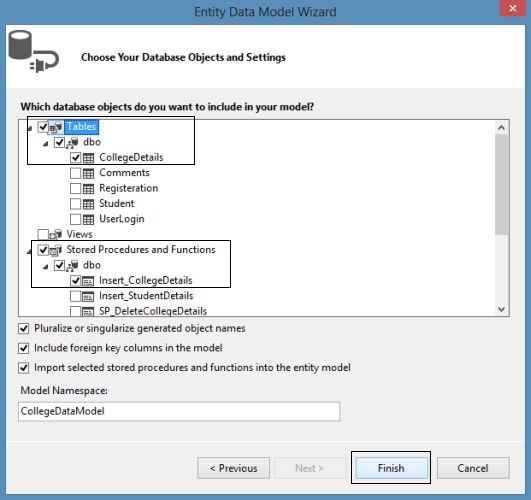

Selecting Database Objects

Now the entity model has been added in the library project. Have a look at the following screenshot:

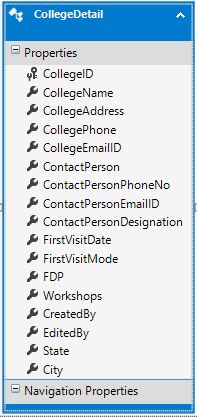

Entity Model

Stored Procedure Mapping with Entity

In this section we'll create the mapping of Stored Procedure with the Entity Model. So, let's start with the following procedure.

Step 1

Just right-click on the entity model and select the Stored Procedure Mappting.

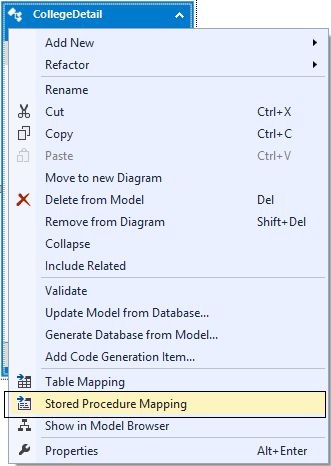

Creting Stored Procedure Mapping

Step 2

In the Mapping Details wizard, when you click on the first dropdownlist option, you'll see the Stored Procedure name to add. Now, we'll choose the specific Stored Procedure that is used to insert the records.

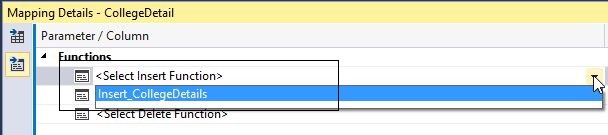

Selecting insert Function in Mapping

Step 3

After selecting the option, you can see all the model properties are mapped automatically. There is an out keyword named ReturnedValue is not mapped so we need to map it with another property otherwise it will throw an error when you save the application.

So, just click on the checkbox of that specific proerty in the Rows Affected column. Have a look:

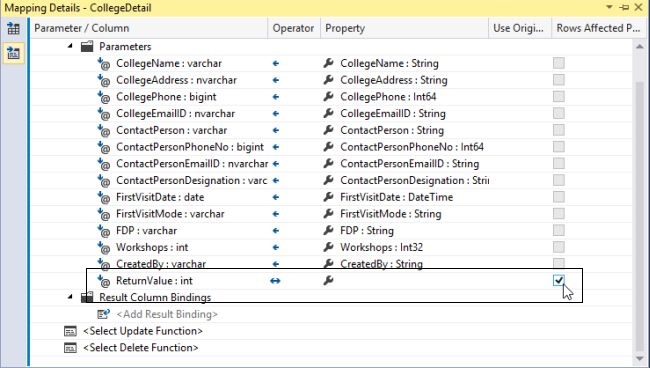

Rows Affecting Value

Step 4

In the Result Column Bindings, write the out value and when you hit the Enter, it'll automatically map with the specific property of the table.

Result Column Binding in Mapping Details

Updating Model

Now we need to update the model to add a new Stored Procedure. Use the following procedure.

Step 1

Open the Model Browser, right-click on the Model and choose Update model from the database.

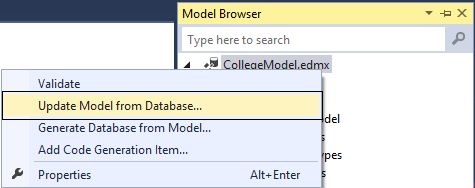

Update Model from Database

Step 2

Select the Stored Procedure name to add.

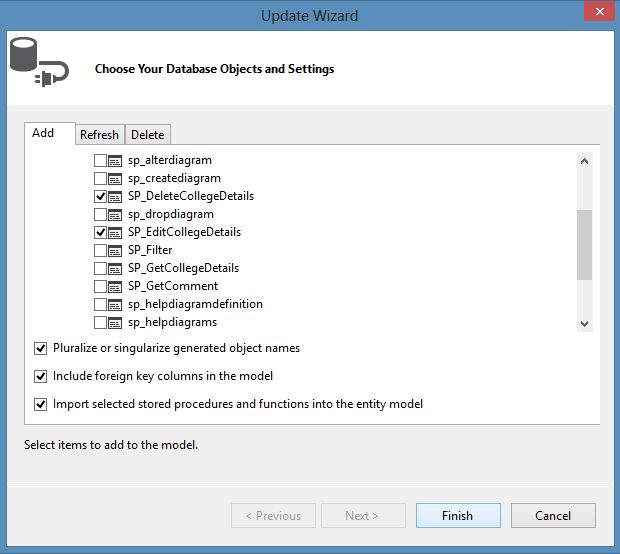

Updating Model in Update Wizard

Step 3

Now, again we need to map the entity model with the Stored Procedure. Right-click on the model and choose Stored Procedure mapping. Select the update function and choose the update procedure.

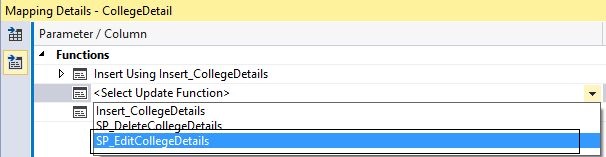

Adding Update Function in Mapping Details

Step 4

Now select the delete function and choose the delete procedure.

Import Function

Now we'll need to add the function to call the procedure using the Entity Framework. Just use the procedure below.

Step 1

Right-click on the model and click on the Add New to add the function Import.

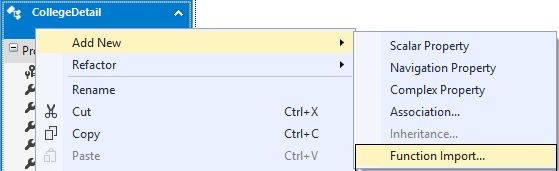

Adding Function Import of Entity

Step 2

Specify the name for Insert and choose the specific procedure to add.

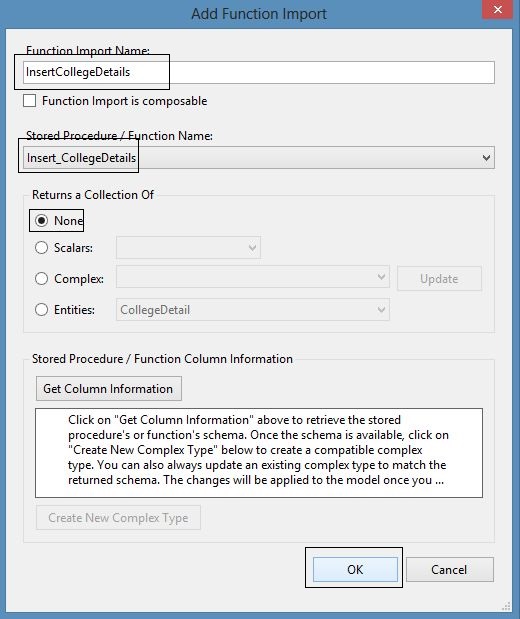

Performing Function Import Adding

Step 3

Repeat the procedure to add a function for the update.

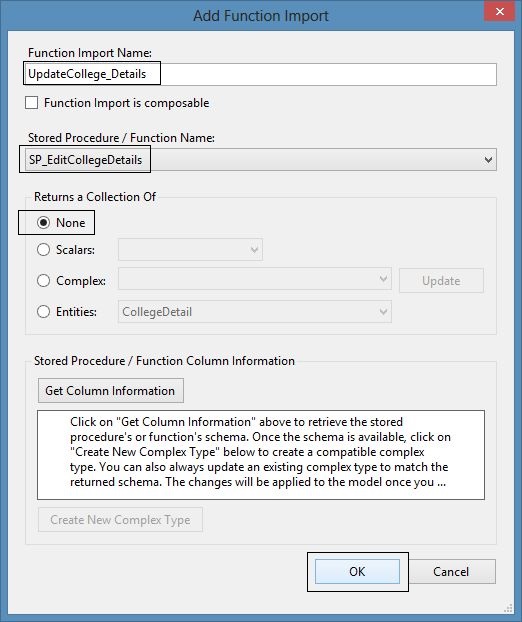

Performing Updating in Function Import

Step 4

Now do the same for the delete.

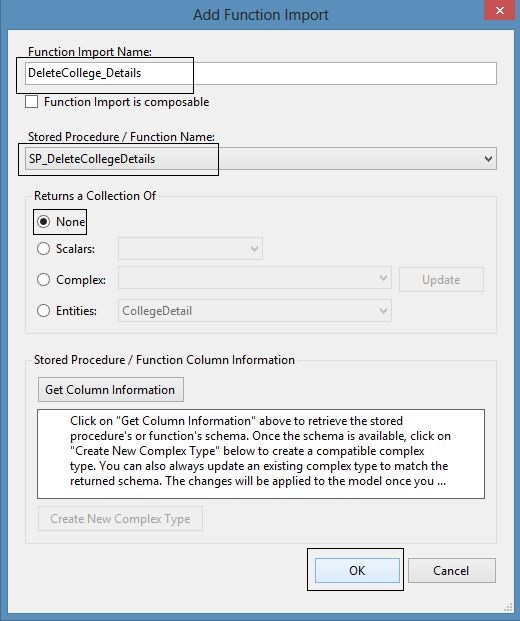

Performing Deleting in Function Import

Now you can check our your model that contains your function and Stored Procedure.

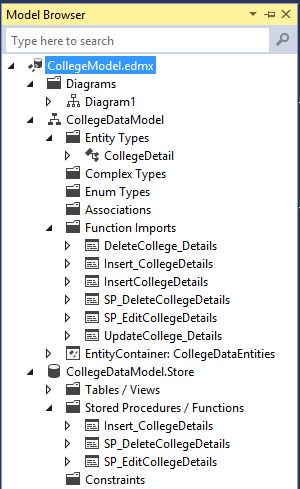

Model Browser

Adding Class to do CRUD Operations

In this section, we'll add a class to write the code for doing the CRUD Operations.

Step 1

Right-click on the project to add a new class.

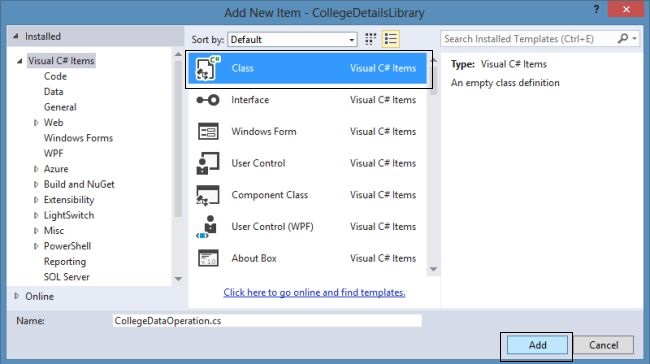

Creating Class

Step 2

Just write the following code:

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Data.Entity.Core.Objects;
  4. using System.Linq;
  5.
  6. namespace CollegeDetailsLibrary
  7. {
  8.     public class CollegeDataOperation
  9.     {
  10.         //This Method is used to access all data
  11.         public List<CollegeDetail> GetCollegeRecords()
  12.         {
  13.             using (CollegeDataEntities context = new CollegeDataEntities())
  14.             {
  15.                 return context.CollegeDetails.ToList();
  16.             }
  17.         }
  18.
  19.         //This Method is used to insert the college records
  20.         public bool InsertCollegeRecords(CollegeDetail detail)
  21.         {
  22.             using (CollegeDataEntities context = new CollegeDataEntities())
  23.             {
  24.                 ObjectParameter ReturnedValue = new ObjectParameter("ReturnValue"typeof(int));
  25.                 context.InsertCollegeDetails
  26.                     (
  27.                     detail.CollegeName, detail.CollegeAddress,
  28.                     detail.CollegePhone, detail.CollegeEmailID,
  29.                     detail.ContactPerson, detail.ContactPersonPhoneNo,
  30.                     detail.ContactPersonEmailID, detail.ContactPersonDesignation,
  31.                     detail.FirstVisitDate, detail.FirstVisitMode,
  32.                     detail.State, detail.City,
  33.                     detail.FDP, detail.Workshops,
  34.                     detail.CreatedBy, ReturnedValue
  35.                     );
  36.                 if (Convert.ToInt32(ReturnedValue.Value) >= 1)
  37.                 {
  38.                     return true;
  39.                 }
  40.                 else
  41.                 {
  42.                     return false;
  43.                 }
  44.             }
  45.         }
  46.
  47.         //This method is used to update the coollege details based on the college id
  48.         //Last Created in 20th June
  49.         public bool UpdateCollegeRecords(int? id, CollegeDetail collegeDetail)
  50.         {
  51.             using (CollegeDataEntities context = new CollegeDataEntities())
  52.             {
  53.                 int ReturnedValue = context.UpdateCollege_Details
  54.                     (
  55.                     id, collegeDetail.CollegeName, collegeDetail.ContactPerson,
  56.                     collegeDetail.ContactPersonPhoneNo, collegeDetail.ContactPersonEmailID,
  57.                     collegeDetail.FDP, collegeDetail.Workshops,
  58.                     collegeDetail.CreatedBy, collegeDetail.EditedBy
  59.                     );
  60.                 if (ReturnedValue >= 1)
  61.                 {
  62.                     return true;
  63.                 }
  64.                 else
  65.                 {
  66.                     return false;
  67.                 }
  68.             }
  69.         }
  70.
  71.         //This method is used to delete the college details based on the college id
  72.         //Last Created in 20th June
  73.         public bool DeleteCollegeRecords(int? id)
  74.         {
  75.             using (CollegeDataEntities context = new CollegeDataEntities())
  76.             {
  77.                 int ReturnedValue = context.DeleteCollege_Details(id);
  78.                 if (ReturnedValue >= 1)
  79.                 {
  80.                     return true;
  81.                 }
  82.                 else
  83.                 {
  84.                     return false;
  85.                 }
  86.             }
  87.         }
  88.     }
  89. }



That's it.

Summary

This article described how to work with Stored Procedures using the Entity Framework in the ASP.NET Class Library. We'll see in the next article how to use and call this on the ASP.NET Web Application. Thanks for reading and Happy Coding!!
