Create and Implement 3-Tier Architecture in ASP.Net

This article explains how to create and implement a 3-tier architecture for our project in ASP.Net.

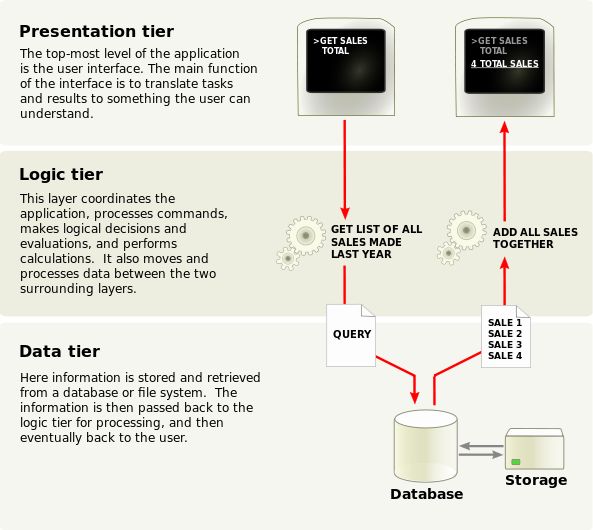

3 tier architecture
architecture

What is a Layer?

A layer is a reusable portion of code that performs a specific function.

In the .NET environment, a layer is usually set up as a project that represents this specific function. This specific layer is in charge of working with other layers to perform some specific goal.

Let’s briefly look at the latter situation first.

Data Layer

A DAL contains methods that helps the Business Layer to connect the data and perform required actions, whether to return data or to manipulate data (insert, update, delete and so on).

Business Layer

A BAL contains business logic, validations or calculations related to the data.

Though a web site could talk to the data access layer directly, it usually goes through another layer called the Business Layer. The Business Layer is vital in that it validates the input conditions before calling a method from the data layer. This ensures the data input is correct before proceeding, and can often ensure that the outputs are correct as well. This validation of input is called business rules, meaning the rules that the Business Layer uses to make “judgments” about the data.

Presentation Layer

The Presentation Layer contains pages like .aspx or Windows Forms forms where data is presented to the user or input is taken from the user. The ASP.NET web site or Windows Forms application (the UI for the project) is called the Presentation Layer. The Presentation Layer is the most important layer simply because it’s the one that everyone sees and uses. Even with a well structured business and data layer, if the Presentation Layer is designed poorly, this gives the users a poor view of the system.

Advantages of a Three-Tier Architecture

The main characteristic of a Host Architecture is that the application and databases reside on the same host computer and the user interacts with the host using an unfriendly dumb terminal. This architecture does not support distributed computing (the host applications are unable to connect to a database of a strategically allied partner). Some managers find that developing a host application takes too long and it is expensive. These disadvantages consequently led to a Client-Server architecture.

A Client-Server architecture is a 2-Tier architecture because the client does not distinguish between Presentation Layer and Business Layer. The increasing demands on GUI controls caused difficulty in managing the mixture of source code from a GUI and the Business Logic (Spaghetti Code). Further, the Client Server Architecture does not support enough the Change Management. Let us suppose that the government increases the Entertainment tax rate from 4% to 8 %, then in the Client-Server case, we need to send an update to each client and they must update synchronously on a specific time otherwise we may store invalid or incorrect information. The Client-Server Architecture is also a burden to network traffic and resources. Let us assume that about five hundred clients are working on a data server. Then we will have five hundred ODBC connections and several ruffian record sets, that must be transported from the server to the clients (because the Business Layer remains in the client side). The fact that Client-Server does not have any caching facilities like in ASP.NET causes additional traffic in the network. Normally, a server has better hardware than the client, therefore it is able to compute algorithms faster than a client, so this fact is also an additional argument in favor of the 3-Tier Architecture. This categorization of the application makes the function more reusable easily and it becomes too easy to find the functions that have been written previously. If a programmer wants to make further updates in the application then he can easily understand the previous written code and can update it easily.

Let's start creating a 3-Tier Architecture Application.

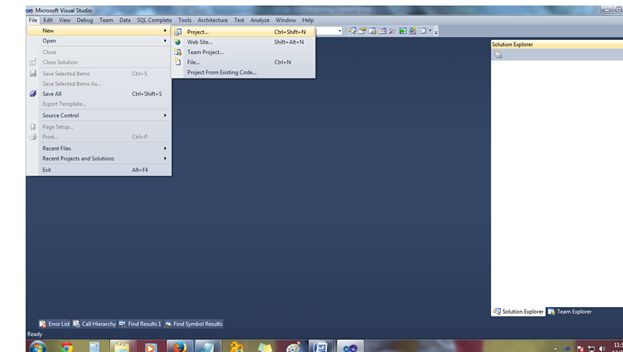

1. Create a new  project  using "File" -> "New" -> "Project...".

New Project

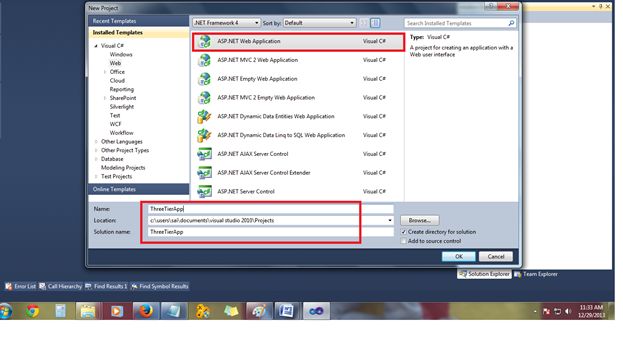

2. In Visual C# select "Web".

(Select "ASP.NET Web application" and name it’s as: ThreeTierApp)

ASPNET Web application

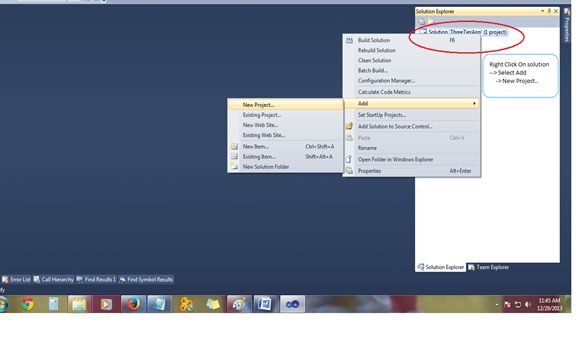

3. How to add class library to solution:

Add Class Library
After clicking on a new project you would see the following screen.

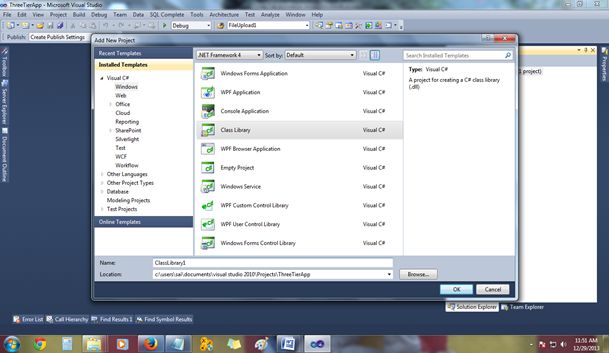

  • Select "Class Library" from this and name it "BussinessObject".

    Select Class Library

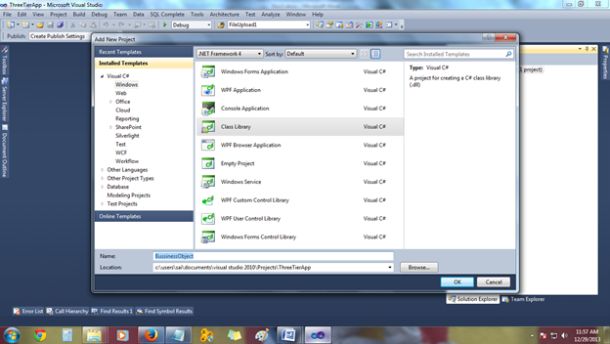

  • Provide the name of the Class library as "BussinessObject".

    Class library as BussinessObject

  • Add another  Class Library to our project.

    (In the same way as you added a BussinessObject.)

  • Name the Class library "Bussinesslogic".
  • After adding you will see as in this view.

    Adding your solution

  • Add the last Class Library  to our  project called "Data Access Layer".
  • In the same way as you added BussinessObject.

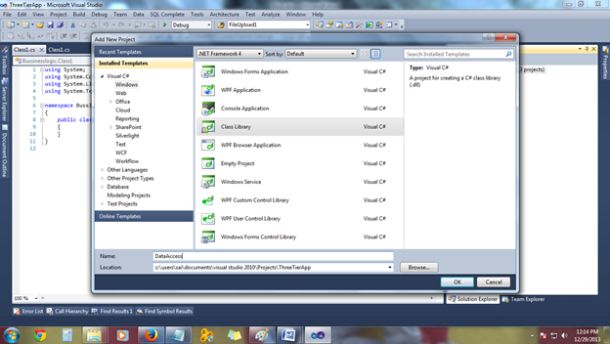

  • Name the Class Library "DataAccess".

Class library to DataAccess

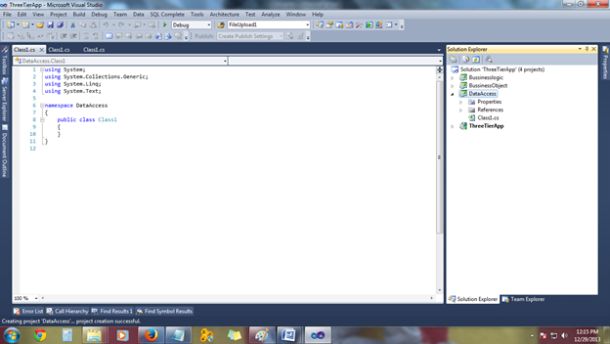

After adding, your solution would look like this:

Adding your solution

Now we are done. Add all layers to our project.

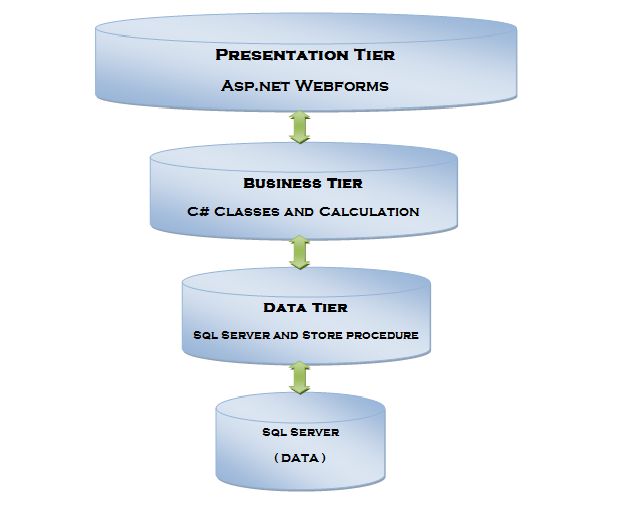

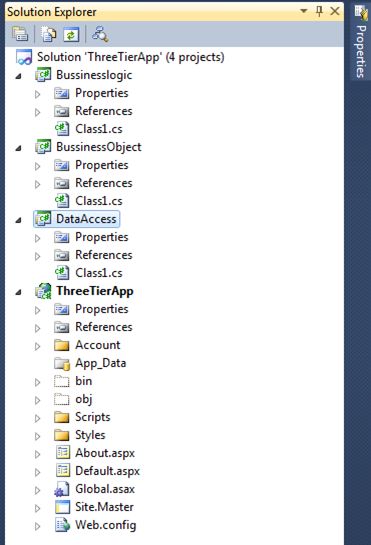

You can see the three tiers in the image given below.

three tiers

Basically a 3-Tier architecture contains the following 3 layers:
  1. Application Layer or Presentation Layer  (our web form and UI Part)
  2. Business Logic Layer (Bussinesslogic)
  3. Data Access Layer (DataAccess)
Here I will explain each layer with a simple example that is a User Registration Form.

Presentation Layer

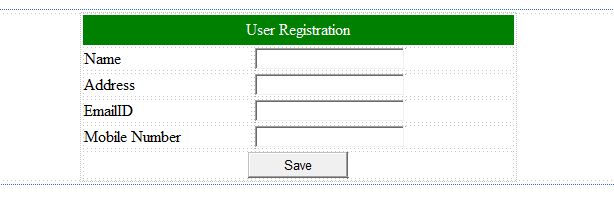

Here, I have designed a user interface for the Presentation Layer.

User Interface
Here is the design of "Userregistration.aspx":

<html xmlns="http://www.w3.org/1999/xhtml">

<head id="Head1" runat="server">

    <title></title>

</head>

<body>

    <form id="form1" runat="server">

    <div style="margin: 0px auto; padding-left: 370px; padding-right: 30px;

                                                            overflow: auto;">

        <div>

            <table width="50%">

                <tr>

                    <td colspan="2" style="background-color: Green; height: 30px;

                                                     color: White;" align="center">

                        User Registration

                    </td>

                </tr>

                <tr>

                    <td> Name </td>

                    <td>

           <asp:TextBox ID="txtname" Width="150px" runat="server"></asp:TextBox>

                    </td>

                </tr>

                <tr>

                    <td>

                        Address </td>

                    <td>

            <asp:TextBox ID="txAddress" Width="150px" runat="server"></asp:TextBox>

                    </td>

                </tr>

                <tr>

                    <td> EmailID </td>

             <td>

            <asp:TextBox ID="txtEmailid" Width="150px" runat="server"></asp:TextBox>

             </td>

                </tr>

                <tr>

                    <td> Mobile Number   </td>

                    <td>

            <asp:TextBox ID="txtmobile" Width="150px" runat="server"></asp:TextBox>

                    </td>

                </tr>

                <tr>

                    <td align="center" colspan="2">

         <asp:Button ID="BtnSave" runat="server" Width="100px" Text="Save" OnClick="BtnSave_Click" />

                    </td>

                </tr>

            </table>

        </div>

    </div>

    </form>

</body>

</html>

Now let’s start to create a table for saving this data using our 3-Tier Architecture.


CREATE table Userinfo

(

userid bigint primary key not null identity(1,1),

Name Nvarchar(50),

Address Nvarchar(100),

EmailID Nvarchar(50),

Mobilenumber varchar(10)

)


Let's start with a bussiness object  first, as in the following:

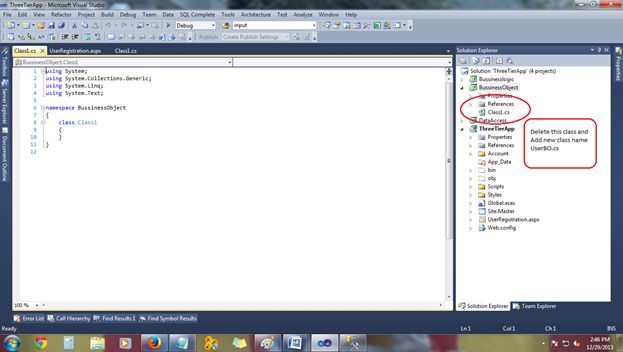

Delete Class Class1

Create a new class name, "UserBO".

Create New class

Creating UserBO.cs

Then declare variables in UserBO as in the following:


using System;

using System.Collections.Generic;

using System.Linq;

using System.Text;



namespace BussinessObject

{

   Public class UserBO // Declare Class Public to Access any where

    {

        //Declaring User Registration Variables



        private string _Name;



        private string _Address;



        private string _EmailID;



        private string _Mobilenumber;



        // Get and set values



        public string Name

        {

            get

            {

                return _Name;

            }

            set

            {

                _Name = value;

            }

        }

        public string address

        {

            get

            {

                return _Address;

            }



            set

            {

                _Address = value;

            }

        }



        public string EmailID

        {

            get

            {

                return _EmailID;

            }



            set

            {

                _EmailID = value;

            }

        }



        public string Mobilenumber

        {



            get

            {

               return _Mobilenumber;

            }

            set

            {

                _Mobilenumber = value;

            }

        }

    }

}

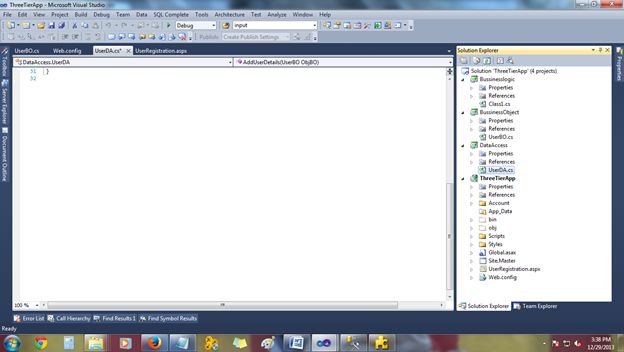

Now in the same way as we created UserBO, create  a new  class, UserDA, in DataAccess.

Create New Class UserDA

  • In Dataaccess
  • We will use this layer for communicating with the database
  • All operations (insert , update, delete and selecting records) for the database is done in this layer.

Now in the same way as we created UserDA:

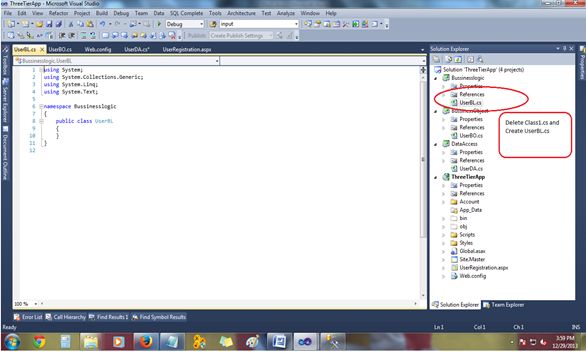

Create  New Class UserBL.cs  in ( Bussinesslogic )

Create New Class UserBL

The main thing TO DO

The main thing to do nest is to add the three layers:

  • UserBO.cs
  • UserBL.cs
  • UserDA.cs

But they are not inter connected to each other.

Let's connect them.

DataAccess connections

First right-click on DataAccess then:

  • Click the "Add Reference" tab
  • Select "Project"
  • Inside that you will see all Layer Name
  • Select BussinessObject from that and click "Ok"

Bussinesslogic connections

Then right-click on Bussinesslogic then:

  • Click the "Add Reference" tab
  • Select "Project"
  • Inside that you will see all Layer Name.
  • Select DataAccess from that and click "Ok"

New rebuild all layers.

Last step

  • Right-click on the project and select "Add references"
  • Click the "Add Reference" tab
  • Select "Project"
  • Inside that you will see all Layer Name.
  • Select all add thn click "Ok"

Now build the project.

UserDA.cs (adding Records)

using System;

using System.Collections.Generic;

using System.Linq;

using System.Text;

using System.Data; // Required for using Dataset , Datatable and Sql

using System.Data.SqlClient; // Required for Using Sql

using System.Configuration; // for Using Connection From Web.config

using BussinessObject;  // for acessing bussiness object class



namespace DataAccess

    public class UserDA

    {

          SqlConnection con = new

          SqlConnection(ConfigurationManager.ConnectionStrings["Myconstr"].ToString());

        public int AddUserDetails(UserBO ObjBO) // passing Bussiness object Here

        {

            try

            {

                /* Because We will put all out values from our (UserRegistration.aspx)

                 To in Bussiness object and then Pass it to Bussiness logic and then to

                 DataAcess

                 this way the flow carry on*/

             SqlCommand cmd = new SqlCommand("sprocUserinfoInsertUpdateSingleItem", con);

                cmd.CommandType = CommandType.StoredProcedure;

                cmd.Parameters.AddWithValue("@Name", ObjBO.Name);

                cmd.Parameters.AddWithValue("@Address", ObjBO.address);

                cmd.Parameters.AddWithValue("@EmailID", ObjBO.EmailID);

                cmd.Parameters.AddWithValue("@Mobilenumber", ObjBO.Mobilenumber);

             con.Open();

             int Result = cmd.ExecuteNonQuery();

             cmd.Dispose();

            return Result;

            }

            catch

            {

                throw;

            }

        }

    }

}

UserBL.cs


using System;

using System.Collections.Generic;

using System.Linq;

using System.Text;



using DataAccess; // for acessing DataAccess class

using BussinessObject; // for acessing bussiness object class



namespace Bussinesslogic

{

    public class UserBL

    {

      public int SaveUserregisrationBL(UserBO objUserBL) // passing Bussiness object Here

        {

            try

            {

                UserDA objUserda = new UserDA(); // Creating object of Dataccess



              return objUserda.AddUserDetails(objUserBL); // calling Method of DataAccess



            }

            catch

            {

                throw;

            }

        }



    }

}

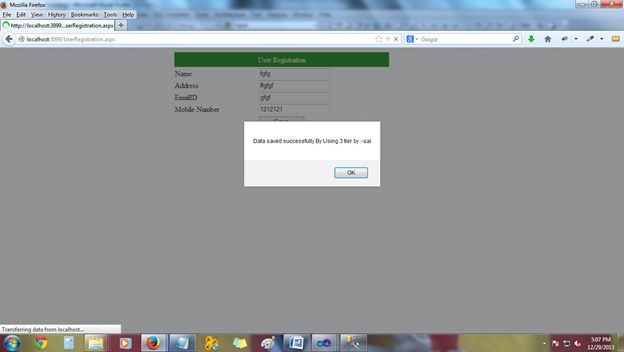

Final Output

Output

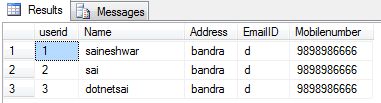

 SELECT * FROM Userinfo

Database Table
