Mapping Stored Procedures and Getting Multiple Records From Stored Procedures Using Dapper

Here In this document I will explain the following topics:

  • Mapping Stored Procedure
  • How to Map multiple records from a single Stored Procedure
  • How to get records from Stored Procedures

Let's start.

Mapping Stored Procedures

I am taking 2 classes to show how to map these things.

  • Studentstore
  • Deparmentstore
  1. public class StudentStore
  2. {
  3. [Key]
  4. public int STUDENTID { getset; }
  5. public string STUDENTName { getset; }
  6. public string ROLLNO { getset; }
  7. public string COURSE { getset; }
  8. }
  9.
  10. public class Deparmentstore
  11. {
  12. [Key]
  13. public int DeparmentID {get ;set;}
  14. public string DeparmentName { getset; }
  15. }
The normal way of writing an inline query with parameters in dapper is:
    With Inline query
    1. public string Insert(StudentStore objss)
    2. {
    3. string query = "INSERT INTO [dbo].[Student]
    4. ([STUDENT],
    5. [ROLLNO],
    6. [COURSE])
    7. VALUES
    8. (@STUDENT ,
    9. @ROLLNO ,
    10. @COURSE)";
    11. Con.Open();
    12. Con.Execute(query, new { objss.STUDENTName, objss.ROLLNO, objss.COURSE });
    13. Con.Close();
    14. return "Inserted";
    15. }
    With Stored Procedures

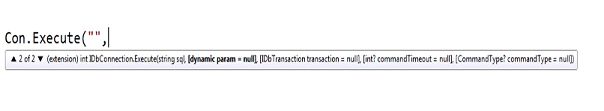

    Here is a snapshot of the Execute Method:
    /Snapshot of Execute Method
    Method for Insert
    1. public string Insertstudent(StudentStore objss)
    2. {
    3. var para = new DynamicParameters();
    4.
    5. para.Add("@STUDENTName", objss.STUDENTName); // Normal Parameters
    6. para.Add("@ROLLNO", objss.ROLLNO);
    7. para.Add("@COURSE", objss.COURSE);
    8. para.Add("@DeparmentID""1");
    9.
    10. para.Add("@Myout", dbType: DbType.Int32, direction: ParameterDirection.Output);
    11. // Getting Out Parameter
    12.
    13. para.Add("@Ret", dbType: DbType.Int32, direction: ParameterDirection.ReturnValue);
    14. // Getting Return value
    15.
    16. Con.Open(); // opening connection
    17.
    18. Con.Execute("Usp_getallstudents", para, commandType: CommandType.StoredProcedure);
    19. //Executing Command
    20. // mapping this StoredProcedure with Database one.
    21.
    22. int Valueout = para.Get<int>("@Myout"); //Getting Out Value
    23.
    24. int Valuereturn = para.Get<int>("@Ret"); //Getting Out Return
    25.
    26. Con.Close(); // Closing connection
    27.
    28. return "Inserted";
    29. }
    Stored Procedures for Insert
    1. CREATE PROCEDURE Usp_getallstudents @STUDENTName VARCHAR(64)
    2. ,@ROLLNO VARCHAR(16)
    3. ,@COURSE VARCHAR(32)
    4. ,@DeparmentID INT
    5. ,@Myout INT OUTPUT
    6. AS
    7. BEGIN
    8. INSERT INTO [dbo].[Student] (
    9. [STUDENTName]
    10. ,[ROLLNO]
    11. ,[COURSE]
    12. ,[DeparmentID]
    13. )
    14. VALUES (
    15. @STUDENTName
    16. ,@ROLLNO
    17. ,@COURSE
    18. ,@DeparmentID
    19. )
    20.
    21. SET @Myout = @@IDENTITY
    22. END

Here in the Insertstudent method above I created DynamicParameters and assiged values to the parameters after with showing how to get parameterdirection.output and return a value from it. It's simple; if go throug this code then you will get it in one shot.

How to Map multiple records from a single Stored Procedure

QueryMultiple : That is defined for compound SQL statements that return multiple result sets.

  • Stored Procedure for gemultipalRecords
    1. public void get_all_Records ()
    2. {
    3. var sql = "Usp_GetRec"// Stored Procedure Name
    4.
    5. using (var multi = Con.QueryMultiple(sql))
    6. {
    7. var customer = multi.Read<StudentStore>().ToList();
    8.
    9. var orders = multi.Read<Deparmentstore>().ToList();
    10. }
    11. }
  • Update Stored Procedure for gemultipalRecords
    1. ALTER PROCEDURE Usp_GetRec
    2. AS
    3. BEGIN
    4. SELECT *
    5. FROM [Student]
    6.
    7. SELECT *
    8. FROM Department
    9. END

Here in Multiple Records reading I have created Stored Procedures that return 2 tables and that use Multi.Read.

We can get all the records of a student in a studentStore class and Department in Deparmentstore .

On the other hand, you are trying to get two different columns from a single result set, so you should just use the normal Query method as in the following:

  1. ALTER PROCEDURE Usp_GetRec
  2. AS
  3. BEGIN
  4. SELECT *
  5. FROM [Student]
  6.
  7. SELECT *
  8. FROM Department
  9. END
How to get Records from Stored Procedures
  1. var employees = Con.Query<StudentStore>("Usp_getstudent", commandType: CommandType.StoredProcedure);
Here is a simple way to get a value return from a Stored Procedure.
