Send DataSet and DataTable From Webservice and Consume in Application

Saineshwar Bageri
Jun 14, 2014
102.9k
0
0
Article

I am writing simple instructions with snapshots for a good understanding and for your use in your projects.

Let's create our web service first for sending a DataSet and DataTable.

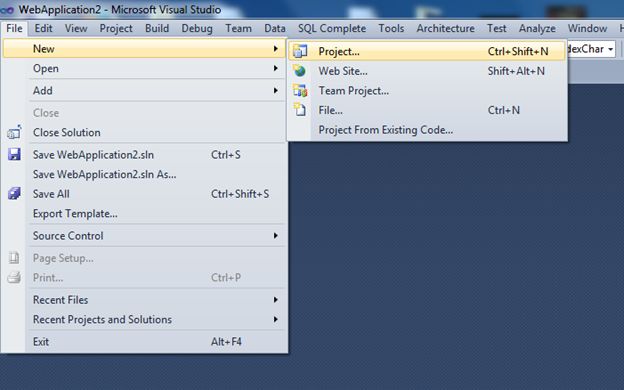

Step 1 : Open Visual Studio then select "File" -> "New" -> "Project..." then provide a project name.

I have provided the project name WebServicewithpassingliat.

After adding the project name we will just create a new web service.

Step 2 : Let us add a web service for sending a DataSet and DataTable.

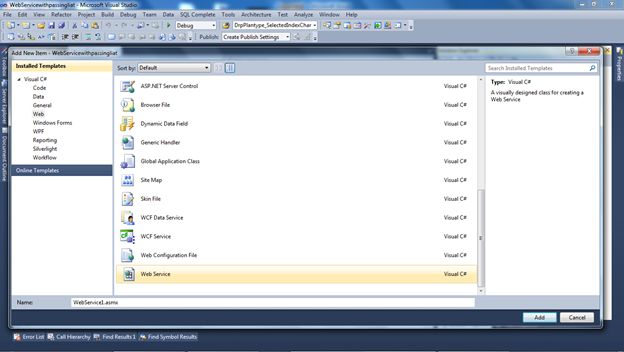

For adding the web service right-click on the solution then select Add > Add New Item then select Web Service then click the Add button.

Step 3 : After adding the web service you will see a WebMethod with the name Helloworld; just remove it.

And create a new WebMethod of type DataSet and name it MobileDataset() and add another Web Method of type DataTable and name it MobileDatatable().

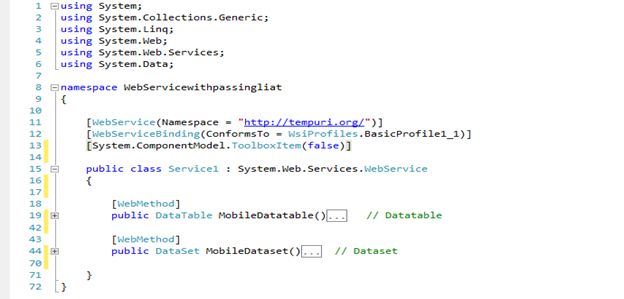

For reference see the following image:

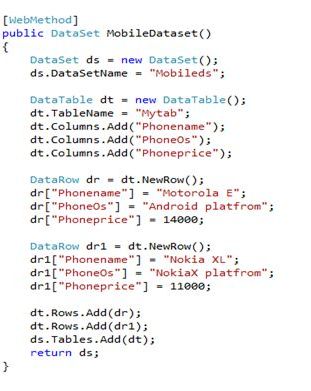

DataSet Code Snippet.

And this Webmethod will return a DataSet.
DataTable code snippet.

And this Webmethod will return a DataTable.

Just run your application now.

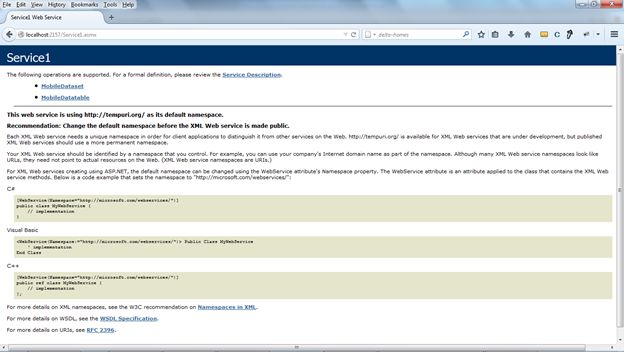

You will see the same screen that is given below.

Now just copy this URL.

http://localhost:2157/Service1.asmx

Step 4 : Let's create another project then it will consume this list.

Open Visual Studio then select "File" -> "New" -> "Project..." then provide a project name.

Here I am using the name WebApplication2.

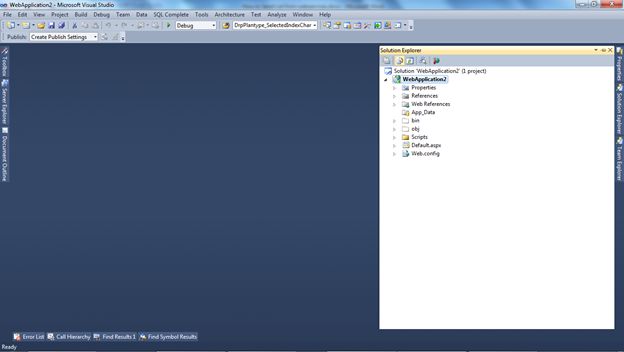

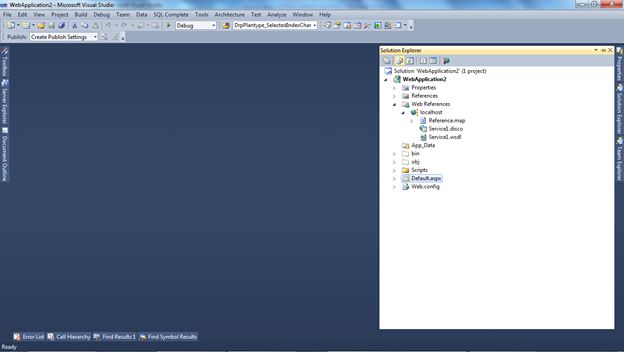

After creating it you will see your solution like the following:

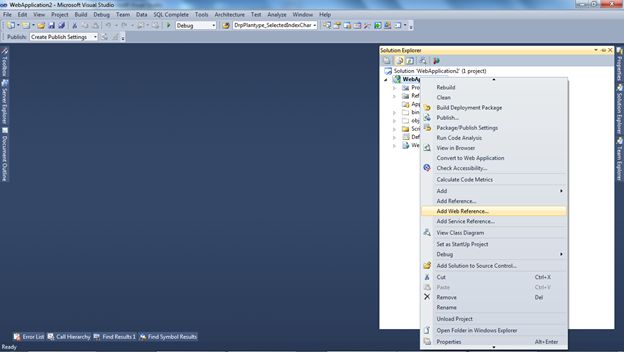

Step 5 : Then just right-click on the solution and select Add Web Reference.

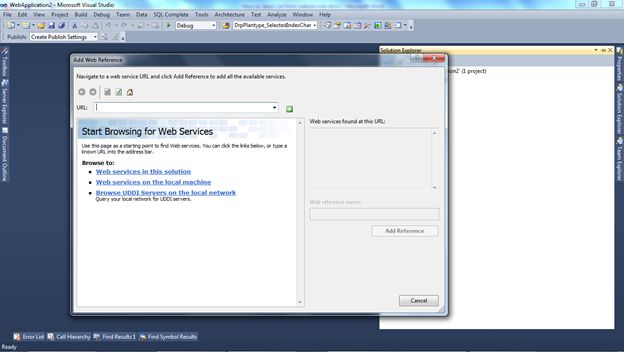

After selecting Add Web Reference a new dialog will pop up asking for an address.

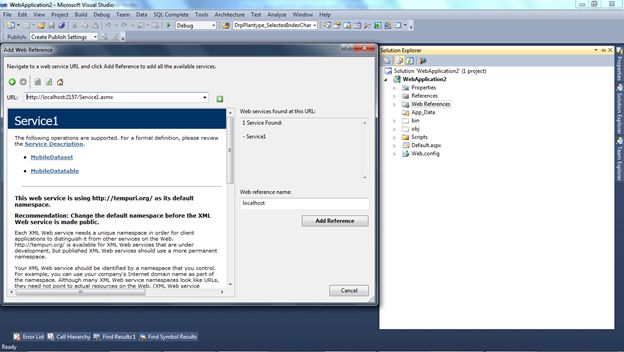

Step 6 : Just paste the preceding address that you copied.

http://localhost:2157/Service1.asmx

After adding the URL just click the Add Reference button.

Now your solution will look like this.

Now we have completed the adding of the service.

Step 7: Now we just want to use this service.

We have a default page that is created by default.

On the page load of that page I have created a couple of methods with the names:

GET_DATASET(); // For Getting the Dataset
GET_DATATABLE(); // for Getting the DataTable

Code of the default page:

using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.UI;
using System.Web.UI.WebControls;
using System.Data;
using WebApplication2.localhost;
using System.Text;
namespace WebApplication2
{
public partial class _Default : System.Web.UI.Page
{
protected void Page_Load(object sender, EventArgs e)
{
GET_DATASET();
GET_DATATABLE();
}
public void GET_DATATABLE()
{
localhost.Service1 mo = new WebApplication2.localhost.Service1();
DataTable dt = mo.MobileDatatable();
GridView1.DataSource = dt;
GridView1.DataBind();
}
public void GET_DATASET()
{
localhost.Service1 mo = new WebApplication2.localhost.Service1();
DataSet ds = mo.MobileDataset();
GridView2.DataSource = ds;
GridView2.DataBind();
}
}
}

Namespace

using WebApplication2.localhost; // is the namespace for accessing service objects

In this code I have created an object of web service that we have added.

localhost.Service1 mo = new WebApplication2.localhost.Service1();

After creating an object I have passed an object to the DataSet.

localhost.Service1 mo = new WebApplication2.localhost.Service1();
DataSet ds = mo.MobileDataset();

For the DataTable I have created an object. I have passed an object to the DataTable.

localhost.Service1 mo = new WebApplication2.localhost.Service1();
DataTable dt = mo.MobileDatatable();

Design of Default page

<html xmlns="http://www.w3.org/1999/xhtml">
<head runat="server">
<title></title>
</head>
<body>
<form id="form1" runat="server">
<div>
<asp:GridView ID="GridView1" runat="server">
</asp:GridView>
<br />
<asp:GridView ID="GridView2" runat="server">
</asp:GridView>
</div>
</form>
</body>
</html>

I have only added 2 GridViews for displaying data of both the DataTable and DataSet.

After doing that, just run the application and check it.

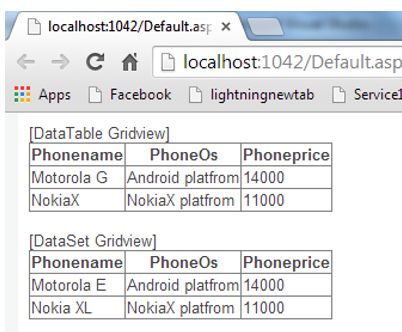

Here is the output:

Now we have successfully transferred a DataTable and DataSet.
