Toggle Button Control For Windows 10

Toggle Button act as a base class for controls that can switch states, such as CheckBox and RadioButton. It is a button that is mainly used for switching states. It is possible to have a three state also. It will check the IsChecked property to verify selected or not.

Step 1: Open a blank app and add a ToggleButton control either from the toolbox or by copying the following XAML code into your grid.

  1. <TextBlock Text="Toggle Button" FontSize="20"></TextBlock>
  2. <StackPanel Margin="10,40,0,0">
  3.     <StackPanel Orientation="Horizontal">
  4.         <TextBlock Text="Toggle Button" VerticalAlignment="Center" FontSize="20"></TextBlock>
  5.         <ToggleButton Name="myToggleButton" Content="OFF" Margin="15,0,0,0" Width="150" Height="50" Click="myToggleButton_Click">                </ToggleButton>
  6.     </StackPanel>
  7. </StackPanel>



Step 2: Copy and paste the following code to the cs page to handle the events generated on checking and unchecking.

  1. private void myToggleButton_Click(object sender, RoutedEventArgs e)
  2. {
  3.    if(myToggleButton.IsChecked == true)
  4.     {
  5.         myToggleButton.Content = "ON";
  6.     }
  7.     else
  8.     {
  9.         myToggleButton.Content = "OFF";
  10.     }
  11.  }
Here we are changing the content of the button accordingly on clicking.

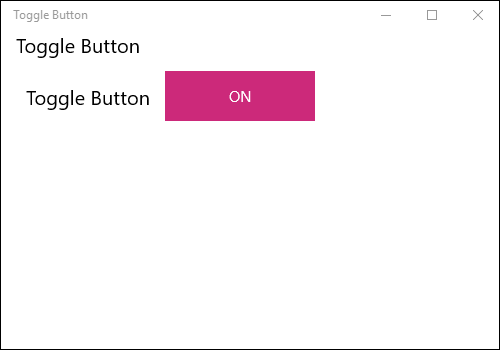

Step 3: Run your application and test yourself.
