Update A Div And Partial View Using Ajax.BeginForm On Form Submit

Here are the steps:

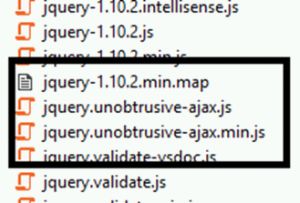

Step 1: Verify you have Microsoft jQuery Unobtrusive Ajax in your script folder,

jQuery Unobtrusive Ajax

If not then install package using the following command in Nuget:

Install-PackageMicrosoft.jQuery.Unobtrusive.Ajax

You may refer the following link to install.

Step 2: Create Controller, Model and View in your MVC application.

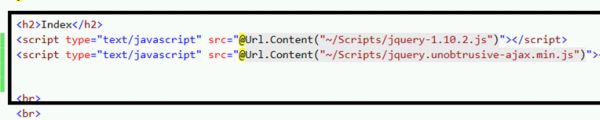

Step 3: Include the following two important script file in your project.

script file

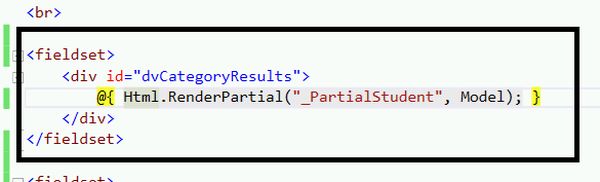

Step 4: Create Partial view which you want to update in the Ajax.Begin form submit button. You may add this at the end of BeginForm,

fieldset

Step 5: Add Ajax.BeginForm.

It has the following parameters:
  1. Action Name
  2. Controller Name
  3. AjaxOption (mention HttpMethod =post , UpdateTargetId = “Traget Div to update”.

    AjaxOption

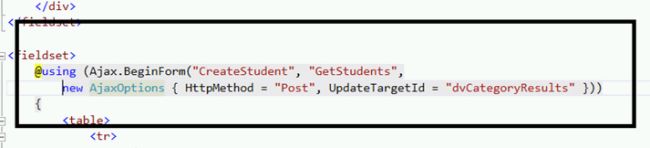

My Ajax.BegineForm is like the following:

Ajax.BegineForm

And My Final View is as below:

  1. @model DropdownGrid.Models.StudentDetailsModel
  2. @{
  3. ViewBag.Title = "Index";
  4. }
  5. < h2 >
  6.   Index
  7.   < /h2>
  8.
  9.     < script type = "text/javascript"
  10.     src = "@Url.Content("~/Scripts/jquery - 1.10.2. js ")" >
  11.
  12.       < /script>
  13.
  14.         < script type = "text/javascript"
  15.           src = "@Url.Content("~/Scripts/jquery.unobtrusive - ajax.min.js ")" >
  16.
  17.             < /script>
  18.
  19.             < br >
  20.
  21.             < br >
  22.
  23.             < br >
  24.
  25.             < br >
  26.
  27.             < fieldset >
  28.
  29.             < div id = "dvCategoryResults" >
  30.               @
  31.               {
  32.                 Html.RenderPartial("_PartialStudent", Model);
  33.               }
  34.       < /div>
  35.
  36.         < /fieldset>
  37.
  38.         < fieldset >
  39.
  40.         @using(Ajax.BeginForm("CreateStudent""GetStudents",
  41.                               new AjaxOptions
  42.                               {
  43.                               HttpMethod = "Post", UpdateTargetId = "dvCategoryResults"
  44.                               }))
  45.         {
  46.           < table >
  47.
  48.             < tr >
  49.
  50.             < td >
  51.             @Html.LabelFor(M =>
  52.                            M.SelectedStudent.Id)
  53.             < /td>
  54.
  55.             < td >
  56.             @Html.TextBoxFor(M =>
  57.                              M.SelectedStudent.Id)
  58.             < td >
  59.
  60.             < /tr>
  61.
  62.             < tr >
  63.
  64.             < td >
  65.             @Html.LabelFor(M =>
  66.                            M.SelectedStudent.Name)
  67.             < /td>
  68.
  69.             < td >
  70.             @Html.TextBoxFor(M =>
  71.                              M.SelectedStudent.Name)
  72.             < td >
  73.
  74.             < /tr>
  75.
  76.             < tr >
  77.
  78.             < td >
  79.             @Html.LabelFor(M =>
  80.                            M.SelectedStudent.Address)
  81.             < /td>
  82.
  83.             < td >
  84.             @Html.TextBoxFor(M =>
  85.                              M.SelectedStudent.Address)
  86.             < td >
  87.
  88.             < /tr>
  89.
  90.             < tr >
  91.
  92.             < td >
  93.             @Html.LabelFor(M =>
  94.                            M.SelectedStudent.Class)
  95.             < /td>
  96.
  97.             < td >
  98.             @Html.TextBoxFor(M =>
  99.                              M.SelectedStudent.Class)
  100.             < td >
  101.
  102.             < /tr>
  103.
  104.             < tr >
  105.
  106.             < td >
  107.             @Html.LabelFor(M =>
  108.                            M.SelectedStudent.Section)
  109.             < /td>
  110.
  111.             < td >
  112.             @Html.TextBoxFor(M =>
  113.                              M.SelectedStudent.Section)
  114.             < td >
  115.
  116.             < /tr>
  117.
  118.             < /table>
  119.
  120.             < input type = "submit"
  121.               value = "Submit" / >
  122.
  123.         }
  124.     < /fieldset>
Hence you will get your div with partial view updates on submit button using Ajax.BeginForm.

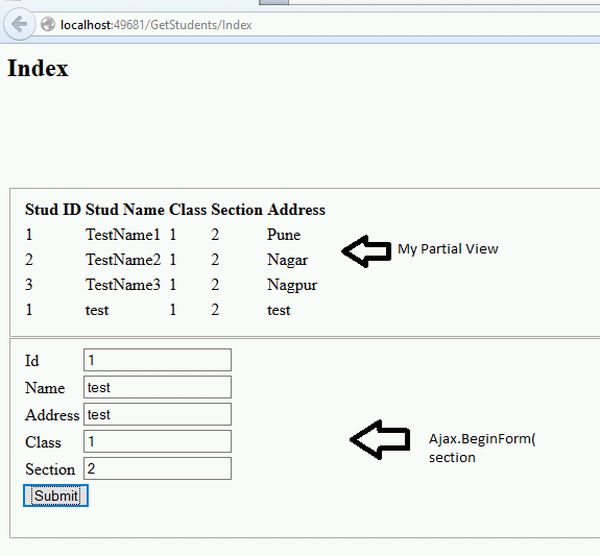

index

On Submit button my partial view updates without postback.
