SharePoint Server 2016 Release Candidate Single Server Installation Guide

Index

  • Introduction
  • Hardware Requirement
  • Software Requirement
  • Prerequisites for SharePoint Server 2016 Beta 2
  • Steps to install Prerequisites for SharePoint Server 2016 Beta 2
  • Steps to install SharePoint Server 2016 Beta 2
  • Steps to run SharePoint Product Configuration Wizard

Introduction

SharePoint 2016 Installation guide document contains steps to install SharePoint Server 2016 Beta. Download SharePoint server 2016 Beta 2 using the following link.

Hardware Requirement

Hardware requirement varies according to installation scenario. Hardware requirement for web servers, application servers, and MinRole installations for different installation scenarios is as follows:

Installation scenario Deployment type and scale RAM Processor Hard disk space
Single server role that uses SQL Server Development or evaluation installation of SharePoint Server 2016 Beta 2 with the minimum recommended services for development environments. 12–16 GB 64-bit, 4 cores 80 GB for system drive

100 GB for second drive
Single server role that uses SQL Server Pilot or user acceptance test installation of SharePoint Server 2016 Beta 2 running all available services for development environments. 16–24 GB 64-bit, 4 cores 80 GB for system drive

100 GB for second drive and additional drives
Web server or application server in a three-tier farm Development or evaluation installation of SharePoint Server 2016 Beta 2 with a minimum number of services. 8–12 GB 64-bit, 4 cores 80 GB for system drive

80 GB for second drive
Web server or application server in a three-tier farm Pilot, user acceptance test, or production deployment of SharePoint Server 2016 Beta 2 running all available services. 12–16 GB 64-bit, 4 cores 80 GB for system drive

80 GB for second drive and additional drives

Table reference.

Software Requirement


Minimum software requirements for each server in the farm is as follows:

Server Operating System Installation Media .Net Framework
Database Server The 64-bit edition of Windows Server 2012 R2 Standard or Datacenter The 64-bit edition of Microsoft SQL Server 2014 Service Pack 1 (SP1) Microsoft .NET Framework version 4.5.2
SharePoint Server The 64-bit edition of Windows Server 2012 R2 Standard or Datacenter SharePoint Server 2016 Beta 2 Microsoft .NET Framework version 4.5.2



Prerequisites for SharePoint Server 2016 Beta 2

You need to install below listed prerequisites for SharePoint Server 2016 Beta 2.

  • Web Server (IIS) role
  • Application Server role
  • Microsoft .NET Framework version 4.5.2
  • Microsoft SQL Server 2012 Native Client
  • Microsoft WCF Data Services 5.6
  • Microsoft Information Protection and Control Client (MSIPC)
  • Microsoft Sync Framework Runtime v1.0 SP1 (x64)
  • Windows Server AppFabric 1.1
  • Cumulative Update Package 7 for Microsoft AppFabric 1.1 for Windows Server (KB 3092423)
  • Microsoft ODBC Driver 11 for SQL Server
  • Update for Microsoft .NET Framework to disable RC4 in Transport Layer Security (KB2898850)
  • Visual C++ Redistributable Package for Visual Studio 2012.
  • Visual C++ Redistributable Package for Visual Studio 2015.

Steps to install Prerequisites for SharePoint Server 2016 Beta 2

Follow below steps to install prerequisites for SharePoint Server 2016 Beta 2.

  1. Open Directory where SharePoint installation file is present.

  2. Right click on Prerequisite Installer file.

  3. Click on Run as Administrator option, it will open Microsoft SharePoint 2016 Products Preparation Tool.

  4. Click on Next Button.

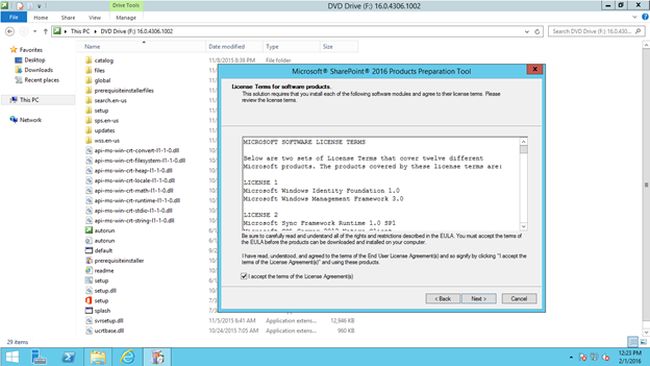

    Accept

    Accept the terms of license agreement(s).

    Click Next

This will install all prerequisites mentioned in step 3.

  1. Once prerequisites will complete, you will get installation complete screen. Click on Finish Button.

    Note: Make sure that internet is working properly on your machine because all the prerequisites are installed from internet at the time of installation.

    OR

    You can install all prerequisites one by one using the following link.

Steps to install SharePoint Server 2016 Beta 2

Post installing all prerequisites, you have to follow below steps:

  1. Click on SharePoint Server 2016 installation link in SharePoint Server 2016 Beta 2 installer file.
  2. Now you will get a prompt for the Product Key.
  3. Enter Product Key and click on Continue button.
  4. Accept the license terms and click on Continue button.
  5. Now select file location for SharePoint Server and Search Server files.
  6. Click on Install Now button which will start installation.

Installation will complete in few minutes and after completing it you will get a window where you have option to run configuration wizard. If you select this option, configuration wizard will run after installation will complete or you can run configuration wizard manually.

Steps to run SharePoint Product Configuration Wizard

  1. When you run configuration wizard, it will start with below window.
  2. After clicking Next button on welcome screen, you may have to restart below 3 services:

    1. Internet Information Services
    2. SharePoint Administration Service
    3. SharePoint Timer Service

Click on yes if service restart needed and then continue with Configuration wizard.

  1. Now click on Create a new server farm if it is fresh installation else you can go with connect to an existing server farm (if you have already installed SharePoint).

  2. Post which you will get a screen to enter database server details and database access account details.
