CheckBox For Helper to Handle HttpPost in MVC

Introduction

This article shows how to use a CheckBoxFor helper handling HttpPost in MVC applications.

Create an ASP.Net Web Application as in Figure 1.


Figure 1: Web Application

Choose MVC template  as in Figure 2.


Figure 2: MVC Template

Add an Employee Controller  as in Figures 3, 4 and 5.


Figure 3: Add Controller


Figure 4: MVC Controller Empty


Figure 5: Employee Controller

EmployeeController.cs

  1. using CheckBoxForMVCPost_App.Models;
  2. using System;
  3. using System.Collections.Generic;
  4. using System.Linq;
  5. using System.Text;
  6. using System.Web;
  7. using System.Web.Mvc;
  8.
  9. namespace CheckBoxForMVCPost_App.Controllers
  10. {
  11.     public class EmployeeController : Controller
  12.     {
  13.         EmployeeEntities db = new EmployeeEntities();
  14.         //
  15.         // GET: /Employee/
  16.         public ActionResult Index()
  17.         {
  18.             return View(db.Departments.ToList());
  19.         }
  20.
  21.         [HttpPost]
  22.         public string Index(IEnumerable<Department> model)
  23.         {
  24.             StringBuilder sb = new StringBuilder();
  25.             foreach (var mode in model)
  26.             {
  27.                 if (mode.IsSelected)
  28.                 {
  29.                     sb.Append("Selected Value is : <b>" + mode.DepartmentName + "</b>");
  30.                     sb.Append("<br />");
  31.                 }
  32.
  33.             }
  34.             return sb.ToString();
  35.         }
  36.
  37.     }
  38. }

Set up the Entity Framework as in Figures 6, 7 and 8.

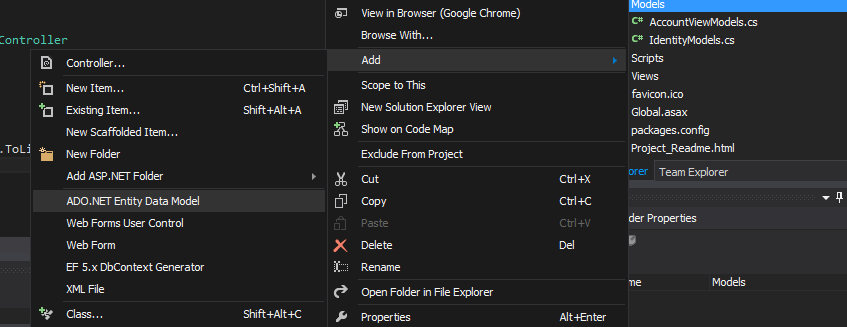

Figure 6: Add ADO.NET Entity Framework

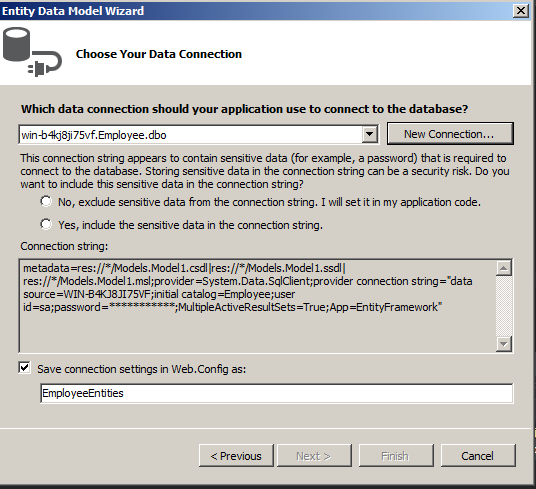

Figure 7: Connection Setting

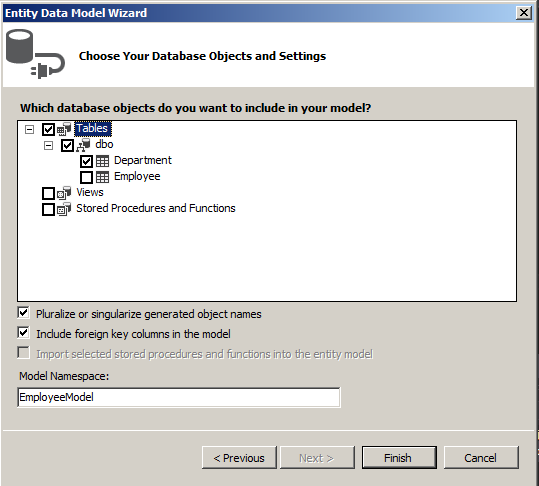

Figure 8: Select Tables

Add a View as in Figures 9 and 10.

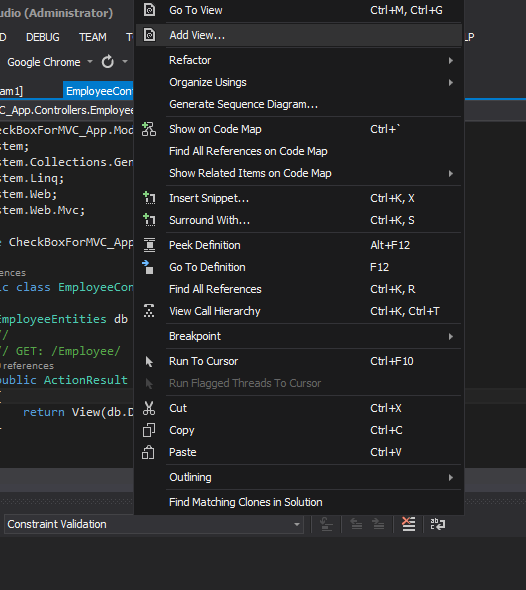

Figure 9: Add View

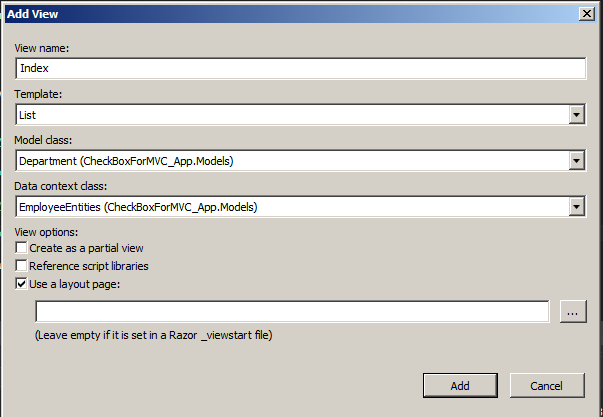

Figure 10: Index View

Index.cshtml

  1. @model IList<CheckBoxForMVCPost_App.Models.Department>
  2.
  3. @{
  4.     ViewBag.Title = "Index";
  5. }
  6.
  7. <h2>Index</h2>
  8.
  9. @using (Html.BeginForm("Index", "Employee", FormMethod.Post))
  10. {
  11.
  12.     for (int i = 0; i < Model.Count; i++)
  13.     {
  14.         @Html.HiddenFor(m => m[i].DepartmentName)
  15.         @Html.CheckBoxFor(m => m[i].IsSelected)
  16.         @Html.DisplayTextFor(m => m[i].DepartmentName)
  17.         <br />
  18.     }
  19.     <br />
  20.     <input type="submit" value="Submit" />
  21. }
The output of the application is as in Figures 11 and 12.

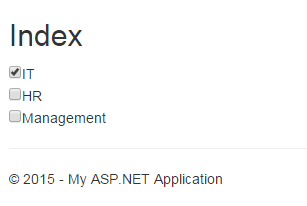

Figure 11: Index



Figure 12: Selected Values

Summary

In this article we saw how to use a CheckBoxFor helper handling HttpPost in MVC applications.
Happy coding.
