Code First Approach Using Data With Stored Procedure

Introduction

In this article we will see how to access a SQL Server database with the Entity Framework Code First Approach using data and later we will see how to create a procedure using the Fluent API.

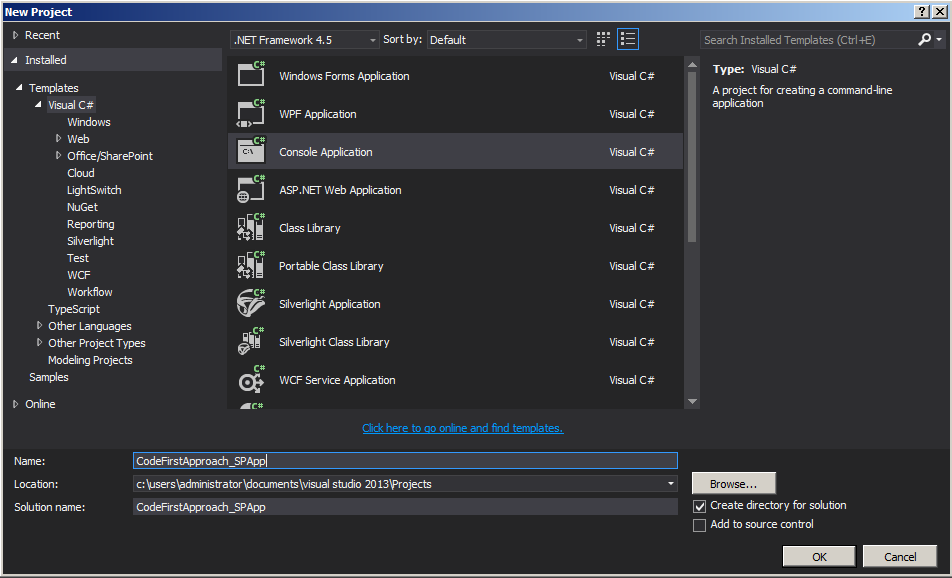

Step 1: Create console application

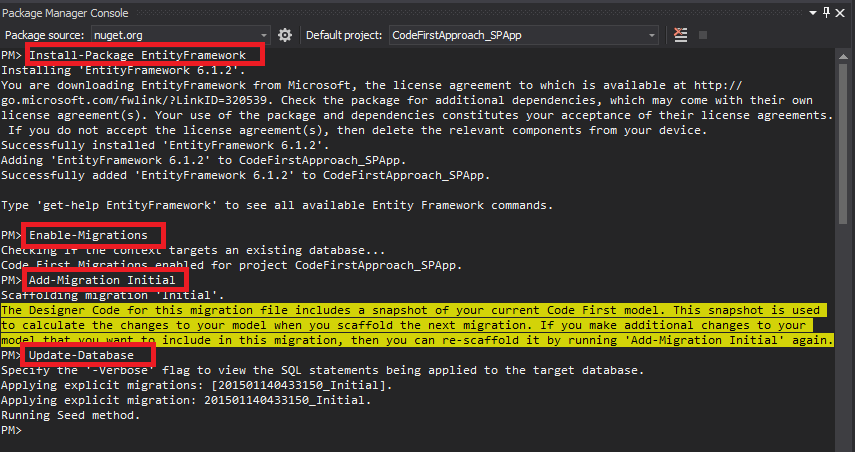

Migrations



Employee.cs

  1. using System;
  2. using System.Collections.Generic;
  3. using System.ComponentModel.DataAnnotations;
  4. using System.ComponentModel.DataAnnotations.Schema;
  5. using System.Linq;
  6. using System.Text;
  7. using System.Threading.Tasks;
  8.
  9. namespace CodeFirstApproach_SPApp
  10. {
  11.    public class Employee
  12.    {
  13.        public Employee()
  14.        {
  15.        }
  16.
  17.        [Key]
  18.        [DatabaseGenerated(DatabaseGeneratedOption.Identity)]
  19.        public int Id { getset; }
  20.        public string FirstName { getset; }
  21.        public string LastName { getset; }
  22.
  23.     }
  24. }

Employeecontext.cs

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Data.Entity;
  4. using System.Linq;
  5. using System.Text;
  6. using System.Threading.Tasks;
  7.
  8. namespace CodeFirstApproach_SPApp
  9. {
  10.     public class EmployeeContext : DbContext
  11.     {
  12.         public EmployeeContext()
  13.             : base("EmployeeConn")
  14.         {
  15.             Database.SetInitializer<EmployeeContext>(new CreateDatabaseIfNotExists<EmployeeContext>());
  16.         }
  17.
  18.         public DbSet<Employee> Employees { getset; }
  19.
  20.         protected override void OnModelCreating(DbModelBuilder modelBuilder)
  21.         {
  22.
  23.             modelBuilder.Entity<Employee>()
  24.                 .MapToStoredProcedures();
  25.         }
  26.     }
  27. }

Web.config

  1. <connectionStrings>
  2.     <add name="EmployeeConn"
  3.     connectionString="Data Source=WIN-B4KJ8JI75VF;Initial Catalog=EmployeeDB;Integrated Security=true"
  4.     providerName="System.Data.SqlClient"/>
  5.   </connectionStrings>

Program.cs

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Text;
  5. using System.Threading.Tasks;
  6.
  7. namespace CodeFirstApproach_SPApp
  8. {
  9.     class Program
  10.     {
  11.         static void Main(string[] args)
  12.         {
  13.             EmployeeContext empContext = new EmployeeContext();
  14.             Employee emp = new Employee()
  15.             {
  16.                 FirstName = "Haney",
  17.                 LastName = "Jow"
  18.             };
  19.             empContext.Employees.Add(emp);
  20.             empContext.SaveChanges();
  21.             Console.WriteLine("Inserted");
  22.             Console.ReadKey();
  23.         }
  24.     }
  25. }

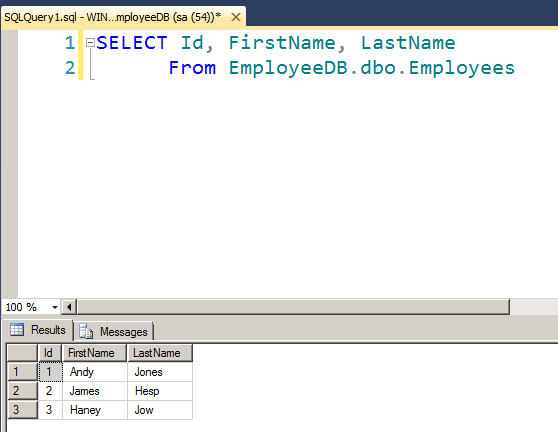

The following shows the output of the application:

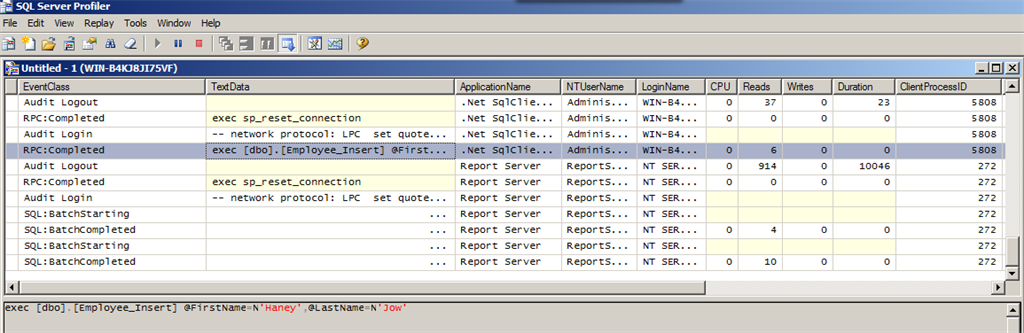

SQL profiler





Summary

In this article we saw how to access a SQL Server database with Entity Framework Code First Approach using data and how to create a procedure using the Fluent API. Happy coding!
