Delete Data With Typed Dataset (XSD) Via WCF

Introduction

This article demonstrates an interesting and very useful concept in typed dataset.

Question: What is delete data with typed dataset (XSD) via WCF?

In simple terms "It provides the ability to delete data from a DB using a typed dataset using a WCF Service".

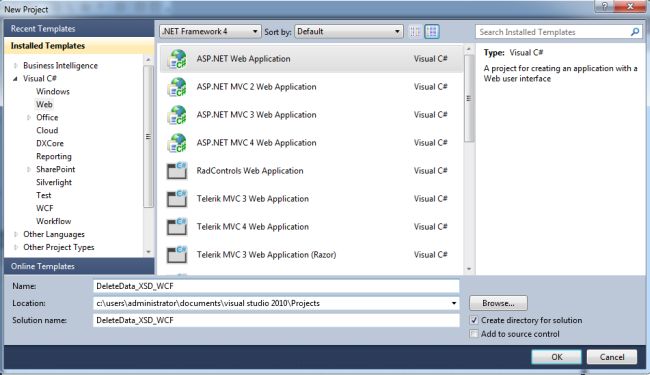

Step 1: Create a new web application

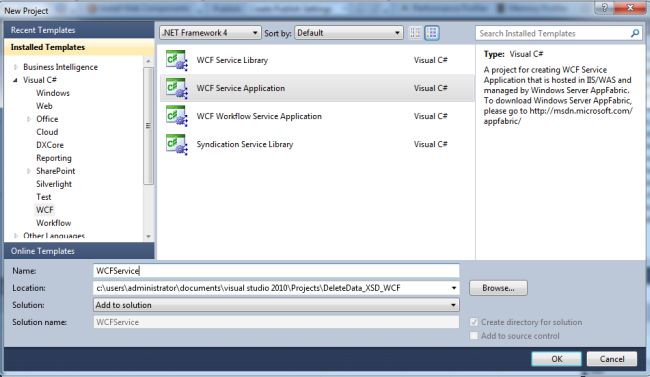

Step 2: Create a new WCF service application

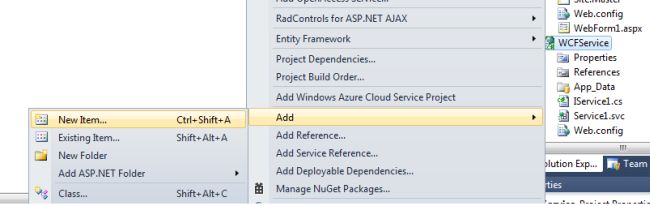

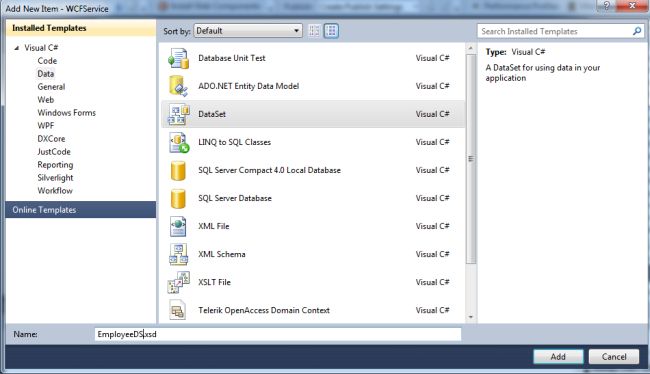

Step 3: Adding a new typed dataset




Step 4: The complete code of IService1.cs is as in the following:

using System;

using System.Collections.Generic;

using System.Linq;

using System.Runtime.Serialization;

using System.ServiceModel;

using System.ServiceModel.Web;

using System.Text;

namespace WCFService

{

    // NOTE: You can use the "Rename" command on the "Refactor" menu to change the interface name "IService1" in both code and config file together.

    [ServiceContract]

    public interface IService1

    {

        [OperationContract]EmployeeDS.tblEmployeeDataTable GetAllEmployees();

        [OperationContract]

        void DeleteEmpData(int a);

    }

}



Step 5: The complete code of Service1.svc.cs is as in the following:

using System;

using System.Collections.Generic;

using System.Linq;

using System.Runtime.Serialization;

using System.ServiceModel;

using System.ServiceModel.Web;

using System.Text;

namespace WCFService

{

    // NOTE: You can use the "Rename" command on the "Refactor" menu to change the class name "Service1" in code, svc and config file together.

    public class Service1 : IService1

    {

        public EmployeeDS.tblEmployeeDataTable GetAllEmployees()

        {

            EmployeeDS.tblEmployeeDataTable objEmployeeTable = objAdapter.GetData();

            return objEmployeeTable;

        }

        public void DeleteEmpData(int a)

        {

            objAdapter.Delete(a);

        }

        #region Instance Membersreadonly EmployeeDSTableAdapters.tblEmployeeTableAdapter objAdapter = new EmployeeDSTableAdapters.tblEmployeeTableAdapter();

        #endregion

    }

}

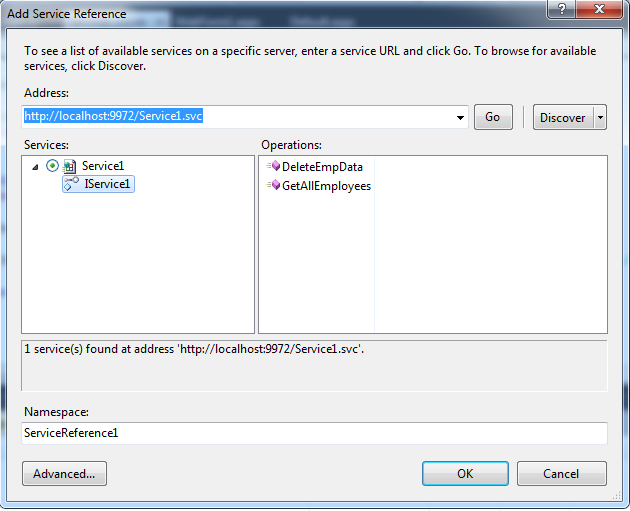

Step 6: Adding a service reference


Step 7: The complete code of WebForm1.aspx is as in the following:


<%@ Page Language="C#" AutoEventWireup="true" CodeBehind="WebForm1.aspx.cs" Inherits="DeleteData_XSD_WCF.WebForm1" %>



<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">

<html xmlns="http://www.w3.org/1999/xhtml">

<head id="Head1" runat="server">

    <style type="text/css">

        .grid

        {

            margin-top: 50px;

        }

    </style>

    <title></title>

</head>

<body>

    <form id="form1" runat="server">

    <center>

        <div>

            <table>

                <tr>

                    <td colspan="2" align="center">

                        <asp:Label ID="Label1" runat="server" Text="Delete Data with XSD via WCF" Font-Bold="true"

                            Font-Size="Large" Font-Names="Verdana" ForeColor="Maroon"></asp:Label>

                    </td>

                </tr>

                <tr>

                    <td>

                        <asp:Label ID="Label2" runat="server" Text="Please Enter Employee Id" ForeColor="Brown"

                            Font-Bold="true" Font-Size="Medium" Font-Names="Verdana"></asp:Label>

                    </td>

                    <td>

                        <asp:TextBox ID="TextBox1" runat="server"></asp:TextBox>

                    </td>

                </tr>

                <tr>

                    <td colspan="2" align="center">

                        <asp:Button ID="Button1" runat="server" Text="Delete Data" Font-Names="Verdana" Width="213px"

                            BackColor="Orange" Font-Bold="True" OnClick="Button1_Click" />

                    </td>

                </tr>

                <tr>

                    <td colspan="2" align="center">

                        <asp:GridView ID="GridView1" runat="server" CssClass="grid" BackColor="LightGoldenrodYellow"

                            BorderColor="Tan" BorderWidth="1px" CellPadding="2" AutoGenerateColumns="false"

                            ForeColor="Black" GridLines="None">

                            <AlternatingRowStyle BackColor="PaleGoldenrod" />

                            <FooterStyle BackColor="Tan" />

                            <HeaderStyle BackColor="Tan" Font-Bold="True" />

                            <PagerStyle BackColor="PaleGoldenrod" ForeColor="DarkSlateBlue" HorizontalAlign="Center" />

                            <SelectedRowStyle BackColor="DarkSlateBlue" ForeColor="GhostWhite" />

                            <SortedAscendingCellStyle BackColor="#FAFAE7" />

                            <SortedAscendingHeaderStyle BackColor="#DAC09E" />

                            <SortedDescendingCellStyle BackColor="#E1DB9C" />

                            <SortedDescendingHeaderStyle BackColor="#C2A47B" />

                            <Columns>

                                <asp:BoundField DataField="EmpId" HeaderText="Id" />

                                <asp:BoundField DataField="FirstName" HeaderText="FirstName" />

                                <asp:BoundField DataField="LastName" HeaderText="LastName" />

                                <asp:BoundField DataField="Age" HeaderText="Age" />

                            </Columns>

                        </asp:GridView>

                    </td>

                </tr>

                <tr>

                    <td colspan="2" align="center">

                        <asp:Label ID="Label3" runat="server" Font-Bold="true" Font-Size="Medium" Font-Names="Verdana"></asp:Label>

                    </td>

                </tr>

            </table>

        </div>

    </center>

    </form>

</body>

</html>

Step 8: The complete code of WebForm1.aspx.cs is as in the following:


using System;

using System.Collections.Generic;

using System.Linq;

using System.Web;

using System.Web.UI;

using System.Web.UI.WebControls;

using DeleteData_XSD_WCF.ServiceReference1;namespace DeleteData_XSD_WCF

{

    public partial class WebForm1 : System.Web.UI.Page

    {

        protected void Page_Load(object sender, EventArgs e)

        {

        }

        protected void Button1_Click(object sender, EventArgs e)

        {

            if (string.IsNullOrEmpty(TextBox1.Text))

            {

                Label3.Text = "Please Enter Some Values";

                Label3.ForeColor = System.Drawing.Color.Red;

            }

            else

            {

                objClient.DeleteEmpData(int.Parse(TextBox1.Text));

                GridView1.DataSource = objClient.GetAllEmployees();

                GridView1.DataBind();

                Label3.Text = "Records Deleted Successfully";

                Label3.ForeColor = System.Drawing.Color.Green;

                TextBox1.Text = string.Empty;

            }

        }

        #region Instance MembersService1Client objClient = new Service1Client();

        #endregion

    }

}

Step 9: The output of the application is as in the following:

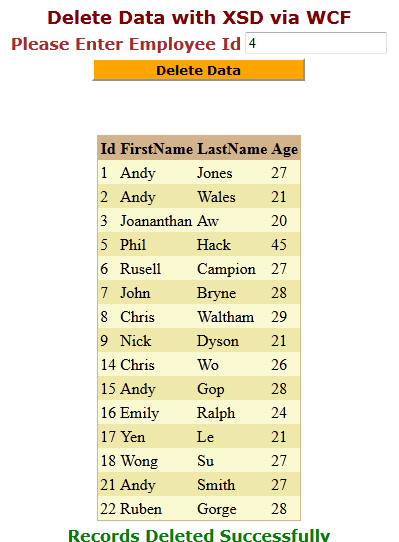

Step 10: The deleted data output of the application is as in the following:



I hope this article was useful for you.
