How to Use DropDownList Helper in MVC Application

Introduction

This article shows how to use the dropdownlist helper in MVC applications.

  • Index: wrapping data coming from Entity Framework (EF).
  • Index1: wrapping data coming from the Controller's Action Result.
  • Index2: wrapping data inside the view.

Create an ASP.Net MVC 4 Web Application

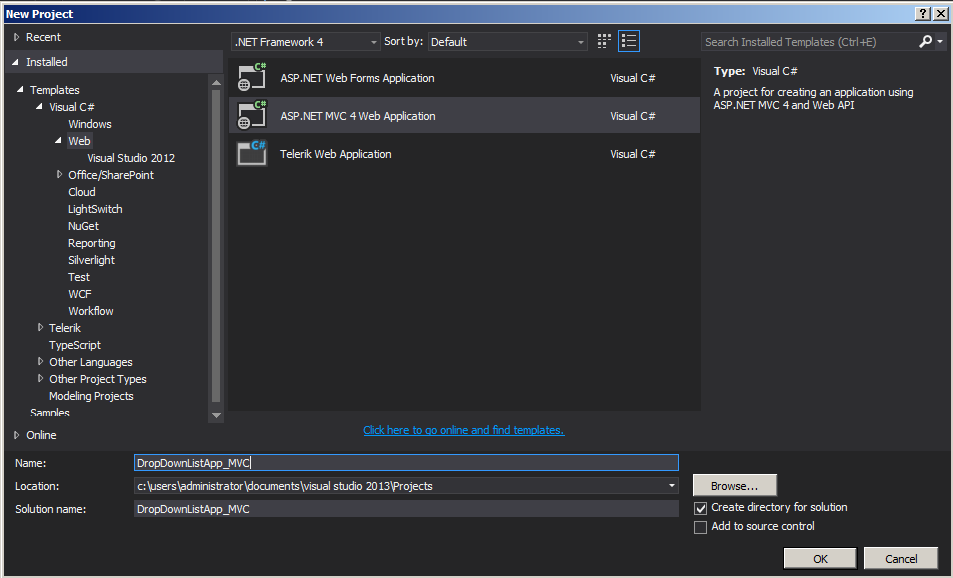

Figure 1 Web Application

Choose Internet Application

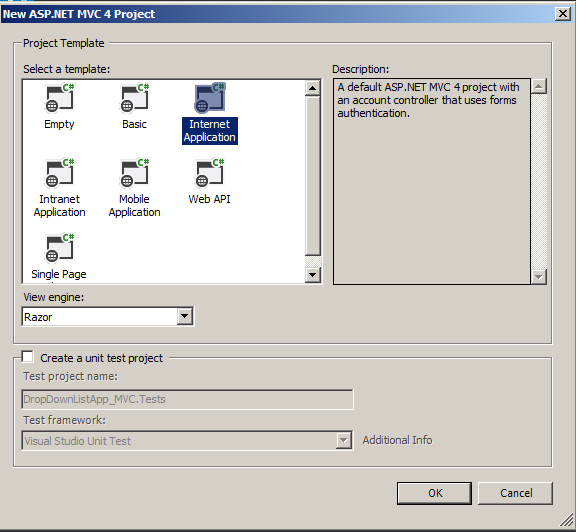

Figure 2 Internet Application

Add an EmployeeController

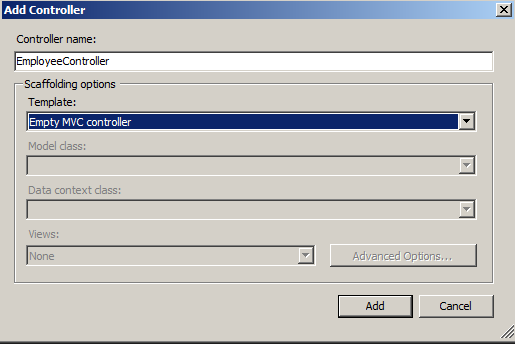

Figure 3 Add EmployeeController

Set up an Entity Framework

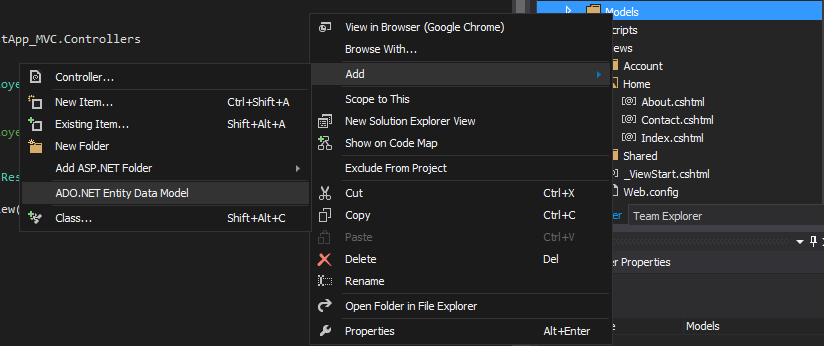

Figure 4 Entity Framework

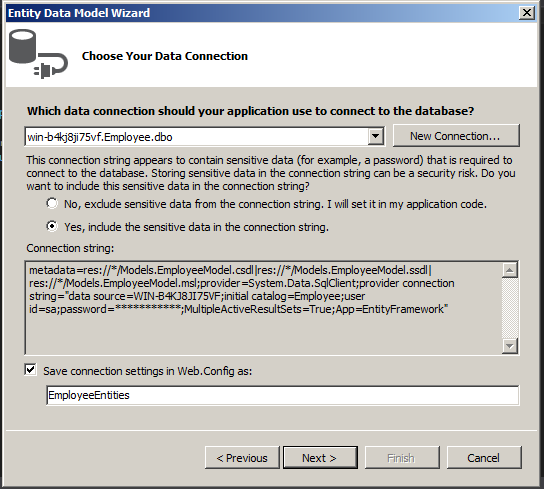

Figure 5 Data Connection

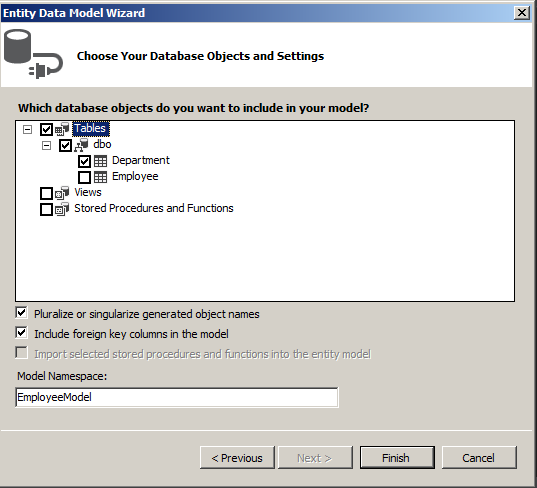

Figure 6 Data Connection Object

Employeecontroller.cs

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.Mvc;
  6. using DropDownListApp_MVC.Models;
  7.
  8. namespace DropDownListApp_MVC.Controllers
  9. {
  10.     public class EmployeeController : Controller
  11.     {
  12.         //
  13.         // GET: /Employee/
  14.         EmployeeEntities objEmployeeEntities = new EmployeeEntities();
  15.         public ActionResult Index()
  16.         {
  17.             ViewBag.List = new SelectList(objEmployeeEntities.Departments.Select(r => r.DepartmentName));
  18.             return View();
  19.         }
  20.
  21.         public ActionResult Index1()
  22.         {
  23.             List<SelectListItem> items = new List<SelectListItem>();
  24.             items.Add(new SelectListItem { Text = "IT", Value = "0" });
  25.             items.Add(new SelectListItem { Text = "HR", Value = "1" });
  26.             items.Add(new SelectListItem { Text = "Management", Value = "2" });
  27.             ViewBag.List = items;
  28.
  29.             return View();
  30.         }
  31.
  32.         public ActionResult Index2()
  33.         {
  34.                 return View();
  35.         }
  36.
  37.
  38.
  39.     }
  40. }

Adding View

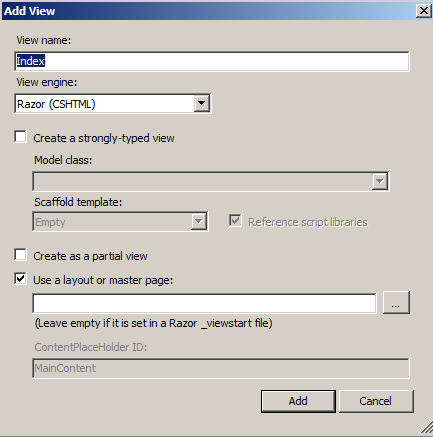

Figure 7 Add View

Index.cshtml

  1. @{
  2.     ViewBag.Title = "Index";
  3. }
  4.
  5. <h2>Index</h2>
  6.
  7. @Html.DropDownList("List", "------Select List------")

Index1.cshtml

  1. @{
  2.     ViewBag.Title = "Index1";
  3. }
  4.
  5. <h2>Index1</h2>
  6.
  7. @Html.DropDownList("List", "------Select List------")

Index2.cshtml

  1. @{
  2.     ViewBag.Title = "Index2";
  3. }
  4.
  5. <h2>Index2</h2>
  6.
  7. @Html.DropDownList("List", new List<SelectListItem>
  8. {
  9.     new SelectListItem{ Text="IT"Value="1"},
  10.     new SelectListItem{ Text="HR"Value="2"},
  11.     new SelectListItem{ Text="Management"Value="3"}
  12. }, "----Select List----")

The output of the application as in the following screenshot.

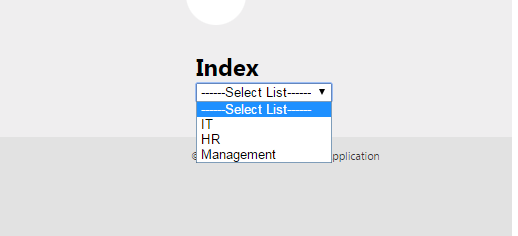

Figure 8 Output 1

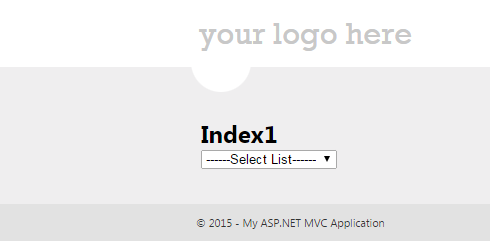

Figure 9 Output 2

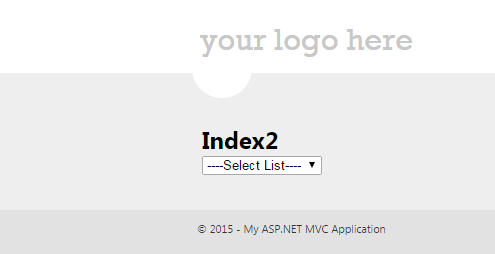

Figure 10 Output3

Summary

In this article we saw how to use a dropdownlist helper in MVC applications.

Happy coding.
