EF Code First Approach Stored Procedure With Parameter

Introduction

This article shows how to access a SQL Server database with the Entity Framework Code First Approach and later we will also look at how to use a Stored Procedure with the Fluent API.

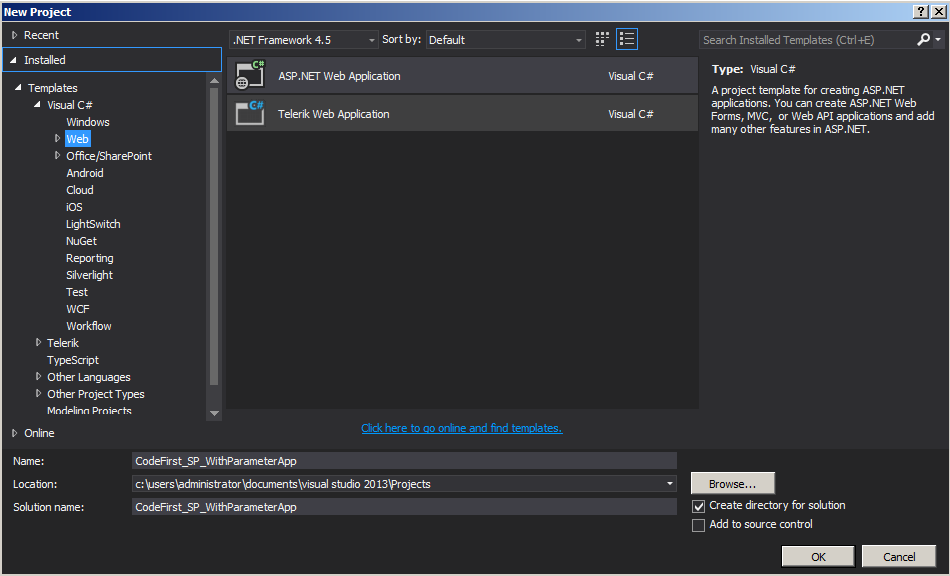

Step 1: Create ASP.Net web application



Employee.cs

  1. using System;
  2. using System.Collections.Generic;
  3. using System.ComponentModel.DataAnnotations;
  4. using System.ComponentModel.DataAnnotations.Schema;
  5. using System.Linq;
  6. using System.Web;
  7. namespace CodeFirst_SP_WithParameterApp
  8. {
  9.     public class Employee
  10.     {
  11.         public Employee() {}
  12.         [Key]
  13.         [DatabaseGenerated(DatabaseGeneratedOption.Identity)]
  14.         public int Id
  15.         {
  16.             get;
  17.             set;
  18.         }
  19.         public string FirstName
  20.         {
  21.             get;
  22.             set;
  23.         }
  24.         public string LastName
  25.         {
  26.             get;
  27.             set;
  28.         }
  29.     }
  30. }

Employeecontext.cs

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Data.Entity;
  4. using System.Linq;
  5. using System.Web;
  6. namespace CodeFirst_SP_WithParameterApp
  7. {
  8.     public class EmployeeContext: DbContext
  9.     {
  10.         public EmployeeContext(): base("EmployeeConn")
  11.         {
  12.             Database.SetInitializer < EmployeeContext > (new CreateDatabaseIfNotExists < EmployeeContext > ());
  13.         }
  14.         public DbSet < Employee > Employees
  15.         {get;set;}
  16.         protected override void OnModelCreating(DbModelBuilder modelBuilder) {
  17.             modelBuilder.Entity < Employee > ()
  18.             .MapToStoredProcedures(p = > p.Insert(sp = > sp.HasName("sp_InsertStudent").Parameter(pm = > pm.FirstName, "FirstName").Result(rs = > rs.Id, "Id")));
  19.         }
  20.     }
  21. }

Web.config

  1. <connectionStrings>
  2.     <add name="EmployeeConn"
  3.   connectionString="Data Source=WIN-B4KJ8JI75VF;Initial Catalog=EmployeeDB;Integrated Security=true"
  4.   providerName="System.Data.SqlClient"/>
  5. </connectionStrings>

Webform1.aspx

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.UI;
  6. using System.Web.UI.WebControls;
  7. namespace CodeFirst_SP_WithParameterApp
  8. {
  9.     public partial class WebForm1: System.Web.UI.Page
  10.     {
  11.         protected void Page_Load(object sender, EventArgs e)
  12.         {
  13.             EmployeeContext empContext = new EmployeeContext();
  14.             Employee emp = new Employee()
  15.             {
  16.                 FirstName = "Haney",
  17.                 LastName = "Jow"
  18.             };
  19.             empContext.Employees.Add(emp);
  20.             empContext.SaveChanges();
  21.         }
  22.     }
  23. }

Summary

In this article we saw how to access a SQL Server database with the Entity Framework Code First Approach and how to use a Stored Procedure with the Fluent API. Happy coding.
