Introduction

This article demonstrates an interesting and very useful concept in Entity Framework.

Question: What is entity data source?

In simple terms "It is a data source that performs CRUD, filtering, querying and so on, all based on a data model. This reduces the development effort by performing various operations in an easy and manageable manner".

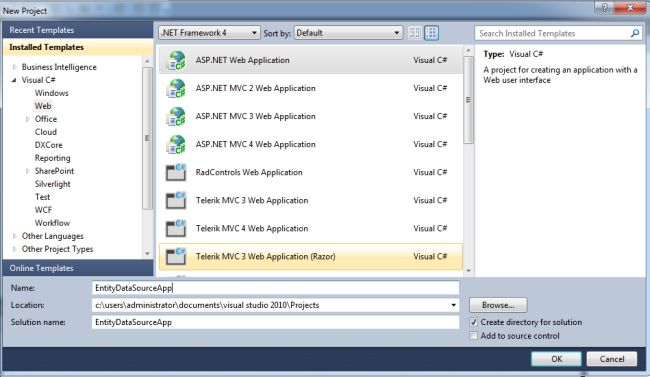

Step 1: Create a new web application

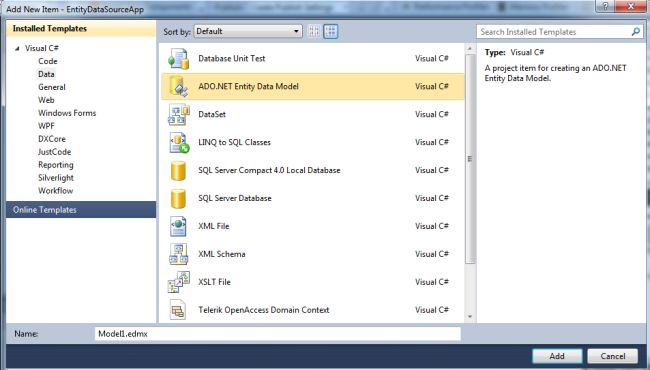

Step 2: Add a new Entity Framework model

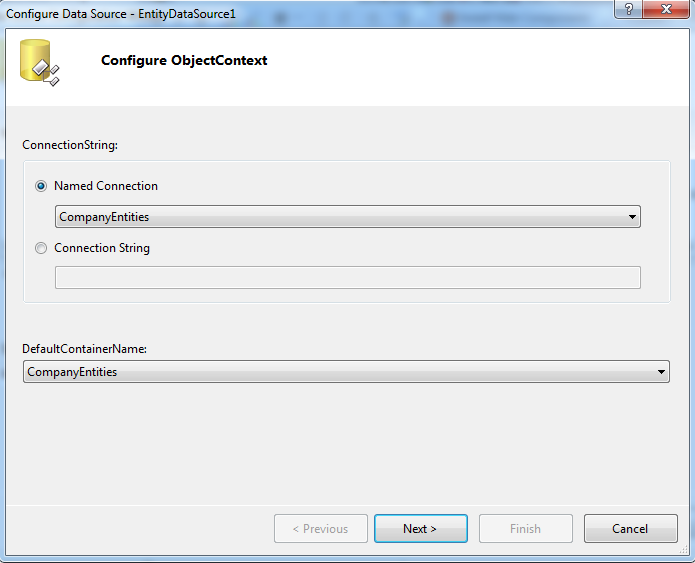

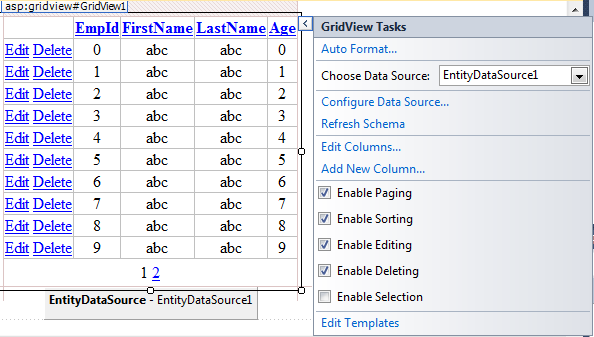

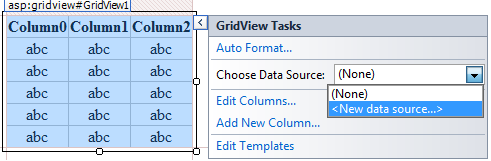

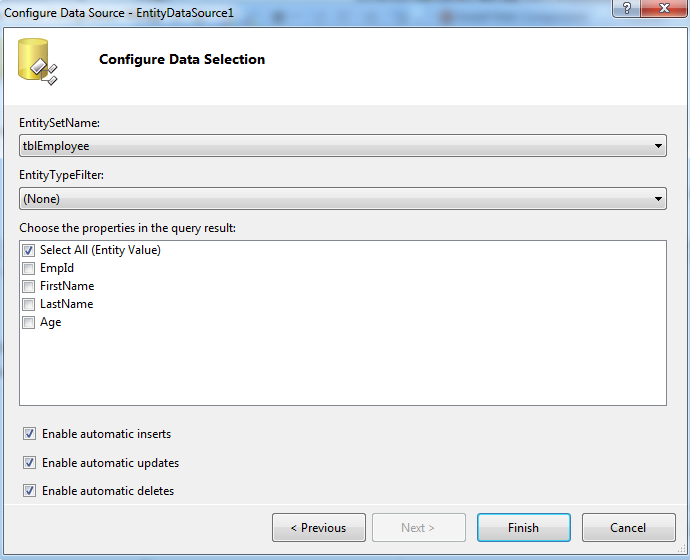

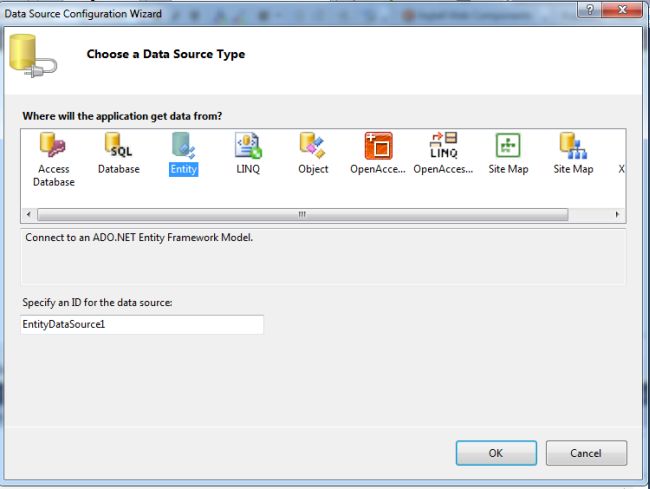

Step 3: Adding a new grid view and choosing data source

Step 4: The complete code of WebForm1.aspx is as in the following:

<%@ Page Language="C#" AutoEventWireup="true" CodeBehind="WebForm1.aspx.cs" Inherits="EntityDataSourceApp.WebForm1" %>
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">
<head id="Head1" runat="server">
    <title></title>
</head>
<body>
    <form id="form1" runat="server">
    <center>
        <div>
            <asp:GridView ID="GridView1" runat="server" AllowPaging="True" AllowSorting="True"
                AutoGenerateColumns="False" BackColor="LightGoldenrodYellow" BorderColor="Tan"
                BorderWidth="1px" CellPadding="2" DataKeyNames="EmpId" DataSourceID="EntityDataSource1"
                ForeColor="Black" GridLines="None">
                <AlternatingRowStyle BackColor="PaleGoldenrod" />
                <Columns>
                    <asp:CommandField ShowDeleteButton="True" ShowEditButton="True" />
                    <asp:BoundField DataField="EmpId" HeaderText="EmpId" ReadOnly="True" SortExpression="EmpId" />
                    <asp:BoundField DataField="FirstName" HeaderText="FirstName" SortExpression="FirstName" />
                    <asp:BoundField DataField="LastName" HeaderText="LastName" SortExpression="LastName" />
                    <asp:BoundField DataField="Age" HeaderText="Age" SortExpression="Age" />
                </Columns>
                <FooterStyle BackColor="Tan" />
                <HeaderStyle BackColor="Tan" Font-Bold="True" />
                <PagerStyle BackColor="PaleGoldenrod" ForeColor="DarkSlateBlue" HorizontalAlign="Center" />
                <SelectedRowStyle BackColor="DarkSlateBlue" ForeColor="GhostWhite" />
                <SortedAscendingCellStyle BackColor="#FAFAE7" />
                <SortedAscendingHeaderStyle BackColor="#DAC09E" />
                <SortedDescendingCellStyle BackColor="#E1DB9C" />
                <SortedDescendingHeaderStyle BackColor="#C2A47B" />
            </asp:GridView>
            <asp:EntityDataSource ID="EntityDataSource1" runat="server" ConnectionString="name=CompanyEntities"
                DefaultContainerName="CompanyEntities" EnableDelete="True" EnableFlattening="False"
                EnableInsert="True" EnableUpdate="True" EntitySetName="tblEmployee">
            </asp:EntityDataSource>
        </div>
    </center>
    </form>
</body>
</html>

Step 5: The complete code of WebForm1.aspx.cs is as in the following:

using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.UI;
using System.Web.UI.WebControls;
namespace EntityDataSourceApp
{
    public partial class WebForm1 : System.Web.UI.Page
    {
        protected void Page_Load(object sender, EventArgs e)
        {
        }
    }
}

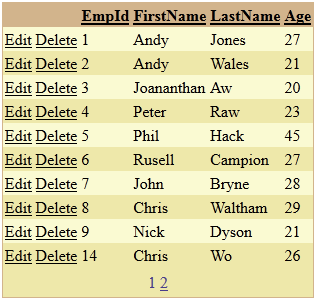

Step 6: The output of the application is as in the following:

I hope this article was useful for you.
