Index Attribute Using Entity Framework

Introduction

This article shows how to access a SQL Server database with the Entity Framework Code First approach and later how to create an index.

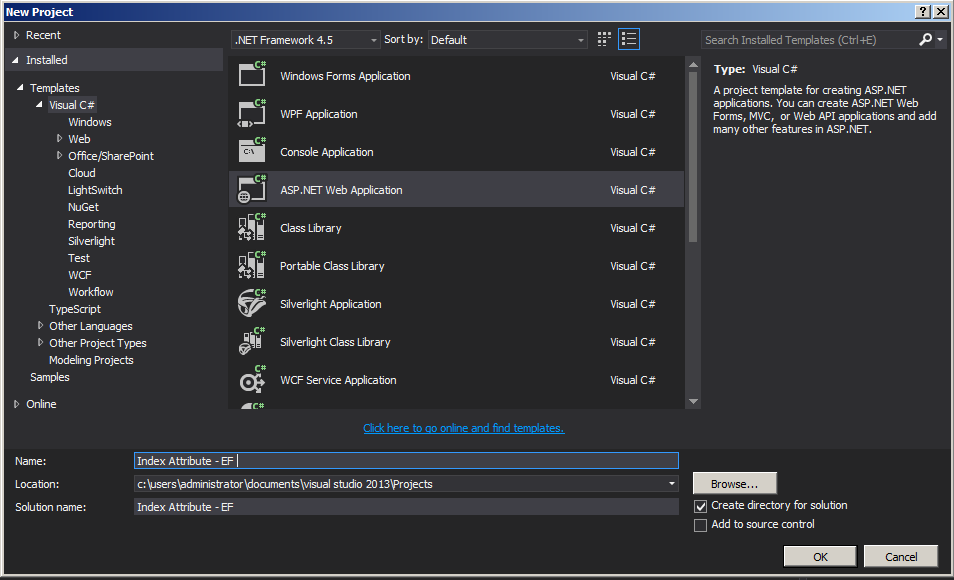

Create ASP.Net web application

Employee.cs

  1. using System;
  2. using System.Collections.Generic;
  3. using System.ComponentModel.DataAnnotations;
  4. using System.ComponentModel.DataAnnotations.Schema;
  5. using System.Linq;
  6. using System.Web;
  7.
  8. namespace Index_Attribute___EF
  9. {
  10.     public class Employee
  11.     {
  12.         public Employee()
  13.         {
  14.         }
  15.
  16.         [Key]
  17.         [DatabaseGenerated(DatabaseGeneratedOption.Identity)]
  18.         public int Id { getset; }
  19.         public string FirstName { getset; }
  20.
  21.         [MaxLength(50)]
  22.         [Index("IX_LastName_Employee", IsClustered=false)]
  23.         public string LastName { getset; }
  24.
  25.     }
  26. }
Employeecontext.cs
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Data.Entity;
  4. using System.Linq;
  5. using System.Web;
  6.
  7. namespace Index_Attribute___EF
  8. {
  9.     public class EmployeeContext : DbContext
  10.     {
  11.         public EmployeeContext()
  12.             : base("EmployeeConn")
  13.         {
  14.             Database.SetInitializer<EmployeeContext>(new CreateDatabaseIfNotExists<EmployeeContext>());
  15.         }
  16.
  17.         public DbSet<Employee> Employees { getset; }
  18.     }

Web.config

  1. <connectionStrings>
  2.     <add name="EmployeeConn"
  3.     connectionString="Data Source=WIN-B4KJ8JI75VF;Initial Catalog=EmployeeDB;Integrated Security=true"
  4.     providerName="System.Data.SqlClient"/>
  5.   </connectionStrings>

Webform1.aspx

  1. <%@ Page Language="C#" AutoEventWireup="true" CodeBehind="WebForm1.aspx.cs" Inherits="Index_Attribute___EF.WebForm1" %>
  2.
  3. <!DOCTYPE html>
  4.
  5. <html xmlns="http://www.w3.org/1999/xhtml">
  6. <head runat="server">
  7.     <title></title>
  8. </head>
  9. <body>
  10.     <form id="form1" runat="server">
  11.         <div>
  12.             <table>
  13.                 <tr>
  14.                     <td>
  15.                         <asp:Label ID="Label1" runat="server" Text="Index Attribute" Font-Bold="true"></asp:Label>
  16.                     </td>
  17.                 </tr>
  18.             </table>
  19.             <br />
  20.             <br />
  21.             <table>
  22.                 <tr>
  23.                     <td>
  24.                         <asp:Label ID="Label2" runat="server" Text="Please Enter FirstName: " ForeColor="Brown"
  25.                             Font-Bold="true" Font-Italic="true"></asp:Label>
  26.                     </td>
  27.                     <td>
  28.                         <asp:TextBox ID="TextBox1" runat="server"></asp:TextBox>
  29.                     </td>
  30.                 </tr>
  31.                 <tr>
  32.                     <td>
  33.                         <asp:Label ID="Label3" runat="server" Text="Please Enter LastName: " ForeColor="Brown"
  34.                             Font-Bold="true" Font-Italic="true"></asp:Label>
  35.                     </td>
  36.                     <td>
  37.                         <asp:TextBox ID="TextBox2" runat="server"></asp:TextBox>
  38.                     </td>
  39.                 </tr>
  40.                 <tr>
  41.                     <td colspan="2">
  42.                         <asp:Button ID="Button1" runat="server" Text="Insert Data"
  43.                             BackColor="Orange" Font-Bold="true" OnClick="Button1_Click" />
  44.                         <br />
  45.                         <br />
  46.                     </td>
  47.                 </tr>
  48.             </table>
  49.         </div>
  50.     </form>
  51. </body>
  52. </html>

Webform1.aspx.cs

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.UI;
  6. using System.Web.UI.WebControls;
  7.
  8. namespace Index_Attribute___EF
  9. {
  10.     public partial class WebForm1 : System.Web.UI.Page
  11.     {
  12.         protected void Page_Load(object sender, EventArgs e)
  13.         {
  14.
  15.         }
  16.
  17.         protected void Button1_Click(object sender, EventArgs e)
  18.         {
  19.             EmployeeContext empContext = new EmployeeContext();
  20.             Employee emp = new Employee() { FirstName = TextBox1.Text, LastName = TextBox2.Text };
  21.             empContext.Employees.Add(emp);
  22.             empContext.SaveChanges();
  23.
  24.         }
  25.     }
  26. }

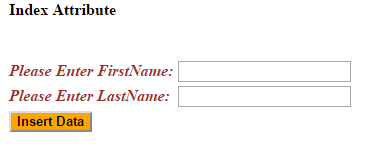

The following is the output of the application:



Summary

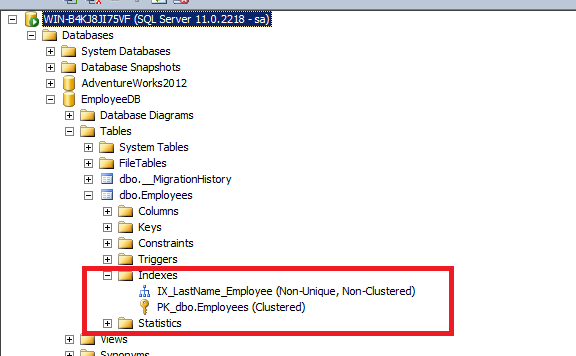

In this article we saw how to access a SQL Server database with the Entity Framework Code First approach and how to create an index. Happy coding.
