Insert Data From Complextype Using Code First Approach

Introduction

This article shows how to access a SQL Server database with Entity Framework code first approach and later we will also look at how to do an insert data operation using a complex type.

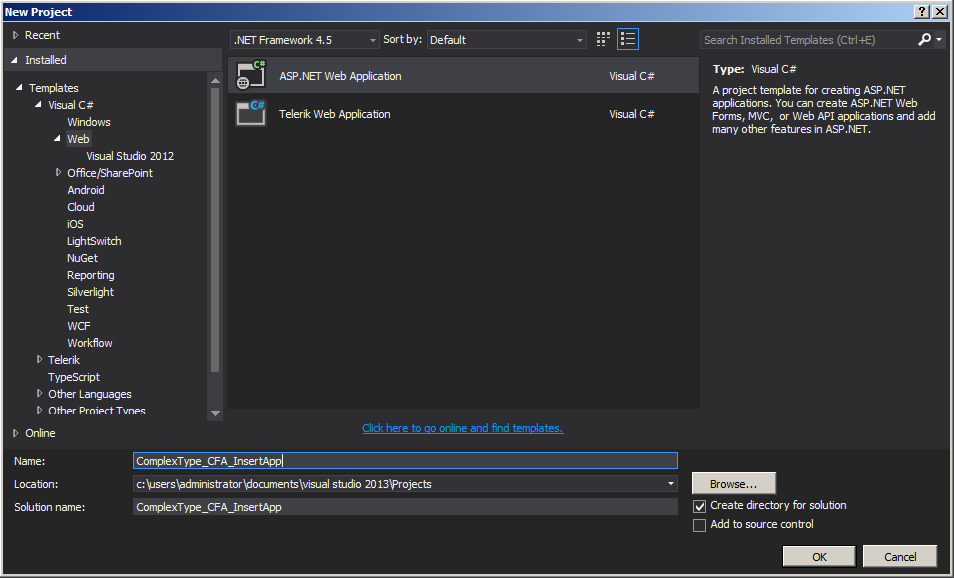

Create ASP.Net web application



Employee.cs

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5.
  6. namespace ComplexType_CFA_InsertApp
  7. {
  8.     public class Employee
  9.     {
  10.         public Employee()
  11.         {
  12.         }
  13.
  14.         public int Id { getset; }
  15.         public string FirstName { getset; }
  16.         public string LastName { getset; }
  17.         public EmployeeDetails EmployeeDetails { getset; }
  18.     }
  19. }

EmployeeDetails.cs

  1. using System;
  2. using System.Collections.Generic;
  3. using System.ComponentModel.DataAnnotations.Schema;
  4. using System.Linq;
  5. using System.Web;
  6.
  7. namespace ComplexType_CFA_InsertApp
  8. {
  9.     [ComplexType]
  10.     public class EmployeeDetails
  11.     {
  12.         public EmployeeDetails()
  13.         {
  14.         }
  15.
  16.         public int Phone { getset; }
  17.         public int Age { getset; }
  18.         public string Email { getset; }
  19.     }
  20. }

Employeecontext.cs

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Data.Entity;
  4. using System.Linq;
  5. using System.Web;
  6.
  7. namespace ComplexType_CFA_InsertApp
  8. {
  9.     public class EmployeeContext: DbContext
  10.     {
  11.         public EmployeeContext()
  12.             : base("EmployeeConn")
  13.         {
  14.             Database.SetInitializer<EmployeeContext>(new CreateDatabaseIfNotExists<EmployeeContext>());
  15.         }
  16.
  17.         protected override void OnModelCreating(DbModelBuilder modelBuilder)
  18.         {
  19.             //Set primary key to Employee table
  20.             modelBuilder.Entity<Employee>().HasKey(m => m.Id).Property(m => m.Id).IsRequired();
  21.
  22.             //First Name is required and Max Length is 50
  23.             modelBuilder.Entity<Employee>().Property(p => p.FirstName).IsRequired().HasMaxLength(50);
  24.
  25.             //Last Name is required and Max Length is 50
  26.             modelBuilder.Entity<Employee>().Property(p => p.LastName).IsRequired().HasMaxLength(50);
  27.
  28.             //Age is required
  29.             modelBuilder.ComplexType<EmployeeDetails>().Property(p => p.Age).IsRequired();
  30.
  31.             //Phone is required
  32.             modelBuilder.ComplexType<EmployeeDetails>().Property(p => p.Phone).IsRequired();
  33.
  34.             //Email is required
  35.             modelBuilder.ComplexType<EmployeeDetails>().Property(p => p.Email).IsRequired();
  36.         }
  37.
  38.         public DbSet<Employee> Employees { getset; }
  39.     }
  40. }

Web.config

  1. <connectionStrings>
  2.   <add name="EmployeeConn"
  3.   connectionString="Data Source=WIN-B4KJ8JI75VF;Initial Catalog=EmployeeDB;Integrated Security=true"
  4.   providerName="System.Data.SqlClient"/>
  5. </connectionStrings>

Webform1.aspx

  1. <%@ Page Language="C#" AutoEventWireup="true" CodeBehind="WebForm1.aspx.cs" Inherits="ComplexType_CFA_InsertApp.WebForm1" %>
  2.
  3. <!DOCTYPE html>
  4.
  5. <html xmlns="http://www.w3.org/1999/xhtml">
  6. <head runat="server">
  7.     <title></title>
  8. </head>
  9. <body>
  10.     <form id="form1" runat="server">
  11.         <div>
  12.             <table>
  13.                 <tr>
  14.                     <td>FirstName:
  15.                     </td>
  16.                     <td>
  17.                         <asp:TextBox ID="txtFirstName" runat="server"></asp:TextBox>
  18.                     </td>
  19.                 </tr>
  20.                 <tr>
  21.                     <td>LastName:
  22.                     </td>
  23.                     <td>
  24.                         <asp:TextBox ID="txtLastName" runat="server"></asp:TextBox>
  25.                     </td>
  26.                 </tr>
  27.                 <tr>
  28.                     <td>Age:
  29.                     </td>
  30.                     <td>
  31.                         <asp:TextBox ID="txtAge" runat="server"></asp:TextBox>
  32.                     </td>
  33.                 </tr>
  34.                 <tr>
  35.                     <td>Phone:
  36.                     </td>
  37.                     <td>
  38.                         <asp:TextBox ID="txtPhone" runat="server"></asp:TextBox>
  39.                     </td>
  40.                 </tr>
  41.                 <tr>
  42.                     <td>Email:
  43.                     </td>
  44.                     <td>
  45.                         <asp:TextBox ID="txtEmail" runat="server"></asp:TextBox>
  46.                     </td>
  47.                 </tr>
  48.                 <tr>
  49.                     <td colspan="2">
  50.                         <asp:Button ID="btnSave" runat="server" Text="Save" OnClick="btnSave_Click" />
  51.                     </td>
  52.                 </tr>
  53.             </table>
  54.         </div>
  55.     </form>
  56. </body>
  57. </html>

Webform1.aspx.cs

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.UI;
  6. using System.Web.UI.WebControls;
  7.
  8. namespace ComplexType_CFA_InsertApp
  9. {
  10.     public partial class WebForm1 : System.Web.UI.Page
  11.     {
  12.         EmployeeContext entities = new EmployeeContext();
  13.         protected void Page_Load(object sender, EventArgs e)
  14.         {
  15.
  16.         }
  17.
  18.         protected void btnSave_Click(object sender, EventArgs e)
  19.         {
  20.             Employee emp = new Employee()
  21.             {
  22.                 FirstName = txtFirstName.Text
  23.                ,LastName = txtLastName.Text
  24.
  25.             };
  26.             emp.EmployeeDetails = new EmployeeDetails()
  27.             {
  28.                 Age = int.Parse(txtAge.Text)
  29.                ,Phone = int.Parse(txtPhone.Text)
  30.                ,Email = txtEmail.Text
  31.             };
  32.             entities.Employees.Add(emp);
  33.             entities.SaveChanges();
  34.         }
  35.     }
  36. }

Output

The output of the application looks like this:

Summary

In this article we saw how to access a SQL Server database using the Entity Framework code first approach and how to do an insert data operation using a complex type. Happy coding.
