Insert, Select and Delete Data With Stored Proc Using XSD (Typed Dataset)

Introduction

Insert Data using XSD

Question: What is Insert Data with Stored Procedure using XSD (Typed Dataset)?

In simple terms "It provides the flexibility to Insert data with a Stored Procedure using a dataset".

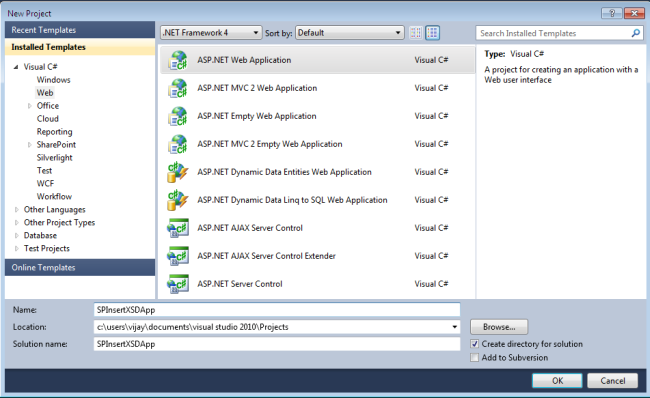

Step 1: Create a new WebForm project:


Step 2: The employee dataset looks like this:


Step 3: The complete code of WebForm1.aspx looks like this:

<%@ Page Language="C#" AutoEventWireup="true" CodeBehind="WebForm1.aspx.cs" Inherits="SPInsertXSDApp.WebForm1" %>
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">
<head id="Head1" runat="server">
    <title></title>
</head>
<body>
    <form id="form1" runat="server">
    <div>
        <center>
            <table>
                <tr>
                    <td>
                        <asp:Label ID="Label1" runat="server" Text="Insert with Stored Proc using XSD" Font-Bold="true"></asp:Label>
                    </td>
                </tr>
                <tr>
                    <td align="center" colspan="2">
                        <asp:GridView ID="GridView1" runat="server" BackColor="#CCCCCC" BorderColor="#999999"
                            BorderStyle="Solid" BorderWidth="3px" CellPadding="4" CellSpacing="2" ForeColor="Black"
                            OnLoad="Page_Load">
                            <FooterStyle BackColor="#CCCCCC" />
                            <HeaderStyle BackColor="Black" Font-Bold="True" ForeColor="White" />
                            <PagerStyle BackColor="#CCCCCC" ForeColor="Black" HorizontalAlign="Left" />
                            <RowStyle BackColor="White" />
                            <SelectedRowStyle BackColor="#000099" Font-Bold="True" ForeColor="White" />
                            <SortedAscendingCellStyle BackColor="#F1F1F1" />
                            <SortedAscendingHeaderStyle BackColor="#808080" />
                            <SortedDescendingCellStyle BackColor="#CAC9C9" />
                            <SortedDescendingHeaderStyle BackColor="#383838" />
                        </asp:GridView>
                    </td>
                </tr>
            </table>
            <br />
            <br />
            <table>
                <tr>
                    <td>
                        <asp:Label ID="Label2" runat="server" Text="Please Enter FirstName: " ForeColor="Brown"
                            Font-Bold="true" Font-Italic="true"></asp:Label>
                    </td>
                    <td>
                        <asp:TextBox ID="TextBox1" runat="server"></asp:TextBox>
                    </td>
                </tr>
                <tr>
                    <td>
                        <asp:Label ID="Label3" runat="server" Text="Please Enter LastName: " ForeColor="Brown"
                            Font-Bold="true" Font-Italic="true"></asp:Label>
                    </td>
                    <td>
                        <asp:TextBox ID="TextBox2" runat="server"></asp:TextBox>
                    </td>
                </tr>
                <tr>
                    <td>
                        <asp:Label ID="Label4" runat="server" Text="Please Enter Age: " ForeColor="Brown"
                            Font-Bold="true" Font-Italic="true"></asp:Label>
                    </td>
                    <td>
                        <asp:TextBox ID="TextBox3" runat="server"></asp:TextBox>
                    </td>
                </tr>
                <tr>
                    <td colspan="2" align="center">
                        <asp:Button ID="Button1" runat="server" Text="Insert Data" OnClick="Button1_Click"
                            BackColor="Orange" Font-Bold="true" /><br />
                        <br />
                    </td>
                </tr>
            </table>
            <br />
            <br />
            <table>
                <tr>
                    <td colspan="3">
                        <asp:Label ID="Label5" runat="server" Font-Bold="true"></asp:Label>
                    </td>
                </tr>
            </table>
        </center>
    </div>
    </form>
</body>
</html>

Step 4: The complete code of WebForm1.aspx.cs looks like this:

using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.UI;
using System.Web.UI.WebControls;
using SPInsertXSDApp.EmployeeDSTableAdapters;
namespace SPInsertXSDApp
{
    public partial class WebForm1 : System.Web.UI.Page
    {
        protected void Page_Load(object sender, EventArgs e)
        {
            TextBox1.Focus();
        }
        protected void Button1_Click(object sender, EventArgs e)
        {
            if (string.IsNullOrEmpty(TextBox1.Text) || string.IsNullOrEmpty(TextBox2.Text) ||
                string.IsNullOrEmpty(TextBox3.Text))
            {
                Label5.Text = "Please Enter Some Values";
                Label5.ForeColor = System.Drawing.Color.Red;
            }
            else
            {
                objQueryAdapter.InsertData(TextBox1.Text, TextBox2.Text, int.Parse(TextBox3.Text));
                EmployeeDS.SelectDataDataTable objEmployeeTable = objAdapter.GetData();
                var query = from r in objEmployeeTable select new { FirstName = r.FirstName, LastName = r.LastName, Age = r.Age };
                GridView1.DataSource = query;
                GridView1.DataBind();
                Label5.Text = "Record Inserted Successfully";
                Label5.ForeColor = System.Drawing.Color.Green;
                TextBox1.Text = string.Empty;|
                TextBox2.Text = string.Empty;
                TextBox3.Text = string.Empty;
            }
        }
        #region Instance MembersQueriesTableAdapter objQueryAdapter = new QueriesTableAdapter();
        EmployeeDSTableAdapters.SelectDataTableAdapter objAdapter = new EmployeeDSTableAdapters.SelectDataTableAdapter();
        #endregion
    }
}

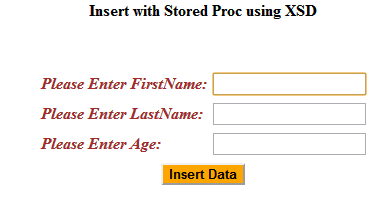

Step 5: The output of the application looks like this:

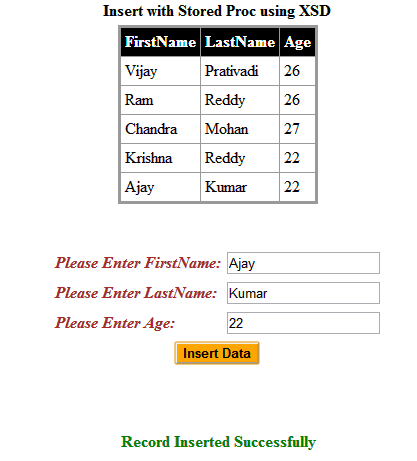

Step 6: The data inserted output of the application looks like this:


Select Data using XSD

Question: What is Select Data with Stored Procedure using XSD (Typed Dataset)?

In simple terms "It provides the flexibility to select data with a Stored Procedure using a dataset".

Step 1: Create a new WebForm project.

Step 2: The employee dataset looks like this:


Step 3: The complete code of WebForm1.aspx looks like this:

<%@ Page Language="C#" AutoEventWireup="true" CodeBehind="WebForm1.aspx.cs" Inherits="SPSelectXSDApp.WebForm1" %>
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">
<head id="Head1" runat="server">
    <style type="text/css">
        .grid
        {
            margin-top: 50px;
        }
    </style>
    <title></title>
</head>
<body>
    <form id="form1" runat="server">
    <center>
        <div>
            <table>
                <tr>
                    <td colspan="2" align="center">
                        <asp:Label ID="Label1" runat="server" Text="Select Data with Stored Proc using XSD (DataSet)"
                            Font-Bold="true" Font-Size="Large" Font-Names="Verdana" ForeColor="Maroon"></asp:Label>
                    </td>
                </tr>
                <tr>
                    <td colspan="2" align="center">
                        <asp:Button ID="Button1" runat="server" Text="Select Data" Font-Names="Verdana" Width="213px"
                            BackColor="Orange" Font-Bold="True" OnClick="Button1_Click" />
                    </td>
                </tr>
                <tr>
                    <td colspan="2" align="center">
                        <asp:GridView ID="GridView1" runat="server" CssClass="grid" BackColor="LightGoldenrodYellow"
                            BorderColor="Tan" BorderWidth="1px" CellPadding="2" ForeColor="Black" GridLines="None">
                            <AlternatingRowStyle BackColor="PaleGoldenrod" />
                            <FooterStyle BackColor="Tan" />
                            <HeaderStyle BackColor="Tan" Font-Bold="True" />
                            <PagerStyle BackColor="PaleGoldenrod" ForeColor="DarkSlateBlue" HorizontalAlign="Center" />
                            <SelectedRowStyle BackColor="DarkSlateBlue" ForeColor="GhostWhite" />
                            <SortedAscendingCellStyle BackColor="#FAFAE7" />
                            <SortedAscendingHeaderStyle BackColor="#DAC09E" />
                            <SortedDescendingCellStyle BackColor="#E1DB9C" />
                            <SortedDescendingHeaderStyle BackColor="#C2A47B" />
                        </asp:GridView>
                    </td>
                </tr>
            </table>
        </div>
    </center>
    </form>
</body>
</html>

Step 4: The complete code of WebForm1.aspx.cs looks like this:

using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.UI;
using System.Web.UI.WebControls;
namespace SPSelectXSDApp
{
    public partial class WebForm1 : System.Web.UI.Page
    {
        protected void Page_Load(object sender, EventArgs e)
        {
        }
        protected void Button1_Click(object sender, EventArgs e)
        {
            Employee.SelectDataDataTable objEmployeeSP = objAdapter.GetData();
            var query = from r in objEmployeeSP select new { FirstName = r.FirstName, LastName = r.LastName, Age = r.Age };
            GridView1.DataSource = query;
            GridView1.DataBind();
        }
        #region Instance MembersEmployeeTableAdapters.SelectDataTableAdapter objAdapter = new EmployeeTableAdapters.SelectDataTableAdapter();
        #endregion
    }
}

Step 5: The output of the application looks like this:

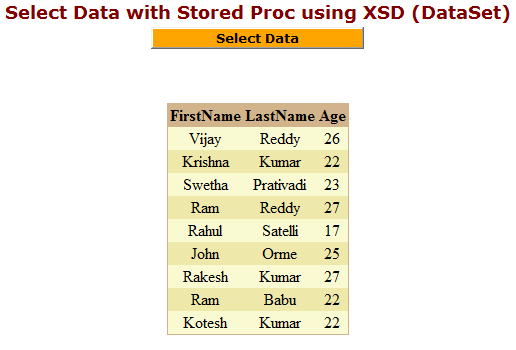

Step 6: The data selected output of the application looks like this:


Delete Data using XSD

Question: What is Delete Data with Stored Procedure using XSD (Typed Dataset)?

In simple terms "It provides flexibility to Delete data with a Stored Procedure using a dataset".

Step 1: Create a new WebForm project.

Step 2: The employee dataset looks like this:


Step 3: The complete code of WebForm1.aspx looks like this:

<%@ Page Language="C#" AutoEventWireup="true" CodeBehind="WebForm1.aspx.cs" Inherits="SPDeleteXSDApp.WebForm1" %>
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">
<head id="Head1" runat="server">
    <style type="text/css">
        .grid
        {
            margin-top: 50px;
        }
    </style>
    <title></title>
</head>
<body>
    <form id="form1" runat="server">
    <center>
        <div>
            <table>
                <tr>
                    <td colspan="2" align="center">
                        <asp:Label ID="Label1" runat="server" Text="Delete Data with Stored Proc using XSD (DataSet)"
                            Font-Bold="true" Font-Size="Large" Font-Names="Verdana" ForeColor="Maroon"></asp:Label>
                    </td>
                </tr>
                <tr>
                    <td>
                        <asp:Label ID="Label2" runat="server" Text="Please Enter Employee Id" ForeColor="Brown"
                            Font-Bold="true" Font-Size="Medium" Font-Names="Verdana"></asp:Label>
                    </td>
                    <td>
                        <asp:TextBox ID="TextBox1" runat="server"></asp:TextBox>
                    </td>
                </tr>
                <tr>
                    <td colspan="2" align="center">
                        <asp:Button ID="Button1" runat="server" Text="Delete Data" Font-Names="Verdana" Width="213px"
                            BackColor="Orange" Font-Bold="True" OnClick="Button1_Click" />
                    </td>
                </tr>
                <tr>
                    <td colspan="2" align="center">
                        <asp:GridView ID="GridView1" runat="server" CssClass="grid" BackColor="LightGoldenrodYellow"
                            BorderColor="Tan" BorderWidth="1px" CellPadding="2" ForeColor="Black" GridLines="None">
                            <AlternatingRowStyle BackColor="PaleGoldenrod" />
                            <FooterStyle BackColor="Tan" />
                            <HeaderStyle BackColor="Tan" Font-Bold="True" />
                            <PagerStyle BackColor="PaleGoldenrod" ForeColor="DarkSlateBlue" HorizontalAlign="Center" />
                            <SelectedRowStyle BackColor="DarkSlateBlue" ForeColor="GhostWhite" />
                            <SortedAscendingCellStyle BackColor="#FAFAE7" />
                            <SortedAscendingHeaderStyle BackColor="#DAC09E" />
                            <SortedDescendingCellStyle BackColor="#E1DB9C" />
                            <SortedDescendingHeaderStyle BackColor="#C2A47B" />
                        </asp:GridView>
                    </td>
                </tr>
                <tr>
                    <td colspan="2" align="center">
                        <asp:Label ID="Label3" runat="server" Font-Bold="true" Font-Size="Medium" Font-Names="Verdana"></asp:Label>
                    </td>
                </tr>
            </table>
        </div>
    </center>
    </form>
</body>
</html>

Step 4: The complete code of WebForm1.aspx.cs looks like this:

using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.UI;
using System.Web.UI.WebControls;
using SPDeleteXSDApp.EmployeeDSTableAdapters;
namespace SPDeleteXSDApp
{
    public partial class WebForm1 : System.Web.UI.Page
    {
        protected void Page_Load(object sender, EventArgs e)
        {
            TextBox1.Focus();
        }
        protected void Button1_Click(object sender, EventArgs e)
        {
            if (string.IsNullOrEmpty(TextBox1.Text))
            {
                Label3.Text = "Please Enter Id Value";
                Label3.ForeColor = System.Drawing.Color.Red;
            }
            else
            {
                objQueryAdapter.DeleteData(int.Parse(TextBox1.Text));
                EmployeeDS.SelectDataDataTable objEmployeeTable = objAdapter.GetData();
                var query = from r in objEmployeeTable select new
                { FirstName = r.FirstName, LastName = r.LastName, Age = r.Age };
                GridView1.DataSource = query;
                GridView1.DataBind();
                Label3.Text = "Record Deleted Successfully";
                Label3.ForeColor = System.Drawing.Color.Green;
                TextBox1.Text = string.Empty;
            }
        }
        #region Instance MembersQueriesTableAdapter objQueryAdapter = new QueriesTableAdapter();
        EmployeeDSTableAdapters.SelectDataTableAdapter objAdapter = new EmployeeDSTableAdapters.SelectDataTableAdapter();
        #endregion
    }
}

Step 5: The output of the application looks like this:

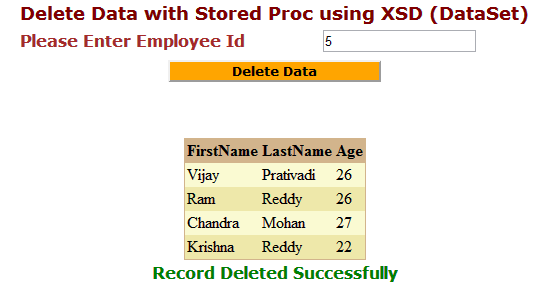

Step 6: The data deleted output of the application looks like this:


I hope this article is useful for you. I look forward for your comments and feedback. Thanks Vijay Prativadi

Up Next
    Ebook Download
    View all
    Learn
    View all
    MVC Corporation is consulting and IT services based company.

    • (17) Comments
    View All Comments
    User Image

    Message
    Get Started

    You need to be a premium member to use this feature. To access it, you'll have to upgrade your membership.

    Become a sharper developer and jumpstart your career.

    Basic

    $0

    $

    . 00

    monthly

    Sign-Up Now

    For Basic members:

    • Standard Profile
    • Access learning courses
    • Access free e-books
    • 1x point
    Premium

    $20

    $

    . 00

    monthly

    Sign-Up Now

    For Premium members:

    • Earn 2x reward points
    • Premium profile with Verified check
    • Premium Avatar with status update
    • Learning courses
    • Unlimited Certifications and badges on profile
    • Unlimited Book downloads
    • Access to Premium content
    • Online Training
    • Unlimited PDF conversions and downloads
    • Professional Resume Writing
    • Interview Preparations Guide
    • 25 messages per month
    • 1 "Kodzu" avatar, basic
    Elite

    $45

    $

    . 00

    monthly

    Sign-Up Now

    For Elite members:

    • Bundle E-books
    • Access to all Learn Series
    • Unlimited Apply Jobs
