Let's Play Around With Adapter Design Pattern

Introduction


Today, in this article let's play around with one of the interesting and most useful concepts of design patterns, which will be hosted in a web app.


Question: What is Adapter Pattern?



In simple terms "When working with incompatible interfaces, an adapter pattern helps to synchronize and make the classes compatible among each other".



I think we are now good to go and implement this wonderful concept.



Step 1: The complete code of Default.aspx looks like this:



<%@ Page Language="C#" AutoEventWireup="true" CodeBehind="Default.aspx.cs" Inherits="AdapterDesignPatternApp.Default" %>



<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">

<html xmlns="http://www.w3.org/1999/xhtml">

<head id="Head1" runat="server">

    <title></title>

</head>

<body>

    <form id="form1" runat="server">

    <div>

        <h1 style="text-align: center; font-family: Verdana; font-size: large; color: Maroon">

            Adapter Pattern - Design Patterns</h1>

        <center>

            <table>

                <tr>

                    <td>

                        <asp:Label ID="Label1" runat="server" Text="Please Enter First Number" Font-Size="Small"

                            Font-Bold="true" Font-Italic="true" Font-Names="Verdana"></asp:Label>

                    </td>

                    <td>

                        <asp:TextBox ID="TextBox1" runat="server"></asp:TextBox>

                    </td>

                </tr>

                <tr>

                    <td>

                        <asp:Label ID="Label2" runat="server" Text="Please Enter Second Number" Font-Size="Small"

                            Font-Bold="true" Font-Italic="true" Font-Names="Verdana"></asp:Label>

                    </td>

                    <td>

                        <asp:TextBox ID="TextBox2" runat="server"></asp:TextBox>

                    </td>

                </tr>

                <tr>

                    <td colspan="2">

                        <asp:Button ID="Button1" runat="server" Text="Addition" Width="165px" Font-Names="Verdana"

                            BackColor="Orange" OnClick="Button1Click" />

                    </td>

                </tr>

                <tr>

                    <td colspan="2">

                        <asp:Button ID="Button2" runat="server" Text="Subtraction" Width="165px" Font-Names="Verdana"

                            BackColor="Orange" OnClick="Button2Click" />

                    </td>

                </tr>

                <tr>

                    <td colspan="2">

                        <asp:Button ID="Button3" runat="server" Text="Multiplication" Width="165px" Font-Names="Verdana"

                            BackColor="Orange" OnClick="Button3Click" />

                    </td>

                </tr>

                <tr>

                    <td colspan="2">

                        <asp:Button ID="Button4" runat="server" Text="Division" Width="165px" Font-Names="Verdana"

                            BackColor="Orange" OnClick="Button4Click" />

                    </td>

                </tr>

            </table>

            <table>

                <tr>

                    <td colspan="2">

                        <asp:Label ID="lblResult" runat="server" Font-Names="Verdana"></asp:Label>

                    </td>

                </tr>

            </table>

        </center>

    </div>

    </form>

</body>

</html>



Step 2: The complete code of IAdd.cs looks like this:



using System;

using System.Collections.Generic;

using System.Linq;

using System.Text;

namespace AdapterDesignPatternApp

{

    public interface IAdd { void Add();}

}





Step 3: The complete code of ISub.cs looks like this:



using System;

using System.Collections.Generic;

using System.Linq;

using System.Text;

namespace AdapterDesignPatternApp

{

    public interface ISub { void Sub();}

}


Step 4: The complete code of IMul.cs looks like this:



using System;

using System.Collections.Generic;

using System.Linq;

using System.Text;

namespace AdapterDesignPatternApp

{

    public interface IMul { void Mul();}

}



Step 5: The complete code of IDiv.cs looks like this:


using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
namespace AdapterDesignPatternApp
{
    public interface IDiv { void Div();}
}



Step 6: The complete code of MyAddition.cs looks like this:


using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
namespace AdapterDesignPatternApp
{
    public class MyAddition { public double Addition(double a, double b) { return a + b; } }
}



Step 7: The complete code of MySubtraction.cs looks like this:


using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
namespace AdapterDesignPatternApp
{
    public class MySubtraction { public double Subtraction(double a, double b) { return a - b; } }
}



Step 8: The complete code of MyMultiplication.cs looks like this:



using System;

using System.Collections.Generic;

using System.Linq;

using System.Web;

namespace AdapterDesignPatternApp

{

    public class MyMultiplication { public double Multiplication(double a, double b) { return a * b; } }

}


Step 9: The complete code of MyDivision.cs looks like this:


using System;

using System.Collections.Generic;

using System.Linq;

using System.Web;

namespace AdapterDesignPatternApp

{

    public class MyDivision { public double Division(double a, double b) { return a / b; } }

}



Step 10: The complete code of Default.aspx.cs looks like this:



using System;

using System.Globalization;

namespace AdapterDesignPatternApp

{

    public partial class Default : System.Web.UI.Page, IAdd, ISub, IMul, IDiv

    {

        protected void Page_Load(object sender, EventArgs e){TextBox1.Focus();

        }

        protected void Button1Click(object sender, EventArgs e){Add();

        }

        protected void Button2Click(object sender, EventArgs e){Sub();

        }

        protected void Button3Click(object sender, EventArgs e){Mul();

        }

        protected void Button4Click(object sender, EventArgs e){Div();

        }

        public void Add()

        {

            if (string.IsNullOrEmpty(TextBox1.Text) || string.IsNullOrEmpty(TextBox2.Text)){lblResult.Text = "Please Enter Some Values";

                lblResult.ForeColor = System.Drawing.Color.Red;

                {

                    lblResult.Text = "Addition Result is: <b>"+TextBox1.Text+"</b>"+" and "+TextBox2.Text+" is <b>"+_objAddition.Addition(Convert.ToDouble(TextBox1.Text), Convert.ToDouble(TextBox2.Text)).ToString(CultureInfo.InvariantCulture)+"</b>";

                    lblResult.ForeColor = System.Drawing.Color.Green;TextBox1.Text = "";TextBox2.Text = "";

                }

            }

            public void Sub()

            {

                if (string.IsNullOrEmpty(TextBox1.Text) || string.IsNullOrEmpty(TextBox2.Text)){lblResult.Text = "Please Enter Some Values";

                    lblResult.ForeColor = System.Drawing.Color.Red;

                }

                else

                {

                    lblResult.Text = "Subtraction Result is: <b>" + TextBox1.Text + "</b>" + " and " + TextBox2.Text + " is <b>" + _objSubtraction.Subtraction(Convert.ToDouble(TextBox1.Text), Convert.ToDouble(TextBox2.Text)).ToString(CultureInfo.InvariantCulture) + "</b>";lblResult.ForeColor = System.Drawing.Color.Green;TextBox1.Text = "";

                    TextBox2.Text = "";

                }

            }

        public void Mul()

        {

            if (string.IsNullOrEmpty(TextBox1.Text) || string.IsNullOrEmpty(TextBox2.Text)){lblResult.Text = "Please Enter Some Values";

                lblResult.ForeColor = System.Drawing.Color.Red;

            }

            else{lblResult.Text = "Multiplication Result is: <b>" + TextBox1.Text + "</b>" + " and " + TextBox2.Text + " is <b>" + _objMultiplication.Multiplication(Convert.ToDouble(TextBox1.Text), Convert.ToDouble(TextBox2.Text)).ToString(CultureInfo.InvariantCulture) + "</b>";

                lblResult.ForeColor = System.Drawing.Color.Green;TextBox1.Text = "";TextBox2.Text = "";

            }



        }public void Div()

        {

            if (string.IsNullOrEmpty(TextBox1.Text) || string.IsNullOrEmpty(TextBox2.Text))

            {

                lblResult.Text = "Please Enter Some Values";

                lblResult.ForeColor = System.Drawing.Color.Red;

            }

            else

            {

                lblResult.Text = "Division Result is: <b>" + TextBox1.Text + "</b>" + " and " + TextBox2.Text + " is <b>" + _objDivision.Division(Convert.ToDouble(TextBox1.Text), Convert.ToDouble(TextBox2.Text)).ToString(CultureInfo.InvariantCulture) + "</b>";

                lblResult.ForeColor = System.Drawing.Color.Green;

                TextBox1.Text = "";TextBox2.Text = "";

            }

        }

        #region Private Instance Variablesprivate readonly MyAddition _objAddition = new MyAddition();

        private readonly MySubtraction _objSubtraction = new MySubtraction();

        private readonly MyMultiplication _objMultiplication = new MyMultiplication();

        private readonly MyDivision _objDivision = new MyDivision();#endregion

    }

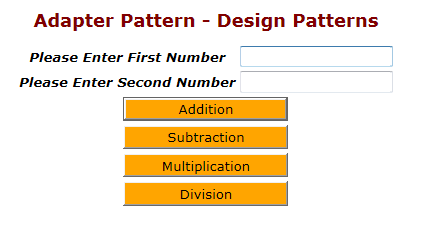

Step 11: The output of the application looks like this:

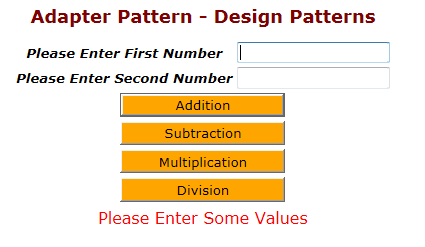

Step 12: The output of the nothing entered application looks like this:

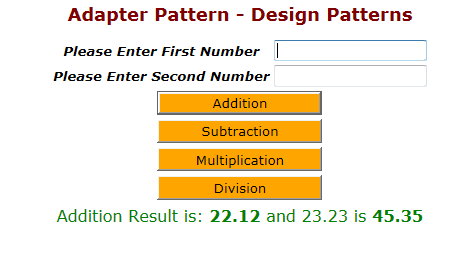

Step 13: The output of the addition operation application looks like this:

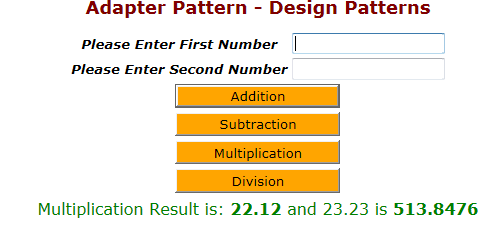

Step 14: The output of the multiplication operation application looks like this:


I hope this article is useful for you.
