Market Place Hub Task in Windows Phone 7 via WCF Service

Introduction

In this article let's dig out one more concepts in windows phone which communicates with WCF Service to pop out some message. This application allows phone user to choose wide range of categories from list. If we implement this interesting concept, we can get much better idea and confidence in building market place hub task applications.

Question Arises: What is Market Place Hub?

In simple terms "It is Hub where user can go and choose wide range of categories as per requirements. So integrating different market content as a Hub which provides much flexibility to the user to enter market place search accordingly"

Let's get this implemented now!!!

Step 1 : The Complete Code of IService1.cs looks like this.

using System;
using System.Collections.Generic;
using System.Linq;
using System.Runtime.Serialization;
using System.ServiceModel;
using System.ServiceModel.Web;
using System.Text;
namespace Wcf_HUb_Task1
{
    // NOTE: You can use the "Rename" command on the "Refactor" menu to change the interface name "IService1" in both code and config file together.
    [ServiceContract]
    public interface IService1
    {
        [OperationContract]
        string Hub();
}

Step 2 : The Complete Code of Service1.svc.cs looks like this.

using System;
using System.Collections.Generic;
using System.Linq;
using System.Runtime.Serialization;
using System.ServiceModel;
using System.ServiceModel.Web;
using System.Text;
namespace Wcf_HUb_Task1
{
    // NOTE: You can use the "Rename" command on the "Refactor" menu to change the class name "Service1" in code, svc and config file together.
    public class Service1 : IService1
    {
        public string Hub()
        {
            return "Hurray!!! Message from WCF for MarketPlaceHub";
        }
    }
}

Step 3: The Complete Code of Web.Config looks like this.

<?xml version="1.0"?>
<configuration>
   <system.web>
        <compilation debug="true" targetFramework="4.0" />
    </system.web>
    <system.serviceModel>
        <behaviors>
            <serviceBehaviors>
                <behavior>
                    <!-- To avoid disclosing metadata information, set the value below to false and remove the metadata endpoint above before deployment -->
                    <serviceMetadata httpGetEnabled="true"/>
                    <!-- To receive exception details in faults for debugging purposes, set the value below to true.  Set to false before deployment to avoid disclosing exception information -->
                    <serviceDebug includeExceptionDetailInFaults="false"/>
                </behavior>
            </serviceBehaviors>
        </behaviors>
        <serviceHostingEnvironment multipleSiteBindingsEnabled="true" />
    </system.serviceModel>
    <system.webServer>
        <modules runAllManagedModulesForAllRequests="true"/>
    </system.webServer>
</configuration>

Step 4 : The Complete Code of MainPage.xaml looks like this.

<phone:PhoneApplicationPage
    x:Class="Market_Place_Review_Application.MainPage"
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    xmlns:phone="clr-namespace:Microsoft.Phone.Controls;assembly=Microsoft.Phone"
    xmlns:shell="clr-namespace:Microsoft.Phone.Shell;assembly=Microsoft.Phone"
    xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
    xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
    mc:Ignorable="d" d:DesignWidth="480" d:DesignHeight="768"
    FontFamily="{StaticResource PhoneFontFamilyNormal}"
    FontSize="{StaticResource PhoneFontSizeNormal}"
    Foreground="{StaticResource PhoneForegroundBrush}"
    SupportedOrientations="Portrait" Orientation="Portrait"
    shell:SystemTray.IsVisible="True">
    <!--LayoutRoot is the root grid where all page content is placed-->
    <phone:PhoneApplicationPage
    x:Class="MarketPlace_Hub_Task.MainPage"
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    xmlns:phone="clr-namespace:Microsoft.Phone.Controls;assembly=Microsoft.Phone"
    xmlns:shell="clr-namespace:Microsoft.Phone.Shell;assembly=Microsoft.Phone"
    xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
    xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
    mc:Ignorable="d" d:DesignWidth="480" d:DesignHeight="768"
    FontFamily="{StaticResource PhoneFontFamilyNormal}"
    FontSize="{StaticResource PhoneFontSizeNormal}"
    Foreground="{StaticResource PhoneForegroundBrush}"
    SupportedOrientations="Portrait" Orientation="Portrait"
    shell:SystemTray.IsVisible="True">
        <!--LayoutRoot is the root grid where all page content is placed-->
        <Grid x:Name="LayoutRoot" Background="Transparent">
            <Grid.RowDefinitions>
                <RowDefinition Height="Auto"/>
                <RowDefinition Height="*"/>
            </Grid.RowDefinitions>
            <!--TitlePanel contains the name of the application and page title-->
            <StackPanel x:Name="TitlePanel" Grid.Row="0" Margin="12,17,0,28">
                <TextBlock x:Name="ApplicationTitle" Text="Vijay's Market Place Hub Task" FontFamily="Verdana" FontSize="22" Style="{StaticResource PhoneTextNormalStyle}"/>
                <TextBlock x:Name="PageTitle" Text="Windows 7 Phone" Margin="9,-7,0,0" Style="{StaticResource PhoneTextTitle1Style}"/>
            </StackPanel>
            <!--ContentPanel - place additional content here-->
            <Grid x:Name="ContentPanel" Grid.Row="1" Margin="12,0,12,0">
                <Button Content="Market Hub Task" FontFamily="Verdana" FontSize="22" Height="72" HorizontalAlignment="Left" Margin="130,261,0,0" Name="button1" VerticalAlignment="Top" Width="243" Click="button1_Click" />
            </Grid>
        </Grid>
        <!--Sample code showing usage of ApplicationBar-->
        <!--<phone:PhoneApplicationPage.ApplicationBar>
        <shell:ApplicationBar IsVisible="True" IsMenuEnabled="True">
            <shell:ApplicationBarIconButton IconUri="/Images/appbar_button1.png" Text="Button 1"/>
            <shell:ApplicationBarIconButton IconUri="/Images/appbar_button2.png" Text="Button 2"/>
            <shell:ApplicationBar.MenuItems>
                <shell:ApplicationBarMenuItem Text="MenuItem 1"/>
                <shell:ApplicationBarMenuItem Text="MenuItem 2"/>
            </shell:ApplicationBar.MenuItems>
        </shell:ApplicationBar>
    </phone:PhoneApplicationPage.ApplicationBar>-->
    </phone:PhoneApplicationPage>
    <Grid x:Name="LayoutRoot" Background="Transparent">
        <Grid.RowDefinitions>
            <RowDefinition Height="Auto"/>
            <RowDefinition Height="*"/>
        </Grid.RowDefinitions>
        <!--TitlePanel contains the name of the application and page title-->
        <StackPanel x:Name="TitlePanel" Grid.Row="0" Margin="12,17,0,28">
            <TextBlock x:Name="ApplicationTitle" Text="Vijay's Market Place Review Application" FontFamily="Verdana" FontSize="22" Style="{StaticResource PhoneTextNormalStyle}"/>
            <TextBlock x:Name="PageTitle" Text="Windows 7 Phone" Margin="9,-7,0,0" Style="{StaticResource PhoneTextTitle1Style}"/>
        </StackPanel>
       <!--ContentPanel - place additional content here-->
        <Grid x:Name="ContentPanel" Grid.Row="1" Margin="12,0,12,0">
            <Button Content="Market Place Review" FontFamily="Verdana" FontSize="22" Height="72" HorizontalAlignment="Left" Margin="89,115,0,0" Name="button1" VerticalAlignment="Top" Width="276" Click="button1_Click" />
       </Grid>
</Grid>
     <!--Sample code showing usage of ApplicationBar-->
    <!--<phone:PhoneApplicationPage.ApplicationBar>
        <shell:ApplicationBar IsVisible="True" IsMenuEnabled="True">
            <shell:ApplicationBarIconButton IconUri="/Images/appbar_button1.png" Text="Button 1"/>
            <shell:ApplicationBarIconButton IconUri="/Images/appbar_button2.png" Text="Button 2"/>
            <shell:ApplicationBar.MenuItems>
                <shell:ApplicationBarMenuItem Text="MenuItem 1"/>
                <shell:ApplicationBarMenuItem Text="MenuItem 2"/>
            </shell:ApplicationBar.MenuItems>
        </shell:ApplicationBar>
    </phone:PhoneApplicationPage.ApplicationBar>-->
</phone:PhoneApplicationPage>

Step 5 : The Complete Code of MainPage.xaml.cs looks like this.

using System;
using System.Collections.Generic;
using System.Linq;
using System.Net;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Documents;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Media.Animation;
using System.Windows.Shapes;
using Microsoft.Phone.Controls;
using Microsoft.Phone.Tasks;
using MarketPlace_Hub_Task.ServiceReference1;
namespace MarketPlace_Hub_Task
{
    public partial class MainPage : PhoneApplicationPage
    {
        // Constructor
        public MainPage()
        {
            InitializeComponent();
        }
        static void HubCall(object sender, HubCompletedEventArgs e)
        {
            MarketplaceHubTask objHubTask = new MarketplaceHubTask();
            objHubTask.ContentType = MarketplaceContentType.Applications;
            MessageBox.Show(e.Result);
            objHubTask.Show();
        }
        private void button1_Click(object sender, RoutedEventArgs e)
        {
            Service1Client objClient = new Service1Client();
            objClient.HubCompleted += new EventHandler<HubCompletedEventArgs>(HubCall);
          objClient.HubAsync();
        }
  }

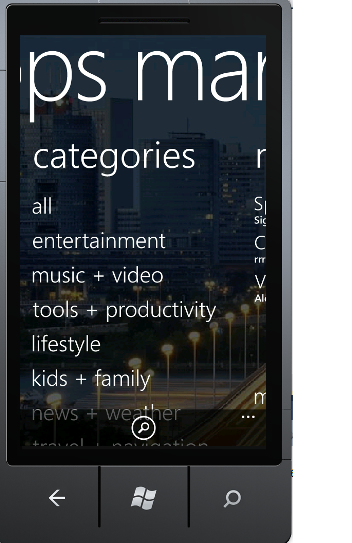

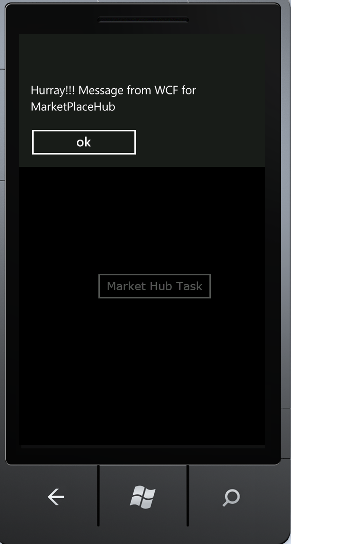

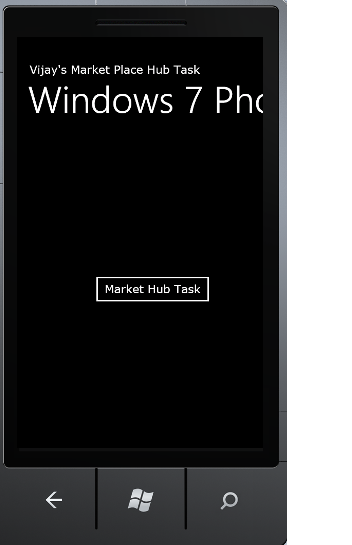

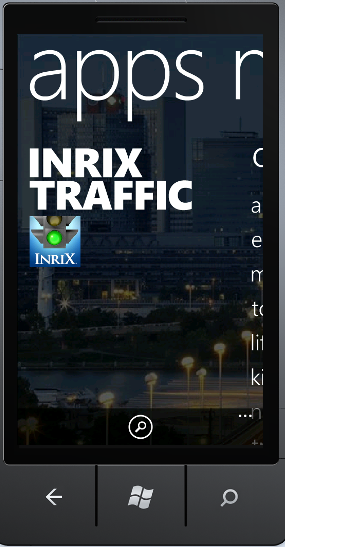

Step 6 : Output of the Application looks like this.





Market Place Hub Output Application looks like this.







I hope this article is useful for you. I look forward for your comments and feedback.

Thanks Vijay Prativadi.
