Introduction

This article shows how to use a RadioButtonFor helper in MVC applications.

Create an ASP.Net Web Application as in Figure 1.



Figure 1: Web Application

Choose MVC template as in Figure 2.



Figure 2: MVC template

Add an Employee Controller as in Figures 3, 4 and 5.



Figure 3: Add Controller



Figure 4: MVC controller - empty



Figure 5: EmployeeController

EmployeeController.cs

  1. using RadioButtonForApp_MVC.Models;
  2. using System;
  3. using System.Collections.Generic;
  4. using System.Linq;
  5. using System.Web;
  6. using System.Web.Mvc;
  7.
  8. namespace RadioButtonForApp_MVC.Controllers
  9. {
  10.     public class EmployeeController : Controller
  11.     {
  12.         //
  13.         // GET: /Employee/
  14.         public ActionResult Index()
  15.         {
  16.             Employee emp = new Employee();
  17.             return View(emp);
  18.         }
  19.     }
  20. }

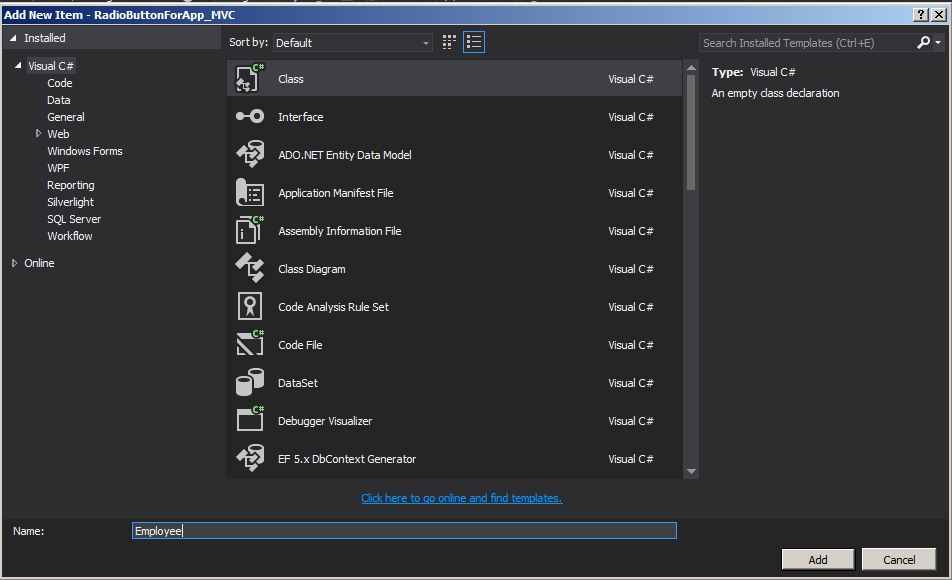

Create an Employee Class as in Figure 6.


Figure 6: Add ADO.NET Entity Framework

Employee.cs

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5.
  6. namespace RadioButtonForApp_MVC.Models
  7. {
  8.     public class Employee
  9.     {
  10.         public string SelectedDepartments { getset; }
  11.         public List<Department> Departments
  12.         {
  13.             get
  14.             {
  15.                 EmployeeEntities db = new EmployeeEntities();
  16.                 return db.Departments.ToList();
  17.             }
  18.         }
  19.     }
  20. }

Set up Entity Framework as in Figures 7 and 8.



Figure 7: Add ADO.NET Entity Framework

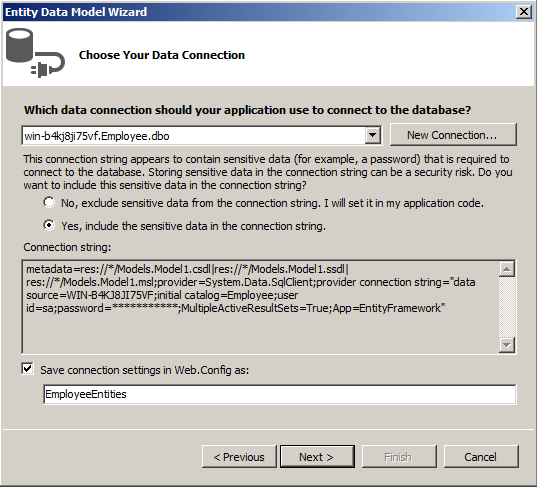

Figure 8: Connection Setting

Add the View as in Figures 9 and 10.

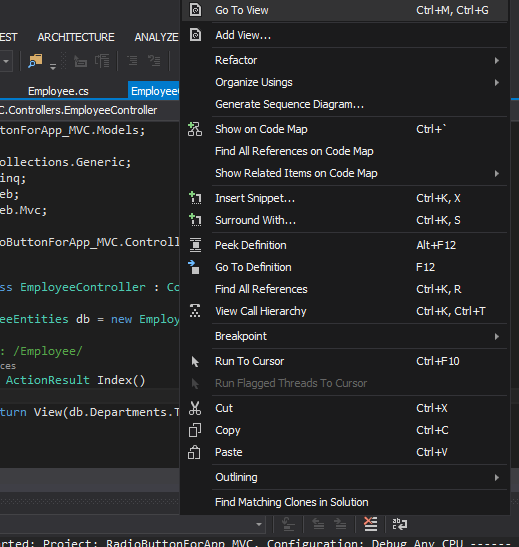

Figure 9: Add View



Figure 10: Index view

Index.cshtml

  1. @model  RadioButtonForApp_MVC.Models.Employee
  2.
  3. @{
  4.     ViewBag.Title = "Index";
  5. }
  6.
  7. <h2>Index</h2>
  8.
  9. @foreach (var department in Model.Departments)
  10. {
  11.     @Html.RadioButtonFor(p => p.SelectedDepartments, department.DeptId)@department.DepartmentName
  12. }
The output of the application is as shown in the following.

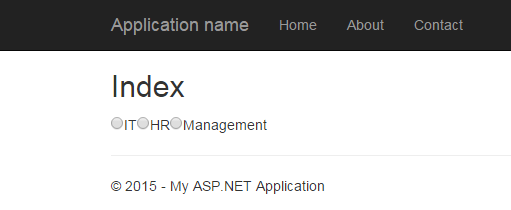

Figure 11: Index

Summary

In this article we saw how to use a RadioButtonFor helper in MVC applications.
Happy coding!
