Select Data Using Silverlight RIA Enabled Service

Introduction

Today, in this article let's play around with one of the interesting and most useful concepts in Silverlight.

Question: What is select data using Silverlight RIA enabled service?

In simple terms "This application enables selection of data in the database with help of a Silverlight RIA enabled service. It uses a base platform of Entity Framework to communicate with the database".

Step 1: Create a database named "Company" with employee table in it.







Step 2: Open up Visual Studio and create a new Silverlight application enabled with RIA Services



Step 3: When the project is created. Right-click on the RIA Service project and add a new entity data model framework and set it up for the previously created database.



Step 4: Again right-click on the RIA service project and add a Domain Service Class as a new item.



Step 5: The complete code of EmployeeDomain.cs looks like this (Domain Service Class):



namespace SilverlightRIASelectApp.Web

{

    using System;

    using System.Collections.Generic;

    using System.ComponentModel;

    using System.ComponentModel.DataAnnotations;

    using System.Data;

    using System.Linq;

    using System.ServiceModel.DomainServices.EntityFramework;

    using System.ServiceModel.DomainServices.Hosting;

    using System.ServiceModel.DomainServices.Server;

    // Implements application logic using the CompanyEntities context.

    // TODO: Add your application logic to these methods or in additional methods.

    // TODO: Wire up authentication (Windows/ASP.NET Forms) and uncomment the following to disable anonymous access

    // Also consider adding roles to restrict access as appropriate.

    // [RequiresAuthentication][EnableClientAccess()]

    public class EmployeeDomain : LinqToEntitiesDomainService<CompanyEntities>

    {

    // TODO:// Consider constraining the results of your query method.  If you need additional input you can

        // add parameters to this method or create additional query methods with different names.

        // To support paging you will need to add ordering to the 'Employee'

        query.public IQueryable<Employee> GetEmployee()

        {

            return this.ObjectContext.Employee;

        }

        public void InsertEmployee(Employee employee)

        {

            if ((employee.EntityState != EntityState.Detached))

            {

                this.ObjectContext.ObjectStateManager.ChangeObjectState(employee, EntityState.Added);

            }

            else

            {

                this.ObjectContext.Employee.AddObject(employee);

            }

        }

        public void UpdateEmployee(Employee currentEmployee)

        {

            this.ObjectContext.Employee.AttachAsModified(currentEmployee, this.ChangeSet.GetOriginal(currentEmployee));

        }

        public void DeleteEmployee(Employee employee)

        {

            if ((employee.EntityState != EntityState.Detached))

            {

                this.ObjectContext.ObjectStateManager.ChangeObjectState(employee, EntityState.Deleted);

            }

            else

            {

                this.ObjectContext.Employee.Attach(employee);

                this.ObjectContext.Employee.DeleteObject(employee);

            }

        }

    }

}


Step 6: Now rebuild the solution file.



Step 7: the Complete code of MainPage.xaml looks like this:



<usercontrolx:class="SilverlightRIASelectApp.MainPage"xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"

    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"xmlns:d="http://schemas.microsoft.com/expression/blend/2008"

    xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"mc:ignorable="d"

    d:designheight="300"d:designwidth="400"xmlns:sdk="http://schemas.microsoft.com/winfx/2006/xaml/presentation/sdk">

    <Gridx:Name="LayoutRoot"Background="White">

    <sdk:DataGridHeight="216"HorizontalAlignment="Left"Margin="57,57,0,0"Name="dataGrid1"VerticalAlignment="Top"Width="254"/>

    <ButtonContent="Show Data"Height="23"HorizontalAlignment="Left"Margin="158,14,0,0"Name="button1"VerticalAlignment="Top"Width="75"Click="button1_Click"/>

    </Grid>

</usercontrol>


Step 8: The complete code of MainPage.xaml.cs looks like this:



using System;

using System.Collections.Generic;

using System.Linq;

using System.Net;

using System.Windows;

using System.Windows.Controls;

using System.Windows.Documents;

using System.Windows.Input;

using System.Windows.Media;

using System.Windows.Media.Animation;

using System.Windows.Shapes;

using SilverlightRIASelectApp.Web;

using System.ServiceModel.DomainServices.Client;

namespace SilverlightRIASelectApp

{

    public partial class MainPage : UserControl

    {

        public MainPage()

        {

            InitializeComponent();

        }

        EmployeeDomain objDomain = new EmployeeDomain();

        private void button1_Click(object sender, RoutedEventArgs e)

        {

            LoadOperation<Employee> load = objDomain.Load(objDomain.GetEmployeeQuery());

            dataGrid1.ItemsSource = load.Entities;

        }

    }

}



Step 9: Output of the application looks like this:

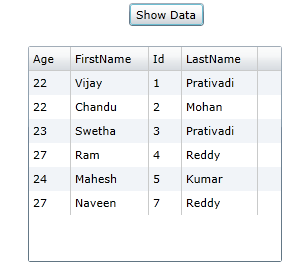

Step 10: Data showing output of application looks like this:



I hope this article is useful for you.
