Table Splitting Insert Data

Introduction

This article shows how to do table splitting and insert data operations.

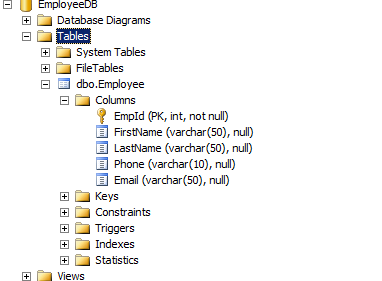

SQL Server table structure

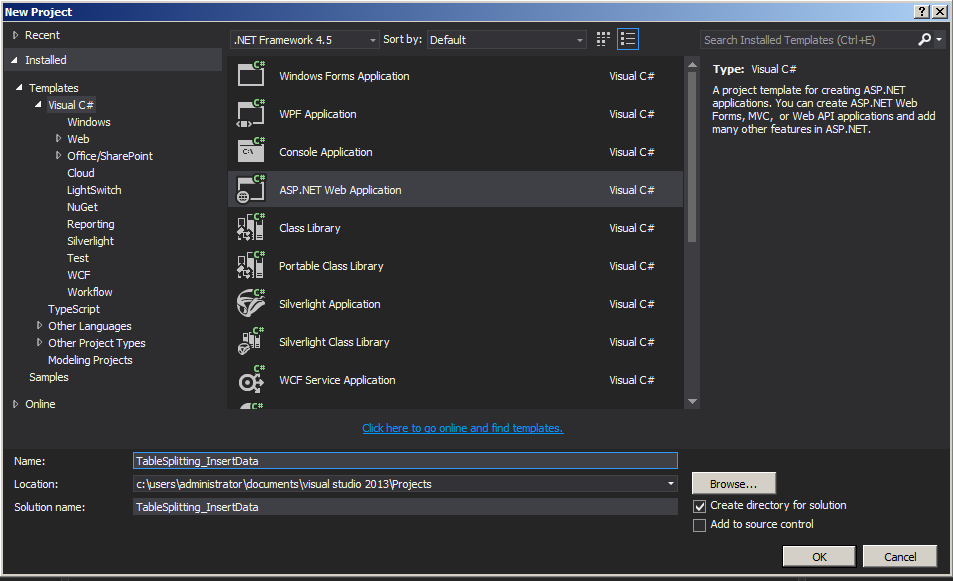

Create an ASP.Net Web Application as in the following:

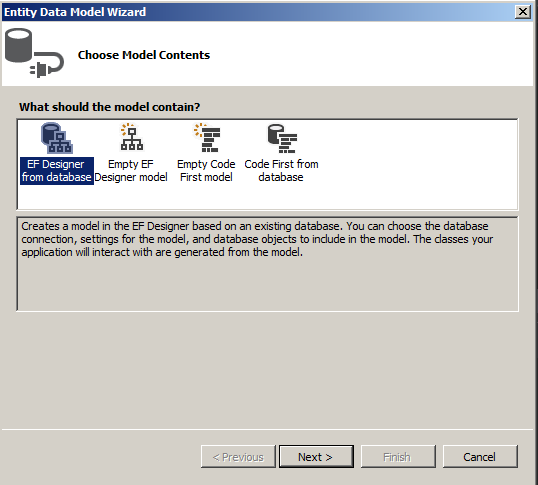

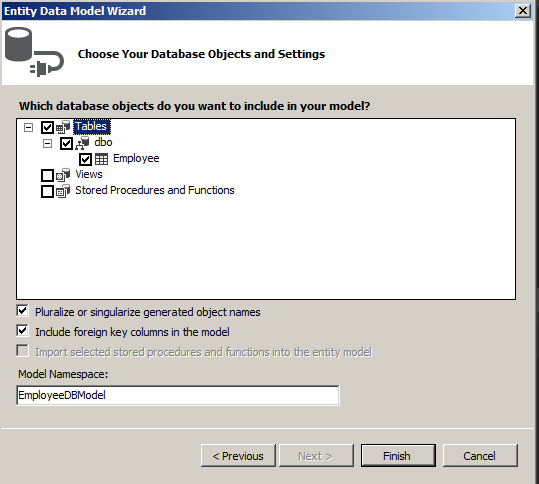

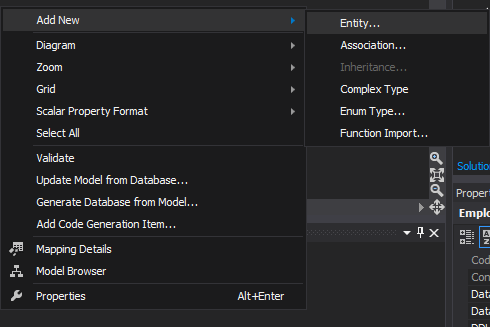

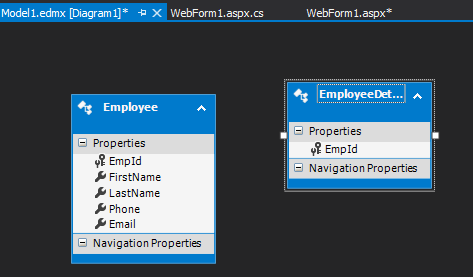

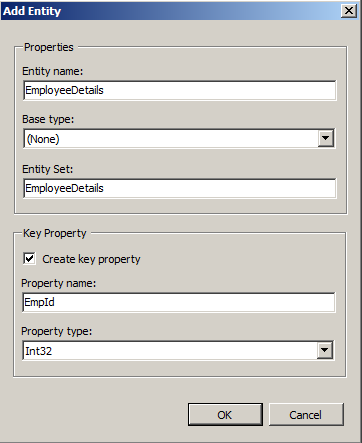

Set up Entity Framework as in the following:

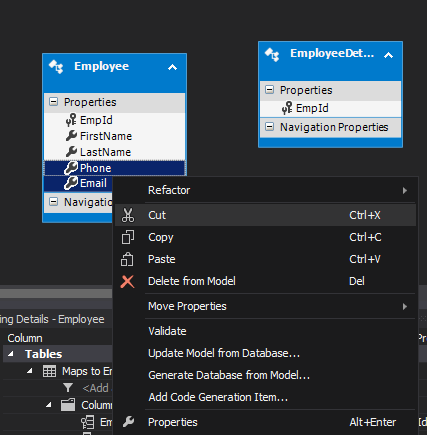

Cut columns from the Employee entity as in the following:

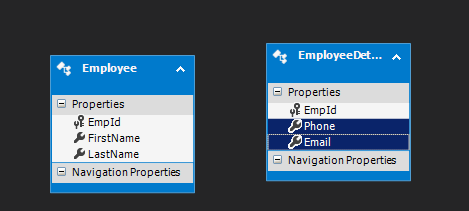

Paste them into the EmployeeDetails entity as in the following:

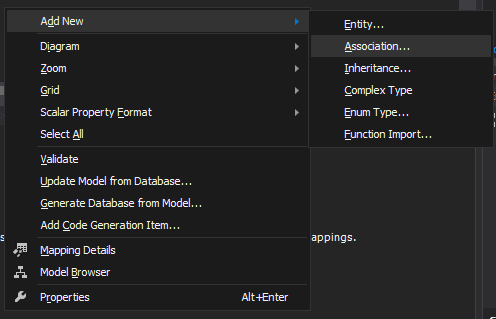

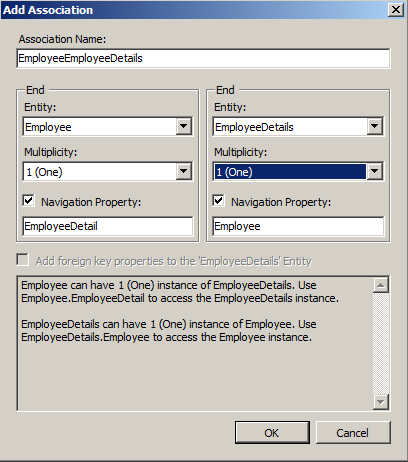

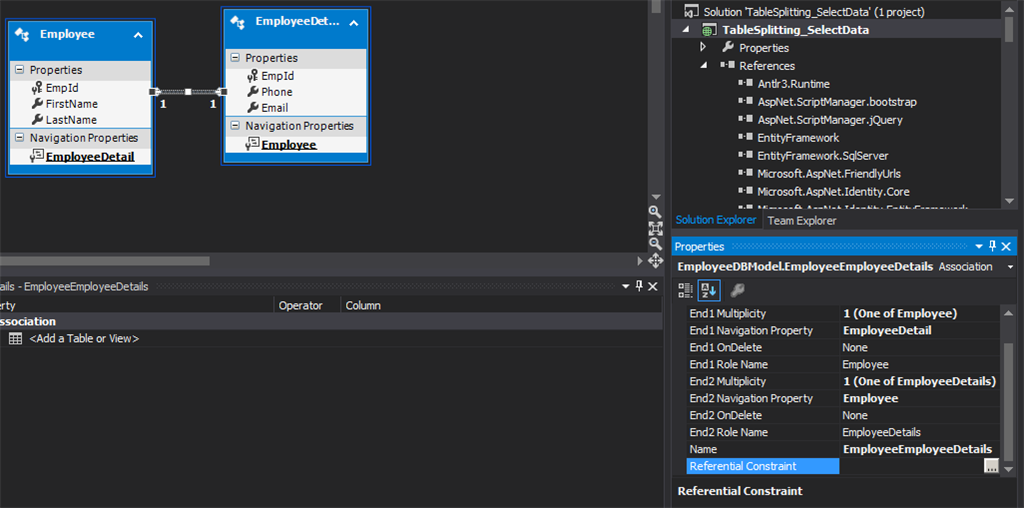

Add an association between Employee and EmployeeDetails as in the following:

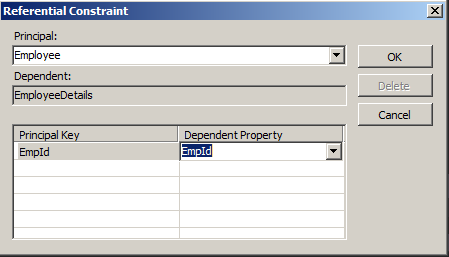

Referential constraint


Webform1.aspx

  1. <%@ Page Language="C#" AutoEventWireup="true" CodeBehind="WebForm1.aspx.cs" Inherits="TableSplitting_InsertData.WebForm1" %>
  2.
  3. <!DOCTYPE html>
  4.
  5. <html xmlns="http://www.w3.org/1999/xhtml">
  6. <head runat="server">
  7.     <title></title>
  8. </head>
  9. <body>
  10.     <form id="form1" runat="server">
  11.         <div>
  12.             <asp:Button ID="Button1" runat="server" Text="Insert" OnClick="Button1_Click" />
  13.         </div>
  14.     </form>
  15. </body>
  16. </html>

Webform1.aspx.cs

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.UI;
  6. using System.Web.UI.WebControls;
  7.
  8. namespace TableSplitting_InsertData
  9. {
  10.     public partial class WebForm1 : System.Web.UI.Page
  11.     {
  12.         protected void Page_Load(object sender, EventArgs e)
  13.         {
  14.
  15.         }
  16.
  17.         protected void Button1_Click(object sender, EventArgs e)
  18.         {
  19.             using (var context = new EmployeeDBEntities())
  20.             {
  21.                 var employee = new Employee
  22.                 {
  23.                     FirstName = "Steve",
  24.                     LastName = "Robin"
  25.                 };
  26.
  27.                 employee.EmployeeDetail = new EmployeeDetails()
  28.                 {
  29.                     Phone = "122443",
  30.                     Email = "[email protected]"
  31.                 };
  32.
  33.                 context.Employees.Add(employee);
  34.                 context.SaveChanges();
  35.             }
  36.         }
  37.     }
  38. }

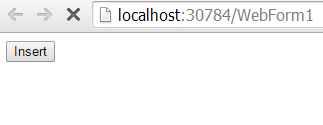

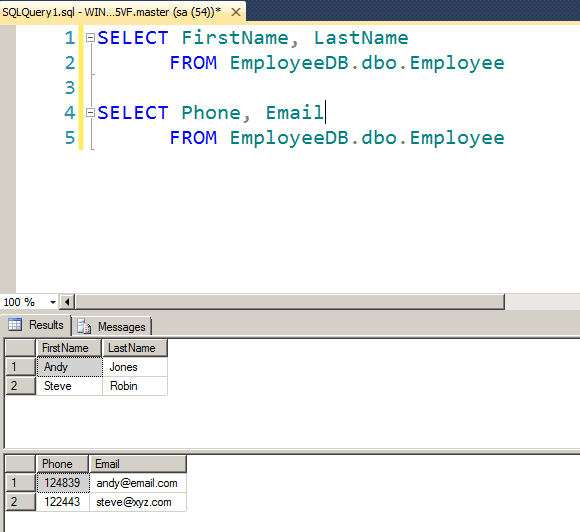

The following is the output of the application:




Summary

In this article we saw how to do table splitting and insert data operations.
Happy coding!
