Table Splitting Insert Data Using Code First Approach

Introduction

This article shows how to do table splitting and insert data operations using Code First Approach

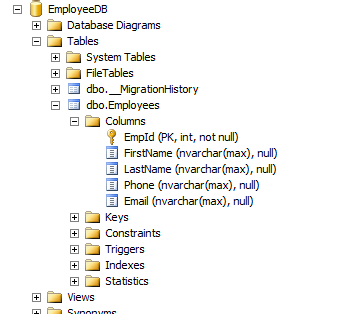

SQL Server table structure

table structure

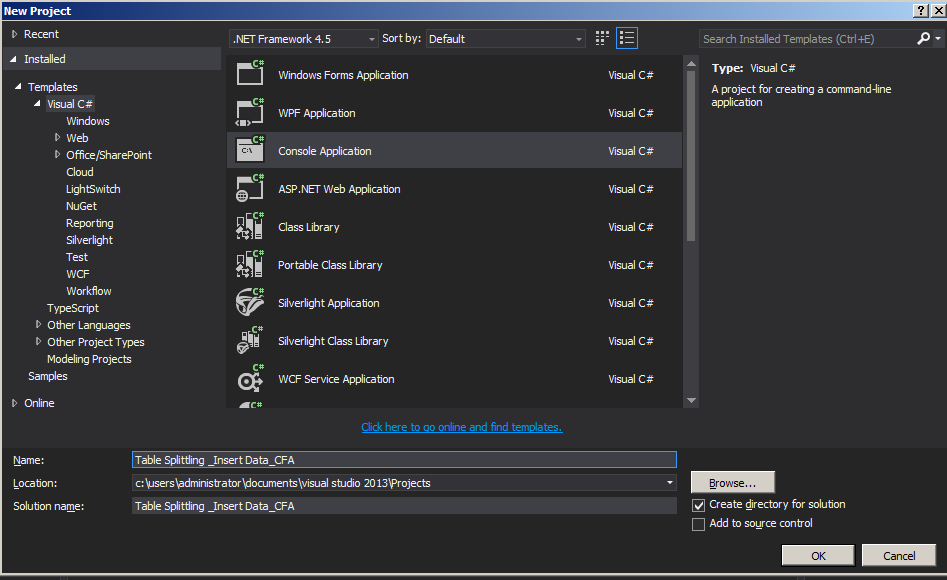

Create a Console application as in the following:

create console application

Employee.cs

  1. using System;
  2. using System.Collections.Generic;
  3. using System.ComponentModel.DataAnnotations;
  4. using System.ComponentModel.DataAnnotations.Schema;
  5. using System.Linq;
  6. using System.Text;
  7. using System.Threading.Tasks;
  8.
  9. namespace Table_Splittling__Insert_Data_CFA
  10. {
  11.     public class Employee
  12.     {
  13.         public Employee()
  14.         {
  15.         }
  16.
  17.         [Key]
  18.         [DatabaseGenerated(DatabaseGeneratedOption.Identity)]
  19.         public int EmpId { getset; }
  20.         public string FirstName { getset; }
  21.         public string LastName { getset; }
  22.
  23.         //Navigation Properties
  24.         public EmployeeDetails EmployeeDetails { getset; }
  25.     }
  26. }

Employeedetails.cs

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Text;
  5. using System.Threading.Tasks;
  6.
  7. namespace Table_Splittling__Insert_Data_CFA
  8. {
  9.     public class EmployeeDetails
  10.     {
  11.         public EmployeeDetails()
  12.         {
  13.         }
  14.
  15.         public int EmpId { getset; }
  16.         public string Phone { getset; }
  17.         public string Email { getset; }
  18.
  19.         //Navigation Properties
  20.         public Employee Employee { getset; }
  21.     }
  22. }

Employeecontext.cs

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Data.Entity;
  4. using System.Linq;
  5. using System.Text;
  6. using System.Threading.Tasks;
  7.
  8. namespace Table_Splittling__Insert_Data_CFA
  9. {
  10.     public class EmployeeContext: DbContext
  11.     {
  12.         public EmployeeContext()
  13.             : base("EmployeeConn")
  14.         {
  15.             Database.SetInitializer<EmployeeContext>(new CreateDatabaseIfNotExists<EmployeeContext>());
  16.         }
  17.
  18.         public DbSet<Employee> Employees { getset; }
  19.
  20.         protected override void OnModelCreating(DbModelBuilder modelBuilder)
  21.         {
  22.             modelBuilder.Entity<Employee>()
  23.            .HasKey(pk => pk.EmpId)
  24.            .ToTable("Employees");
  25.
  26.             modelBuilder.Entity<EmployeeDetails>()
  27.                 .HasKey(pk => pk.EmpId)
  28.                 .ToTable("Employees");
  29.
  30.             modelBuilder.Entity<Employee>()
  31.                 .HasRequired(p => p.EmployeeDetails)
  32.                 .WithRequiredPrincipal(c => c.Employee);
  33.
  34.             base.OnModelCreating(modelBuilder);
  35.         }
  36.     }
  37. }

Web.config

  1. <connectionStrings>
  2.     <add name="EmployeeConn"
  3.     connectionString="Data Source=WIN-B4KJ8JI75VF;Initial Catalog=EmployeeDB;Integrated Security=true"
  4.     providerName="System.Data.SqlClient"/>
  5.   </connectionStrings>

Program.cs

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Text;
  5. using System.Threading.Tasks;
  6.
  7. namespace Table_Splittling__Insert_Data_CFA
  8. {
  9.     class Program
  10.     {
  11.         static void Main(string[] args)
  12.         {
  13.             EmployeeContext empContext = new EmployeeContext();
  14.             Employee emp = new Employee()
  15.             {
  16.                 FirstName = "Haney",
  17.                 LastName = "Jow"
  18.             };
  19.
  20.             emp.EmployeeDetails = new EmployeeDetails()
  21.             {
  22.                 Phone = "122443",
  23.                 Email = "[email protected]"
  24.             };
  25.
  26.             empContext.Employees.Add(emp);
  27.             empContext.SaveChanges();
  28.             Console.WriteLine("Inserted");
  29.             Console.ReadKey();
  30.         }
  31.     }
  32. }

Summary

In this article we saw how to do table splitting and insert data operations using Code First Approach. Happy coding!
