Table Splitting Update Data

Introduction

This article shows how to do table splitting and update data operations.

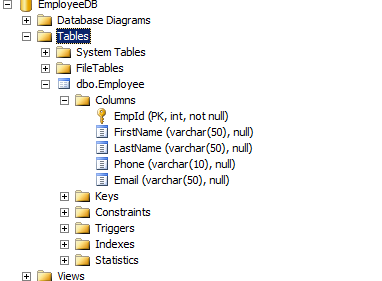

SQL Server table structure

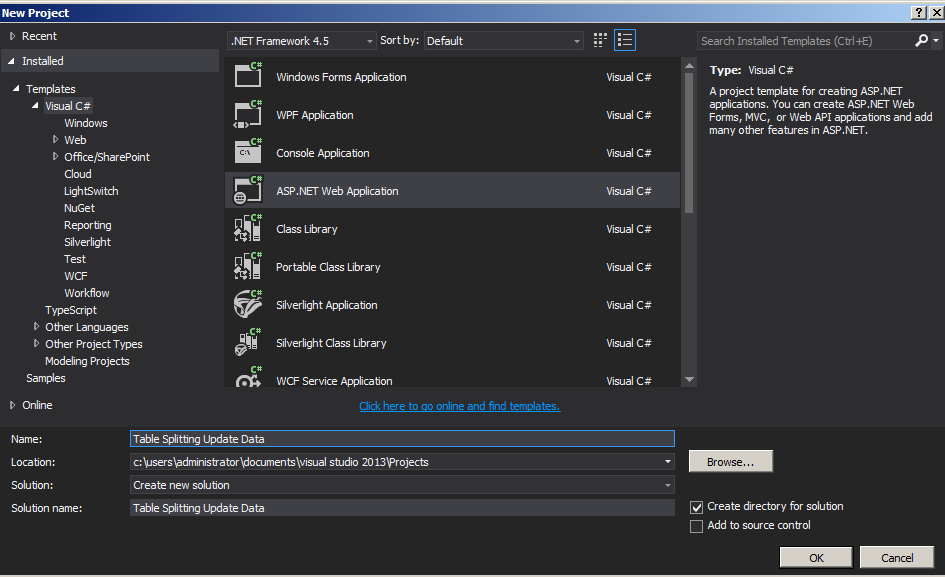

Create an ASP.Net Web Application as in the following:

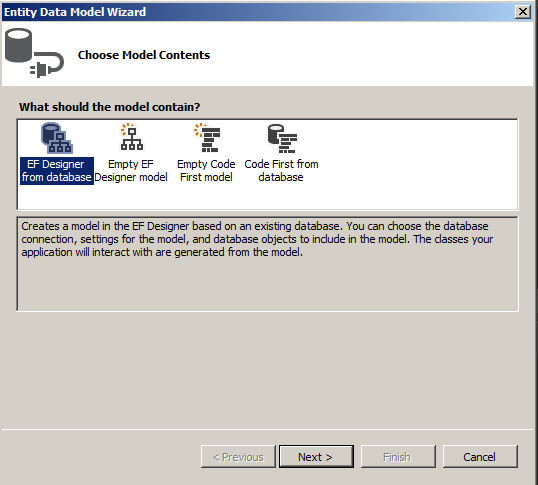

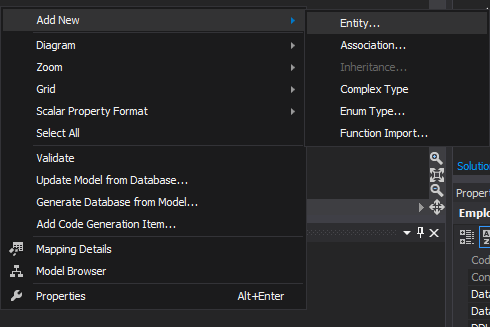

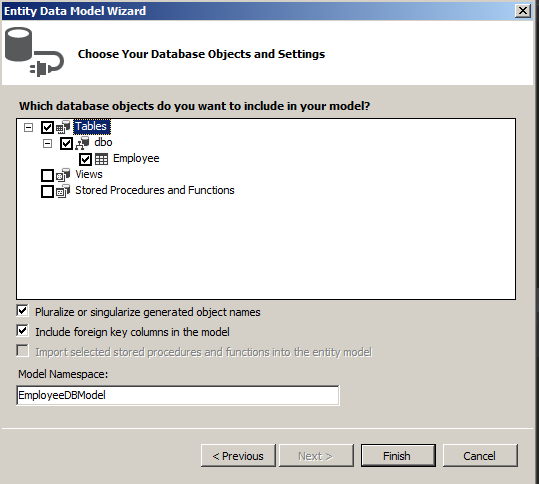

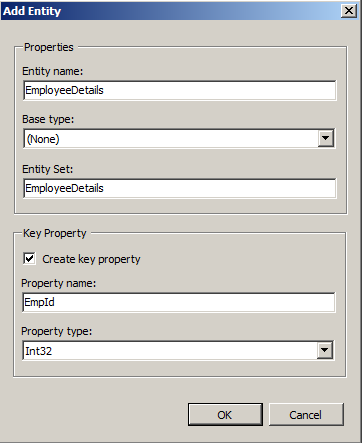

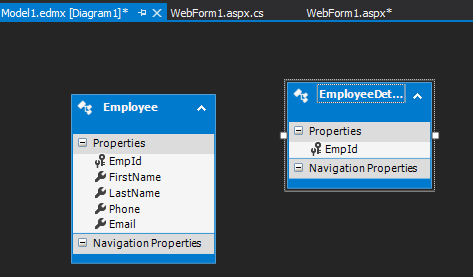

Set up Entity Framework as in the following:

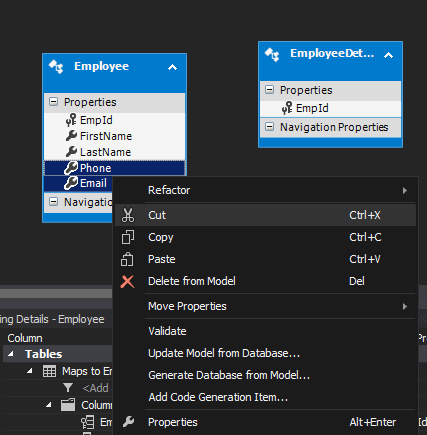

Cut columns from the employee entity as in the following:

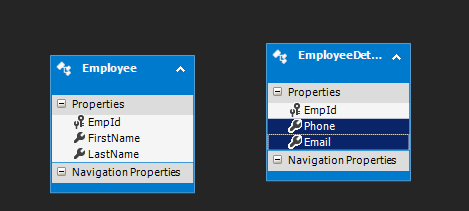

Paste them into the EmployeeDetails entity as in the following:

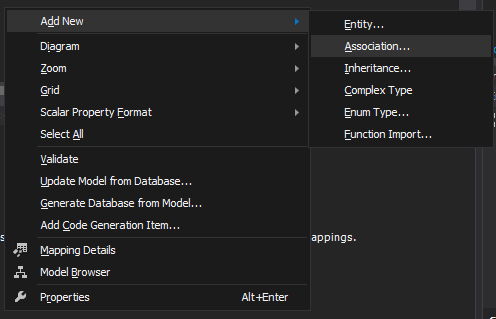

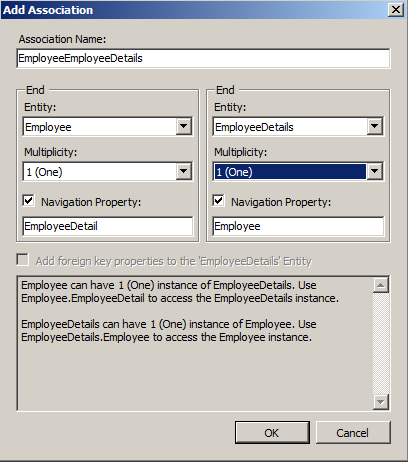

Add an association between Employee and EmployeeDetails as in the following:

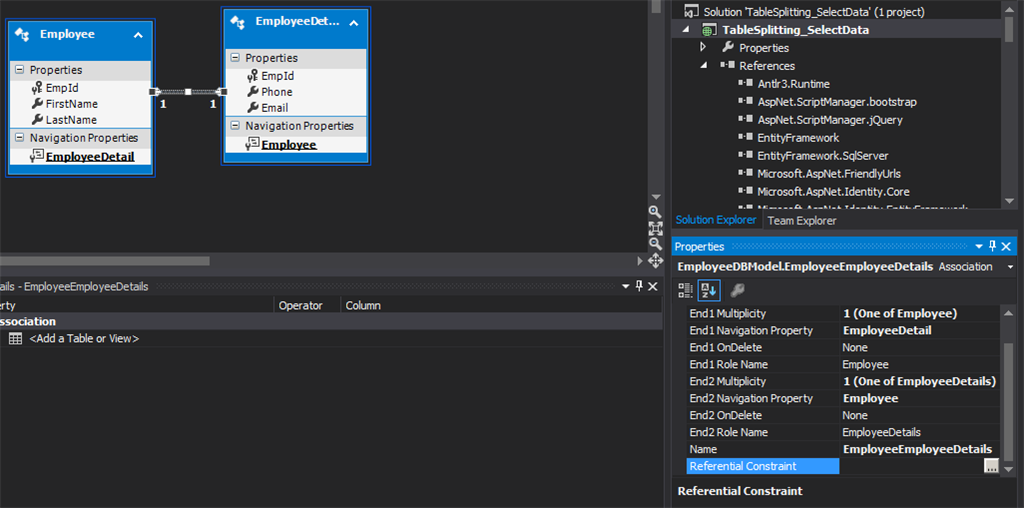

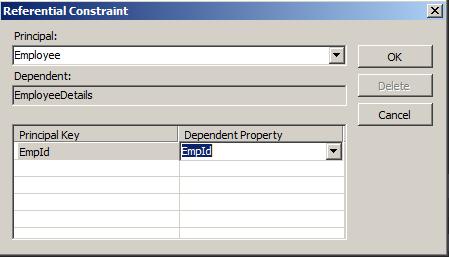

Referential constraints

Webform1.aspx

<%@ Page Language="C#" AutoEventWireup="true" CodeBehind="WebForm1.aspx.cs" Inherits="Table_Splitting_Update_Data.WebForm1" %>
<!DOCTYPE html>
<html xmlns="http://www.w3.org/1999/xhtml">
<head runat="server">
<title></title>
</head>
<body>
<form id="form1" runat="server">
<div>
<asp:Button ID="Button1" runat="server" Text="Update" OnClick="Button1_Click" />
</div>
</form>
</body>
</html>

Webform1.aspx.cs

using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.UI;
using System.Web.UI.WebControls;
namespace Table_Splitting_Update_Data
{
public partial class WebForm1 : System.Web.UI.Page
{
protected void Page_Load(object sender, EventArgs e)
{
}
protected void Button1_Click(object sender, EventArgs e)
{
EmployeeDBEntities empContext = new EmployeeDBEntities();
int empId = 1;
var emp = empContext.Employees.Where(a => a.EmpId.Equals(empId)).SingleOrDefault();
emp.FirstName = "Jonny";
emp.EmployeeDetail.Email = "[email protected]";
empContext.SaveChanges();
}
}
}
