Introduction

In this article let's concentrate on another Silverlight application, whereby communicating with a WCF Service to perform some operation.

The Telerik Rad Controls for Silverlight can be found from http://www.telerik.com/products/silverlight/controls.aspx.

The Rad Window is used to display the output in a nice and enhanced UI.

Question: What is RadBarCode?

In simple terms "It provides light weighted and easy systematic approach to generate bar-codes, it used to ensure unique id given to each product when evaluating".

Let's get this implemented practically for a better idea of this!!!

Step 1: The complete code of the IService1.cs looks like this.

using System;
using System.Collections.Generic;
using System.Linq;
using System.Runtime.Serialization;
using System.ServiceModel;
using System.ServiceModel.Web;
using System.Text;
namespace Wcf_Rad_Bar
{
    // NOTE: You can use the "Rename" command on the "Refactor" menu to change the interface name "IService1" in both code and config file together.
    [ServiceContract]
    public interface IService1
    {
        [OperationContract]
        int bar(int a);
    }
}

Step 2: The complete code of the Service1.svc.cs looks like this.

using System;
using System.Collections.Generic;
using System.Linq;
using System.Runtime.Serialization;
using System.ServiceModel;
using System.ServiceModel.Web;
using System.Text;
namespace Wcf_Rad_Bar
{
    // NOTE: You can use the "Rename" command on the "Refactor" menu to change the class name "Service1" in code, svc and config file together.
    public class Service1 : IService1
    {
        public int bar(int a)
        {
            return a;
        }
    }
}

Step 3 : The complete code of the Web.Config looks like this.

<?xml version="1.0"?>
<configuration>
<system.web>
    <compilation debug="true" targetFramework="4.0" />
</system.web>
<system.serviceModel>
    <behaviors>
      <serviceBehaviors>
        <behavior>

          <serviceMetadata httpGetEnabled="true"/>

          <serviceDebug includeExceptionDetailInFaults="false"/>
        </behavior>
      </serviceBehaviors>
    </behaviors>
    <serviceHostingEnvironment multipleSiteBindingsEnabled="true" />
</system.serviceModel>
<system.webServer>
    <modules runAllManagedModulesForAllRequests="true"/>
</system.webServer>
</configuration>

Step 4 : The complete code of the Clientaccesspolicy.xml looks like this (to avoid cross domain problem in Silverlight).

<?xml version="1.0" encoding="utf-8"?>
<access-policy>
    <cross-domain-access>
        <policy>
            <allow-from http-request-headers="SOAPAction">
                <domain uri="*"/>
            </allow-from>
            <grant-to>
                <resource path="/" include-subpaths="true"/>
            </grant-to>
        </policy>
    </cross-domain-access>
</access-policy>

Step 5 : The complete code of the MainPage.xaml looks like this.

<UserControl x:Class="Rad_Bar_App.MainPage"
              xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
              xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
              xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
              xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
              xmlns:telerik="http://schemas.telerik.com/2008/xaml/presentation"
              mc:Ignorable="d" d:DesignWidth="640" d:DesignHeight="480">
    <Grid x:Name="LayoutRoot" Width="628" Height="452">
        <telerik:RadBarcode128 Name="radBar1"
                              ShowChecksum="False"
                              Margin="104,0,113,189"
                              Height="89"
                              VerticalAlignment="Bottom">
       </telerik:RadBarcode128>
        <TextBlock Height="23"
                  HorizontalAlignment="Left"
                  Margin="191,12,0,0"
                  Name="textBlock1" Text="Please Enter Bar Code Number"
                  FontFamily="Verdana"
                  FontSize="15"
                  VerticalAlignment="Top" />
         <TextBox Height="23"
               HorizontalAlignment="Left"
                 Margin="248,41,0,0"
                Name="textBox1"
                VerticalAlignment="Top"
                Width="120" />
        <Button Content="Send BarCode"
               FontFamily="Verdana"
               Background="DeepSkyBlue"
               FontSize="15"
               Height="23"
               HorizontalAlignment="Left"
               Margin="235,82,0,0"
               Name="button1"
               VerticalAlignment="Top"
               Width="133"
                Click="button1_Click"/>
         <telerik:RadBarcode93 Name="radBar93"
                            Margin="104,336,113,22" ShowChecksum="False">
         </telerik:RadBarcode93>
       <TextBlock Height="23"
                  HorizontalAlignment="Left"
                  Margin="235,289,0,0"
                  Name="textBlock2"
                  Text="RadBarCode93"
                  FontFamily="Verdana"
                  FontSize="15"
                  VerticalAlignment="Top"
                  Width="170"
                  FontWeight="Bold"
                  Visibility="Collapsed"
                  />
        <TextBlock Height="23"
                  HorizontalAlignment="Left"
                  Margin="234,129,0,0"
                  Name="textBlock3"
                  Text="RadBarCode128"
                  FontFamily="Verdana"
                  FontSize="15"
                  FontWeight="Bold"
                  VerticalAlignment="Top"
                  Width="134"
                  Visibility="Collapsed"/>
    </Grid>
</UserControl>

Step 6 : The complete code of the MainPage.xaml.cs looks like this.

using System;
using System.Collections.Generic;
using System.Linq;
using System.Net;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Documents;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Media.Animation;
using System.Windows.Shapes;
using Telerik.Windows.Controls;
using Rad_Bar_App.ServiceReference1;
namespace Rad_Bar_App
{    public partial class MainPage : UserControl
{
        public MainPage()
        {
            InitializeComponent();
        }
       private void bar_Call(object sender, barCompletedEventArgs e)
        {
            radBar1.Visibility = System.Windows.Visibility.Visible;
            radBar93.Visibility = System.Windows.Visibility.Visible;
            radBar1.Text = e.Result.ToString();
            radBar93.Text = e.Result.ToString();
            textBlock2.Visibility = System.Windows.Visibility.Visible;
            textBlock3.Visibility = System.Windows.Visibility.Visible;
        }
        private void button1_Click(object sender, RoutedEventArgs e)
        {
            textBlock2.Visibility = System.Windows.Visibility.Collapsed;
            textBlock3.Visibility = System.Windows.Visibility.Collapsed;
            radBar1.Visibility = System.Windows.Visibility.Collapsed;
            radBar93.Visibility = System.Windows.Visibility.Collapsed;
            if (string.IsNullOrEmpty(textBox1.Text))
            {
                RadWindow.Alert("Please Enter Some Values");
           }
            else
            {
                Service1Client obj_Client = new Service1Client();
                obj_Client.barCompleted += new EventHandler<barCompletedEventArgs>(bar_Call);
                obj_Client.barAsync(Convert.ToInt32(textBox1.Text));
                textBox1.Text = "";
            }
        }
    }
}

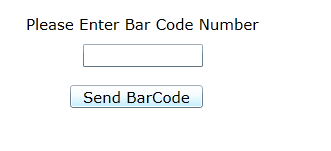

Step 7 : The output of the application looks like this.

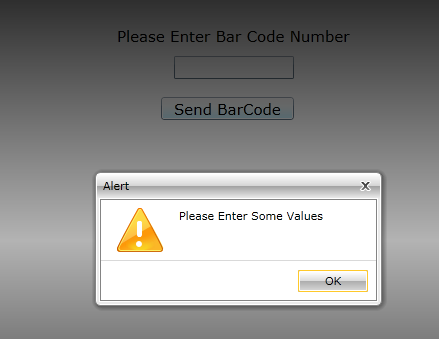

Step 8 : The output of the Nothing Entered Application looks like this.

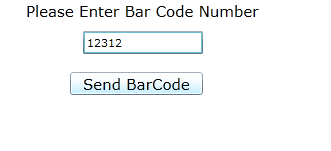

Step 9 : The output of the BarCodeEntered Application looks like this.
