Telerik RadLayoutTransform in Windows Phone 7 Via WCF Service

Introduction

Today, in this article let's learn another new and wonderful concept related to Windows Phone 7, whereby communicating with WCF Service to perform some operation. The Telerik Rad Controls for Windows Phone 7 can be downloaded from http://www.telerik.com/products/windows-phone.aspx. The Rad Message Box is used to display the output in nice and enhanced UI.

Question: What is RadLayoutTransform?

In simple terms "It enables to display the UI layout in flexible way as per user requirement. It is Skewed or Transform or many more".
Let's get this implemented practically for a better idea of this.

Step 1: The complete code of the IService1.cs looks like this:

using System;
using System.Collections.Generic;
using System.Linq;
using System.Runtime.Serialization;
using System.ServiceModel;
using System.ServiceModel.Web;
using System.Text;

namespace WCF_Layout_Transform
{
    // NOTE: You can use the "Rename" command on the "Refactor" menu to change the interface name "IService1" in both code and config file together.
    [ServiceContract]
    public interface IService1
    {

        [OperationContract]
        double add(double a, double b);

        [OperationContract]
        double sub(double a, double b);

        [OperationContract]
        double mul(double a, double b);

        [OperationContract]
        double div(double a, double b);

    }
}


Step 2: The complete code of the Service1.svc.cs looks like this:

using System;
using System.Collections.Generic;
using System.Linq;
using System.Runtime.Serialization;
using System.ServiceModel;
using System.ServiceModel.Web;
using System.Text;

namespace WCF_Layout_Transform
{
    // NOTE: You can use the "Rename" command on the "Refactor" menu to change the class name "Service1" in code, svc and config file together.
    public class Service1 : IService1
    {

        public double add(double a, double b)
        {
            return a + b;
        }

        public double sub(double a, double b)
        {
            return a - b;
        }

        public double mul(double a, double b)
        {
            return a * b;
        }

        public double div(double a, double b)
        {
            return a / b;
        }
    }
}


Step 3: The complete code of the Web.Config looks like this:



<?xml version="1.0"?>

<configuration>

  <system.web>

    <compilation debug="true" targetFramework="4.0" />

  </system.web>

  <system.serviceModel>

    <behaviors>

      <serviceBehaviors>

        <behavior>

          <!-- To avoid disclosing metadata information, set the value below to false and remove the metadata endpoint above before deployment -->

          <serviceMetadata httpGetEnabled="true"/>

          <!-- To receive exception details in faults for debugging purposes, set the value below to true.  Set to false before deployment to avoid disclosing exception information -->

          <serviceDebug includeExceptionDetailInFaults="false"/>

        </behavior>

      </serviceBehaviors>

    </behaviors>

    <serviceHostingEnvironment multipleSiteBindingsEnabled="true" />

  </system.serviceModel>

  <system.webServer>

    <modules runAllManagedModulesForAllRequests="true"/>

  </system.webServer>

</configuration>

Step 4: The complete code of the MainPage.xaml looks like this:

<phone:PhoneApplicationPage
    x:Class="Rad_Layout_Transform_Application.MainPage"
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    xmlns:phone="clr-namespace:Microsoft.Phone.Controls;assembly=Microsoft.Phone"
    xmlns:shell="clr-namespace:Microsoft.Phone.Shell;assembly=Microsoft.Phone"
    xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
    xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
    xmlns:telerik="clr-namespace:Telerik.Windows.Controls;assembly=Telerik.Windows.Controls.Primitives"
    mc:Ignorable="d" d:DesignWidth="480" d:DesignHeight="768"
    FontFamily="{StaticResource PhoneFontFamilyNormal}"
    FontSize="{StaticResource PhoneFontSizeNormal}"
    Foreground="{StaticResource PhoneForegroundBrush}"
    SupportedOrientations="Portrait"  Orientation="Portrait"
    shell:SystemTray.IsVisible="True" Loaded="mainPage_Loaded" >

       <!--LayoutRoot is the root grid where all page content is placed-->
       <Grid x:Name="LayoutRoot" Background="Transparent">
        <Grid.RowDefinitions>
            <RowDefinition Height="Auto"/>
            <RowDefinition Height="*"/>
        </Grid.RowDefinitions>

        <!--TitlePanel contains the name of the application and page title-->
        <StackPanel x:Name="TitlePanel" Grid.Row="0" Margin="12,17,0,28">
            <TextBlock x:Name="ApplicationTitle" Text="Rad Layout Transform - WCF Application" FontFamily="Verdana" FontSize="21" Style="{StaticResource PhoneTextNormalStyle}"/>
            <TextBlock x:Name="PageTitle" Text="Windows 7 Phone" Margin="9,-7,0,0" Style="{StaticResource PhoneTextTitle1Style}"/>
        </StackPanel>

        <!--ContentPanel - place additional content here-->
        <Grid x:Name="ContentPanel" Grid.Row="1" Margin="12,0,12,0">

            <TextBlock Height="30"
                       HorizontalAlignment="Left"
                       Margin="0,26,0,0"
                       Text="PLease Enter First Number: "
                       FontFamily="Verdana"
                       FontSize="22"
                       VerticalAlignment="Top" />

            <TextBlock Height="30"
                       HorizontalAlignment="Left"
                       Margin="0,103,0,0"
                       Text="Please Enter Second Number: "
                       FontFamily="Verdana"
                       FontSize="22"
                       VerticalAlignment="Top" />

            <TextBox Height="72"
                     HorizontalAlignment="Left"
                     Margin="326,6,0,0"
                     x:Name="textBox1"
                     VerticalAlignment="Top"
                     Width="130" />

            <TextBox Height="72"
                     HorizontalAlignment="Left"
                     Margin="326,84,0,0"
                     x:Name="textBox2"
                     VerticalAlignment="Top"
                     Width="130" />

            <TextBlock Height="30"
                       HorizontalAlignment="Left"
                       Margin="60,179,0,0"
                       x:Name="textBlock3"
                       FontFamily="Verdana"
                       FontSize="22"
                       Foreground="Red"
                       VerticalAlignment="Top" />

            <telerik:RadLayoutTransformControl Height="354"
                                               HorizontalAlignment="Left"
                                               Margin="12,248,0,0"
                                               VerticalAlignment="Top"
                                               Width="438"
                                               x:Name="radLayout1">
                <telerik:RadLayoutTransformControl.Content>
                    <Grid>

                        <Button Content="Addition"
                                x:Name="btnAdd"
                                Margin="73,0,58,271"
                                FontFamily="Verdana"
                                FontSize="22"
                                Background="Green"
                                Click="btnAdd_Click"/>

                        <Button Content="Subtraction"
                                FontFamily="Verdana"
                                FontSize="22"
                                x:Name="btnsub"
                                Margin="73,70,58,201"
                                Background="Red"
                                Click="btnSub_Click"/>

                        <Button Content="Multiplication"
                                x:Name="btnMul"
                                Margin="73,144,58,127"
                                FontFamily="Verdana"
                                FontSize="22"
                                Background="Yellow"
                                Click="btnMul_Click"/>

                        <Button Content="Division"
                                x:Name="btnDiv"
                                Background="Blue"
                                FontFamily="Verdana"
                                FontSize="22"
                                Margin="73,233,58,38"
                                Click="btnDiv_Click"/>

                    </Grid>
                </telerik:RadLayoutTransformControl.Content>
            </telerik:RadLayoutTransformControl>
        </Grid>
       </Grid>

</phone:PhoneApplicationPage>



Step 5: The complete code of the MainPage.xaml.cs looks like this:

using System;
using System.Collections.Generic;
using System.Linq;
using System.Net;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Documents;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Media.Animation;
using System.Windows.Shapes;
using Microsoft.Phone.Controls;
using Rad_Layout_Transform_Application.ServiceReference1;
using Telerik.Windows.Controls;

namespace Rad_Layout_Transform_Application
{

    public partial class MainPage : PhoneApplicationPage
    {
        // Constructor
        public MainPage()
        {
            InitializeComponent();|
            this.Loaded += new RoutedEventHandler(mainPage_Loaded);
        }

        private void mainPage_Loaded(object sender, RoutedEventArgs e)
        {
            //objComposite.SkewX = 25;
            objComposite.SkewY = 29;
            radLayout1.LayoutTransform = objComposite;
        }

        private void add_Call(object sender, addCompletedEventArgs e)
        {
            RadMessageBox.Show("Addition Result is: " + e.Result.ToString(), MessageBoxButtons.OKCancel, "RadLayout Transform - WCF App", null, false, false, System.Windows.HorizontalAlignment.Stretch, System.Windows.VerticalAlignment.Center, null);
        }

        public void btnAdd_Click(object sender, RoutedEventArgs e)
        {

            textBlock3.Text = "";
            if (string.IsNullOrEmpty(textBox1.Text) || string.IsNullOrEmpty(textBox2.Text))
            {
                textBlock3.Text = "Please Enter Some Values";

            }
            else
            {
                objClient.addCompleted += new EventHandler<addCompletedEventArgs>(add_Call);
                objClient.addAsync(Convert.ToDouble(textBox1.Text), Convert.ToDouble(textBox2.Text));
                textBox1.Text = "";
                textBox2.Text = "";
            }
        }

        private void sub_Call(object sender, subCompletedEventArgs e)
        {
            RadMessageBox.Show("Subtraction Result is: " + e.Result.ToString(), MessageBoxButtons.OKCancel, "RadLayout Transform - WCF App", null, false, false, System.Windows.HorizontalAlignment.Stretch, System.Windows.VerticalAlignment.Center, null);
        }

        public void btnSub_Click(object sender, RoutedEventArgs e)
        {
            textBlock3.Text = "";
            if (string.IsNullOrEmpty(textBox1.Text) || string.IsNullOrEmpty(textBox2.Text))
            {
                textBlock3.Text = "Please Enter Some Values";

            }
            else
            {
                objClient.subCompleted += new EventHandler<subCompletedEventArgs>(sub_Call);
                objClient.subAsync(Convert.ToDouble(textBox1.Text), Convert.ToDouble(textBox2.Text));
                textBox1.Text = "";
                textBox2.Text = "";
            }
        }

        private void mul_Call(object sender, mulCompletedEventArgs e)
        {
            RadMessageBox.Show("Multiplication Result is: " + e.Result.ToString(), MessageBoxButtons.OKCancel, "RadLayout Transform - WCF App", null, false, false,
System.Windows.HorizontalAlignment.Stretch, System.Windows.VerticalAlignment.Center, null);
        }

        public void btnMul_Click(object sender, RoutedEventArgs e)
        {
            textBlock3.Text = "";
            if (string.IsNullOrEmpty(textBox1.Text) || string.IsNullOrEmpty(textBox2.Text))
            {
                textBlock3.Text = "Please Enter Some Values";

            }
            else
            {
                objClient.mulCompleted += new EventHandler<mulCompletedEventArgs>(mul_Call);
                objClient.mulAsync(Convert.ToDouble(textBox1.Text), Convert.ToDouble(textBox2.Text));
                textBox1.Text = "";
                textBox2.Text = "";
            }
        }

        private void div_Call(object sender, divCompletedEventArgs e)
        {
            RadMessageBox.Show("Division Result is: " + e.Result.ToString(), MessageBoxButtons.OKCancel, "RadLayout Transform - WCF App", null, false, false,
System.Windows.HorizontalAlignment.Stretch, System.Windows.VerticalAlignment.Center, null);
        }

        public void btnDiv_Click(object sender, RoutedEventArgs e)
        {
            textBlock3.Text = "";
            if (string.IsNullOrEmpty(textBox1.Text) || string.IsNullOrEmpty(textBox2.Text))
            {
                textBlock3.Text = "Please Enter Some Values";

            }
            else
            {
                objClient.divCompleted += new EventHandler<divCompletedEventArgs>(div_Call);
                objClient.divAsync(Convert.ToDouble(textBox1.Text), Convert.ToDouble(textBox2.Text));
                textBox1.Text = "";
                textBox2.Text = "";
            }
        }

        #region Instance Variables
        Service1Client objClient = new Service1Client();
        CompositeTransform objComposite = new CompositeTransform();
        #endregion
    }
}

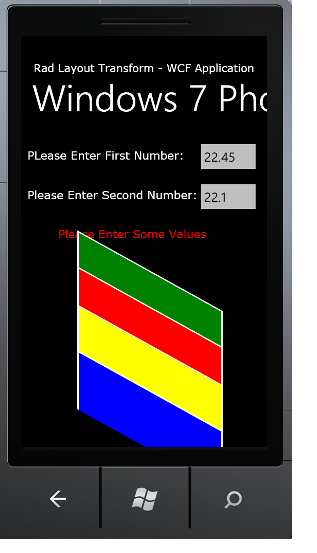

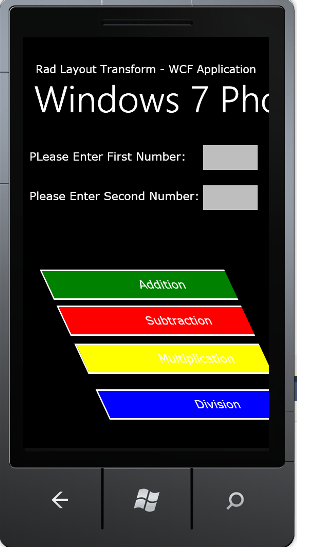

Step 6: The output of the application looks like this:

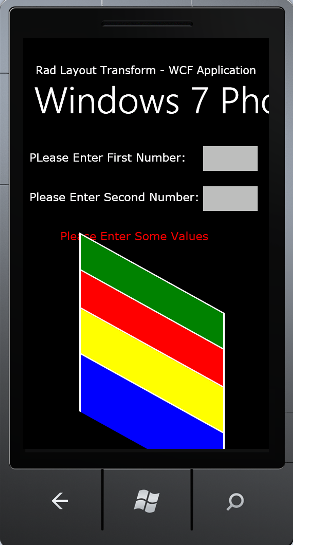

Step 7: The output of the Nothing Entered Application looks like this:

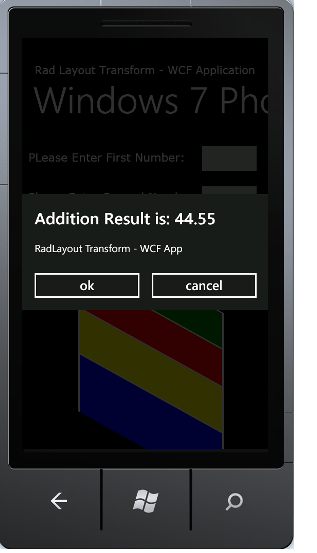

Step 8: The output of the Addition Operation Application looks like this:






I hope this article is useful for you. I look forward for your comments and feedback.
