Introduction
There are three ways to pass a value or data from a view to an action.
- Parameterized Query.
- Form Data.
- Model Binding.
The data that is passed
A Form Collection is the data that is passed in a form submission when we use the HTTP POST Method.
- What we will do in this application.
- We will learn retrieving the data by using Form Collection.
- For all this operation we will use the EntityFramework.
The following database script is available in the attached file.
- create table tbl_FormCollectionUse
- (
- ID int identity primary key,
- Name varchar(50),
- Mobile bigint,
- EmailID varchar(100),
- Address varchar(100)
- )
Start Visual Studio 2010 then Start a New MVC 3 (With Razor View Engine).

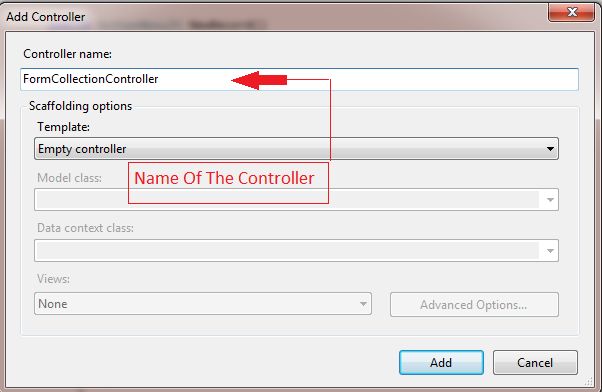

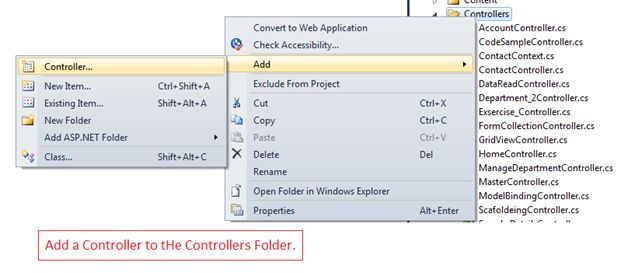

Add a New Controller to the project named “FormCollection”.
Steps
Steps
FormCollectionController.cs
- using System;
- using System.Collections.Generic;
- using System.Linq;
- using System.Web;
- using System.Web.Mvc;
-
- namespace MvcApplication3.Controllers
- {
- public class FormCollectionController : Controller
- {
- string _Name, _EmailID, _Address;
- long _MobileN0;
-
-
-
-
- public ActionResult Index()
- {
- return View();
- }
-
- }
- }

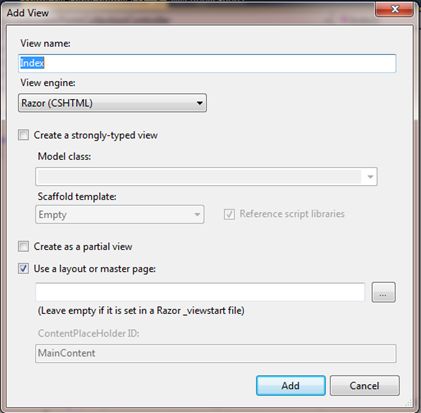

Add a View to the Index() Action method.
Index.cshtml
- @{
- ViewBag.Title = "Index";
- }
-
- <h2>Index</h2>
- <h6></h6>
- <h6> I will Retrieve data through the Form Collection and Insert it to the database.</h6>
- <h6>@Html.ActionLink("New Record", "NewRecord", "FormCollection")</h6>
Add a new Action Method as in the following:
- using System;
- using System.Collections.Generic;
- using System.Linq;
- using System.Web;
- using System.Web.Mvc;
-
- namespace MvcApplication3.Controllers
- {
- public class FormCollectionController : Controller
- {
- string _Name, _EmailID, _Address;
- long _MobileN0;
- //
- //
- // GET: /FormCollection/
-
- public ActionResult Index()
- {
- return View();
- }
-
- public ActionResult NewRecord()
- {
- return View();
- }
-
- }
- }

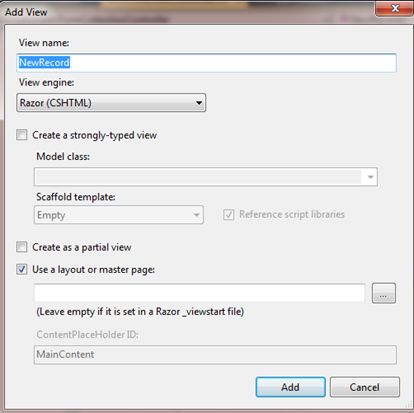

Add a View to the Action method as in the following:
Design The View Depending on our requirements
NewRecord.cshtml
- @{
- ViewBag.Title = "NewRecord";
- }
-
- <h2>NewRecord</h2>
- <h6>@Html.ActionLink("Go Back", "Index", "FormCollection")</h6>
- @using (@Html.BeginForm("Insert", "FormCollection", FormMethod.Post))
- {
- <table>
- <tr>
- <td>@Html.Label("Name")</td><td>:</td><td>@Html.TextBox("TxtName")</td>
- </tr>
- <tr>
- <td>@Html.Label("Mobile No")</td><td>:</td><td>@Html.TextBox("Mobile")</td>
- </tr>
- <tr>
- <td>@Html.Label("EmailID")</td><td>:</td><td>@Html.TextBox("TxtEmailID")</td>
- </tr>
- <tr>
- <td>@Html.Label("Address")</td><td>:</td><td>@Html.TextBox("TxtAddress")</td>
- </tr>
- <tr>
- <td>@Html.Label("Save Your Details")</td><td>:</td><td><input type="submit" value="Submit" /></td>
- </tr>
- <tr>
- <td>@Html.Label("Reset Your Details")</td><td>:</td><td><input type="reset" value="Reset" /></td>
- </tr>
- </table>
- }

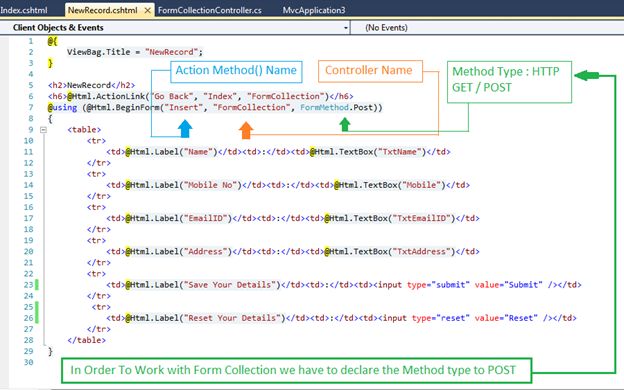

Explanation To The Design
Then add a new Action Method to the Controller as in the following:
- using System;
- using System.Collections.Generic;
- using System.Linq;
- using System.Web;
- using System.Web.Mvc;
-
- namespace MvcApplication3.Controllers
- {
- public class FormCollectionController : Controller
- {
- string _Name, _EmailID, _Address;
- long _MobileN0;
- //
- //
- // GET: /FormCollection/
-
- public ActionResult Index()
- {
- return View();
- }
-
- public ActionResult NewRecord()
- {
- return View();
- }
-
- public ActionResult Insert(FormCollection Fc)
- {
- return View();
- }
-
- }
- }
Notice: The new Action Method is declared with a FormCollection Parameter.

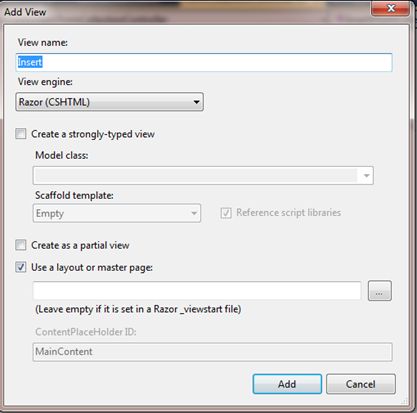

Then add a View for the Insert Action as in the following:method
Insert.cshtml
- @{
- ViewBag.Title = "Insert";
-
- }
-
- <h2>Insert</h2>
- <h6>@Html.ActionLink("Go Back", "Index", "FormCollection")</h6>
- <h6>@ViewBag.Msg</h6>
Create the table if not created and add it to the Entity Framework Model Designer as in the following:
- create table tbl_FormCollectionUse
- (
- ID int identity primary key,
- Name varchar(50),
- Mobile bigint,
- EmailID varchar(100),
- Address varchar(100)
- )

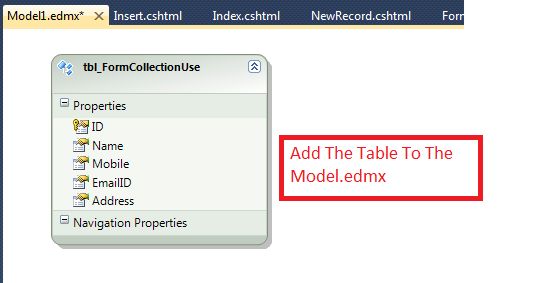

The following shows how to add a table to the (EntityFramework Designer) Model.edmx file.
At the Model.edmx select Update Model from Database -> Update Wizard then select the Table Name then click Finish.
Modify the code at Insert the Action method and retrieve and save that data to the database.
- using System;
- using System.Collections.Generic;
- using System.Linq;
- using System.Web;
- using System.Web.Mvc;
-
- namespace MvcApplication3.Controllers
- {
- public class FormCollectionController : Controller
- {
- string _Name, _EmailID, _Address;
- long _MobileN0;
-
-
-
-
- public ActionResult Index()
- {
- return View();
- }
-
- public ActionResult NewRecord()
- {
- return View();
- }
-
- public ActionResult Insert(FormCollection Fc)
- {
- using (MVC_PracticeEntities objContext = new MVC_PracticeEntities())
- {
- tbl_FormCollectionUse Tbl = new tbl_FormCollectionUse();
-
- Tbl.Name = Fc["TxtName"].ToString();
- Tbl.Mobile = Convert.ToInt64(Fc["Mobile"]);
- Tbl.EmailID = Fc["TxtEmailID"].ToString();
- Tbl.Address = Fc["TxtAddress"].ToString();
-
- objContext.AddTotbl_FormCollectionUse(Tbl);
-
- int i = objContext.SaveChanges();
- if (i > 0)
- {
- ViewBag.Msg = "Data Saved Suuceessfully.";
- }
- }
-
-
- return View();
- }
-
- }
- }

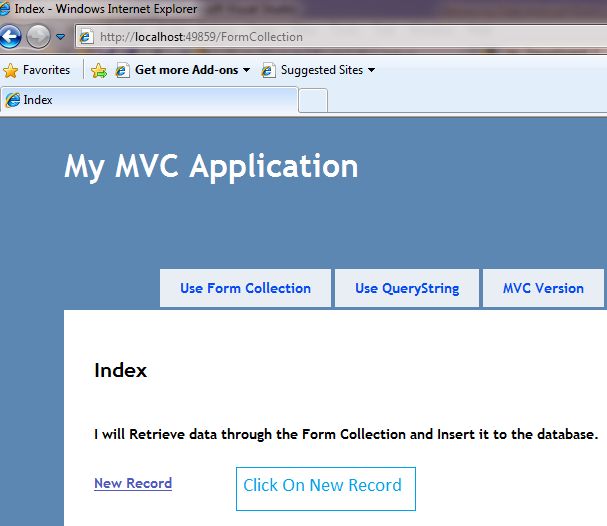

Run the application and test it.

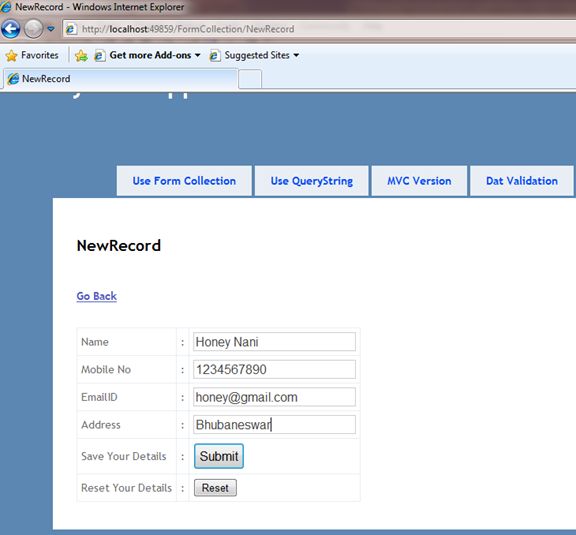

Click on New Record.

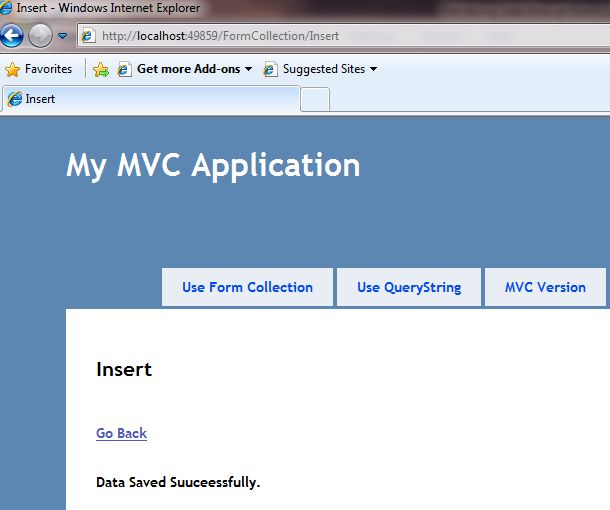

Click on Submit.

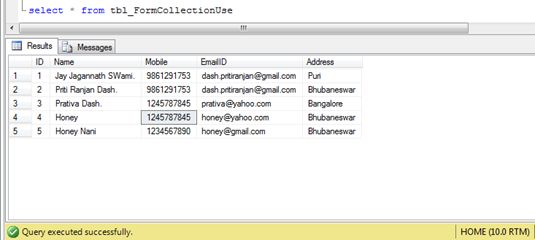

Ad some more data and watch the DB Table.
I am providing all the code and the scripts again.
Index.cshtml
- @{
- ViewBag.Title = "Index";
- }
-
- <h2>Index</h2>
- <h6></h6>
- <h6> I will Retrieve data through the Form Collection and Insert it to the database.</h6>
- <h6>@Html.ActionLink("New Record", "NewRecord", "FormCollection")</h6>
NewRecord.cshtml
- @{
- ViewBag.Title = "NewRecord";
- }
-
- <h2>NewRecord</h2>
- <h6>@Html.ActionLink("Go Back", "Index", "FormCollection")</h6>
- @using (@Html.BeginForm("Insert", "FormCollection", FormMethod.Post))
- {
- <table>
- <tr>
- <td>@Html.Label("Name")</td><td>:</td><td>@Html.TextBox("TxtName")</td>
- </tr>
- <tr>
- <td>@Html.Label("Mobile No")</td><td>:</td><td>@Html.TextBox("Mobile")</td>
- </tr>
- <tr>
- <td>@Html.Label("EmailID")</td><td>:</td><td>@Html.TextBox("TxtEmailID")</td>
- </tr>
- <tr>
- <td>@Html.Label("Address")</td><td>:</td><td>@Html.TextBox("TxtAddress")</td>
- </tr>
- <tr>
- <td>@Html.Label("Save Your Details")</td><td>:</td><td><input type="submit" value="Submit" /></td>
- </tr>
- <tr>
- <td>@Html.Label("Reset Your Details")</td><td>:</td><td><input type="reset" value="Reset" /></td>
- </tr>
- </table>
- }
Insert.cshtml
- @{
- ViewBag.Title = "Insert";
-
- }
-
- <h2>Insert</h2>
- <h6>@Html.ActionLink("Go Back", "Index", "FormCollection")</h6>
- <h6>@ViewBag.Msg</h6>
FormCollectionController.cs
- using System;
- using System.Collections.Generic;
- using System.Linq;
- using System.Web;
- using System.Web.Mvc;
-
- namespace MvcApplication3.Controllers
- {
- public class FormCollectionController : Controller
- {
- string _Name, _EmailID, _Address;
- long _MobileN0;
-
-
-
-
- public ActionResult Index()
- {
- return View();
- }
-
- public ActionResult NewRecord()
- {
- return View();
- }
-
- public ActionResult Insert(FormCollection Fc)
- {
- using (MVC_PracticeEntities objContext = new MVC_PracticeEntities())
- {
- tbl_FormCollectionUse Tbl = new tbl_FormCollectionUse();
-
- Tbl.Name = Fc["TxtName"].ToString();
- Tbl.Mobile = Convert.ToInt64(Fc["Mobile"]);
- Tbl.EmailID = Fc["TxtEmailID"].ToString();
- Tbl.Address = Fc["TxtAddress"].ToString();
-
- objContext.AddTotbl_FormCollectionUse(Tbl);
-
- int i = objContext.SaveChanges();
- if (i > 0)
- {
- ViewBag.Msg = "Data Saved Suuceessfully.";
- }
- }
-
-
- return View();
- }
-
- }
- }
