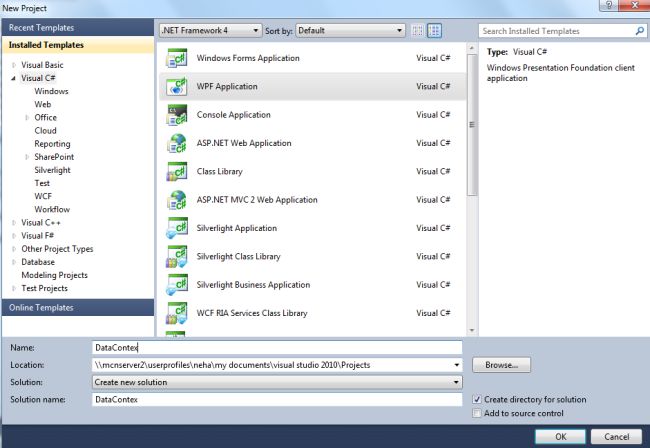

First we create a WPF application using the following procedure:
- Open Visual Studio.
- Select the C# language and "WPF Application".
- Name the project "DataContext".
- Click on the "OK" button.
Step 2
- Now go to the MainWindow.xaml.
- Delete the Grid tag.
- Write the following code in MainWindow.xaml:
<Window x:Class="WpfApplication14.MainWindow"
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
Title="MainWindow" Height="350" Width="525">
<StackPanel Margin="15" Width="452" Background="#FFDED022">
<WrapPanel>
<Label Content ="Window Title: " />
<TextBox Text="{Binding Title, UpdateSourceTrigger=PropertyChanged}" Width="200" />
</WrapPanel>
<WrapPanel Margin="0,10,0,0">
<Label Content="Window Dimensions: " />
<TextBox Text="{Binding Width}" Width="100" />
<Label Content =" x " />
<TextBox Text="{Binding Height}" Width="100" />
</WrapPanel>
</StackPanel>
</Window>

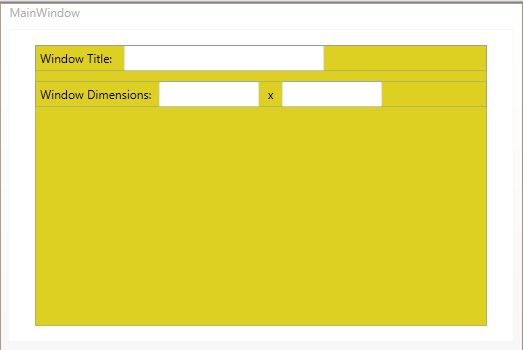

- Corresponding to the code above the window looks as:
Step 3
- Now go to the MainWindow.xaml.cs.
- Write the following code:
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Data;
using System.Windows.Documents;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Media.Imaging;
using System.Windows.Navigation;
using System.Windows.Shapes;
namespace WpfApplication14
{
/// <summary>
/// Interaction logic for MainWindow.xaml
/// </summary>
public partial class MainWindow : Window
{
public MainWindow()
{
InitializeComponent();
this.DataContext = this;
}
}
}

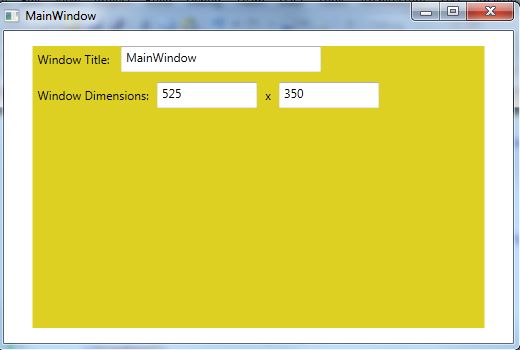

Output
Press F5.
