Capture a Video in Windows Store Apps

Introduction

In this article I describe how to create a Windows Store App to capture a video using JavaScript. In this article we capture a video from a webcam. For this app it is necessary for you to have a webcam in your system and for all the drivers of the webcam to be properly installed. If you don't have a webcam or your webcam does not work then the app will run but of course it cannot capture video from a webcam.

I assume you can create a simple Windows Store App using JavaScript. For more help visit Simple Windows Store Apps using JavaScript. In my previous article i describe how to create a Windows Store Apps to capture a photo using JavaScript. You can visit this at Capture a Photo in Windows Store Apps using Java Script.

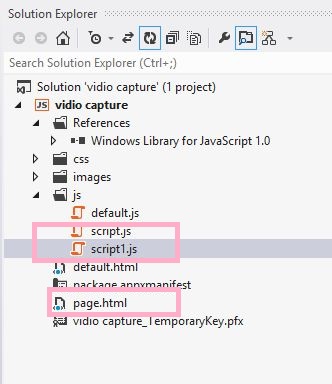

To start the creation of the app, add two JavaScript pages by right-clicking on the js folder in the Solution Explorer and select Add > new item > JavaScript Page and then give an appropriate name. In the same way, add one HTML page to your project.


Write the following code in default.html:

<!DOCTYPE html>

<html>

<head>

    <meta charset="utf-8" />

    <title>App</title>

    <link rel="stylesheet" href="//Microsoft.WinJS.1.0/css/ui-light.css" />

    <script src="//Microsoft.WinJS.1.0/js/base.js"></script>

    <script src="//Microsoft.WinJS.1.0/js/ui.js"></script>

    <link rel="stylesheet" href="/css/default.css" />

    <script src="/js/script1.js"></script>

    <script src="/js/default.js"></script>

</head>

<body role="application" style="background-color: lightgray">

    <center><div id="rootGrid">

        <div id="content">

            <h1 id="featureLabel"></h1>

            <div id="contentHost"></div>

        </div>

    </div></center>

</body>

</html>

Write the following code in default.js:


(function () {

    "use strict";

    var appTitle = "Capture a Vidio";

    var pages = [

        { url: "page.html" }

    ];

    function activated(eventObject) {

        if (eventObject.detail.kind === Windows.ApplicationModel.Activation.ActivationKind.launch) {

            eventObject.setPromise(WinJS.UI.processAll().then(function () {

                var url = WinJS.Application.sessionState.lastUrl || pages[0].url;

                return WinJS.Navigation.navigate(url);

            }));

        }

    }

    WinJS.Navigation.addEventListener("navigated", function (eventObject) {

        var url = eventObject.detail.location;

        var host = document.getElementById("contentHost");

        host.winControl && host.winControl.unload && host.winControl.unload();

        WinJS.Utilities.empty(host);

        eventObject.detail.setPromise(WinJS.UI.Pages.render(url, host, eventObject.detail.state).then(function () {

            WinJS.Application.sessionState.lastUrl = url;

        }));

    });

    WinJS.Namespace.define("Apps", {

        appTitle: appTitle,

        pages: pages

    });

    WinJS.Application.addEventListener("activated", activated, false);

    WinJS.Application.start();

})();

Write the following code in page.html:


<!DOCTYPE html>

<html>

<head>

    <title></title>

    <link rel="stylesheet" href="/css/capturevideo.css" />

    <script src="/js/script.js"></script>

</head>

<body>

    <div data-win-control="Apps.pageInput">

        <button id="captureButton">Capture Video</button>

        <button id="resetButton">Reset</button>

        <br />

        <br />

    </div>

    <div data-win-control="Apps.pageOutput">

        <video class="imageHolder" id="capturedVideo" autoplay="autoplay" controls="controls"></video>

    </div>

</body>

</html>


Write the following code in script.js:


(function () {

    "use strict";



    var videoKey = "capturedVideo";

    var localSettings = Windows.Storage.ApplicationData.current.localSettings;

    var page = WinJS.UI.Pages.define("page.html", {

        ready: function (element, options) {

            document.getElementById("captureButton").addEventListener("click", captureVideo, false);

            document.getElementById("resetButton").addEventListener("click", reset, false);

            document.getElementById("resetButton").style.visibility = "hidden";



            if (localSettings.values[videoKey]) {

                document.getElementById("captureButton").disabled = true;

                reloadVideo();

            }

        }

    });

    function captureVideo() {

        WinJS.log && WinJS.log("", "app", "status");

        var dialog = new Windows.Media.Capture.CameraCaptureUI();

        dialog.videoSettings.format = Windows.Media.Capture.CameraCaptureUIVideoFormat.mp4;

        dialog.captureFileAsync(Windows.Media.Capture.CameraCaptureUIMode.video).done(function (file) {

            if (file) {

                var videoBlobUrl = URL.createObjectURL(file, { oneTimeOnly: true });

                document.getElementById("capturedVideo").src = videoBlobUrl;

                document.getElementById("resetButton").style.visibility = "visible";

                localSettings.values[videoKey] = file.path;

            } else {

                WinJS.log && WinJS.log("No video captured.", "app", "status");

            }

        }, function (err) {

            WinJS.log && WinJS.log(err, "app", "error");

        });

    }



    function reset() {

        WinJS.log && WinJS.log("", "app", "status");

        document.getElementById("capturedVideo").src = "";

        document.getElementById("resetButton").style.visibility = "hidden";

        localSettings.values.remove(videoKey);

    }



    function reloadVideo() {

        Windows.Storage.StorageFile.getFileFromPathAsync(localSettings.values[videoKey]).done(function (file) {

            document.getElementById("capturedVideo").src = URL.createObjectURL(file, { oneTimeOnly: true });

            document.getElementById("resetButton").style.visibility = "visible";

            document.getElementById("captureButton").disabled = false;

        }, function (err) {

            localSettings.values.remove(videoKey);

            document.getElementById("captureButton").disabled = false;

            WinJS.log && WinJS.log(err, "app", "error");

        });

    }

})();


Write the following code in script1.js:



(function () {

    var pageOutput = WinJS.Class.define(

        function (element, options) {

            element.winControl = this;

            this.element = element;

            new WinJS.Utilities.QueryCollection(element)

                        .setAttribute("role", "region")

                        .setAttribute("aria-labelledby", "outputLabel")

                        .setAttribute("aria-live", "assertive");

            element.id = "output";



            this._addOutputLabel(element);

            this._addStatusOutput(element);

        }, {

            _addOutputLabel: function (element) {

                var label = document.createElement("h2");

                label.id = "outputLabel";

                label.textContent = "Output";

                element.parentNode.insertBefore(label, element);

            },

            _addStatusOutput: function (element) {

                var statusDiv = document.createElement("div");

                statusDiv.id = "statusMessage";

                element.insertBefore(statusDiv, element.childNodes[0]);

            }

        }

    );

    var currentpageUrl = null;

    WinJS.Navigation.addEventListener("navigating", function (evt) {

        currentpageUrl = evt.detail.location;

    });



    WinJS.log = function (message, tag, type) {

            var statusDiv = document.getElementById("statusMessage");

    };

    function activated(e) {

        WinJS.Utilities.query("#featureLabel")[0].textContent = Apps.appTitle;

    }



    WinJS.Application.addEventListener("activated", activated, false);

    WinJS.Namespace.define("Apps", {

        pageOutput: pageOutput

    });

})();

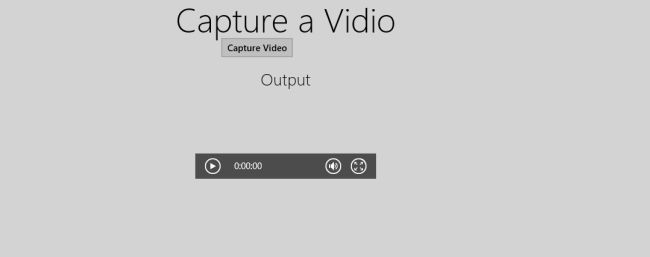

Output:


Summary


In this app I described how to capture a video in a Windows Store App using JavaScript. I hope this article has helped you to understand this topic. Please share if you know more about this. Your feedback and constructive contributions are welcome.
