Dependency Properties In Windows 8.1

Dependency Properties

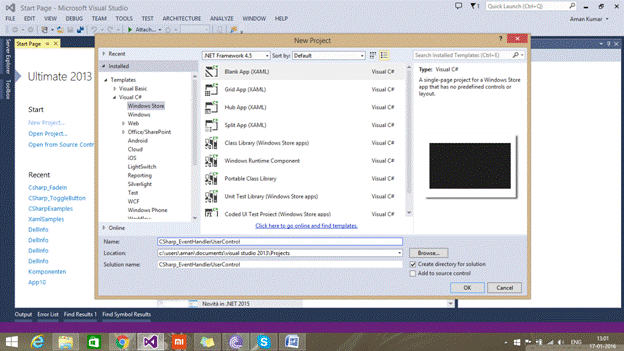

  1. Create a windows store blank app.

    app

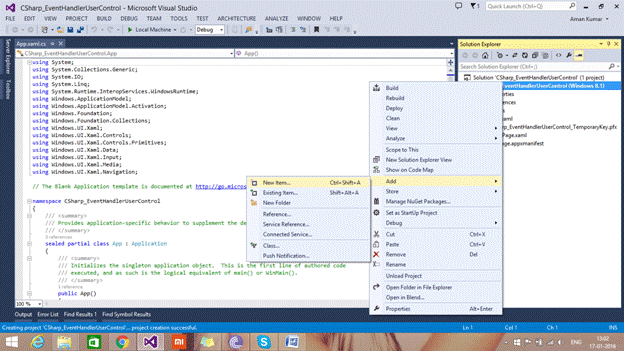

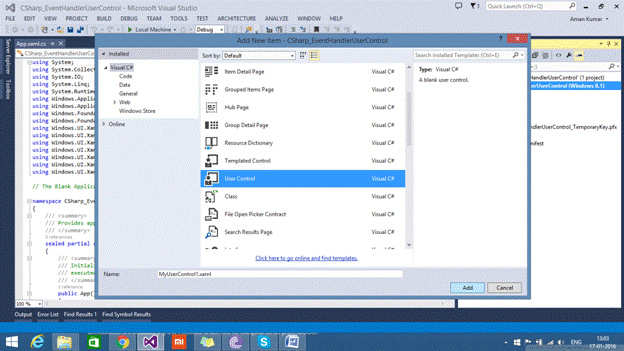

  2. Add a user control in app,

    app

    app

  3. Create a textblock in usercontrol,
    1. <Grid>
    2.     <TextBlock HorizontalAlignment="Center" VerticalAlignment="Center" FontSize="50" Foreground="Aqua" />
    3. </Grid>
  4. Create a dependency property in code behind of user control either by coding or using shortcut propdp.
    1. public string TextBlockText
    2. {
    3.     get
    4.     {
    5.         return (string) GetValue(TextBlockTextProperty);
    6.     }
    7.     set
    8.     {
    9.         SetValue(TextBlockTextProperty, value);
    10.     }
    11. }
    12.
    13. // Using a DependencyProperty as the backing store for TextBlockText. This enables animation, styling, binding, etc...
    14. public static readonly DependencyProperty TextBlockTextProperty =
    15.     DependencyProperty.Register("TextBlockText"typeof(string), typeof(MyUserControl1), new PropertyMetadata(string.Empty));
  5. Bind the textblock’s text property to the TextBlockText dependency property,
    1. <TextBlock Text="{Binding TextBlockText}"
  6. Set datacontext for usercontrol so that the binding can work.
    1. public MyUserControl1()
    2. {
    3.     this.InitializeComponent();
    4.     (this.Content as FrameworkElement).DataContext = this;
    5. }
  7. In main page create two instances of usercontrol to show the functioning of dependency properties.
    1. <StackPanel Orientation="Horizontal" HorizontalAlignment="Center" VerticalAlignment="Center">
    2.     <local:MyUserControl1 x:Name="control1" TextBlockText="Control 1 text" />
    3.     <local:MyUserControl1 x:Name="control2" TextBlockText="Control 2 text" />
    4. </StackPanel>

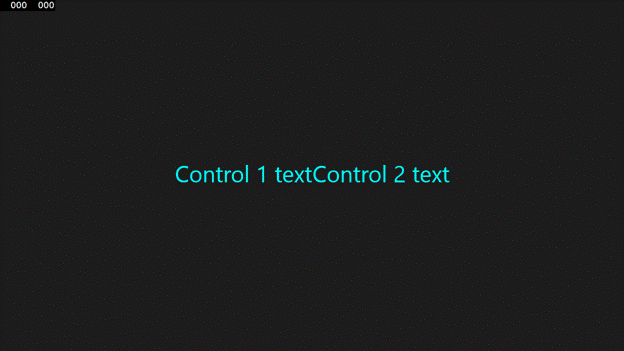

  8. Run your application and check.

    application
