Simple and Effective Way to Find the Boundary Items of a Binary Tree

Introducation

After playing with data structures I found the following algorithm that performs boundary item detection of a binary tree. We even have many algorithms but special logic in this algorithm makes this more effective.

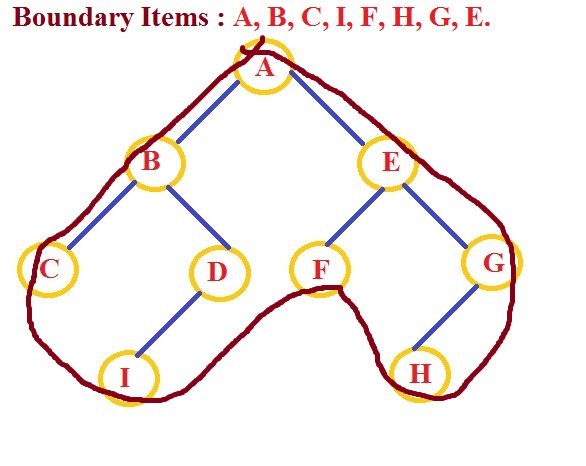

The algorithm

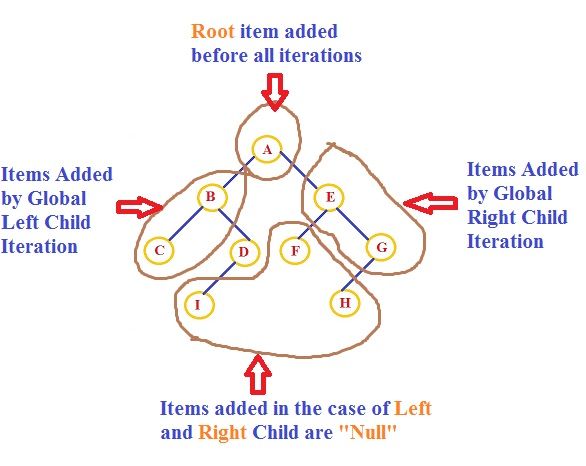

For the binary tree, the boundary item should be a part of the following scenario.

The scenarios are:

  • In global left child or
  • In global right child or
  • Or having left and right children are null.

If a child meets any of the preceding scenarios then it will be a boundary element.

Algorithm

reachedBottom <- false

Add(Root)

GlobalLeftIteration(Tree node)

{

if (not reachedBottom)

Add (node)

if (node.Left not null)

GlobalLeftIteration(node.Left)

else

if (node.Left is null && node.Right is null and reachedBottom)

items.Add(node.Node)

return

reachedBottom = true

if (node.Right not null)

RightIteration(node.Right)

}

RightIteration(Tree node)

{

if (node.Left not null)

GlobalLeftIteration(node.Left)

else

reachedBottom <- true

if (node.Left is null && node.Right is null)

Add(node)

return;

if (node.Right not null)

RightIteration(node.Right)

}

GlobalRightIteration(Tree node)

{

if (not reachedBottom)

items.Add(node.Node)

if (node.Right not null)

GlobalRightIteration(node.Right)

else

if (node.Left is null && node.Right is null and reachedBottom)

Add(node)

return;

reachedBottom <- true

if (node.Left not null)

LeftIteration(node.Left)

}

LeftIteration(Tree node)

{

if (node.Right not null)

GlobalRightIteration(node.Right)

else

reachedBottom <- true

if (node.Left is null && node.Right is null)

items.Add(node.Node);

return;

if (node.Left not null)

RightIteration(node.Left)

}

In our proposed algorithm we use the followingprocedure:

  • Add the root node in boundary items collection.
  • Pass a root node left for global left iteration, and add if the iteration has not reached the end of the global left child
  • Recursively call the left iteration.
  • Once we have reached the end of the global left child it recursively iterates to the right children and its corresponding left children to find the boundary item by checking if its left and right children are null.
  • Use a similar process to iterate for Global Right iteration except the reverse of the preceding

Code snippet

namespace BoundaryNodes

{

    public class Tree

    {

        public string Node { get; set; }

        public Tree Left { get; set; }

        public Tree Right { get; set; }

    }



    public partial class Form1 : Form

    {

        public Form1()

        {

            InitializeComponent();

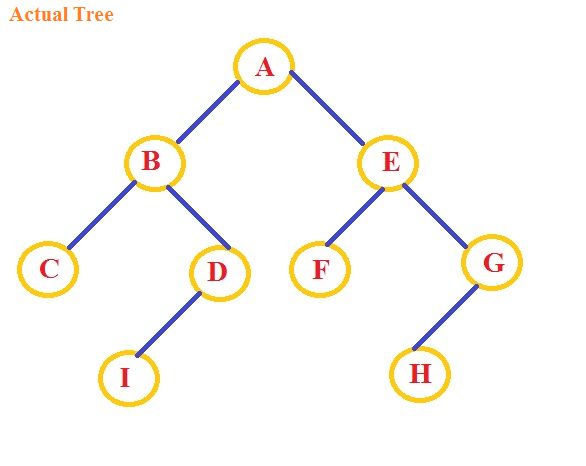

            Tree ANode = new Tree(); ANode.Node = "A";

            Tree BNode = new Tree(); BNode.Node = "B";

            Tree CNode = new Tree(); CNode.Node = "C";

            Tree DNode = new Tree(); DNode.Node = "D";

            Tree ENode = new Tree(); ENode.Node = "E";

            Tree FNode = new Tree(); FNode.Node = "F";

            Tree GNode = new Tree(); GNode.Node = "G";

            Tree HNode = new Tree(); HNode.Node = "H";

            Tree INode = new Tree(); INode.Node = "I";

            ANode.Left = BNode;

            ANode.Right  = ENode;

            BNode.Left = CNode;

            BNode.Right = DNode;

            DNode.Left = INode;

            ENode.Left = FNode;

            ENode.Right = GNode;

            GNode.Left = HNode;

            items.Add(ANode.Node);

            GlobalLeftIteration(ANode.Left);

            reachedBottom = false;

            GlobalRightIteration(ANode.Right);

            string boundaryItems = string.Empty;

            foreach (var s in items)

            {

                boundaryItems += (s + " ");

            }

            MessageBox.Show(boundaryItems);

        }

        List<String> items = new List<string>();

        bool reachedBottom = false

        private void GlobalLeftIteration(Tree node)

        {

            if (!reachedBottom)

              items.Add (  node.Node);



            if (node.Left != null)

            {

                GlobalLeftIteration(node.Left);

            }

            else

            {

                if (node.Left == null && node.Right == null && reachedBottom)

                {

                    items.Add(node.Node);

                    return;

                }

                reachedBottom = true;

            }

            if (node.Right != null)

            {

                RightIteration(node.Right);

            }

        }

        private void RightIteration(Tree node)

        {

            if (node.Left != null)

            {

                GlobalLeftIteration(node.Left);

            }

            else

            {

                reachedBottom = true;

                if (node.Left == null && node.Right == null)

                {

                    items.Add(node.Node);

                    return;

                }

            }

            if (node.Right != null)

            {

                RightIteration(node.Right);

            }

        }

        private void GlobalRightIteration(Tree node)

        {

            if (!reachedBottom)

                items.Add(node.Node);



            if (node.Right != null)

            {

                GlobalRightIteration(node.Right);

            }

            else

            {

                if (node.Left == null && node.Right == null && reachedBottom)

                {

                    items.Add(node.Node);

                    return;

                }

                reachedBottom = true;

            }



            if (node.Left != null)

            {

                LeftIteration(node.Left);

            }

        }

        private void LeftIteration(Tree node)

        {

            if (node.Right != null)

            {

                GlobalRightIteration(node.Right);

            }

            else

            {

                reachedBottom = true;

                if (node.Left == null && node.Right == null)

                {

                    items.Add(node.Node);

                    return;

                }

            }

            if (node.Left != null)

            {

                RightIteration(node.Left);

            }

        }

    }

}


Tree
Boundry Item
Boundry Item Defines

Output

Output
