GUI with MonoDevelop


Introduction

GTK# applications are written using MonoDevelop, which provides a visual designer for creating GTK# GUIs.

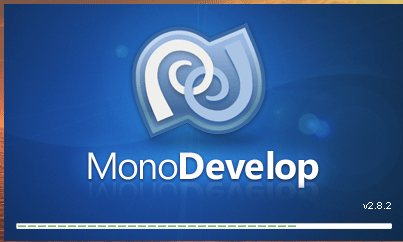

Step 1: Open MonoDevelop.

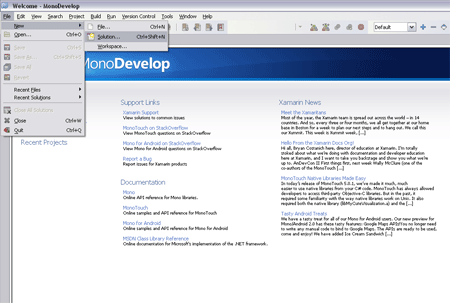

Step 2: Click on File menu.

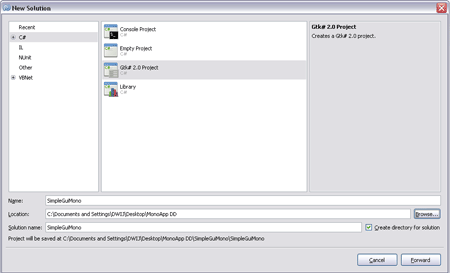

Step 3: Select the C# and Gtk# 2.0 Project.

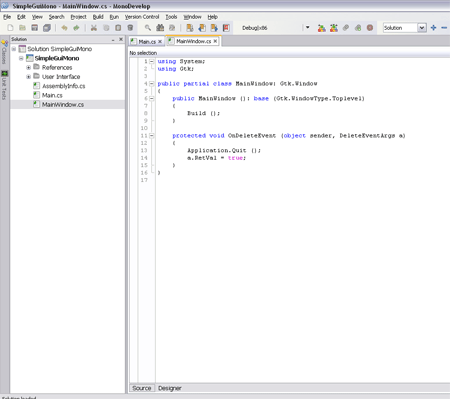

Step 4: Select MainWindow.cs and go to the Designer.

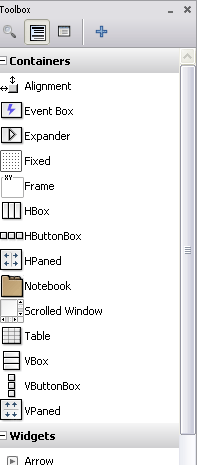

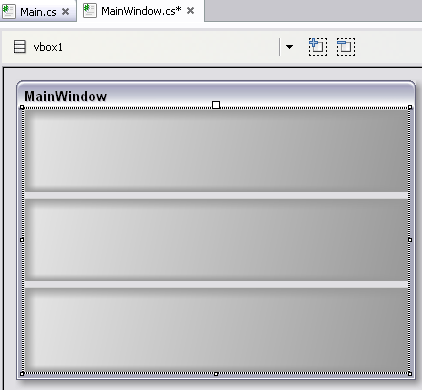

Step 5: Select vbox from ToolBox.

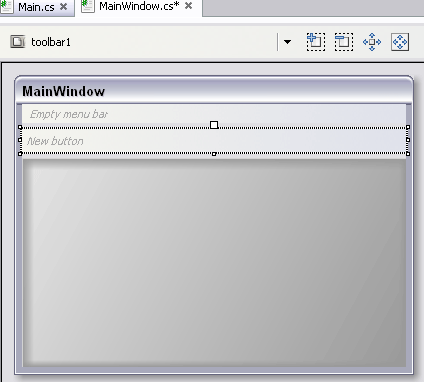

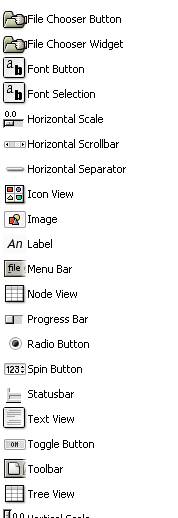

Step 6: Select Menu Bar and Toolbar from ToolBox.

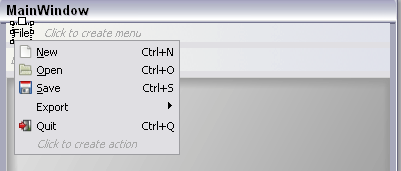

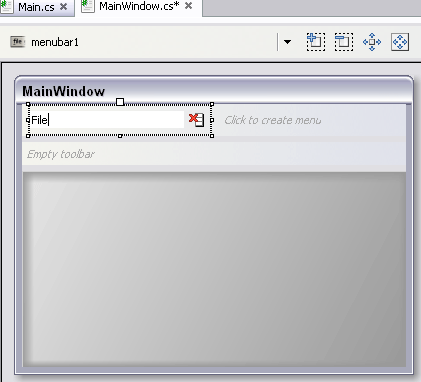

Step 7: Go to Empty menu bar in Main Window and create File menu.

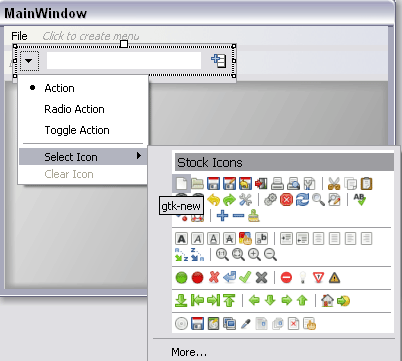

Add Gtk new.


Same for other Adding file menu Items.

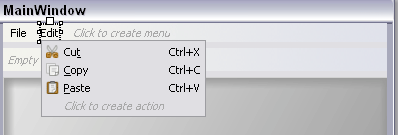

Step 8: Again Click to Menu Bar and Create Edit.

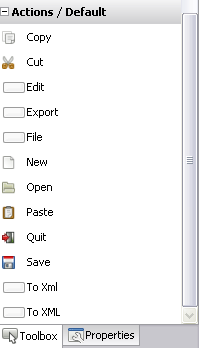

Step 9: Go to ToolBox and Access Actions/Default.

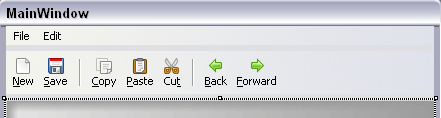

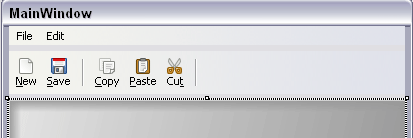

Drag n drop New, Save put separator After and Drag drop cut, copy and Paste.

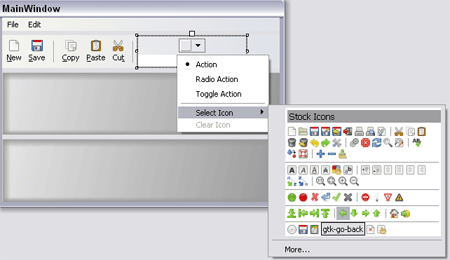

Add gtk go-back and gtk go-forward.

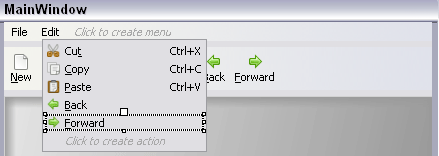

Step 10: Add goBackAction and goForwardAction from ToolBox to Edit Menu.

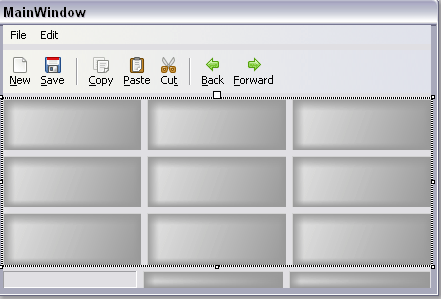

Step 11: Drag n drop Status Bar and Table form ToolBox.

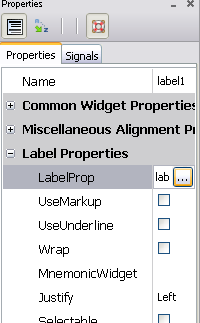

Put 3 label in Table of Main Window and Rename them.


Drag n drop 3 entry from ToolBox and Delete the extra column.

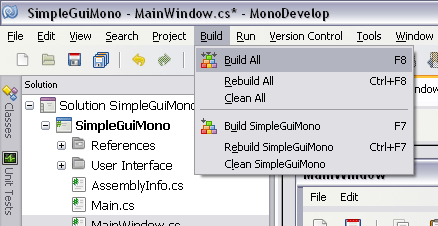

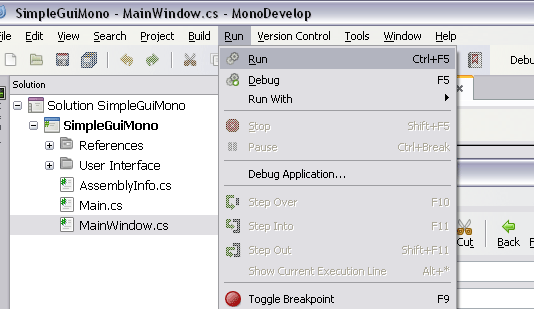

Step 12: Build the application.



Run

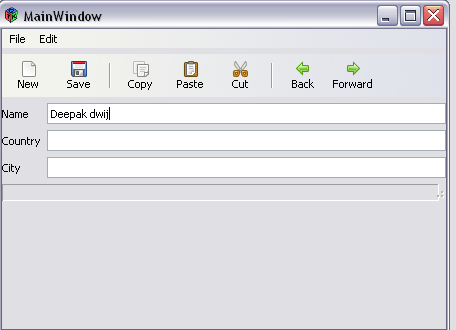

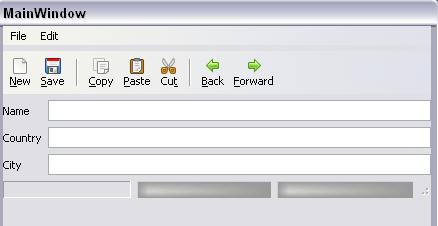

Output
