Getting Started With Reactive Extensions - Part 2

In this article, we will continue from the previous article and see few examples around UI side. Let us suppose the following snippet, wherein I have simply created one windows form and attached a textbox to it.

  1. using System;
  2. using System.Reactive.Linq;
  3. using System.Windows.Forms;
  4.
  5. namespace ReactiveExtensions
  6. {
  7.     internal class Program
  8.     {
  9.         private static void Main(string[] args)
  10.         {
  11.            // ObservableGetValue();
  12.             var textbox = new TextBox();
  13.             var form = new Form
  14.             {
  15.                 Controls = {textbox}
  16.             };
  17.
  18.           Application.Run(form);
  19.         }
  20.
  21.
  22.         private static void ObservableGetValue()
  23.         {
  24.             IObservable<string> obj = Observable.Generate(
  25.                 0, //Sets the initial value like for loop
  26.                 _ => true//Don't stop till i say so, infinite loop
  27.                 i => i + 1, //Increment the counter by 1 everytime
  28.                 i => new string('#', i), //Append #
  29.                 i => TimeSelector(i)); //delegated this to private method which just calculates time
  30.
  31.             //Subscribe here
  32.             using (obj.Subscribe(Console.WriteLine))
  33.             {
  34.                 Console.WriteLine("Press any key to exit!!!");
  35.                 Console.ReadLine();
  36.             }
  37.         }
  38.
  39.         //Returns TimeSelector
  40.         private static TimeSpan TimeSelector(int i)
  41.         {
  42.             return TimeSpan.FromSeconds(i);
  43.         }
  44.     }
  45. }

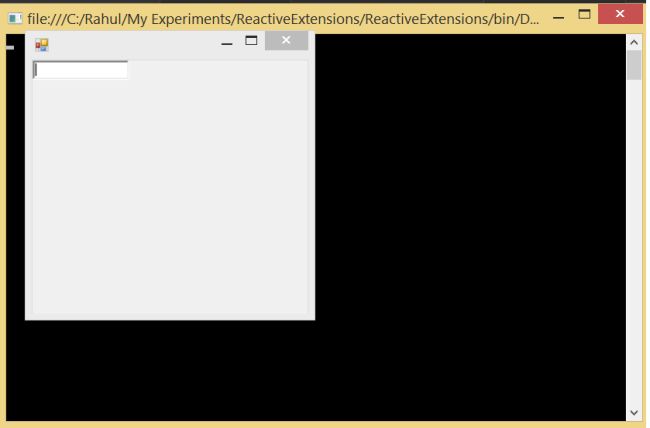

Now, with the above change in place, it will simply give me one windows form with one text-box in it.

text box

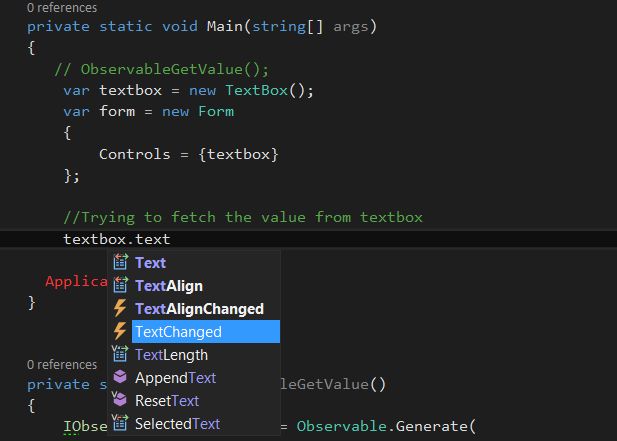

Now, I would like to listen to text changed event. So, what I would do? I will simply go ahead and attach text changed handler as in the following code snippet.

textchanged

Therefore, it has created the following sample event code.
  1. using System;
  2. using System.Reactive.Linq;
  3. using System.Windows.Forms;
  4.
  5. namespace ReactiveExtensions
  6. {
  7.     internal class Program
  8.     {
  9.         private static void Main(string[] args)
  10.         {
  11.            // ObservableGetValue();
  12.             var textbox = new TextBox();
  13.             var form = new Form
  14.             {
  15.                 Controls = {textbox}
  16.             };
  17.
  18.             //Trying to fetch the value from textbox
  19.             textbox.TextChanged += textbox_TextChanged;
  20.
  21.           Application.Run(form);
  22.         }
  23.
  24.         static void textbox_TextChanged(object sender, EventArgs e)
  25.         {
  26.             throw new NotImplementedException();
  27.         }
  28.
  29.
  30.         private static void ObservableGetValue()
  31.         {
  32.             IObservable<string> obj = Observable.Generate(
  33.                 0, //Sets the initial value like for loop
  34.                 _ => true//Don't stop till i say so, infinite loop
  35.                 i => i + 1, //Increment the counter by 1 everytime
  36.                 i => new string('#', i), //Append #
  37.                 i => TimeSelector(i)); //delegated this to private method which just calculates time
  38.
  39.             //Subscribe here
  40.             using (obj.Subscribe(Console.WriteLine))
  41.             {
  42.                 Console.WriteLine("Press any key to exit!!!");
  43.                 Console.ReadLine();
  44.             }
  45.         }
  46.
  47.         //Returns TimeSelector
  48.         private static TimeSpan TimeSelector(int i)
  49.         {
  50.             return TimeSpan.FromSeconds(i);
  51.         }
  52.     }
  53. }

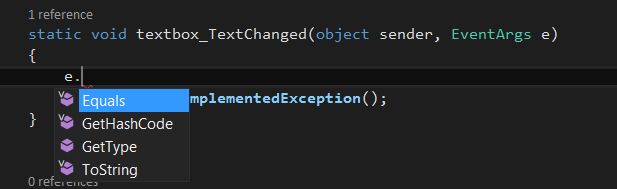

But, if you look at the following screenshot, textchanged is not available.

code

Hence, this won't be helpful for me. Rather than that, I would prefer to have reactive extension and subscribe the same as shown below.
  1. private static void Main(string[] args)
  2. {
  3.    // ObservableGetValue();
  4.     var textbox = new TextBox();
  5.     var form = new Form
  6.     {
  7.         Controls = {textbox}
  8.     };
  9.
  10.     //Using Rx, to get the textchanged
  11.
  12.     var textChanged = Observable.FromEventPattern<EventArgs>(textbox, "TextChanged");
  13.
  14.     //then, I will subscribe the same
  15.
  16.   Application.Run(form);
  17. }

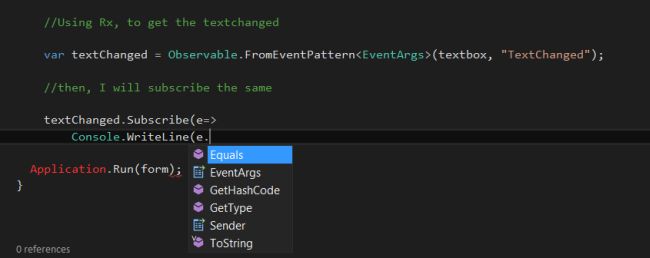

Now, if you see the following screenshot, it gave me EventArgs.

EventArgs

really

Here, in order to get changed text, I need to make use of LINQ on the top of Rx. Hence, below is the finished code for the same. I have done little bit of refactoring as well, just to keep the code more readable and clean.
  1. using System;
  2. using System.Reactive.Linq;
  3. using System.Windows.Forms;
  4.
  5. namespace ReactiveExtensions
  6. {
  7.     internal class Program
  8.     {
  9.         private static void Main(string[] args)
  10.         {
  11.             // ObservableGetValue();
  12.             GetTextBoxValue();
  13.         }
  14.
  15.         private static void GetTextBoxValue()
  16.         {
  17.             var textbox = new TextBox();
  18.             var form = new Form
  19.             {
  20.                 Controls = {textbox}
  21.             };
  22.
  23.             //Using Rx, to get the textchanged
  24.
  25.             var textChanged = Observable.FromEventPattern<EventArgs>(textbox, "TextChanged");
  26.
  27.             //then, I will subscribe the same using LINQ Projection
  28.
  29.             var query = from e in textChanged
  30.                 select ((TextBox) e.Sender).Text;
  31.
  32.             //Hence, if the application quits, i want to unsubscribe
  33.             using (query.Subscribe(Console.WriteLine))
  34.             {
  35.                 Application.Run(form);
  36.             }
  37.         }
  38.
  39.
  40.         private static void ObservableGetValue()
  41.         {
  42.             IObservable<string> obj = Observable.Generate(
  43.                 0, //Sets the initial value like for loop
  44.                 _ => true//Don't stop till i say so, infinite loop
  45.                 i => i + 1, //Increment the counter by 1 everytime
  46.                 i => new string('#', i), //Append #
  47.                 i => TimeSelector(i)); //delegated this to private method which just calculates time
  48.
  49.             //Subscribe here
  50.             using (obj.Subscribe(Console.WriteLine))
  51.             {
  52.                 Console.WriteLine("Press any key to exit!!!");
  53.                 Console.ReadLine();
  54.             }
  55.         }
  56.
  57.         //Returns TimeSelector
  58.         private static TimeSpan TimeSelector(int i)
  59.         {
  60.             return TimeSpan.FromSeconds(i);
  61.         }
  62.     }
  63. }

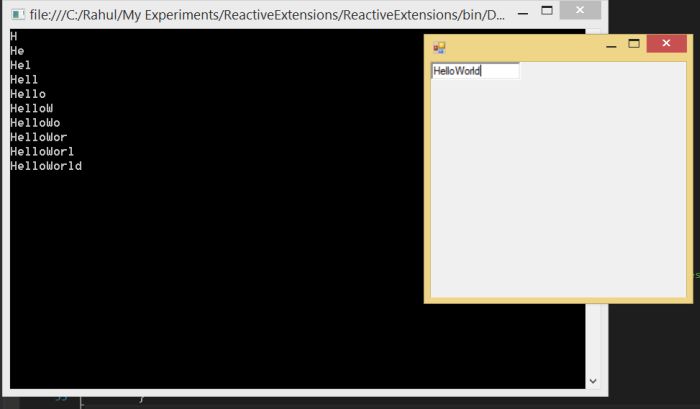

Hence, with the above change in place, when I run the app, it will give us the following output.

run the app

You can also download the source code from here.

With this I would like to wrap this session here. Thanks for joining me.
