Use SharePoint List Filter in SharePoint 2013

In this article I have explained how to use SharePoint list filter in SharePoint 2013.

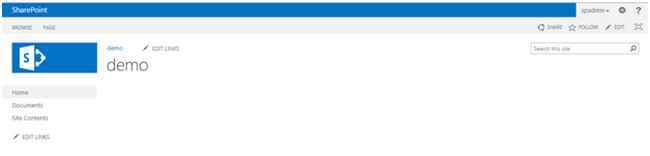

Open SharePoint site.

Open SharePoint site

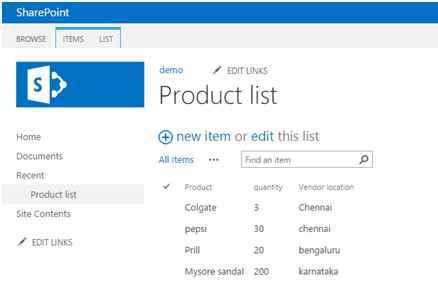

Now I am going to create a product list in to it for an example to show how SharePoint list works.

create a product list in Sharepoint

So now i am having a list with some values.

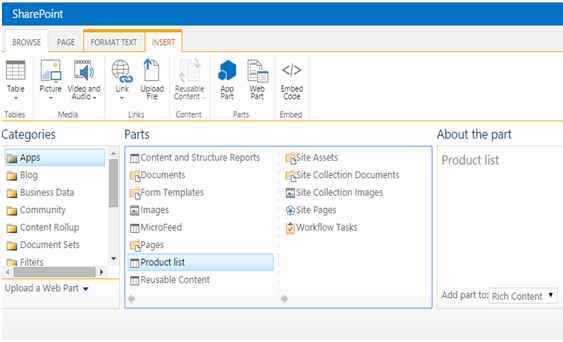

Go to home page, then Add Webpart and insert product list into the page.

insert product list into the page

After adding a Webpart into the page, add a SharePoint list Webpart page into the same page.

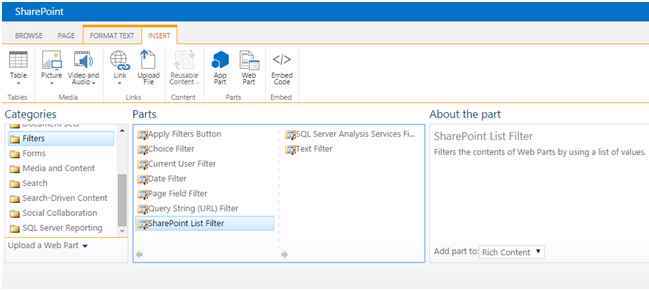

Under filter click SharePoint list filter.

Click SharePoint list filter

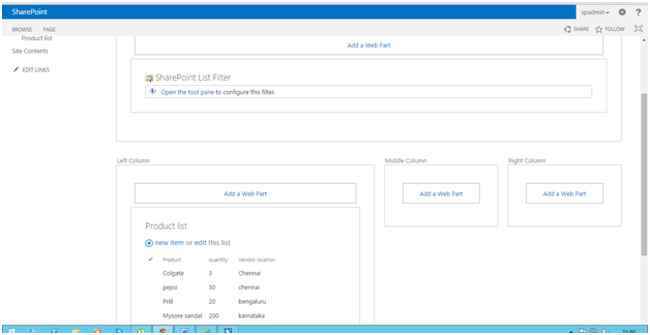

Now the page looks like the following screenshot:

page look like

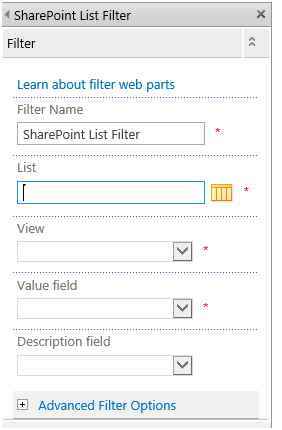

Click on open tool pane and select the list you need to filter.

Select the list

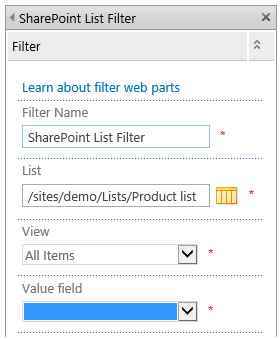

View will be default ‘All Items’.

All items

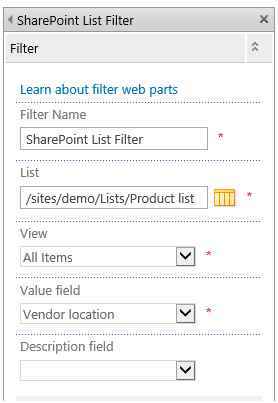

In the value field select “Vendor location”.

Vendor location

Click Ok to complete.

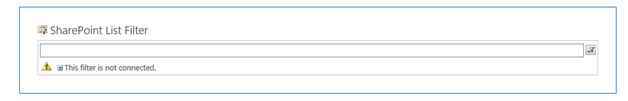

Now it’s showing filter is not connected.

showing filter

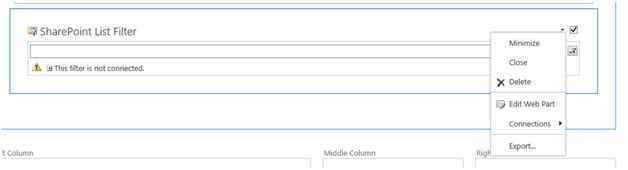

Click on "This filter is not connected" link.

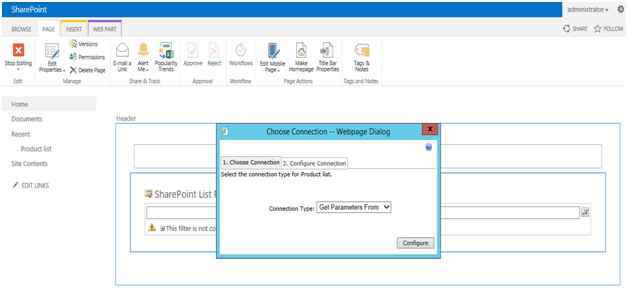

Click Connections.

Click on filter

connection

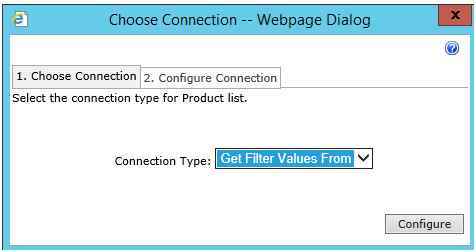

On this popup select ‘Get Filter Values From’.

Get Filter Values From

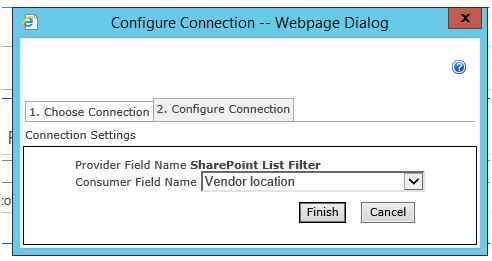

Click "Configure connection" tab.

Configure connection tab

Select the column to filter ‘Vendor location’.

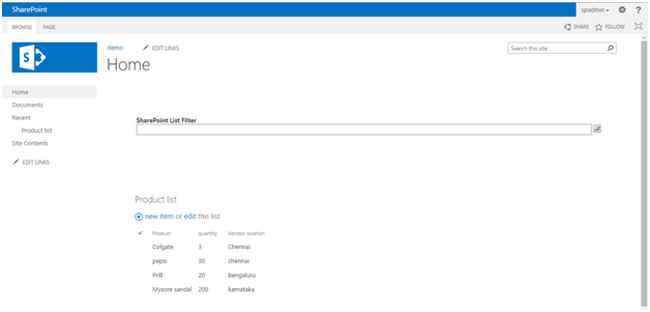

Click finish.

finish

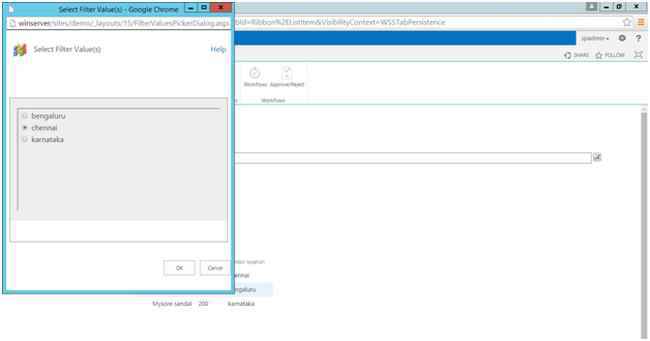

Now I am going to filter by ‘vendor location’.

create a product list

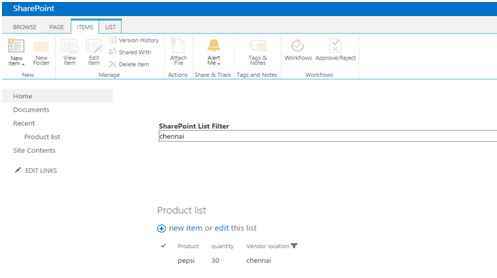

Now the final result look like this.

final result look

It works good.

Filter vendor location successful.
