Convert Color Image Into Gray Scale Image In ASP .NET

Introduction: A gray scale image is an image in which the value of each pixel is a single sample, that is, it carries only intensity information. The gray scale image is also known as a black-and-white Image that is composed exclusively of shades of gray, varying from black at the weakest intensity to white at the strongest.
Use the following procedure to create a simple application for converting a color image to a gray scale image. ( Note: steps 1 to 5 are similar to my previous article: Control Image Brightness Using ASP.NET.)
Step 1: First open Visual Studio.
Step 2: In the menu bar click on "File" > "New Web Site" or press "Shift + Alt + N".
Step 3: Now a dialog box will be shown; select "ASP.NET Empty Web Site" and provide the website name (like: "GrayScaleConverter") and press "OK".
Step 4: Now open Solution Explorer and right-click on the project and click on "Add" > "Add New Item" or simply press "Ctrl + Shift + A".
Step 5:  A dialog will be opened. Select "Web Form" and provide the name of the Web Form (like: "GrayScaleConverter.aspx") and click on the "Add" button.
Step 6: Now a Web Form will be front of you and that code will be as in the following:
  1. <%@ Page Language="C#" AutoEventWireup="true" CodeFile="GrayScaleConverter.aspx.cs" Inherits="GrayScaleConverter" %>
  2.
  3. <!DOCTYPE html>
  4.
  5. <html xmlns="http://www.w3.org/1999/xhtml">
  6. <head runat="server">
  7.     <title></title>
  8. </head>
  9. <body>
  10.     <form id="form1" runat="server">
  11.         <div>
  12.
  13.         </div>
  14.     </form>
  15. </body>
  16. </html>
Step 7: Now drag and drop the following controls from the tool box:
  1. One File Upload control
  2. One Button control for uploading
  3. One Button control to convert a color image to a gray scale image
After doing all this, my GrayScaleConverter.aspx page code is:
  1. <%@ Page Language="C#" AutoEventWireup="true" CodeFile="GrayScaleConverter.aspx.cs" Inherits="GrayScaleConverter" %>
  2.
  3. <!DOCTYPE html>
  4.
  5. <html xmlns="http://www.w3.org/1999/xhtml">
  6. <head runat="server">
  7.     <title></title>
  8. </head>
  9. <body>
  10.     <form id="form1" runat="server">
  11.         <div>
  12.             Upload an Image:<asp:FileUpload ID="FileUpload1" runat="server" />
  13.              <asp:Button ID="btnUpload" runat="server" Text="Upload" />
  14.             <br />
  15.              <asp:Button ID="btnGrayScale" runat="server" Text="Click Me To Conevert Gray Scale" />
  16.             <br /><br />
  17.             <asp:Image ID="Img" runat="server" />
  18.         </div>
  19.     </form>
  20. </body>
  21. </html>
Step 8: Now open the code behind of this Web Form:
  1. Add the "System.Drawing" namespace
  2. Use a global variable, Bitmap _current.
  3. Write the following code for the "page_load" event:
    1. protected void Page_Load(object sender, EventArgs e)
    2.     {
    3.         if (Session["filepath"] != null)
    4.         {
    5.             Img.ImageUrl = Session["filepath"].ToString();
    6.             _current = (Bitmap)Bitmap.FromFile(Server.MapPath(Session["filepath"].ToString()));
    7.         }
    8.     }
  4. Write the following code in the "Upload" Button's click event:
    1. protected void btnUpload_Click(object sender, EventArgs e)
    2.     {
    3.         if (FileUpload1.HasFile)
    4.         {
    5.             string filePath = Server.MapPath("Images/" + FileUpload1.FileName);
    6.             FileUpload1.SaveAs(filePath);
    7.             Img.ImageUrl = "Images/" + FileUpload1.FileName;
    8.             Session["filepath"] = "Images/" + FileUpload1.FileName;
    9.         }
    10.         else
    11.         {
    12.             Response.Write("Please Select The File");
    13.         }
    14.     }
  5. Write the following code in the "Gray Scale Converter" Button's click event:
    1. protected void btnGrayScale_Click(object sender, EventArgs e)
    2.     {
    3.         if (Session["filepath"] != null)
    4.         {
    5.             Bitmap temp = (Bitmap)_current;
    6.             Bitmap bmap = (Bitmap)temp.Clone();
    7.             Color col;
    8.             for (int i = 0; i < bmap.Width; i++)
    9.             {
    10.                 for (int j = 0; j < bmap.Height; j++)
    11.                 {
    12.                     col = bmap.GetPixel(i, j);
    13.                     byte gray = (byte)(.299 * col.R + .587 * col.G + .114 * col.B);
    14.
    15.                     bmap.SetPixel(i, j, Color.FromArgb(gray, gray, gray));
    16.                 }
    17.             }
    18.
    19.             _current = (Bitmap)bmap.Clone();
    20.             Random rnd = new Random();
    21.             int a = rnd.Next();
    22.             _current.Save(Server.MapPath("Images/" + a + ".png"));
    23.             Img.ImageUrl = "Images/" + a + ".png";
    24.         }
    25.     }
Step 9: Run the project and you will get the following output:

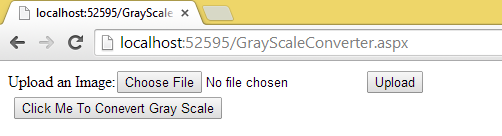

  1. When the project is initially run:

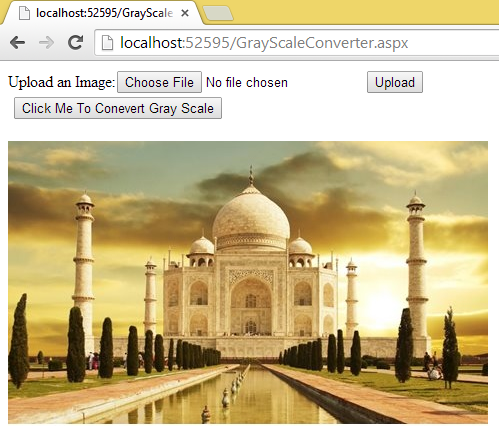

  2. After uploading an image:

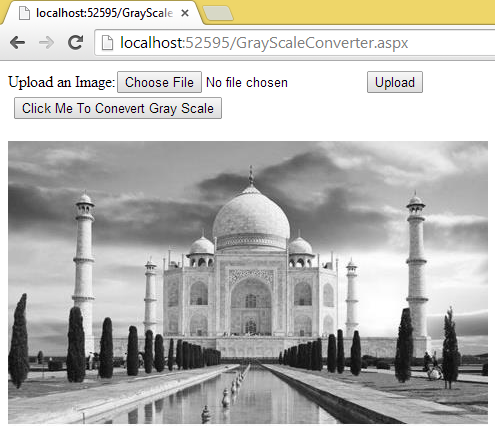

  3. After clicking on the covert gray scale button:

The following is the complete code:
  1. Code for GrayScaleConverter.aspx:
    1. <%@ Page Language="C#" AutoEventWireup="true" CodeFile="GrayScaleConverter.aspx.cs" Inherits="GrayScaleConverter" %>
    2.
    3. <!DOCTYPE html>
    4.
    5. <html xmlns="http://www.w3.org/1999/xhtml">
    6. <head runat="server">
    7.     <title></title>
    8. </head>
    9. <body>
    10.     <form id="form1" runat="server">
    11.         <div>
    12.             Upload an Image:<asp:FileUpload ID="FileUpload1" runat="server" />
    13.              <asp:Button ID="btnUpload" runat="server" Text="Upload" OnClick="btnUpload_Click" />
    14.             <br />
    15.              <asp:Button ID="btnGrayScale" runat="server" Text="Click Me To Conevert Gray Scale" OnClick="btnGrayScale_Click"/>
    16.             <br /><br />
    17.             <asp:Image ID="Img" runat="server" />
    18.         </div>
    19.     </form>
    20. </body>
    21. </html>

  2. Code for GrayScaleConverter.aspx.cs:
    1. using System;
    2. using System.Collections.Generic;
    3. using System.Drawing;
    4. using System.Linq;
    5. using System.Web;
    6. using System.Web.UI;
    7. using System.Web.UI.WebControls;
    8.
    9. public partial class GrayScaleConverter : System.Web.UI.Page
    10. {
    11.     Bitmap _current;
    12.     protected void Page_Load(object sender, EventArgs e)
    13.     {
    14.         if (Session["filepath"] != null)
    15.         {
    16.             Img.ImageUrl = Session["filepath"].ToString();
    17.             _current = (Bitmap)Bitmap.FromFile(Server.MapPath(Session["filepath"].ToString()));
    18.         }
    19.     }
    20.     protected void btnUpload_Click(object sender, EventArgs e)
    21.     {
    22.         if (FileUpload1.HasFile)
    23.         {
    24.             string filePath = Server.MapPath("Images/" + FileUpload1.FileName);
    25.             FileUpload1.SaveAs(filePath);
    26.             Img.ImageUrl = "Images/" + FileUpload1.FileName;
    27.             Session["filepath"] = "Images/" + FileUpload1.FileName;
    28.         }
    29.         else
    30.         {
    31.             Response.Write("Please Select The File");
    32.         }
    33.     }
    34.
    35.     protected void btnGrayScale_Click(object sender, EventArgs e)
    36.     {
    37.         if (Session["filepath"] != null)
    38.         {
    39.             Bitmap temp = (Bitmap)_current;
    40.             Bitmap bmap = (Bitmap)temp.Clone();
    41.             Color col;
    42.             for (int i = 0; i < bmap.Width; i++)
    43.             {
    44.                 for (int j = 0; j < bmap.Height; j++)
    45.                 {
    46.                     col = bmap.GetPixel(i, j);
    47.                     byte gray = (byte)(.299 * col.R + .587 * col.G + .114 * col.B);
    48.
    49.                     bmap.SetPixel(i, j, Color.FromArgb(gray, gray, gray));
    50.                 }
    51.             }
    52.
    53.             _current = (Bitmap)bmap.Clone();
    54.             Random rnd = new Random();
    55.             int a = rnd.Next();
    56.             _current.Save(Server.MapPath("Images/" + a + ".png"));
    57.             Img.ImageUrl = "Images/" + a + ".png";
    58.         }
    59.     }
    60. }
