Binding Data Using ListView and GridView in ASP.NET without Database

Upendra Pratap Shahi
Jul 14, 2015
38.9k
0
4
Article

This article shows how to bind data in data controls without using any database and also shows paging on controls. We will learn here how to bind controls with data without a database and how to handle paging on controls.

Initial Chamber

Step 1

Open your Visual Studio and create an empty website then provide a suitable name such as DataControlExp.

Step 2

In Solution Explorer you will get your empty website, then add some web forms.

DataControlExp (your empty website). Right-click and select Add New Item Web Form. Name it DataControlExp.aspx.

Design Chamber

Step 3

Open the DataControlExp.aspx file and write some code for the design of the application.

This is the ListView design phase.

Here I've designed the ListView Control and used some property as in the following:

<div>
<h3>ListView</h3>
<asp:ListView ID="lvCustomers" runat="server" GroupPlaceholderID="groupPlaceHolder1"
ItemPlaceholderID="itemPlaceHolder1" OnPagePropertiesChanging="OnPagePropertiesChanging">
<LayoutTemplate>
<table border="1">
<tr>
<th>Product </th>
<th>Quantity </th>
<th>Price </th>
</tr>
<asp:PlaceHolder runat="server" ID="groupPlaceHolder1"></asp:PlaceHolder>
<tr>
<td colspan="3">
<asp:DataPager ID="DataPager1" runat="server" PagedControlID="lvCustomers" PageSize="2">
<Fields>
<asp:NextPreviousPagerField ButtonType="Link" ShowFirstPageButton="false" ShowPreviousPageButton="true"
ShowNextPageButton="false" />
<asp:NumericPagerField ButtonType="Link" />
<asp:NextPreviousPagerField ButtonType="Link" ShowNextPageButton="true" ShowLastPageButton="false" ShowPreviousPageButton="false" />
</Fields>
</asp:DataPager>
</td>
</tr>
</table>
</LayoutTemplate>
<GroupTemplate>
<tr>
<asp:PlaceHolder runat="server" ID="itemPlaceHolder1"></asp:PlaceHolder>
</tr>
</GroupTemplate>
<ItemTemplate>
<td><%# Eval("Product_Name") %>
</td>
<td><%# Eval("Quantity") %>
</td>
<td><%# Eval("Price") %>
</td>
</ItemTemplate>
</asp:ListView>
</div>

FormView control

I've designed a FormView control as in the following:

<h3>FormView</h3>
<div>
<asp:FormView ID="FormView1" runat="server"
AllowPaging="True" EnableViewState="False" OnPageIndexChanging="FormView1_PageIndexChanging" BackColor="Green">
<ItemTemplate>
<hr />
<h3><%# Eval("Product_Name") %>
</h3>
<table border="0">
<tr>
<td class="ProductPropertyLabel">Quantity:</td>
<td class="ProductPropertyValue"><%# Eval("Quantity") %>
</td>
<td class="ProductPropertyLabel">Price:</td>
<td class="ProductPropertyValue"><%# Eval("Price")%>
</td>
</tr>
</table>
<hr />
</ItemTemplate>
</asp:FormView>
</div>
Here design DetailsView-
<h3>DetailsView</h3>
<div>
<div>
<asp:DetailsView ID="DetailsView1" OnPageIndexChanging="DetailsView1_PageIndexChanging" BackColor="Wheat"
AllowPaging="true" runat="server" />
</div>
</div>
Here design GridView-
<h3>GridView</h3>
<div>
<asp:GridView ID="gvExample" runat="server" AllowPaging="true" PageSize="2" AutoGenerateColumns="False" BackColor="PINK" BorderColor="#E7E7FF"
BorderWidth="1px" CellPadding="3" OnPageIndexChanging="gvExample_PageIndexChanging">
<Columns>
<asp:TemplateField HeaderText="Product_Name">
<ItemTemplate>
<asp:Label ID="lblProduct" runat="server" Text='<%#Eval("Product_Name")%>'>
</asp:Label>
</ItemTemplate>
</asp:TemplateField>
<asp:TemplateField HeaderText="Quantity">
<ItemTemplate>
<asp:Label ID="lblQuantity" runat="server" Text='<%#Eval("Quantity")%>'>
</asp:Label>
</ItemTemplate>
</asp:TemplateField>
<asp:TemplateField HeaderText="Price">
<ItemTemplate>
<asp:Label ID="lblPrice" runat="server" Text='<%#Eval("Price")%>'>
</asp:Label>
</ItemTemplate>
</asp:TemplateField>
</Columns>
</asp:GridView>
</div>

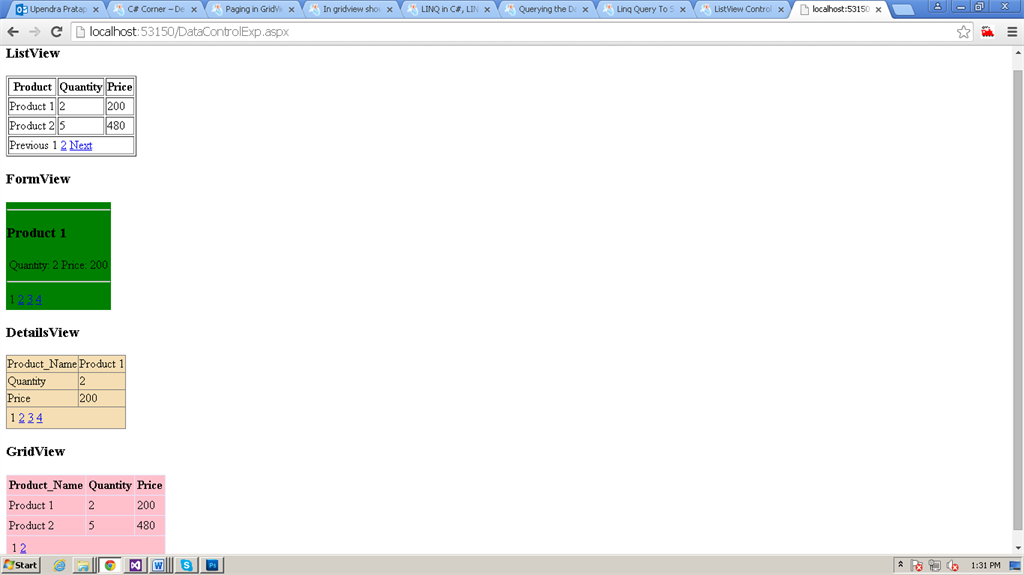

The page looks as in the following.

DataControlExp.aspx

<%@ Page Language="C#" AutoEventWireup="true" CodeFile="DataControlExp.aspx.cs" Inherits="DataControlExp" %>
<!DOCTYPE html>
<html
xmlns="http://www.w3.org/1999/xhtml">
<head runat="server">
<title></title>
</head>
<body>
<form id="form1" runat="server">
<div>
<div style="width: 50%">
<div>
<h3>ListView</h3>
<asp:ListView ID="lvCustomers" runat="server" GroupPlaceholderID="groupPlaceHolder1"
ItemPlaceholderID="itemPlaceHolder1" OnPagePropertiesChanging="OnPagePropertiesChanging">
<LayoutTemplate>
<table border="1">
<tr>
<th>Product
</th>
<th>Quantity
</th>
<th>Price
</th>
</tr>
<asp:PlaceHolder runat="server" ID="groupPlaceHolder1"></asp:PlaceHolder>
<tr>
<td colspan="3">
<asp:DataPager ID="DataPager1" runat="server" PagedControlID="lvCustomers" PageSize="2">
<Fields>
<asp:NextPreviousPagerField ButtonType="Link" ShowFirstPageButton="false" ShowPreviousPageButton="true"
ShowNextPageButton="false" />
<asp:NumericPagerField ButtonType="Link" />
<asp:NextPreviousPagerField ButtonType="Link" ShowNextPageButton="true" ShowLastPageButton="false" ShowPreviousPageButton="false" />
</Fields>
</asp:DataPager>
</td>
</tr>
</table>
</LayoutTemplate>
<GroupTemplate>
<tr>
<asp:PlaceHolder runat="server" ID="itemPlaceHolder1"></asp:PlaceHolder>
</tr>
</GroupTemplate>
<ItemTemplate>
<td><%# Eval("Product_Name") %>
</td>
<td><%# Eval("Quantity") %>
</td>
<td><%# Eval("Price") %>
</td>
</ItemTemplate>
</asp:ListView>
</div>
<br />
<h3>FormView</h3>
<div>
<asp:FormView ID="FormView1" runat="server"
AllowPaging="True" EnableViewState="False" OnPageIndexChanging="FormView1_PageIndexChanging" BackColor="Green">
<ItemTemplate>
<hr />
<h3><%# Eval("Product_Name") %>
</h3>
<table border="0">
<tr>
<td class="ProductPropertyLabel">Quantity:</td>
<td class="ProductPropertyValue"><%# Eval("Quantity") %>
</td>
<td class="ProductPropertyLabel">Price:</td>
<td class="ProductPropertyValue"><%# Eval("Price")%>
</td>
</tr>
</table>
<hr />
</ItemTemplate>
</asp:FormView>
</div>
</div>
<div style="width: 50%">
<h3>DetailsView</h3>
<div>
<div>
<asp:DetailsView ID="DetailsView1" OnPageIndexChanging="DetailsView1_PageIndexChanging" BackColor="Wheat"
AllowPaging="true" runat="server" />
</div>
</div>
<h3>GridView</h3>
<div>
<asp:GridView ID="gvExample" runat="server" AllowPaging="true" PageSize="2" AutoGenerateColumns="False" BackColor="PINK" BorderColor="#E7E7FF"
BorderWidth="1px" CellPadding="3" OnPageIndexChanging="gvExample_PageIndexChanging">
<Columns>
<asp:TemplateField HeaderText="Product_Name">
<ItemTemplate>
<asp:Label ID="lblProduct" runat="server" Text='<%#Eval("Product_Name")%>'>
</asp:Label>
</ItemTemplate>
</asp:TemplateField>
<asp:TemplateField HeaderText="Quantity">
<ItemTemplate>
<asp:Label ID="lblQuantity" runat="server" Text='<%#Eval("Quantity")%>'>
</asp:Label>
</ItemTemplate>
</asp:TemplateField>
<asp:TemplateField HeaderText="Price">
<ItemTemplate>
<asp:Label ID="lblPrice" runat="server" Text='<%#Eval("Price")%>'>
</asp:Label>
</ItemTemplate>
</asp:TemplateField>
</Columns>
</asp:GridView>
</div>
</div>
</div>
</form>
</body>
</html>

CODE CHAMBER

Step 4

In the code chamber we will write some code so that our application works.

DataControlExp.aspx.cs

using System;
using System.Collections.Generic;
using System.Data;
using System.Data.SqlClient;
using System.Linq;
using System.Web;
using System.Web.UI;
using System.Web.UI.WebControls;
public partial class DataControlExp: System.Web.UI.Page
{
protected void Page_Load(object sender, EventArgs e)
{
if (!IsPostBack) {
BindListView();
BindFormView();
BindDetailsView();
BindGridView();
}
}
protected void BindListView()
{
//Creating a dataset
DataSet ds = new DataSet();
DataTable dt;
DataRow dr;
DataColumn pName;
DataColumn pQty;
DataColumn pPrice;
//create an object of datatable
dt = new DataTable();
//creating column of datatable with datatype
pName = new DataColumn("Product_Name", Type.GetType("System.String"));
pQty = new DataColumn("Quantity", Type.GetType("System.Int32"));
pPrice = new DataColumn("Price", Type.GetType("System.Int32"));
//bind data table columns in datatable
dt.Columns.Add(pName);
dt.Columns.Add(pQty);
dt.Columns.Add(pPrice);
//creating data row and assiging the value to columns of datatable
dr = dt.NewRow();
dr["Product_Name"] = "Product 1";
dr["Quantity"] = 2;
dr["Price"] = 200;
dt.Rows.Add(dr);
dr = dt.NewRow();
dr["Product_Name"] = "Product 2";
dr["Quantity"] = 5;
dr["Price"] = 480;
dt.Rows.Add(dr);
dr = dt.NewRow();
dr["Product_Name"] = "Product 3";
dr["Quantity"] = 8;
dr["Price"] = 100;
dt.Rows.Add(dr);
dr = dt.NewRow();
dr["Product_Name"] = "Product 4";
dr["Quantity"] = 2;
dr["Price"] = 500;
dt.Rows.Add(dr);
//Add datatable to the dataset
ds.Tables.Add(dt);
//bind data to data controls
lvCustomers.DataSource = ds.Tables[0];
lvCustomers.DataBind();
}
//paging code
protected void OnPagePropertiesChanging(object sender, PagePropertiesChangingEventArgs e)
{
(lvCustomers.FindControl("DataPager1") as DataPager).SetPageProperties(e.StartRowIndex, e.MaximumRows, false);
this.BindListView();
}
protected void BindFormView()
{
//Creating a dataset
DataSet ds = new DataSet();
DataTable dt;
DataRow dr;
DataColumn pName;
DataColumn pQty;
DataColumn pPrice;
//create an object of datatable
dt = new DataTable();
//creating column of datatable with datatype
pName = new DataColumn("Product_Name", Type.GetType("System.String"));
pQty = new DataColumn("Quantity", Type.GetType("System.Int32"));
pPrice = new DataColumn("Price", Type.GetType("System.Int32"));
//bind data table columns in datatable
dt.Columns.Add(pName);
dt.Columns.Add(pQty);
dt.Columns.Add(pPrice);
//creating data row and assiging the value to columns of datatable
dr = dt.NewRow();
dr["Product_Name"] = "Product 1";
dr["Quantity"] = 2;
dr["Price"] = 200;
dt.Rows.Add(dr);
dr = dt.NewRow();
dr["Product_Name"] = "Product 2";
dr["Quantity"] = 5;
dr["Price"] = 480;
dt.Rows.Add(dr);
dr = dt.NewRow();
dr["Product_Name"] = "Product 3";
dr["Quantity"] = 8;
dr["Price"] = 100;
dt.Rows.Add(dr);
dr = dt.NewRow();
dr["Product_Name"] = "Product 4";
dr["Quantity"] = 2;
dr["Price"] = 500;
dt.Rows.Add(dr);
//Add datatable to the dataset
ds.Tables.Add(dt);
//bind data to data controls
FormView1.DataSource = ds.Tables[0];
FormView1.DataBind();
}
//paging code
protected void FormView1_PageIndexChanging(object sender, FormViewPageEventArgs e)
{
FormView1.PageIndex = e.NewPageIndex;
BindFormView();
}
protected void BindDetailsView()
{
//Creating a dataset
DataSet ds = new DataSet();
DataTable dt;
DataRow dr;
DataColumn pName;
DataColumn pQty;
DataColumn pPrice;
//create an object of datatable
dt = new DataTable();
//creating column of datatable with datatype
pName = new DataColumn("Product_Name", Type.GetType("System.String"));
pQty = new DataColumn("Quantity", Type.GetType("System.Int32"));
pPrice = new DataColumn("Price", Type.GetType("System.Int32"));
//bind data table columns in datatable
dt.Columns.Add(pName);
dt.Columns.Add(pQty);
dt.Columns.Add(pPrice);
//creating data row and assiging the value to columns of datatable
dr = dt.NewRow();
dr["Product_Name"] = "Product 1";
dr["Quantity"] = 2;
dr["Price"] = 200;
dt.Rows.Add(dr);
dr = dt.NewRow();
dr["Product_Name"] = "Product 2";
dr["Quantity"] = 5;
dr["Price"] = 480;
dt.Rows.Add(dr);
dr = dt.NewRow();
dr["Product_Name"] = "Product 3";
dr["Quantity"] = 8;
dr["Price"] = 100;
dt.Rows.Add(dr);
dr = dt.NewRow();
dr["Product_Name"] = "Product 4";
dr["Quantity"] = 2;
dr["Price"] = 500;
dt.Rows.Add(dr);
//Add datatable to the dataset
ds.Tables.Add(dt);
//bind data to data controls
DetailsView1.DataSource = ds.Tables[0];
DetailsView1.DataBind();
}
//paging code
protected void DetailsView1_PageIndexChanging(object sender, DetailsViewPageEventArgs e)
{
DetailsView1.PageIndex = e.NewPageIndex;
BindDetailsView();
}
protected void BindGridView()
{
//Creating a dataset
DataSet ds = new DataSet();
DataTable dt;
DataRow dr;
DataColumn pName;
DataColumn pQty;
DataColumn pPrice;
//create an object of datatable
dt = new DataTable();
//creating column of datatable with datatype
pName = new DataColumn("Product_Name", Type.GetType("System.String"));
pQty = new DataColumn("Quantity", Type.GetType("System.Int32"));
pPrice = new DataColumn("Price", Type.GetType("System.Int32"));
//bind data table columns in datatable
dt.Columns.Add(pName);
dt.Columns.Add(pQty);
dt.Columns.Add(pPrice);
//creating data row and assiging the value to columns of datatable
dr = dt.NewRow();
dr["Product_Name"] = "Product 1";
dr["Quantity"] = 2;
dr["Price"] = 200;
dt.Rows.Add(dr);
dr = dt.NewRow();
dr["Product_Name"] = "Product 2";
dr["Quantity"] = 5;
dr["Price"] = 480;
dt.Rows.Add(dr);
dr = dt.NewRow();
dr["Product_Name"] = "Product 3";
dr["Quantity"] = 8;
dr["Price"] = 100;
dt.Rows.Add(dr);
dr = dt.NewRow();
dr["Product_Name"] = "Product 4";
dr["Quantity"] = 2;
dr["Price"] = 500;
dt.Rows.Add(dr);
//Add datatable to the dataset
ds.Tables.Add(dt);
//bind data to data controls
gvExample.DataSource = ds.Tables[0];
gvExample.DataBind();
}
//paging code
protected void gvExample_PageIndexChanging(object sender, GridViewPageEventArgs e)
{
gvExample.PageIndex = e.NewPageIndex;
BindGridView();
}
}
