Open Another Gridview in Pop-up using Bootstrap Modal Pop-up

This shows a pop-up on a link button clicked inside a first grid and then open a second grid in a modal window of Bootstrap. With Bootstrap it is easy to design responsive sites. In this I’ve used the jQuery library and Bootstrap.

Background

I encountered an opportunity from the problem to show one grid view on a link button click in modal pop-up programmatically, so I wrote this article to help other developers.

Initial chamber

Step 1

Open your Visual Studio and create an empty website, provide a suitable name such as GridViewPopup.

Step 2

In Solution Explorer you get your empty website, then add web forms.

For Web Form

GridViewPopup (your empty website). Right-click and select Add New Item -> Web Form. Name it GridviewPopup.aspx.

Design chamber

Step 3

Open the GridviewPopup.aspx file and write some code for the design of the application.

First add the jQuery plugin in your head section. Here I used jquery-1.10.2.js plugin for demonstration purposes.

How to add in your page

In the head section of your web page:

  1. <script src="http://code.jquery.com/jquery-1.10.2.js"></script>
  2. Add bootstrap CSS plugin
  3. <link rel="stylesheet" href="https://maxcdn.bootstrapcdn.com/bootstrap/3.3.5/css/bootstrap.min.css"/>
Then add the following plugin for optional theme:
  1. <!-- Optional theme -->
  2. <link rel="stylesheet" href="https://maxcdn.bootstrapcdn.com/bootstrap/3.3.5/css/bootstrap-theme.min.css"/>
After that I added the Bootstrap plugin to work with bootstrap as in the following:
  1. <!-- Optional theme -->
  2.     <link rel="stylesheet" href="https://maxcdn.bootstrapcdn.com/bootstrap/3.3.5/css/bootstrap-theme.min.css"/>
  3. After this I’ve added Bootstrap plugin for working with bootstrap-
  4. <!-- Latest compiled and minified JavaScript -->
  5.     <script src="https://maxcdn.bootstrapcdn.com/bootstrap/3.3.5/js/bootstrap.min.js"></script>
  6. Add control on your page and your page looks like below-
  7. div style="background-color:mediumaquamarine;">
  8.             <asp:GridView ID="GridView1" AutoGenerateColumns="false" OnRowDataBound="GridView1_RowDataBound" runat="server">
  9.                 <Columns>
  10.                     <asp:BoundField DataField="Product_Name" HeaderText="Product_Name" />
  11.                     <asp:BoundField DataField="Quantity" HeaderText="Quantity" />
  12.                     <asp:BoundField DataField="Price" HeaderText="Price" />
  13.                     <asp:TemplateField HeaderText="Show related">
  14.                         <ItemTemplate>
  15.                             <asp:LinkButton ID="lnkdetail" href="#myModal" data-toggle="modal" runat="server">Show Data</asp:LinkButton>
  16.                         </ItemTemplate>
  17.                     </asp:TemplateField>
  18.                 </Columns>
  19.             </asp:GridView>
  20.         </div>
Now the design looks as in the following:

design

Now add a GridView to be shown in a modal popup:



  1. <!-- this is bootstrp modal popup -->
  2.         <div id="myModal" class="modal fade">
  3.             <div class="modal-dialog">
  4.                 <div class="modal-content">
  5.                     <div class="modal-header">
  6.                         <button type="button" class="close" data-dismiss="modal" aria-hidden="true">×</button>
  7.                         <h4 class="modal-title">Welcome in detail page</h4>
  8.                     </div>
  9.                     <div class="modal-body" style="overflow-y: scroll; max-height: 85%; margin-top: 50px; margin-bottom: 50px;">
  10.                         <asp:Label ID="lblmessage" runat="server" ClientIDMode="Static"></asp:Label>
  11.                         <asp:GridView ID="GridView2" runat="server"></asp:GridView>
  12.                     </div>
  13.                     <div class="modal-footer">
  14.                         <button type="button" class="btn btn-default" data-dismiss="modal">Close</button>
  15.
  16.                     </div>
  17.                 </div>
  18.             </div>
  19.         </div>
Here I have taken a dive to show a GridView in a modal pop-up and that ID is myModal and in the link button URL I've called this ID to show it in a modal pop-up.
  1. <asp:LinkButton ID="lnkdetail" href="#myModal" data-toggle="modal" runat="server">Show Data</asp:LinkButton>
Now your page looks as in the following:
  1. <%@ Page Language="C#" AutoEventWireup="true" CodeFile="GridviewPopup.aspx.cs" Inherits="GridviewPopup" %>
  2.
  3. <!DOCTYPE html>
  4.
  5. <html xmlns="http://www.w3.org/1999/xhtml">
  6. <head runat="server">
  7.     <title></title>
  8.      <script src="http://code.jquery.com/jquery-1.10.2.js"></script>
  9.     <link rel="stylesheet" href="https://maxcdn.bootstrapcdn.com/bootstrap/3.3.5/css/bootstrap.min.css"/>
  10.
  11.     <!-- Optional theme -->
  12.     <link rel="stylesheet" href="https://maxcdn.bootstrapcdn.com/bootstrap/3.3.5/css/bootstrap-theme.min.css"/>
  13.
  14.     <!-- Latest compiled and minified JavaScript -->
  15.     <script src="https://maxcdn.bootstrapcdn.com/bootstrap/3.3.5/js/bootstrap.min.js"></script>
  16. </head>
  17. <body>
  18.     <form id="form1" runat="server">
  19.         <center>
  20.         <div style="background-color:mediumaquamarine;">
  21.             <asp:GridView ID="GridView1" AutoGenerateColumns="false" OnRowDataBound="GridView1_RowDataBound" runat="server">
  22.                 <Columns>
  23.                     <asp:BoundField DataField="Product_Name" HeaderText="Product_Name" />
  24.                     <asp:BoundField DataField="Quantity" HeaderText="Quantity" />
  25.                     <asp:BoundField DataField="Price" HeaderText="Price" />
  26.                     <asp:TemplateField HeaderText="Show related">
  27.                         <ItemTemplate>
  28.                             <asp:LinkButton ID="lnkdetail" href="#myModal" data-toggle="modal" runat="server">Show Data</asp:LinkButton>
  29.                         </ItemTemplate>
  30.                     </asp:TemplateField>
  31.                 </Columns>
  32.             </asp:GridView>
  33.         </div>
  34.         <!-- this is bootstrp modal popup -->
  35.         <div id="myModal" class="modal fade">
  36.             <div class="modal-dialog">
  37.                 <div class="modal-content">
  38.                     <div class="modal-header">
  39.                         <button type="button" class="close" data-dismiss="modal" aria-hidden="true">×</button>
  40.                         <h4 class="modal-title">Welcome in detail page</h4>
  41.                     </div>
  42.                     <div class="modal-body" style="overflow-y: scroll; max-height: 85%; margin-top: 50px; margin-bottom: 50px;">
  43.                         <asp:Label ID="lblmessage" runat="server" ClientIDMode="Static"></asp:Label>
  44.                         <asp:GridView ID="GridView2" runat="server"></asp:GridView>
  45.                     </div>
  46.                     <div class="modal-footer">
  47.                         <button type="button" class="btn btn-default" data-dismiss="modal">Close</button>
  48.
  49.                     </div>
  50.                 </div>
  51.             </div>
  52.         </div>
  53.         </center>
  54.         <!-- end -->
  55.     </form>
  56. </body>
  57. </html>
On code behind page

Adding namespaces to the page:
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Data;
  4. using System.Linq;
  5. using System.Web;
  6. using System.Web.UI;
  7. using System.Web.UI.WebControls;
Here I created a static data table for binding the Grid. Now the page looks as in:
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Data;
  4. using System.Linq;
  5. using System.Web;
  6. using System.Web.UI;
  7. using System.Web.UI.WebControls;
  8.
  9. public partial class GridviewPopup : System.Web.UI.Page
  10. {
  11.     protected void Page_Load(object sender, EventArgs e)
  12.     {
  13.         if (!IsPostBack)
  14.         {
  15.             BindGridView1();
  16.         }
  17.     }
  18.
  19.     protected void BindGridView1() {
  20.         DataSet ds = new DataSet();
  21.         DataTable dt;
  22.         DataRow dr;
  23.         DataColumn pName;
  24.         DataColumn pQty;
  25.         DataColumn pPrice;
  26.         int i = 0;
  27.         dt = new DataTable();
  28.         pName = new DataColumn("Product_Name", Type.GetType("System.String"));
  29.         pQty = new DataColumn("Quantity", Type.GetType("System.Int32"));
  30.         pPrice = new DataColumn("Price", Type.GetType("System.Int32"));
  31.         dt.Columns.Add(pName);
  32.         dt.Columns.Add(pQty);
  33.         dt.Columns.Add(pPrice);
  34.         dr = dt.NewRow();
  35.         dr["Product_Name"] = "Product 1";
  36.         dr["Quantity"] = 2;
  37.         dr["Price"] = 200;
  38.         dt.Rows.Add(dr);
  39.         dr = dt.NewRow();
  40.         dr["Product_Name"] = "Product 2";
  41.         dr["Quantity"] = 5;
  42.         dr["Price"] = 480;
  43.         dt.Rows.Add(dr);
  44.         dr = dt.NewRow();
  45.         dr["Product_Name"] = "Product 3";
  46.         dr["Quantity"] = 8;
  47.         dr["Price"] = 100;
  48.         dt.Rows.Add(dr);
  49.         dr = dt.NewRow();
  50.         dr["Product_Name"] = "Product 4";
  51.         dr["Quantity"] = 2;
  52.         dr["Price"] = 500;
  53.         dt.Rows.Add(dr);
  54.         ds.Tables.Add(dt);
  55.         GridView1.DataSource = ds.Tables[0];
  56.         GridView1.DataBind();
  57.     }
  58. //for pop-up gridview
  59.     protected void BindGrid2() {
  60.         DataSet ds = new DataSet();
  61.         DataTable dt;
  62.         DataRow dr;
  63.         DataColumn pName;
  64.         DataColumn pQty;
  65.         DataColumn pPrice;
  66.         int i = 0;
  67.         dt = new DataTable();
  68.         pName = new DataColumn("Product_Name", Type.GetType("System.String"));
  69.         pQty = new DataColumn("Quantity", Type.GetType("System.Int32"));
  70.         pPrice = new DataColumn("Price", Type.GetType("System.Int32"));
  71.         dt.Columns.Add(pName);
  72.         dt.Columns.Add(pQty);
  73.         dt.Columns.Add(pPrice);
  74.         dr = dt.NewRow();
  75.         dr["Product_Name"] = "FMCG";
  76.         dr["Quantity"] = 2;
  77.         dr["Price"] = 200;
  78.         dt.Rows.Add(dr);
  79.         dr = dt.NewRow();
  80.         dr["Product_Name"] = "Cold Drink";
  81.         dr["Quantity"] = 5;
  82.         dr["Price"] = 480;
  83.         dt.Rows.Add(dr);
  84.         dr = dt.NewRow();
  85.         dr["Product_Name"] = "Biscuits";
  86.         dr["Quantity"] = 8;
  87.         dr["Price"] = 100;
  88.         dt.Rows.Add(dr);
  89.         dr = dt.NewRow();
  90.         dr["Product_Name"] = "Mixture";
  91.         dr["Quantity"] = 2;
  92.         dr["Price"] = 500;
  93.         dt.Rows.Add(dr);
  94.         ds.Tables.Add(dt);
  95.         GridView2.DataSource = ds.Tables[0];
  96.         GridView2.DataBind();
  97.     }
  98.     protected void GridView1_RowDataBound(object sender, GridViewRowEventArgs e)
  99.     {
  100.         if (e.Row.RowType == DataControlRowType.DataRow)
  101.         {
  102.
  103.             string username = Convert.ToString(DataBinder.Eval(e.Row.DataItem, "Product_Name"));
  104.             LinkButton lnkbtnresult = (LinkButton)e.Row.FindControl("lnkdetail");
  105.             BindGrid2();
  106.         }
  107.     }
  108. }
Now the output looks as in:

gridview
Figure 1: On initial loading

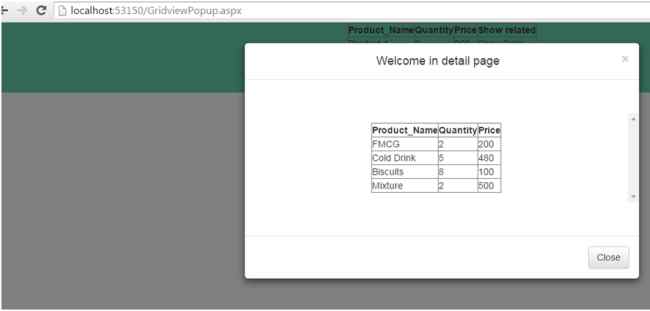

On link button click
Figure 2: On link button click

I hope you liked this. Have a good day. Thank you for reading.
