Fire Detecting Using Arduino

Flame sensor

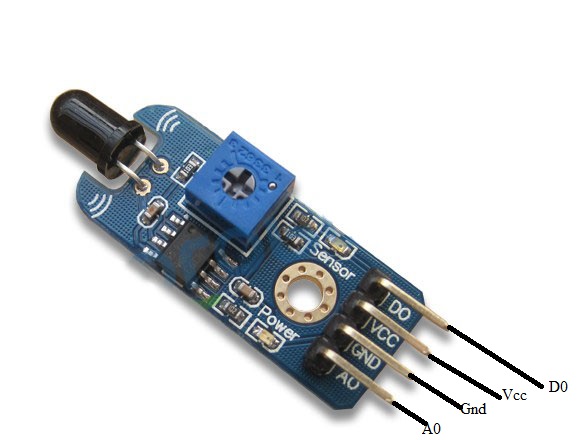

      Figure 1: Flame Sensor
  • It is used to detect and respond to the presence of Flame (or) Fire.
  • The detected flame depend on the installation.
  • We will also include sounding an alarm.
Where We Can Fix
  • Schools/Colleges
  • Transport
  • Industrial Furnaces etc
Part Of List:
  • Arduino Uno
  • Flame Sensor
  • Jumper Wire
  • USB Cable
  • Bread Board.
Connection:

Flame Sensor to Arduino:

Step 1: Vcc =Postive voltage input 5v

Step 2:
A0 =Analog input pin to Arduino

Step 3: Gnd =Gnd to Gnd.

Buzzer:

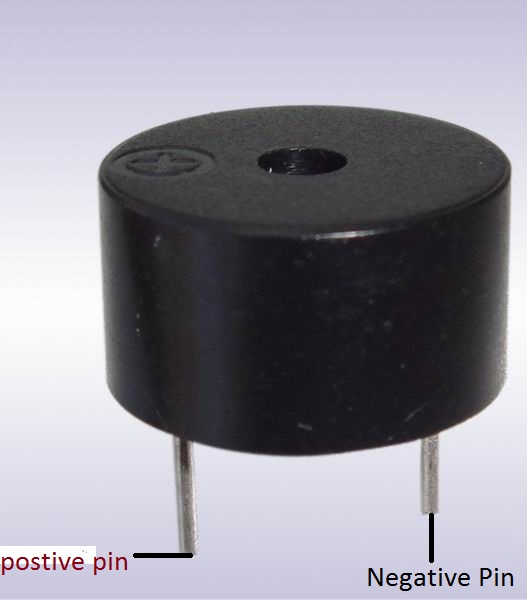

   Figure2:
Buzzer.

Step 1:
Fix the buzzer in the bread board.

Step 2:
Connect the positive pin to digital pin 9.

Step 3: Connect the negative pin to Gnd.

LED:

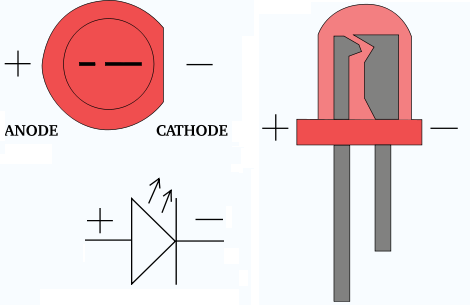

      Figure 3:LED

Step 1:
Fix the led in the bread board.

Step 2: Connect the positive pin to digital pin 2.

Step 3: Connect the negative pin to Gnd.

Program:
  1. #include < SoftwareSerial.h >
  2.     int sensorPin = A0; // select the input pin for the LDR
  3. int sensorValue = 0; // variable to store the value coming from the sensor
  4. int led = 2; // Output pin for LED
  5. int buzzer = 9; // Output pin for Buzzer
  6. void setup()
  7. {
  8.     // declare the ledPin and buzzer as an OUTPUT:
  9.     pinMode(led, OUTPUT);
  10.     pinMode(buzzer, OUTPUT);
  11.     Serial.begin(9600);
  12. }
  13. void loop()
  14. {
  15.     Serial.println("Welcome to c#corner");
  16.     sensorValue = analogRead(sensorPin);
  17.     Serial.println(sensorValue);
  18.     if (sensorValue < 100)
  19.     {
  20.         Serial.println("Fire Detected");
  21.         Serial.println("LED on");
  22.         digitalWrite(led, HIGH);
  23.         digitalWrite(buzzer, HIGH);
  24.         delay(1000);
  25.     }
  26.     digitalWrite(led, LOW);
  27.     digitalWrite(buzzer, LOW);
  28.     delay(sensorValue);
  29.
Explanation:
  • This fire can be lightly spread and it will produced a sound.
  • Then automatically emergency light also gets ON.
  • The value of the sensor can be see in the serial monitor.
  • When Fire is detected the led can be on (HIGH).

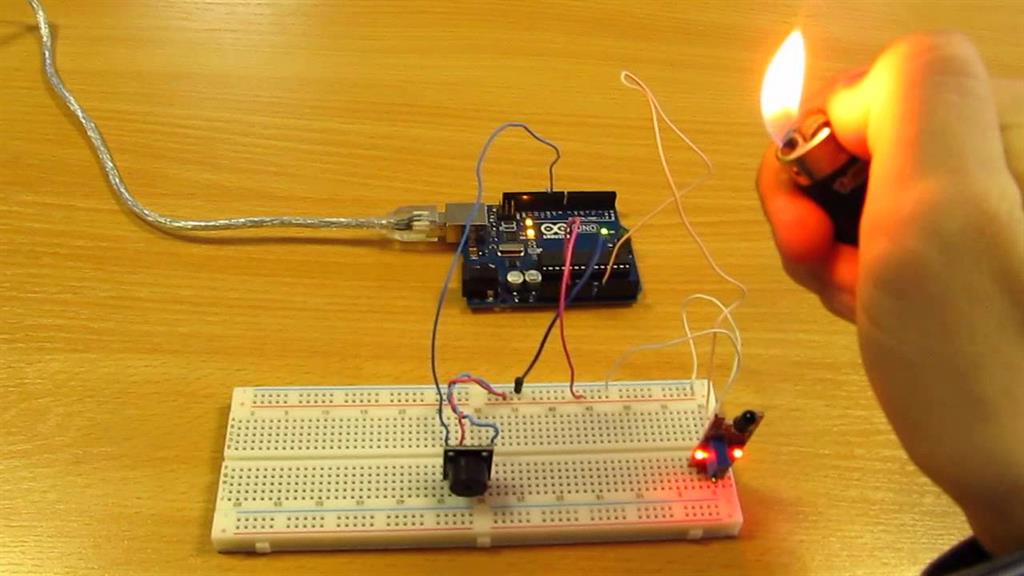

Output

                                                      Figure 5: Output
